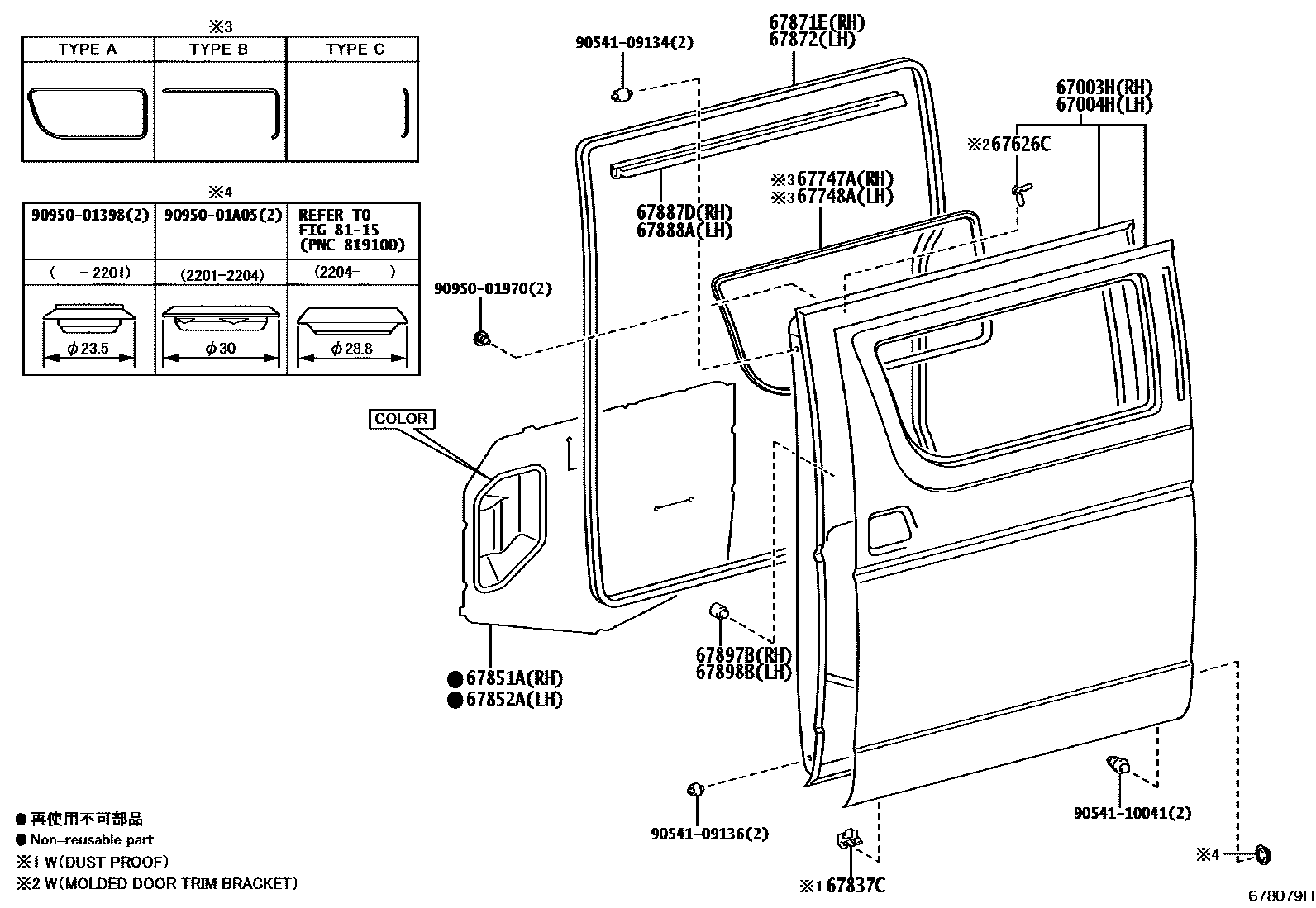

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM(MOLDED DOOR TRIM) 0005 1DOOR TRIM(BOARD)

67003HDOOR SUB-ASSY, SLIDE, RH

main67003-26270iKDH220..GEN201312-202201

REAR SIDE GLASS(RH)-FIXED(UV CUT GREEN)

main67003-26270iTRH221..SG201911-202201

main67003-26280iKDH221,223..(03S,16S)..(GEN,VN)201312-201904

main67003-26290iKDH222,TRH223..GL..GCC201312-202201

main67003-26310iKDH220201312-202201

main67003-26320iKDH220..GEN201312-202201

POWER DOOR LOCK-WITH

main67003-26320iTRH221..SA202108-202201

main67003-26330iTRH203..4FC201312-202201

REAR SIDE GLASS(RH)-FIXED(UV CUT GREEN)

main67003-26340iKDH201,TRH201..SG..GEN201312-202004

main67003-26350iKDH213201312-202107

main67003-26360iKDH200..LHD..4D;KDH200,LH200..RHD..5D201312-202201

main67003-26370iKDH201..RHD..03S..5F..GEN201312-202201

POWER DOOR LOCK-WITH

main67003-26380iTRH201..06S..GCC201701-202201

REAR SIDE GLASS(RH)-FIXED(UV CUT GREEN)

main67003-26400iKDH200,TRH201..03S..GCC201701-202201

main67003-26420iKDH222,TRH223..5F..STD..GCC201701-202201

main67003-26440iKDH222,TRH223..GL..GCC201701-201902

main67003-26450iTRH221..GCC201701-202201

main67003-26480iTRH223..10S201312-201612

main67003-V3010iLH200..LHD202201-202506

REAR SIDE GLASS(RH)-FIXED(UV CUT GREEN)

main67003-V3040iLH200..5D;LH200..LHD202201-202506

main67003-V3050iTRH200..5F202201-202507

POWER DOOR LOCK-WITH

main67003-V3050iKDH201..5F202201-202301

main67003-V3060iTRH201..GEN202201

REAR SIDE GLASS(RH)-FIXED(UV CUT GREEN)

main67003-V3060iTRH201..GEN202201

LEBANON SPEC&REAR SIDE GLASS(RH)-FIXED(UV CUT GREEN)

main67003-V3060iTRH201..GEN202201

LEBANON SPEC

main67003-V3080iKDH200..GCC202201-202401

main67003-V3080iTRH201..03S..GCC202201

LEBANON SPEC

main67003-V3110iKDH222,TRH223..LHD..GEN202201

REAR SIDE GLASS(RH)-FIXED(UV CUT GREEN)

main67003-V3110iKDH222..STD..GCC202201-202506

main67003-V3130iKDH222..GL..GCC202201

main67003-V3140iTRH221..GEN202201

main67003-V3150iTRH221..SA202201-202312

main67003-V3160iTRH221..GCC202201

REAR SIDE GLASS(RH)-FIXED(UV CUT GREEN)

main67003-V3160iKDH222..STD..GCC202201-202401

main67003-V3180iTRH221..GCC202201

67004HDOOR SUB-ASSY, SLIDE, LH

main67004-26600iKDH221,TRH221..ARL201312-202201

REFER TO PNC 67852A

main67004-26600iKDH223..4FC..TH;KDH221,222..RHD..SG..STD;TRH223..STD..(ARL,SA,TH);KDH220,223,LH222,TRH221..RHD..(06S,14S,16S)..5F..(ARL,GEN,SA)201312-202201

REAR SIDE GLASS(LH)-FIXED(UV CUT GREEN),REFER TO PNC 67852A

main67004-26610iKDH223..ARL201902-202201

REFER TO PNC 67852A

main67004-26620iKDH222..RHD..STD..GEN201312-202201

INDONESIA SPEC&INDONESIA HI PACKAGE,REFER TO PNC 67852A

main67004-26620iKDH222,TRH223..GL..SA201312-202201

REFER TO PNC 67852A

main67004-26630iTRH221..GCC201312-202201

REFER TO PNC 67852A

main67004-26640iKDH201,202,203,212,LH202,212,TRH201,203..RHD..SG..(GEN,MA,TH)201312-202201

REFER TO PNC 67852A

main67004-26640iTRH213..RHD..GEN201312-202201

REAR SIDE GLASS(LH)-FIXED(UV CUT GREEN),REFER TO PNC 67852A

main67004-26660iKDH212,TRH213..SA201312-202107

REFER TO PNC 67852A

main67004-26670iKDH201..03S;LH200..RHD..4D;KDH200..LHD..5D..GEN;KDH200,201..4D..(ARL,MA);TRH201..SP..(ARL,GEN,SA)201312-202201

REFER TO PNC 67852A

main67004-26680iTRH201..06S..GCC201701-202201

REFER TO PNC 67852A

main67004-26690iKDH200,TRH201..03S..GCC201701-202201

REFER TO PNC 67852A

main67004-26700iTRH221..GCC201701-202201

REFER TO PNC 67852A

main67004-V3010iKDH201202201-202506

REAR SIDE GLASS(LH)-FIXED(UV CUT GREEN),REFER TO PNC 67852A

main67004-V3010iKDH203,212..RHD..GEN202201-202506

REFER TO PNC 67852A

main67004-V3040iKDH200..GCC202201-202507

REFER TO PNC 67852A

main67004-V3050iTRH201..06S202201

REFER TO PNC 67852A

main67004-V3060iKDH200..GCC202201-202401

REFER TO PNC 67852A

main67004-V3060iTRH201..GEN202201

LEBANON SPEC,REFER TO PNC 67852A

main67004-V3070iTRH221..GCC202201

REFER TO PNC 67852A

main67004-V3080iKDH223..KEN,TH;KDH222,TRH223..RHD..16S202201-202212

REFER TO PNC 67852A

main67004-V3090iKDH223..ARL202201-202301

REFER TO PNC 67852A

main67004-V3100iKDH223..GEN;KDH222..GL..SA202201

REFER TO PNC 67852A

main67004-V3110iTRH221..SA202201-202312

REFER TO PNC 67852A

67626CBRACKET, REAR DOOR TRIM, NO.2

main67626-26010iKDH212,TRH213..SA201312-202107

67747AMOULDING, REAR DOOR TRIM, NO.2 RH

main67745-26010iKDH220,TRH221..06S;KDH201,203,221,TRH201,221..SG..(03S,06S,12S)..STD;KDH202,212,222,LH202,212,222,TRH203,213,223..LHD..STD201312-201406

TYPE A:REFER ILLUST.

main67745-26010iKDH220,TRH221..06S;KDH201,203,221,TRH201,221..SG..(03S,06S,12S)..STD;KDH202,212,222,LH202,212,222,TRH203,213,223..LHD..STD201312-201406

REAR SIDE GLASS(RH)-FIXED(UV CUT GREEN),TYPE A:REFER ILLUST.

main67745-26011iLH202,222..LHD;TRH203..5F..GCC201407-202506

REAR SIDE GLASS(RH)-FIXED(UV CUT GREEN),TYPE A:REFER ILLUST.

main67745-26011iTRH203..4FC201407-202506

TYPE A:REFER ILLUST.

main67745-26020iKDH213..TH201312-202107

TYPE B:REFER ILLUST.

main67745-26030iTRH223..GL..GEN201312-201902

TYPE C:REFER ILLUST.

67748AMOULDING, REAR DOOR TRIM, NO.2 LH

main67745-26030iKDH222..GL..SA201312-202301

TYPE C:REFER ILLUST.

main67745-26030iKDH222,TRH223..GL..SA201312-201902

*POSD(LH) & *ECS(LH),TYPE C:REFER ILLUST.

main67746-0L010iKDH223,TRH223..TH201401-201904

TYPE A:REFER ILLUST.

main67746-26010iTRH201..06S;KDH212,220,222,LH212,222,TRH213,22#..RHD..(06S,14S,16S)..STD..(ARL,GEN,SA);KDH201,202,203,221,223,LH202,TRH203..RHD..SG..(02S,03S,06S,10S,12S,14S,15S)201312-201406

TYPE A:REFER ILLUST.

main67746-26010iKDH200,201,220,221,LH200,TRH201,221..RHD..SP..(02S,03S)..(ARL,GEN,SA)201312-201406

REAR SIDE GLASS(LH)-FIXED(UV CUT GREEN),TYPE A:REFER ILLUST.

main67746-26011iKDH223..4FC..ARL;TRH223..RHD..GEN201407-202506

TYPE A:REFER ILLUST.

main67746-26011iTRH213..RHD..GEN201407-202506

REAR SIDE GLASS(LH)-FIXED(UV CUT GREEN),TYPE A:REFER ILLUST.

main67746-26020iKDH21#,TRH213..GL201312-202107

TYPE B:REFER ILLUST.

67837CSEAL, REAR DOOR DUST PROOF

main67837-26030iKDH223..5F..(ARL,KEN,RUS);KDH222,TRH223..STD..(ARL,SA);TRH213,223..LHD..(10S,12S,13S);GDH223,KDH201,TRH201..RHD..(02S,14S)201312-202301

DUST PROTECTION DEVICE-WITH SPECIAL PROTECTION

main67837-26030iKDH222..KEN201312-202212

67851ACOVER, SLIDE DOOR SERVICE HOLE, NO.1

main67851-26030iKDH220..03S..SA;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC201312-202507

main67851-26040iKDH222..GL..GCC;TRH223..5F..GL..GEN201312-202107

67852ACOVER, SLIDE DOOR SERVICE HOLE, NO.2

main67851-26030iKDH223..4FC..ARL201312-201902

COLOR:YELLOW

main67851-26030iLH200..5D;KDH200,TRH213..RHD..STD..(GEN,SA)201312-202507

COLOR : YELLOW

main67851-26030iLH200..5D;KDH200,TRH213..RHD..STD..(GEN,SA)201312-202506

DUST PROTECTION DEVICE-WITH SPECIAL PROTECTION,COLOR:YELLOW

main67852-26010iKDH223..ARL201902-202301

COLOR:PINK

main67852-26010iKDH223,TRH223..ARL201312-202107

COLOR : PINK

main67852-26010iKDH223..4FC..ARL201312-201902

*POSD(LH) & *ECS(LH),COLOR:PINK

main67852-26010iKDH223..4FC..ARL201312-201902

DUST PROTECTION DEVICE-STANDARD&*POSD(LH) & *ECS(LH),COLOR:PINK

main67852-26010iGDH201,KDH201,TRH200..SP..06S201312-202107

DUST PROTECTION DEVICE-WITH SPECIAL PROTECTION

main67852-26010iKDH201..05S201501-201901

67871EWEATHERSTRIP, SLIDE DOOR, NO.1 RH

main67871-0L020iKDH223..VN201801-201904

main67871-26010iLH200..5D201312-202507

main67871-26030iLH222..LHD201312-202506

67872WEATHERSTRIP, REAR DOOR, LH

main67872-0L010iKDH223,TRH223..TH201401-201904

main67872-26020iKDH200,212,TRH213..SA201312-202507

main67872-26030iTRH221..SA201312-202312

67887DWEATHERSTRIP, SLIDE DOOR, NO.2 RH

main67887-26020iTRH203..4FC;KDH200..LHD..4D;KDH200,LH200..RHD..5D201312-202507

67888AWEATHERSTRIP, REAR DOOR, NO.2 LH

main67888-0L010iKDH223,TRH223..TH201401-201904

main67888-26020iTRH213..RHD..GEN201312-202507

67897BCUSHION, REAR DOOR, RH

main90541-09128iTRH221..SG;KDH222,TRH223..5F..STD..GCC201312-202507

67898BCUSHION, REAR DOOR, LH

main90541-09128iKDH200..MA201312-202507

8115REFLEX REFLECTOR

→ Go to FIG 81-15

9054109134

main90541-09134

9054109136

main90541-09136

9054110041

main90541-10041

9095001398

main90950-01398

9095001970

main90950-01970

9095001A05

main90950-01A05

21 parts on this diagram · 3 diagrams in section
