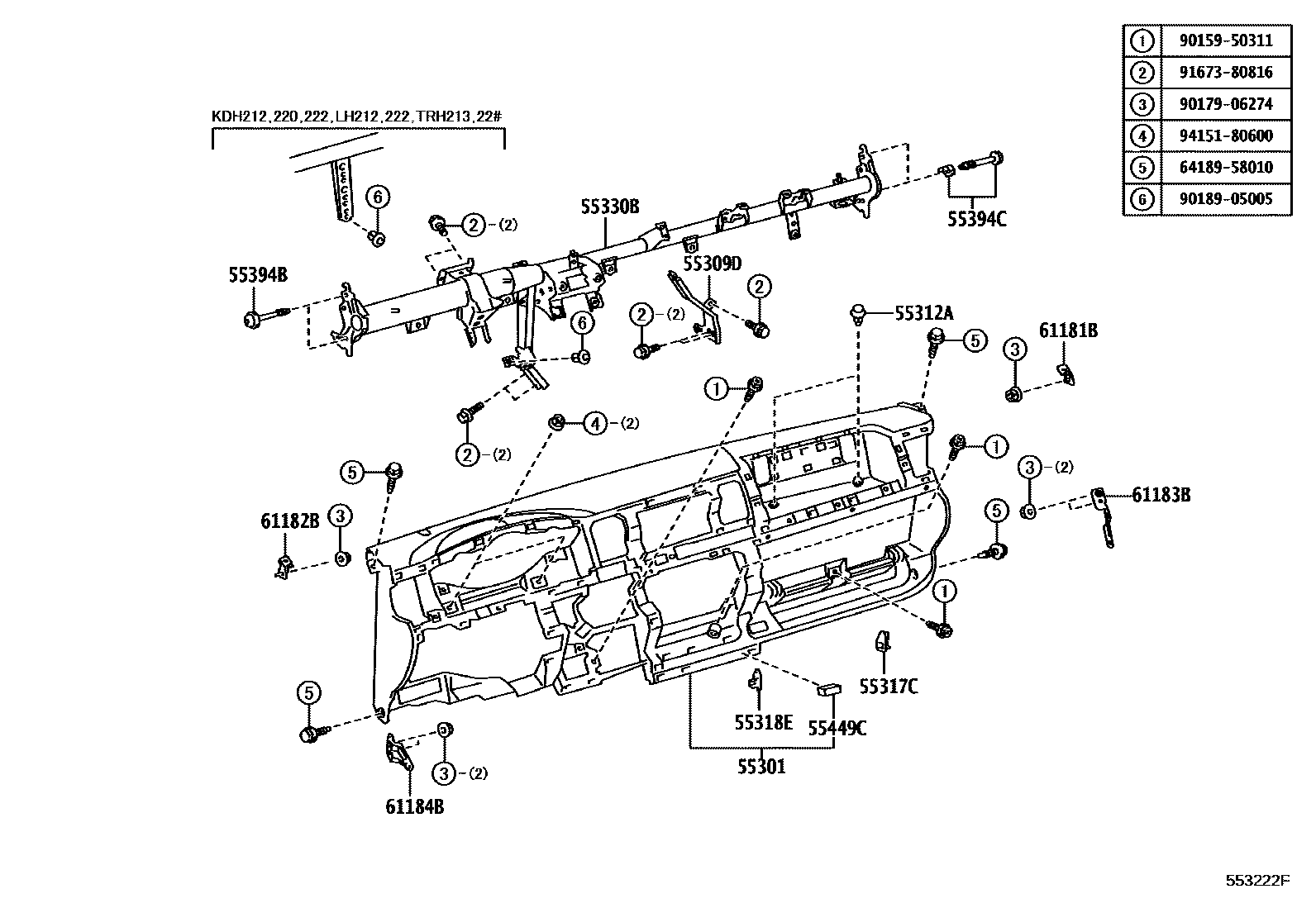

INSTRUMENT PANEL & GLOVE COMPARTMENT
55301PANEL SUB-ASSY, INSTRUMENT
DK.GRAY,TRIM1#
DK.GRAY,TRIM1#; SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),DK.GRAY,TRIM1#
main55300-26130-B0supersedes 55300-26140-B0iKDH203..12S..GEN;TRH203..LHD..GEN;KDH200,TRH201..LHD..5D..GEN;KDH201,202..LHD..(03S,12S,15S)201312-202507
DK.GRAY,TRIM1#
DK.GRAY,TRIM1#
DK.GRAY,TRIM1#
main55300-26160-B0iKDH212,221,TRH213..RHD..(02S,03S,10S);KDH222,223,TRH22#..(02S,14S,16S)..(ARL,SA,TH); KDH212,222,LH222,TRH213,223..RHD..GEN201312-201407
DK.GRAY,TRIM1#; SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),DK.GRAY,TRIM1#
DK.GRAY,TRIM1#; SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),DK.GRAY,TRIM1#
main55300-26180-B0supersedes 55300-26170-B0iTRH223..10S,12S,13S;KDH212,223,TRH213..LHD..(10S,11S,12S)..GL; TRH223..LHD..16S;KDH212,TRH213..LHD..STD;KDH213,220,222,LH212,222,TRH221..LHD201312-201511
DK.GRAY,TRIM1#; SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),DK.GRAY,TRIM1#
DK.GRAY,TRIM1#
DK.GRAY,TRIM1#
SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),DK.GRAY,TRIM1#; SRS AIR BAG-WITHOUT,DK.GRAY,TRIM1#
AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),DK.GRAY,TRIM1#; AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITHOUT,DK.GRAY,TRIM1#; AIR CONDITIONER-WITHOUT&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),DK.GRAY,TRIM1#; AIR CONDITIONER-WITHOUT&SRS AIR BAG-WITHOUT,DK.GRAY,TRIM1#; SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),DK.GRAY,TRIM1#; SRS AIR BAG-WITHOUT,DK.GRAY,TRIM1#
55309DBRACE SUB-ASSY, INSTRUMENT PANEL TO FLOOR
main55309-26060iTRH221..GCC;TRH223..4FC..GL;KDH222..LHD..GEN;TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH21#,220,223,LH212,TRH213..LHD201312
55312ACLIP, INSTRUMENT PANEL
55317CPATCH, INSTRUMENT SIDE, LOWER RH
main55317-26071-B0iTRH201;TRH221..GCC;KDH200..LHD..5D;TRH223..4FC..GL;TRH213..LHD..GEN;KDH221,LH222..RHD;KDH201..4D..03S..5F;KDH223..4FC..(GEN,TH);TRH223..LHD..STD..GEN;TRH223..STD..(ARL,SA,TH);TRH223..5F..GL..(GCC,RUS);KDH223..5F..(ARL,GEN,KEN,RUS,VN);KDH201,21#..LHD..(03S,10S,11S,13S,16S);TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,223,KDH202,203,220,LH212..(03S,06S,10S,12S,14S,15S,16S)..(GCC,GEN,MA,TH);KDH201,220,222,TRH200,203..(02S,05S,06S,10S,15S,16S)..(4FC,5F)..(ARL,GEN,MA,SA)201312
DK.GRAY,TRIM1#
55318EPATCH, INSTRUMENT SIDE, LOWER LH
DK.GRAY,TRIM1#
55330BREINFORCEMENT ASSY, INSTRUMENT PANEL
55394BBOLT, INSTRUMENT PANEL
main55394-26020×2iKDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)201312-201902
55394CBOLT, INSTRUMENT PANEL
55449CCUSHION, INSTRUMENT PANEL FINISH PANEL, NO.2
61181BBRACKET, INSTRUMENT PANEL SIDE, NO.1 RH
main61181-26020iKDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)201312-201902
61182BBRACKET, INSTRUMENT PANEL SIDE, NO.1 LH
61183BBRACKET, INSTRUMENT PANEL SIDE, NO.2 RH
main61183-26020iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)201312-201901
61184BBRACKET, INSTRUMENT PANEL SIDE, NO.2 LH
main61184-26020iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)201312-201901
6418958010CLAMP, BACK PANEL SILENCER
main64189-58010
9015950311
main90159-50311
9017906274
main90179-06274
9018905005
main90189-05005
9167380816
main91673-80816
9415180600
main94151-80600
19 parts on this diagram · 8 diagrams in section
