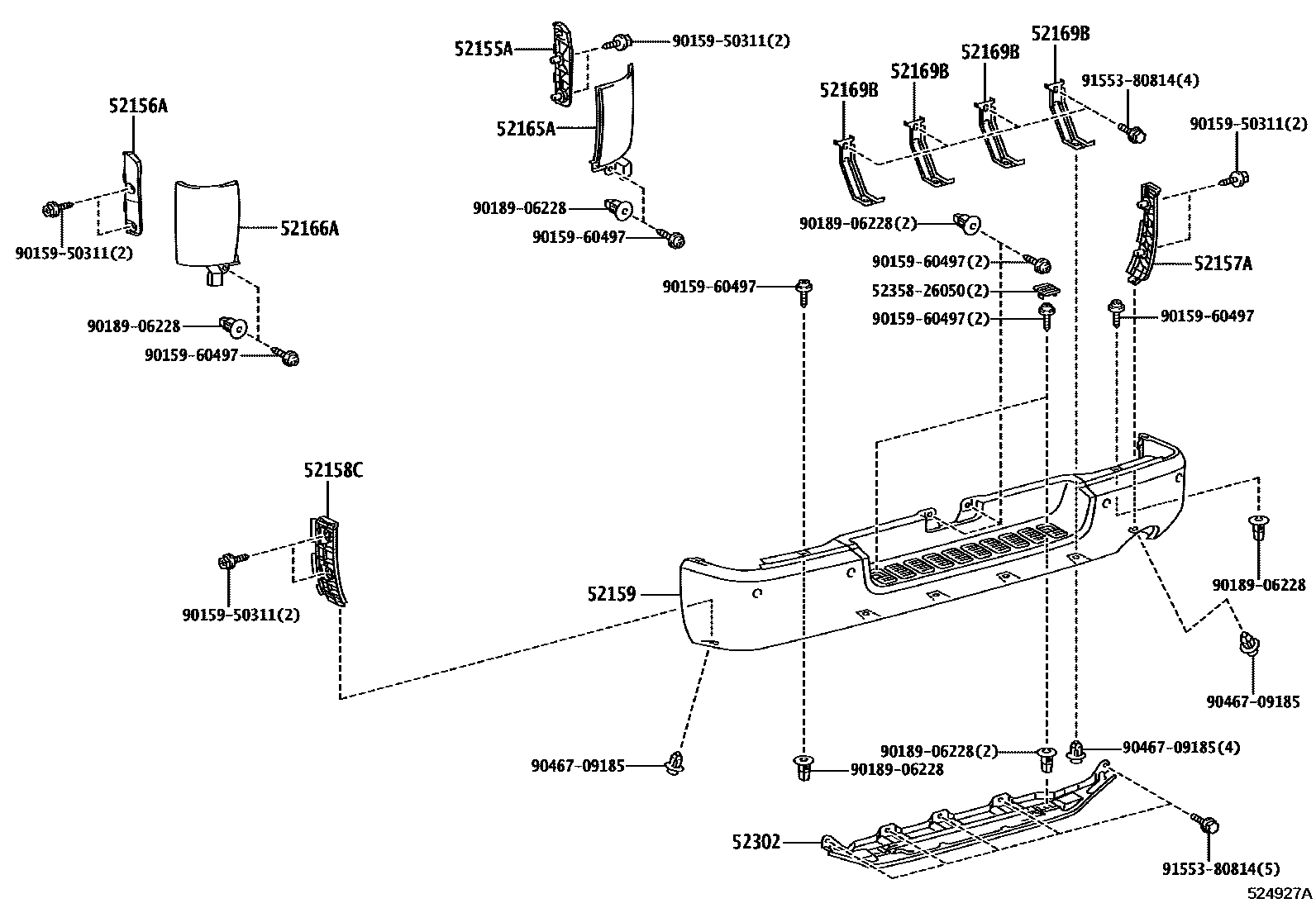

REAR BUMPER & BUMPER STAY

0001 1WITH(STEP) 0002 1WITHOUT(STEP)

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-26150iKDH213..TH201312-201906

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-26010iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)201312-201901

52157ASUPPORT, REAR BUMPER SIDE, NO.2 RH

main52157-26010iKDH222..GL;KDH213,TRH221..SG;KDH222,TRH223..STD..GCC201911

52158CSUPPORT, REAR BUMPER SIDE, NO.2 LH

main52158-26010iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)201312-201901

52159COVER, REAR BUMPER

main52159-0L010iKDH222,TRH223..STD..SA201504-202412

main52159-0L011iKDH222,TRH223..STD..SA202412

NO PAINT REQ.

main52159-26470iTRH201..SP;TRH203..GEN,MA;TRH201..06S..GCC;KDH201..ARL,MA,TH;KDH200,201..LHD..5D;KDH201..4D..5F..GEN;GDH201,KDH202,203..03S,10S,12S,15S201312

main52159-26490iGDH201,KDH201..GL201312-201901

NO PAINT REQ.

main52159-26530iKDH212..16S..GEN;KDH223..4FC..ARL201312-202301

NO PAINT REQ.

main52159-26570iKDH221..GEN201606-201902

NO PAINT REQ.,FRONT BUMPER-PAINTED

52165ACOVER, REAR BUMPER, UPR RH

main52165-26030iKDH222,223..KEN202007

main52165-26030-A1iKDH213..TH201312-201906

WHITE PEARL CS.,070

main52165-26030-B0iTRH213..RHD..GEN201908-202312

SILVER M.M.,1E7

main52165-26030-C0iKDH201..SP..(05S,06S);GDH201,KDH213,TRH200..GEN;KDH212,TRH213..(11S,13S)..GL201312-202107

BLACK MC.,209

main52165-26030-D0iKDH200,212,TRH213..SA201911-202107

BORDEAUX M.M,3R9

main52165-26030-E0iKDH212,TRH213..SA; TRH223..GL..SA201911-202107

BEIGE ME.,2QD; BEIGE ME.,2QD ,4R4

main52165-26030-F0iKDH212,TRH213..SA; KDH222,223,TRH223..GL201312-201712

GOLD ME.,2JZ ,593; GOLD ME.,593

main52165-26030-F1iTRH200..03S..6FC201312-202507

LT.YELLOW,599

main52165-26030-J0iKDH223..4FC..TH;TRH223..4FC..GL;KDH220,TRH213..LHD;KDH200..LHD..5D..GEN;KDH200,TRH221..GCC,MA;TRH223..LHD..STD..GEN;TRH223..STD..(ARL,SA,TH);TRH223..5F..GL..(GCC,RUS);KDH203,212,LH200,TRH203..4D..5F..(GCC,GEN,MA);KDH220,222,TRH200..(06S,16S)..(4FC,5F)..(GEN,SA);KDH223,TRH221..(02S,06S,12S,14S,16S)..(ARL,GEN,RUS,SA,VN);GDH201,KDH201,202,213,221,LH202,212,222,TRH201..02S,03S,05S,06S,10S,12S,15S,16S201312-202204

DK.BLUE M.M.,8P4

main52165-26040iKDH21#,TRH213..COM..11S201312-202004

main52165-26040-A0iKDH200..MA201312-202312

WHITE,058

52166ACOVER, REAR BUMPER, UPR LH

main52166-26030iKDH222,223..KEN202007

main52166-26030-A1iKDH212,TRH213..4D..GL..GEN201312-201512

WHITE PEARL CS.,2JZ

main52166-26030-B0iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)201312-201901

SILVER M.M.,1E7

main52166-26030-C0iKDH213201911-202107

BLACK MC.,209

main52166-26030-D0iKDH200,212,TRH213..SA201911-202107

BORDEAUX M.M,3R9

main52166-26030-E0iKDH212,TRH213..SA; TRH223..GL..SA201911-202107

BEIGE ME.,2QD; BEIGE ME.,2QD ,4R4

main52166-26030-F0iKDH212,TRH213..SA; KDH222,223,TRH223..GL201312-201712

GOLD ME.,2JZ ,593; GOLD ME.,593

main52166-26030-F1iTRH203..4FC;KDH200..LHD..4D;TRH221..SP..GEN;KDH200,TRH223..RHD..GEN201908

LT.YELLOW,599

main52166-26030-J0iTRH221..SA201904-202204

DK.BLUE M.M.,8P4

main52166-26040iKDH213..TH201312-201906

main52166-26040-A0iTRH200..03S..6FC201312-202507

WHITE,058

52169BBRACKET, REAR BUMPER, CENTER

main58385-26070×4iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)201312-201901

52302STEP SUB-ASSY, BACK

main52302-26010iKDH221..GEN;GDH201,KDH201,TRH200,201..(05S,06S)..GEN201312-202107

5235826050SHUTTER, REAR CROSS TO BUMPER

main52358-26050

9015950311

main90159-50311

9015960497

main90159-60497

9018906228

main90189-06228

9046709185

main90467-09185

9155380814

main91553-80814

15 parts on this diagram · 2 diagrams in section
