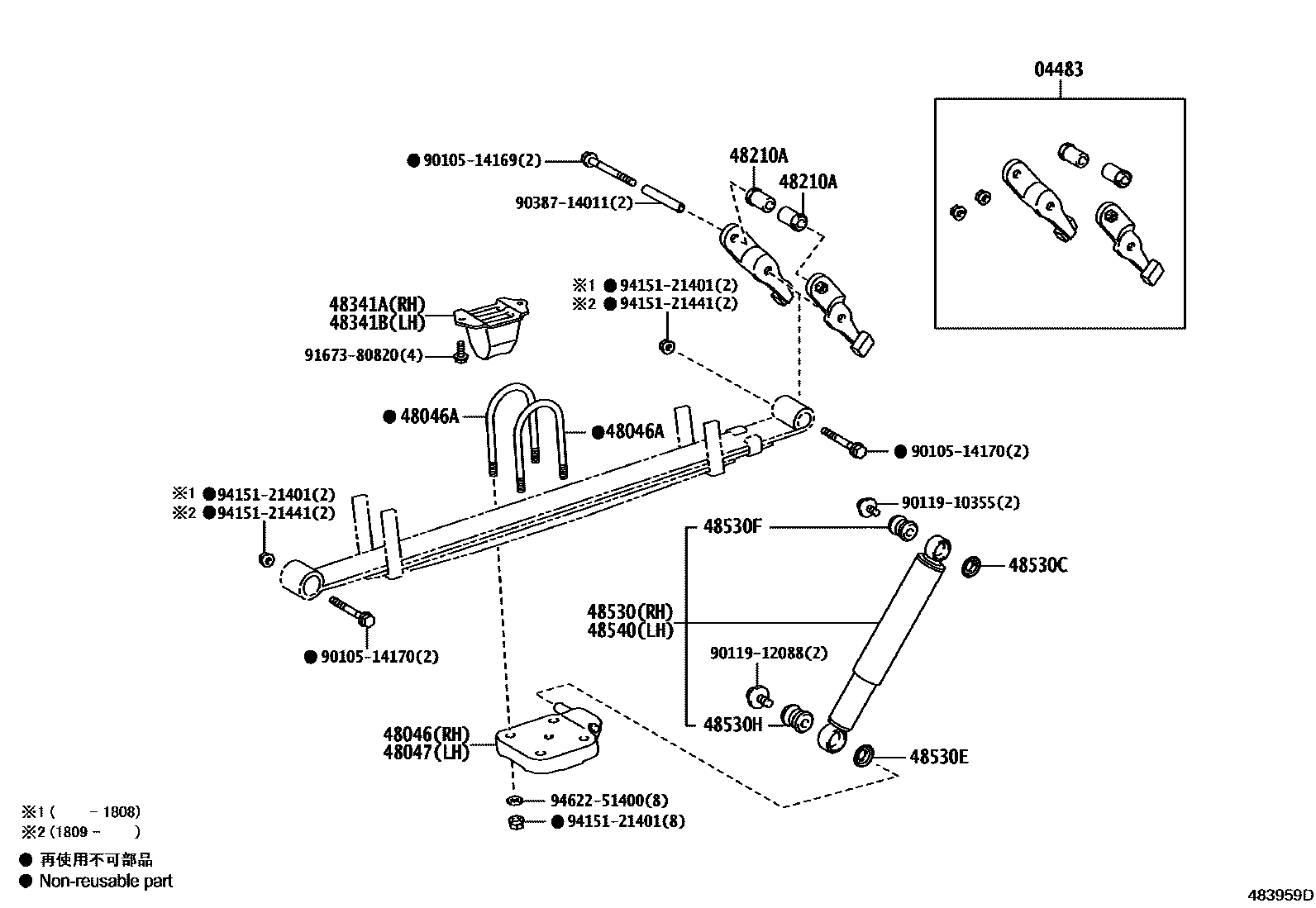

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 13LEAF 0008 14LEAF

04483SHACKLE KIT, REAR SPRING

main04483-26130×2iKDH200..LHD..4D;KDH200..RHD..(GEN,SA)201908-202006

main04483-26132×2iKDH200..SA202006-202107

main04483-26140×2iKDH220..03S..SA;TRH221..03S..(GEN,SA)201312-201902

main04483-26142×2iTRH221..SA202006-202312

main04483-26150×2iTRH223..GCC;KDH21#,222,TRH213,223..RHD..GL201911-202006

main04483-26152×2iKDH212,TRH200,213,223..06S,10S,14S202006-202107

48046SEAT SUB-ASSY, SPRING U BOLT, RH

main48046-26130iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)201312-201901

48046ABOLT, U(FOR REAR SPRING)

main90117-14001×4supersedes 90117-14177iKDH212..SA;TRH203..4FC;TRH213..RHD..5F201312-201901

L=170

main90117-14177×4iTRH221..SG;TRH223..GCC201911

L=175

48047SEAT SUB-ASSY, SPRING U BOLT, LH

main48046-26130iKDH223..4FC..ARL;KDH201,203,212..RHD..(02S,03S,16S)..GEN201312-202301

48210SPRING ASSY, REAR RH

main48210-26A02iKDH201..TH;KDH200,201..LHD..5D;GDH201,TRH201..ARL,GCC,GEN;KDH201,TRH200..(02S,05S,06S)..(4FC,5F)201312

3-LEAF

main48210-26A42iTRH221..ARL,GCC;KDH220,221..ARL,GEN201312

3-LEAF

main48210-26A71iTRH213..TH201312-202004

4-LEAF

main48210-26B02iKDH203,212..RHD..GEN201312-202301

3-LEAF

main48210-26B32supersedes 48210-26A02iKDH200..SA; LH200..5D;KDH200..LHD..4D;KDH200..RHD..GEN201312-201901

3-LEAF; 3-LEAF,ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION

main48210-26B42supersedes 48210-26A42iTRH221..SG;KDH220,TRH221..03S..SA; TRH221..SP..GEN201312-201902

3-LEAF; 3-LEAF,ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION

main48210-26B52supersedes 48210-26B02iKDH202,LH212..GCC,GEN;KDH212,TRH203..(13S,15S)..STD..GEN; KDH212..13S..GL;KDH203,213..13S,15S;KDH202,TRH203,213..10S..(GEN,MA)201312

3-LEAF; 3-LEAF,ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION

main48210-26B72supersedes 48210-26F30iTRH223..GL..SA201911-202107

3-LEAF

main48210-26D61iKDH21#,TRH223..(10S,11S)..4FC..GEN201312-201906

4-LEAF

main48210-26E90iKDH222,TRH223..STD..SA201402

3-LEAF

main48210-26F20iKDH223,TRH223..ARL201312-202301

3-LEAF

main48210-26F30iLH222..RHD;TRH223..TH;TRH223..GL..GCC;KDH223..4FC..TH;GDH223,KDH222..GEN201312

3-LEAF

48210ABUSH(FOR REAR SPRING SHACKLE UPPER)

main90385-18008×4iTRH201;TRH221..GCC;KDH200..LHD..5D;TRH223..4FC..GL;TRH213..LHD..GEN;KDH221,LH222..RHD;KDH201..4D..03S..5F;KDH223..4FC..(GEN,TH);TRH223..LHD..STD..GEN;TRH223..STD..(ARL,SA,TH);TRH223..5F..GL..(GCC,RUS);KDH223..5F..(ARL,GEN,KEN,RUS,VN);KDH201,21#..LHD..(03S,10S,11S,13S,16S);TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,223,KDH202,203,220,LH212..(03S,06S,10S,12S,14S,15S,16S)..(GCC,GEN,MA,TH);KDH201,220,222,TRH200,203..(02S,05S,06S,10S,15S,16S)..(4FC,5F)..(ARL,GEN,MA,SA)201312

48341ABUMPER, REAR SPRING, NO.1 RH

main48341-26230iKDH21#,TRH213,223..COM..(10S,11S)..4FC201312-202004

main48341-26240iKDH223..5F..TH201312-201904

main48341-26270iKDH220201911-202107

48341BBUMPER, REAR SPRING, NO.1 LH

main48341-26230iKDH213201911-202004

main48341-26240iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)201312-201901

main48341-26270iKDH220..03S..SA;TRH221..03S..(GEN,SA)201312-201902

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-80725iKDH212,220,TRH213..SA201911-202107

MARK 48531-26780

main48531-80736supersedes 48531-80771iKDH213..TH201312-201906

MARK 48531-26860

main48531-80768iKDH222,TRH223..STD..SA201402

MARK 48531-26A00

main48531-80771iKDH222..GCC;TRH223..RHD..GEN;TRH223..STD..GCC;TRH223..5F..GL..GEN201312-201902

MARK 48531-26A20

48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2

main90948-03004×2iKDH212,220,TRH213,223..03S,10S,14S201911-202107

48530EWASHER, REAR SHOCK ABSORBER CUSHION, NO.4

main90948-03011×2iKDH212,220,TRH213,223..03S,10S,14S201911-202107

48530FRETAINER, SHOCK ABSORBER CUSHION(FOR REAR)

main90385-16009×2iKDH222..KEN201312-202212

48530HBUSH, REAR SHOCK ABSORBER

main90385-19006×2iTRH223..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH)201911

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-80725iTRH221..SG201911

MARK 48531-26780

main48531-80736supersedes 48531-80771iKDH222,TRH223..GL..SA; TRH223..RHD..GEN;TRH223..5F..GL..GEN;KDH222,TRH223..STD..GCC201312-201902

MARK 48531-26860; MARK 48531-26860,ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION

main48531-80768iKDH222,TRH223..STD..SA201402

MARK 48531-26A00

main48531-80771iLH222..RHD;TRH223..TH;TRH223..GL..GCC;KDH223..4FC..TH;GDH223,KDH222..GEN201312

MARK 48531-26A20

9010514169

main90105-14169

9010514170

main90105-14170

9011910355

main90119-10355

9011912088

main90119-12088

9038714011

main90387-14011

9167380820

main91673-80820

9415121401

main94151-21401

9415121441

main94151-21441

9462251400

main94622-51400

23 parts on this diagram · 8 diagrams in section
