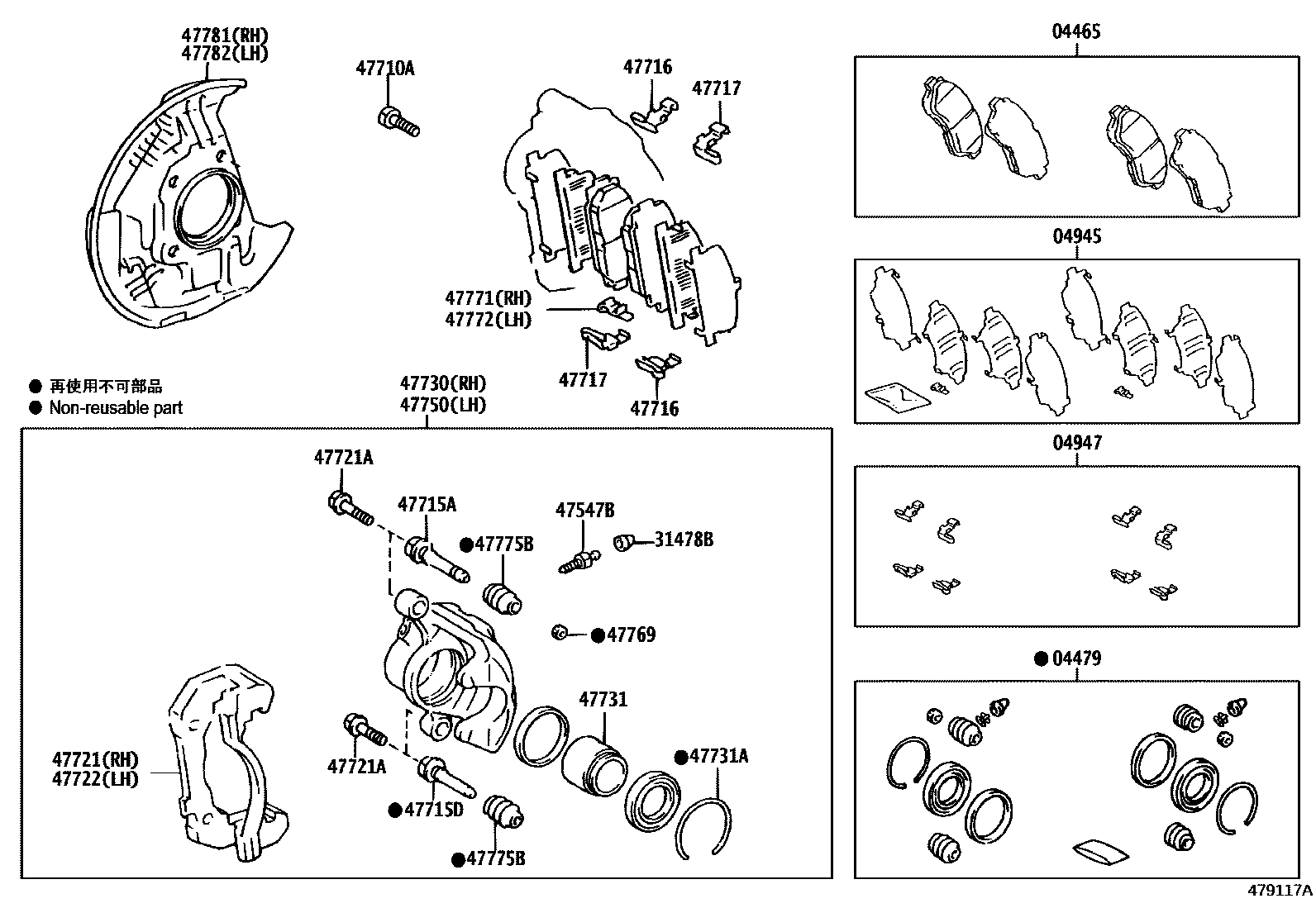

FRONT DISC BRAKE CALIPER & DUST COVER
04465PAD KIT, DISC BRAKE, FRONT
main04465-26421iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)201312-202507
MARK AK PA564H
04479CYLINDER KIT, DISC BRAKE, FRONT
main04478-26030iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)201312-202507
04945SHIM KIT, ANTI SQUEAL, FRONT
main04945-26180iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)201312-202507
04947FITTING KIT, DISC BRAKE, FRONT
main04947-26080iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)201312-202507
31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
main31478-30010iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)201312-202507
47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)
main47547-12010iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)201312-202507
47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
main90105-12175iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)201312-202507
*12-1.25PX35-27
47715APIN, FRONT DISC BRAKE CYLINDER SLIDE
main47715-50010iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)201312-202507
47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2
main47715-50030iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)201312-202507
47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
main47716-26390iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)201312-202507
47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)
main47717-26390iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)201312-202507
47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH
main47721-26103iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)201312-202507
47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
main90105-08164iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)201312-202507
*8-1.00PX23-15
47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH
main47722-26033iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)201312-202507
47730CYLINDER ASSY, FRONT DISC BRAKE, RH
main47730-26122iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)201312-202507
47731PISTON, FRONT DISC BRAKE
main47731-25010iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)201312-202507
47731ARING, SET(FOR FRONT DISC BRAKE PISTON)
main90522-76001iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)201312-202507
47750CYLINDER ASSY, DISC BRAKE, LH
main47750-26122iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)201312-202507
47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)
main47769-50010iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)201312-202507
47771PLATE, PAD WEAR INDICATOR, NO.1
main47771-26030iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)201312-202507
47772PLATE, PAD WEAR INDICATOR, NO.2
main47772-26030iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)201312-202507
47775BBOOT, BUSH DUST, NO.1
main47775-50010iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)201312-202507
47781COVER, DISC BRAKE DUST, FRONT RH
main47781-26140iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)201312-202507
47782COVER, DISC BRAKE DUST, FRONT LH
main47782-26140iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)201312-202507
24 parts on this diagram · 1 diagram in section
