EPC Data

POWER STEERING TUBE

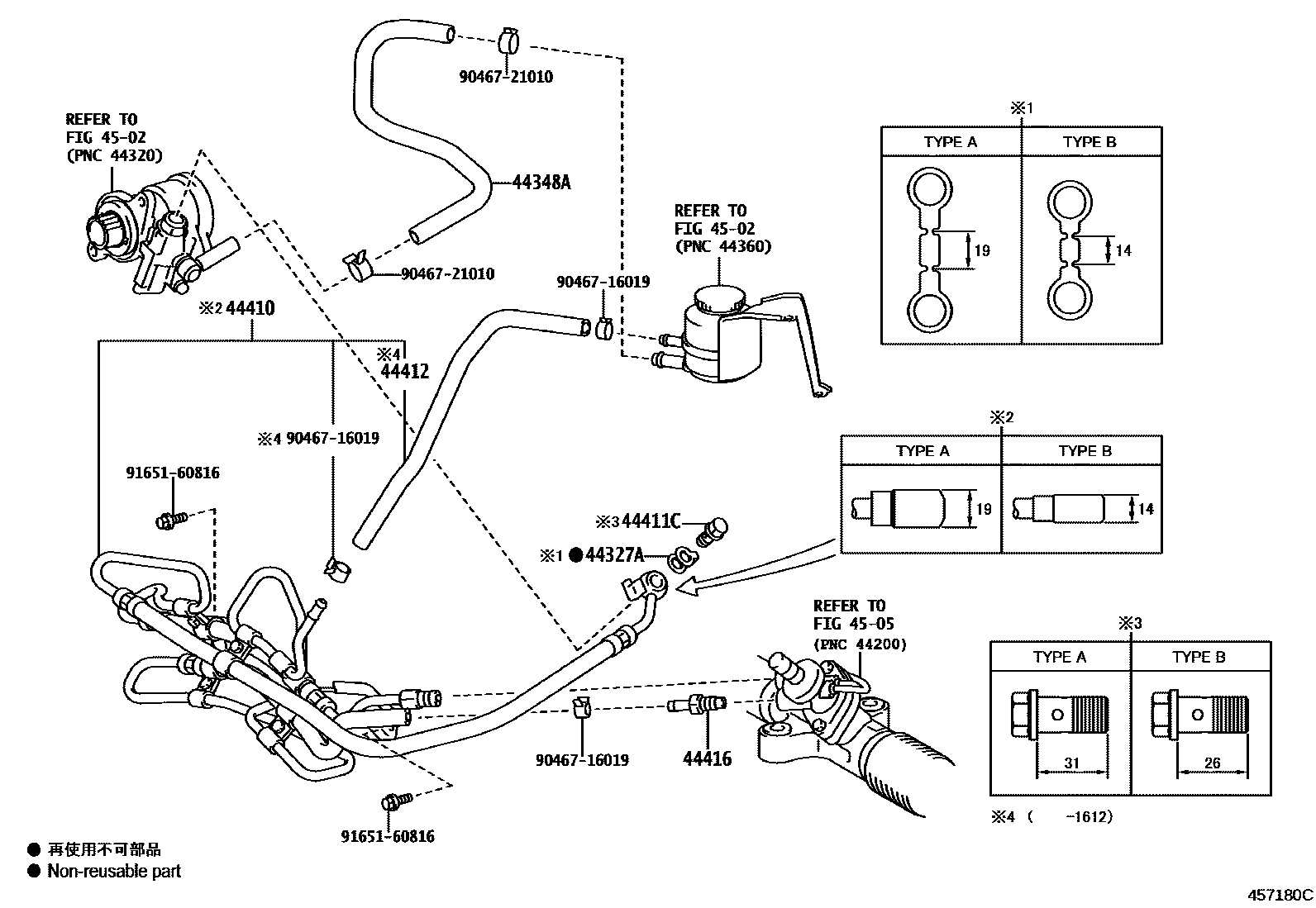

Parts diagram
44327AGASKET, PRESSURE PORT, NO.1
main44327-30030i201612-201902
TYPE B:REFER ILLUST.
main44327-30040i201312-202212
TYPE A:REFER ILLUST.
44348AHOSE, OIL RESERVOIR TO PUMP, NO.1
main44348-26220i201312-201902
main44348-26221i201901-202506
main44348-26230i201911
main44348-26250i201312-202301
main44348-26270i201312-201812
main44348-26271i201901-202506
main44348-26290i201701-201812
main44348-26291i202302
44410TUBE ASSY, PRESSURE FEED
main44410-26890i201312-201612
TYPE A:REFER ILLUST.
main44410-26891i201612-201711
TYPE B:REFER ILLUST.
main44410-26892i201712-201902
TYPE B:REFER ILLUST.
main44410-26A00i201911
TYPE A:REFER ILLUST.
main44410-26A01i201612-201902
TYPE B:REFER ILLUST.
main44410-26A10i201312-201612
TYPE A:REFER ILLUST.
main44410-26A11i201612-201902
TYPE B:REFER ILLUST.
main44410-26A20i201312-201612
TYPE A:REFER ILLUST.
main44410-26A21i201612-201902
TYPE B:REFER ILLUST.
main44410-26A30i201312-201612
TYPE A:REFER ILLUST.
main44410-26A31i201612-201902
TYPE B:REFER ILLUST.
main44410-26A40i201908
TYPE A:REFER ILLUST.
main44410-26A41i201612-201902
TYPE B:REFER ILLUST.
main44410-26A60i201902-201904
TYPE A:REFER ILLUST.
main44410-26A61i201612-201901
TYPE B:REFER ILLUST.
main44410-26A80i201312
TYPE A:REFER ILLUST.
main44410-26A81i201612-201902
TYPE B:REFER ILLUST.
main44410-26A90i201908
TYPE A:REFER ILLUST.
main44410-26A91i201612-201901
TYPE B:REFER ILLUST.
main44410-26B00i201312-201612
TYPE A:REFER ILLUST.
main44410-26B01i201612-201901
TYPE B:REFER ILLUST.
main44410-26B10i201908
TYPE A:REFER ILLUST.
main44410-26B11i201612-201901
TYPE B:REFER ILLUST.
main44410-26B30i201902-202506
TYPE A:REFER ILLUST.
main44410-26B31i201612-201711
TYPE B:REFER ILLUST.
main44410-26B32i201712-201902
TYPE B:REFER ILLUST.
main44410-26B50i201701-201711
TYPE B:REFER ILLUST.
main44410-26B51i201712-201901
TYPE B:REFER ILLUST.
main44410-26B52i202302
TYPE A:REFER ILLUST.
main44410-26C41i202302
TYPE A:REFER ILLUST.
44411CBOLT, UNION(FOR PRESSURE FEED HOSE)
main90401-16034i201911
TYPE A:REFER ILLUST.
main96341-41603i201612-201902
TYPE B:REFER ILLUST.
44412HOSE, RETURN
main44412-26170i201312
main44412-26410i201312-201612
main44412-26430i201312-201902
main44412-26440i201312-201612
main44412-26450i201312-201612
44416TUBE, RETURN(FOR STEERING GEAR OUTLET)
main44416-60370i201312-201901
4502VANE PUMP & RESERVOIR (POWER STEERING)
→ Go to FIG 45-02
4505FRONT STEERING GEAR & LINK
→ Go to FIG 45-05
9046716019
main90467-16019
9046721010
main90467-21010
9165160816
main91651-60816

11 parts on this diagram · 14 diagrams in section
