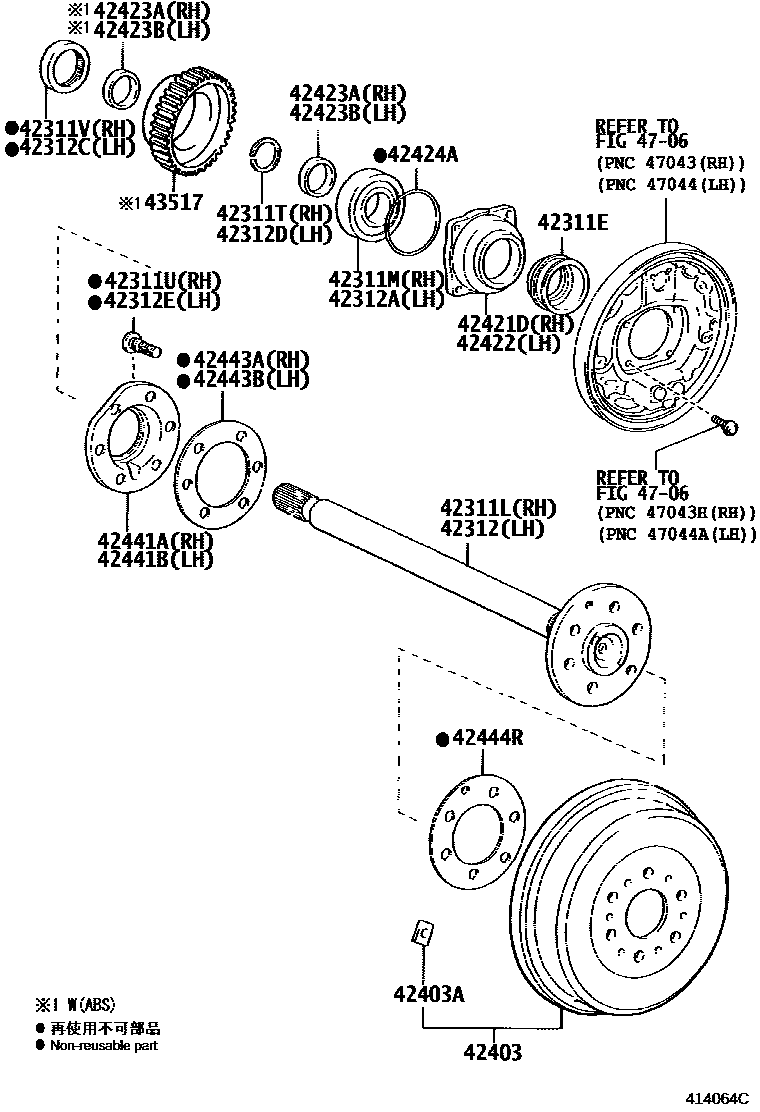

REAR AXLE SHAFT & HUB

42311ESEAL, OIL(FOR REAR AXLE SHAFT OUTER)

main90313-54001×2iKDH223..TH;TRH203..4FC;KDH200..LHD..4D;KDH200,TRH223..RHD..GEN201908

42311LSHAFT, REAR AXLE, RH

main42311-26310iLH200..5D201908-202506

main42311-26320iKDH212,220,TRH213,223..03S,10S,14S201911-202107

42311MBEARING(FOR REAR AXLE SHAFT RH)

main90363-40071iKDH222..KEN201312-202212

42311TRING, SNAP(FOR REAR AXLE SHAFT RH)

main90520-36045iKDH223..TH;TRH203..4FC;KDH200..LHD..4D;KDH200,TRH223..RHD..GEN201908

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02079×6iKDH223..TH;TRH203..4FC;KDH200..LHD..4D;KDH200,TRH223..RHD..GEN201908

42311VSEAL, OIL(FOR REAR AXLE SHAFT RH)

main90310-50006iTRH221..SA201904-202312

42312SHAFT, REAR AXLE, LH

main42311-26310iKDH200..SA201911-202107

main42311-26320iKDH212..SA;TRH213..RHD..5F201312-201901

42312ABEARING(FOR REAR AXLE SHAFT LH)

main90363-40071iTRH221..SA201904-202312

42312CSEAL, OIL(FOR REAR AXLE SHAFT LH)

main90310-50006iKDH222..KEN201312-202212

42312DRING, SNAP(FOR REAR AXLE SHAFT LH)

main90520-36045iTRH201;TRH221..GCC;KDH200..LHD..5D;TRH223..4FC..GL;TRH213..LHD..GEN;KDH221,LH222..RHD;KDH201..4D..03S..5F;KDH223..4FC..(GEN,TH);TRH223..LHD..STD..GEN;TRH223..STD..(ARL,SA,TH);TRH223..5F..GL..(GCC,RUS);KDH223..5F..(ARL,GEN,KEN,RUS,VN);KDH201,21#..LHD..(03S,10S,11S,13S,16S);TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,223,KDH202,203,220,LH212..(03S,06S,10S,12S,14S,15S,16S)..(GCC,GEN,MA,TH);KDH201,220,222,TRH200,203..(02S,05S,06S,10S,15S,16S)..(4FC,5F)..(ARL,GEN,MA,SA)201312

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02079×6iTRH201;TRH221..GCC;KDH200..LHD..5D;TRH223..4FC..GL;TRH213..LHD..GEN;KDH221,LH222..RHD;KDH201..4D..03S..5F;KDH223..4FC..(GEN,TH);TRH223..LHD..STD..GEN;TRH223..STD..(ARL,SA,TH);TRH223..5F..GL..(GCC,RUS);KDH223..5F..(ARL,GEN,KEN,RUS,VN);KDH201,21#..LHD..(03S,10S,11S,13S,16S);TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,223,KDH202,203,220,LH212..(03S,06S,10S,12S,14S,15S,16S)..(GCC,GEN,MA,TH);KDH201,220,222,TRH200,203..(02S,05S,06S,10S,15S,16S)..(4FC,5F)..(ARL,GEN,MA,SA)201312

42403DRUM SUB-ASSY, REAR BRAKE

main42431-26200×2iLH200..5D201908-202506

main42431-26210×2iLH222..RHD;KDH223..4FC..TH;KDH223..GEN,KEN,VN;TRH223..STD..(SA,TH);KDH222..16S..(GEN,SA);TRH223..LHD..STD..GEN201312

42403APIECE, BALANCE (FOR REAR BRAKE DRUM)

main90937-01100×4iKDH200,212,220,TRH213..SA201908-202107

40.5G

main90937-01117×4iTRH223..GCC;KDH213,TRH221..SG201911

10G

main90937-01118×4iLH200..5D201908-202506

20G

main90937-01119×4iTRH200..6FC201312-202107

30G

42421DCASE, REAR AXLE BEARING, RH

main42421-26030iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)201312-201901

42422CASE, REAR AXLE BEARING, LH

main42421-26030iKDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)201312-201902

42423ARETAINER, REAR AXLE BEARING, INNER RH

main42423-20010iKDH220,222,TRH22#..(03S,14S)..SA; TRH221..GEN;TRH223..5F..GL..GEN; TRH221..GEN;TRH223..RHD..GEN;TRH223..5F..GL..GEN201312-201902

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)

42423BRETAINER, REAR AXLE BEARING, INNER LH

main42423-20010iKDH201..RHD..03S;KDH212..13S..4FC; KDH212..13S..4FC;KDH201,212..(03S,16S)..(GEN,TH);KDH200,202,222,LH20#,TRH203,213,223..RHD..STD..GEN201312-201501

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)

42424ARING, O (FOR BEARING RETAINER SET)

main90301-92002×2iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)201312-201901

42441ADEFLECTOR, BRAKE DRUM OIL RH

main42441-35020iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)201312-201901

42441BDEFLECTOR, BRAKE DRUM OIL LH

main42441-35020iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)201312-201901

42443AGASKET, BRAKE DRUM OIL DEFLECTOR, RH

main42443-55020iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)201312-201901

42443BGASKET, BRAKE DRUM OIL DEFLECTOR, LH

main42443-55020iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)201312-201901

42444RGASKET, BRAKE DRUM (FOR REAR AXLE)

main42444-60020×2iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)201312-201901

43517ROTOR, SKID CONTROL, REAR

main43517-35010×2iKDH200,212,TRH213..SA; TRH203..4FC;KDH200..LHD..4D201312-201901

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)

4706REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

→ Go to FIG 47-06

25 parts on this diagram · 1 diagram in section
