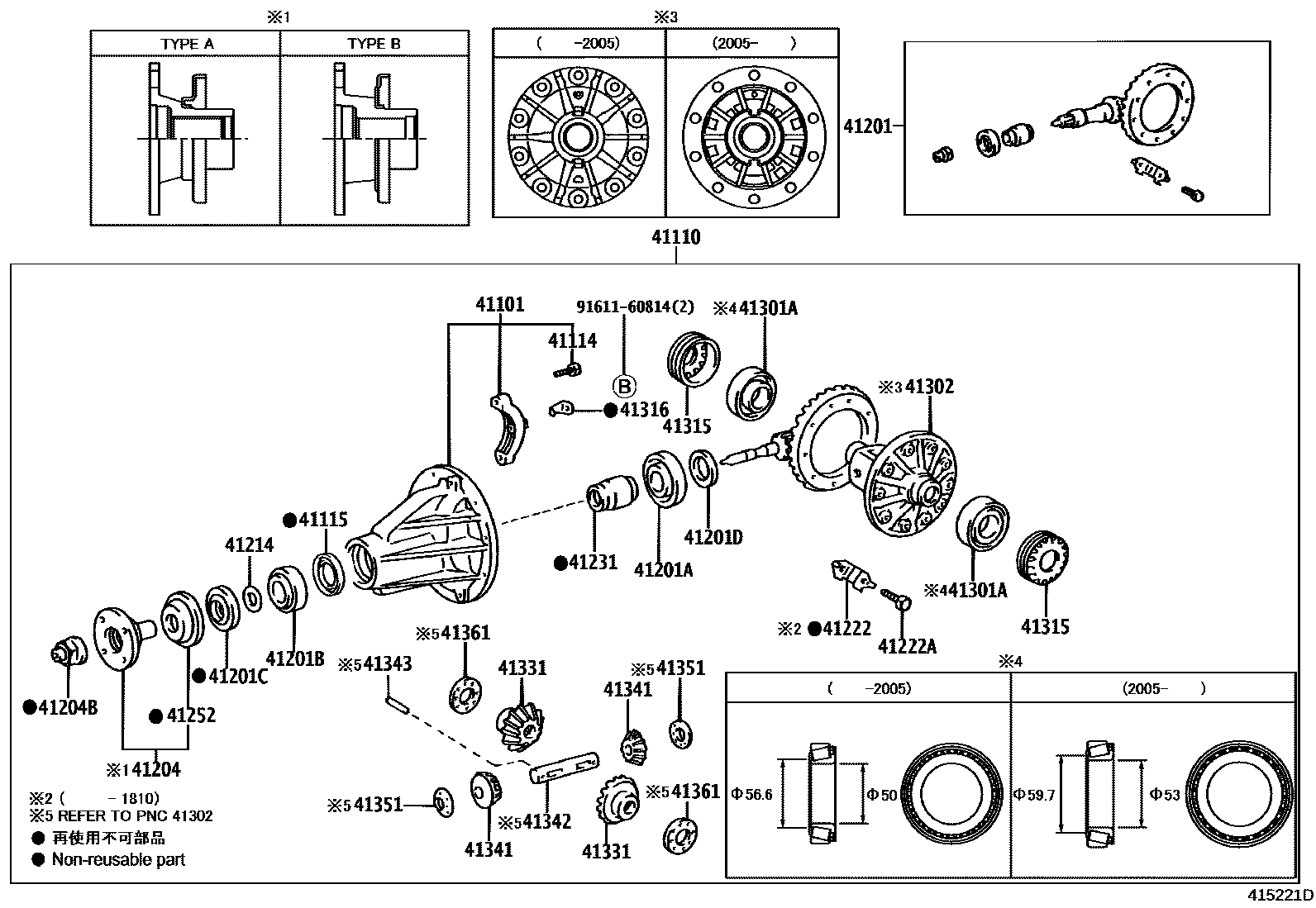

REAR AXLE HOUSING & DIFFERENTIAL

0001 1 0004 1 0005 1 0007 1

41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR

main41101-35171iKDH20#,21#,22#,LH20#,212,222,TRH201,203,213,22#..4FC,5F201312-201604

main41101-35172iKDH200..LHD..5D;TRH223..4FC..GL;KDH221,LH222..RHD;TRH213,221..GCC,TH;KDH201..4D..03S..5F;KDH223..4FC..(GEN,TH);TRH213,223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);TRH223..5F..STD..(ARL,SA,TH);KDH201,21#..LHD..(03S,10S,11S,13S,16S);KDH223,TRH201..5F..(ARL,GCC,GEN,RUS,SA,VN);GDH201,223,KDH202,203,220,LH212..(03S,06S,10S,12S,14S,15S,16S)..(GCC,GEN,MA,TH);KDH201,220,222,TRH203,221..(02S,05S,06S,10S,15S,16S)..(4FC,5F)..(ARL,GEN,MA,SA)201604

main41101-60161iTRH200..4FC;TRH200,201,22#..(02S,03S,05S,14S)..6FC201312-202507

41110CARRIER ASSY, DIFFERENTIAL, REAR

main41110-26431iKDH200,202,212,220,222;KDH201,213,221,223..4FC201312-201608

*FGR=41:10=4.100

main41110-26432iKDH222..5F..GL;KDH220..03S..SA;KDH222..STD..GCC201608-201902

*FGR=41:10=4.100

main41110-26441iLH20#,212,222,TRH201,203,213,22#..5F201312-201608

*FGR=43:10=4.300

main41110-26442iLH200..5D;TRH213..RHD..5F201608-201901

*FGR=43:10=4.300

main41110-26650iTRH200201312-201607

*FGR=41:8=5.125

main41110-26651iTRH200201608-202001

*FGR=41:8=5.125

main41110-26660iTRH201,22#..6FC201501-201607

*FGR=39:8=4.875

main41110-26661iTRH201,22#..6FC201608-201902

*FGR=39:8=4.875

main41110-26810iKDH223..KEN202302

*FGR=41:11=3.727

main41110-26860iTRH223..5F..GCC;TRH213,22#..SG..(03S,10S,14S)201911-202004

*FGR=43:10=4.300

main41110-26880iTRH200202001-202004

*FGR=41:8=5.125

main41110-26A20iKDH222..KEN202005-202212

*FGR=41:10=4.100

main41110-26A30iTRH213,223..GL202005-202107

*FGR=43:10=4.300

main41110-26A40iTRH200..5F202302-202506

*FGR=41:9=4.555

main41110-26A60iTRH200..03S..6FC202005-202507

*FGR=41:8=5.125

main41110-35870iKDH201,203,213,221,223..5F201312-201608

*FGR=41:11=3.727

main41110-35871iKDH223..5F..TH201609-201904

*FGR=41:11=3.727

main41110-3D261iTRH201,203,213,22#..4FC201312-201608

*FGR=41:9=4.555

main41110-3D262iTRH223..4FC201911-202004

*FGR=41:9=4.555

41114BOLT, REAR DIFFERENTIAL BEARING CAP

main90105-12053×4iTRH213,221..RHD..STD201908-202312

41115RING, DIFFERENTIAL OIL STORAGE

main41115-35010iTRH201;TRH221..GCC;KDH200..LHD..5D;TRH223..4FC..GL;TRH213..LHD..GEN;KDH221,LH222..RHD;KDH201..4D..03S..5F;KDH223..4FC..(GEN,TH);TRH223..LHD..STD..GEN;TRH223..STD..(ARL,SA,TH);TRH223..5F..GL..(GCC,RUS);KDH223..5F..(ARL,GEN,RUS,VN);KDH201,21#..LHD..(03S,10S,11S,13S,16S);TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,223,KDH202,203,220,LH212..(03S,06S,10S,12S,14S,15S,16S)..(GCC,GEN,MA,TH);KDH201,220,222,TRH200,203..(02S,05S,06S,10S,15S,16S)..(4FC,5F)..(ARL,GEN,MA,SA)201312

41201FINAL GEAR KIT, DIFFERENTIAL, REAR

main41201-80183iTRH201,22#..6FC201501-201608

*FGR=39:8=4.875,PNC 41204=TYPE A

main41201-80300iTRH200201312-201608

*FGR=41:8=5.125

main41201-80564iKDH201,203,213,221,223..5F201312-201608

*FGR=41:11=3.727

main41201-80724iKDH200,202,212,220,222;KDH201,213,221,223..4FC201312-201608

*FGR=41:10=4.100

main41201-80732iTRH201,203,213,22#..4FC201312-201608

*FGR=41:9=4.555

main41201-80747iLH20#,212,222,TRH201,203,213,22#..5F201312-201608

*FGR=43:10=4.300

main41201-80802iLH200..5D;TRH213..RHD..5F201608-201901

*FGR=43:10=4.300

main41201-80803iTRH200201608-202001

*FGR=41:8=5.125

main41201-80804iTRH201,22#..6FC201608-201902

*FGR=39:8=4.875,PNC 41204=TYPE B

main41201-80815iKDH201,213,221,223..4FC;GDH201,KDH200,202,212,220,222201608-201810

*FGR=41:10=4.100

main41201-80816iTRH203,213,223..4FC201608-201810

*FGR=41:9=4.555

main41201-80817iKDH201,203,213,221,223..5F201608-201810

*FGR=41:11=3.727

main41201-80A00iTRH213,223..GL..SA201911-202107

*FGR=43:10=4.300

main41201-80A01iTRH200202001-202107

*FGR=41:8=5.125

main41201-80A04iKDH223..4FC..ARL;KDH201,212..RHD..4D..GEN201810-202301

*FGR=41:10=4.100

main41201-80A05iTRH223..4FC..STD201810-201902

*FGR=41:9=4.555

main41201-80A06iKDH223..5F..TH201810-201904

*FGR=41:11=3.727

41201ABEARING (FOR REAR DRIVE PINION REAR)

main90366-35087iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)201312-201901

main90366-35203iTRH203..GCC;LH20#,222,TRH200..5F202005-202506

41201BBEARING (FOR REAR DRIVE PINION FRONT)

main90366-30105iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)201312-201901

main90366-30117iTRH203..GEN;TRH213..LHD;TRH223..STD;KDH201,222..4D..5F..(GCC,GEN,MA,SA);GDH201,223,KDH200,202,203,223,TRH201,221..(03S,06S,12S,14S,15S,16S)..(GCC,GEN,TH)202005

41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)

main90311-41009iTRH200,201,22#..6FC201312-201608

PNC 41204=TYPE A

main90311-41018iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)201609-201901

PNC 41204=TYPE B

41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)

main90201-35497iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)201312-201901

OD=47,T=1.70

main90201-35498iKDH213..TH201312-201906

OD=47,T=1.73

main90201-35499iTRH200..6FC201312-202107

OD=47,T=1.76

main90201-35500iKDH223..KEN202302

OD=47,T=1.79

main90201-35501iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)201312-201901

OD=47,T=1.82

main90201-35502iKDH223..TH;KDH200..LHD..4D;TRH221..SP..GEN;TRH223..GL..GEN;KDH200,TRH223..RHD..GEN201908

OD=47,T=1.85

main90201-35503iTRH200..6FC201312-202107

OD=47,T=1.88

main90201-35504iTRH200..03S..6FC201312-202507

OD=47,T=1.91

main90201-35505iTRH200..03S..6FC201312-202507

OD=47,T=1.94

main90201-35506iKDH222..GL..GCC201909

OD=47,T=1.97

main90201-35507iKDH222..KEN201312-202212

OD=47,T=2.00

main90201-35508iKDH223..TH;KDH200..LHD..4D;TRH221..SP..GEN;TRH223..GL..GEN;KDH200,TRH223..RHD..GEN201908

OD=47,T=2.03

main90201-35509iKDH222..KEN201312-202212

OD=47,T=2.06

main90201-35510iKDH222..GL..GCC201909

OD=47,T=2.09

main90201-35511iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)201312-201901

OD=47,T=2.12

main90201-35512iTRH200..03S..6FC201312-202507

OD=47,T=2.15

main90201-35513iKDH223..TH;KDH200..LHD..4D;TRH221..SP..GEN;TRH223..GL..GEN;KDH200,TRH223..RHD..GEN201908

OD=47,T=2.18

main90201-35514iKDH223..KEN202302

OD=47,T=2.21

main90201-35515iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)201312-201901

OD=47,T=2.24,MARK 01

main90201-35516iKDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)201312-201902

OD=47,T=2.27,MARK 02

main90201-35517iKDH223..4FC..ARL;KDH201,203,212..RHD..(02S,03S,16S)..GEN201312-202301

OD=47,T=2.30,MARK 03

main90201-35518iTRH213,221..RHD..STD201908-202312

OD=47,T=2.33,MARK 04

41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR

main41204-35082iTRH200,201,22#..6FC201312-201608

TYPE A:REFER ILLUST.

main41204-35083iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)201609-201901

TYPE B:REFER ILLUST.

41204BNUT (FOR REAR DRIVE PINION)

main90177-22003iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)201312-201901

OD=39.5

41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL

main41214-26011iTRH201;TRH221..GCC;KDH200..LHD..5D;TRH223..4FC..GL;TRH213..LHD..GEN;KDH221,LH222..RHD;KDH201..4D..03S..5F;KDH223..4FC..(GEN,TH);TRH223..LHD..STD..GEN;TRH223..STD..(ARL,SA,TH);TRH223..5F..GL..(GCC,RUS);KDH223..5F..(ARL,GEN,RUS,VN);KDH201,21#..LHD..(03S,10S,11S,13S,16S);TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,223,KDH202,203,220,LH212..(03S,06S,10S,12S,14S,15S,16S)..(GCC,GEN,MA,TH);KDH201,220,222,TRH200,203..(02S,05S,06S,10S,15S,16S)..(4FC,5F)..(ARL,GEN,MA,SA)201312

41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK

main41222-35020×5iTRH223..6FC;KDH201..02S,03S,05S;TRH213..LHD..STD..GEN;KDH201,TRH213..RHD..SG;TRH223..(13S,14S,16S)..(GCC,GEN,SA,TH);KDH212,22#,LH222..02S,03S,06S,10S,12S,14S,16S;GDH201,KDH200,202,203,213,LH20#,212,TRH203..SMRF,SRF;KDH212,TRH201,221..(02S,03S,05S,06S,13S)..(5F,6FC)..STD201312-201810

41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)

main90101-11353×10iTRH213..GCC;KDH201..SP..06S;KDH212..GL..GEN;TRH201,221..4FC;KDH202,TRH200,203,213..(06S,10S)..(GEN,MA);TRH223..(10S,12S,14S)..(4FC,5F)..(ARL,GEN,RUS)201312-202001

main90105-11063×10iKDH213..TH201810-201906

41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING

main41231-24010iKDH223..5F..TH201312-201904

41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)

main41252-35041iTRH200,201,22#..6FC201312-201608

PNC 41204=TYPE A

main41252-71040iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)201609-201901

PNC 41204=TYPE B

41301CASE SUB-ASSY, REAR DIFFERENTIAL

main41301-26040iTRH200202005-202107

41301ABEARING(FOR REAR DIFFERENTIAL CASE)

main90366-50007×2iKDH222..GL..GCC201909-202005

main90366-53010×2iKDH200..MA;TRH213,221..RHD..STD202005-202312

41302CASE SUB-ASSY, REAR DIFFERENTIAL

main41302-35020iKDH223..TH201908-202005

main41311-26030iTRH203..GCC;LH20#,222,TRH200..5F202005-202506

main41311-60060iKDH222..GL..GCC201909-202001

main41311-60061iKDH201,223..4FC;KDH200,202,21#,220,222,LH20#,222,TRH20#,213,22#202001-202005

41315NUT, REAR DIFFERENTIAL BEARING ADJUSTING

main41315-35020×2iTRH201;TRH221..GCC;KDH200..LHD..5D;TRH223..4FC..GL;TRH213..LHD..GEN;KDH221,LH222..RHD;KDH201..4D..03S..5F;KDH223..4FC..(GEN,TH);TRH223..LHD..STD..GEN;TRH223..STD..(ARL,SA,TH);TRH223..5F..GL..(GCC,RUS);KDH223..5F..(ARL,GEN,RUS,VN);KDH201,21#..LHD..(03S,10S,11S,13S,16S);TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH);GDH201,223,KDH202,203,220,LH212..(03S,06S,10S,12S,14S,15S,16S)..(GCC,GEN,MA,TH);KDH201,220,222,TRH200,203..(02S,05S,06S,10S,15S,16S)..(4FC,5F)..(ARL,GEN,MA,SA)201312

41316LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT

main41316-35010×2iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)201312-201901

41331GEAR, REAR DIFFERENTIAL SIDE

main41039-34080×2iKDH223..TH201908-202005

main41331-35011×2iTRH221..SG;TRH203..4FC;KDH222,TRH223..STD..GCC;KDH200,21#,220,222,TRH213,223..(03S,10S,11S,14S)..(SA,TH)201911-202005

41341PINION, REAR DIFFERENTIAL

main41341-35020×2iKDH213..TH201312-201906

41342SHAFT, REAR DIFFERENTIAL PINION

main41342-26020iTRH203..GEN;TRH213..LHD;TRH223..STD;KDH201,222..4D..5F..(GCC,GEN,MA,SA);GDH201,223,KDH200,202,203,223,TRH201,221..(03S,06S,12S,14S,15S,16S)..(GCC,GEN,TH)202005

REFER TO PNC 41302

main41342-39610iLH200..5D;TRH213..RHD..5F; TRH203..4FC;KDH200..LHD..4D;KDH200,212..RHD..(03S,10S)..(GEN,SA)201312-201901

REFER TO PNC 41302

41343PIN, REAR DIFFERENTIAL PINION SHAFT

main90250-06058iTRH200..03S..6FC202005-202507

REFER TO PNC 41302

main90250-06085iTRH200202001-202005

REFER TO PNC 41302

41351WASHER, REAR DIFFERENTIAL PINION THRUST

main41351-30052×2iTRH200202001-202005

REFER TO PNC 41302

main41351-30060×4iKDH223..5F..TH201312-201904

main41351-35030×2iKDH223..KEN202302

REFER TO PNC 41302

41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-34010×2iKDH223..KEN202302

T=1.50,REFER TO PNC 41302

main41361-34020×2iKDH223..ARL;KDH201,203,212..RHD..GEN202005-202301

T=1.55,REFER TO PNC 41302

main41361-34030×2iKDH223..KEN202302

T=1.60,REFER TO PNC 41302

main41361-34040×2iTRH200..03S..6FC202005-202507

T=1.65,REFER TO PNC 41302

main41361-34050×2iTRH203..GCC;LH20#,222,TRH200..5F202005-202506

T=1.70,REFER TO PNC 41302

main41361-34060×2iTRH203..GEN;TRH213..LHD;TRH223..STD;KDH201,222..4D..5F..(GCC,GEN,MA,SA);GDH201,223,KDH200,202,203,223,TRH201,221..(03S,06S,12S,14S,15S,16S)..(GCC,GEN,TH)202005

T=1.75,REFER TO PNC 41302

main41361-34070×2iKDH222..KEN202005-202212

T=1.80,REFER TO PNC 41302

main41361-34080×2iKDH223..KEN202302

T=1.85,REFER TO PNC 41302

main41361-34090×2iTRH200..03S..6FC202005-202507

T=1.90,REFER TO PNC 41302

main41361-35310×2iKDH223..5F..TH201312-201904

T=0.9

main41361-35320×2iKDH223..5F..TH201312-201904

T=1.0

main41361-35330×2iKDH223..TH201908-202005

T=1.1

main41361-35340×2iKDH201,203,213,221..5F;KDH223..5F..(ARL,GEN,RUS,VN)201312-202005

T=1.2

main41361-35350×2iKDH223..TH201908-202005

T=1.3

main41361-40021×2iKDH222..5F..GL;KDH220..03S..SA;KDH222..STD..GCC;TRH223..4FC..STD..GCC; TRH223..RHD..GEN;TRH223..5F..STD..GCC;TRH221..03S..(GEN,SA);TRH223..5F..GL..(GEN,SA)201312-201902

T=1.6; T=1.6,REFER TO PNC 41302

main41362-40021×2iLH200..5D;TRH213..RHD..5F; TRH203..4FC;KDH200..LHD..4D;KDH200,212..RHD..(03S,10S)..(GEN,SA)201312-201901

T=1.7; T=1.7,REFER TO PNC 41302

main41363-40021×2iLH200..5D;TRH213..RHD..5F; TRH203..4FC;KDH200..LHD..4D;KDH200,212..RHD..(03S,10S)..(GEN,SA)201312-201901

T=1.8; T=1.8,REFER TO PNC 41302

9161160814

main91611-60814

28 parts on this diagram · 4 diagrams in section
