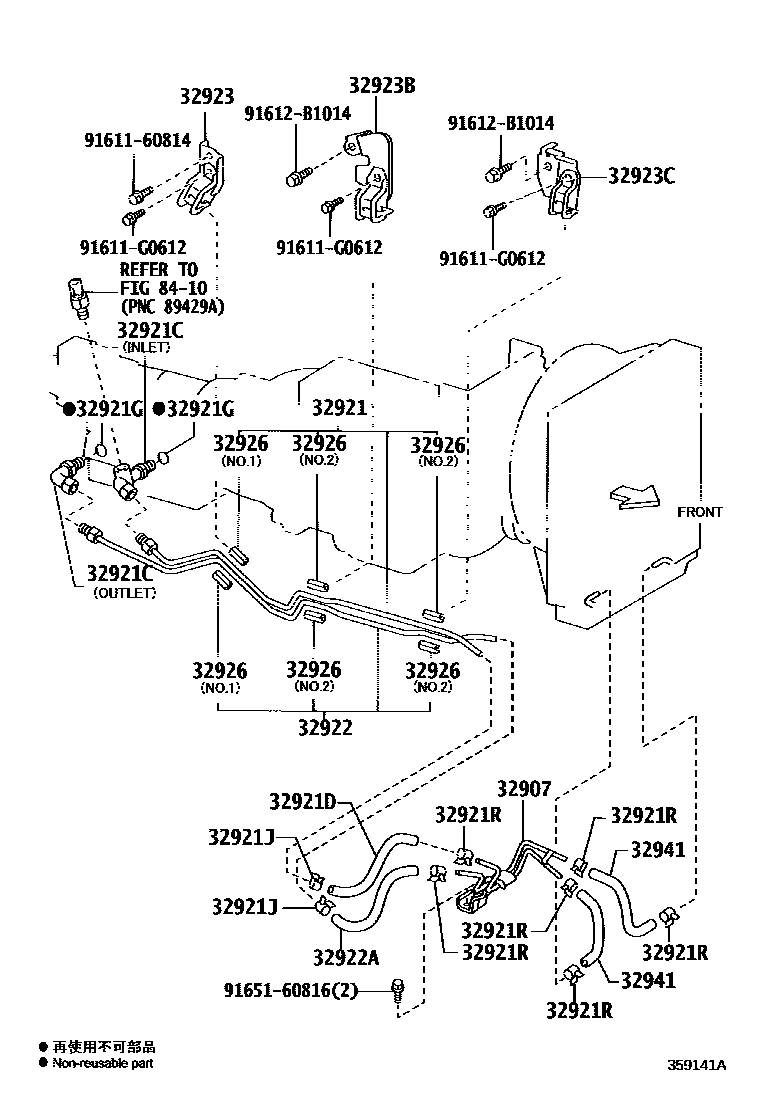

OIL COOLER & TUBE (ATM)

0001 1A45DE 0002 1A343E 0003 1A340E 0004 1AC60E 0005 1AC60E

32907TUBE SUB-ASSY, OIL COOLER OUTLET, NO.2

main32907-26050iTRH200201312-201501

main32907-26051iKDH201,21#,221,222,223,TRH20#,213,22#..4FC,6FC201501-201606

main32907-26052iTRH200201607-202107

main32907-26100iGDH201,223201701

32921TUBE, OIL COOLER INLET, NO.1

main32921-26360iTRH200201312-201501

main32921-26361iTRH200,201,22#..(02S,03S,05S,14S)..6FC201501-202507

main32921-26370iTRH203..4FC201312-201901

main32921-26380iKDH213..TH201312-201906

main32921-26400iKDH201..SP..4FC..GEN201312-202301

main32921-26440iGDH201,223201701

32921CUNION(FOR OIL COOLER TUBE)

main32918-26010iTRH200201312-201501

INLET

main90407-14024iKDH223..4FC..TH201312-201904

INLET

main90407-16009iKDH212..4FC201312-201511

OUTLET

main90407-16010iTRH200201312-201501

OUTLET

main90407-16012iKDH201..SG..4FC201606-202004

INLET

32921DHOSE(FOR OIL COOLER INLET)

main32941-26200iTRH223..4FC..GL;TRH223..4FC..ARL;TRH200,201,213,221..4FC201312-202004

main32941-26210iKDH201..SP..4FC..GEN201312-202301

main32941-26240iTRH200,201,22#..(02S,03S,05S,14S)..6FC201501-202507

main32941-26290iGDH201,223201701

main90445-17178iKDH201..SG..4FC;KDH201..4FC..ARL;KDH221,223..4FC..STD..(ARL,GEN)201312-201605

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189×2iTRH200201312-201501

main90301-11030×2iTRH203..4FC201312-201901

32921JCLIP(FOR OIL COOLER HOSE)

main90466-16004×2iKDH201,223..(03S,14S)..4FC..STD201312-202301

32921RCLIP, NO.2(FOR OIL COOLER HOSE)

main90466-16004×6iTRH223..4FC..STD..GCC201312-201902

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-26350iTRH200201312-201501

main32922-26351iTRH200,201,22#..(02S,03S,05S,14S)..6FC201501-202507

main32922-26360iTRH223..4FC..STD..GCC201312-201902

main32922-26370iKDH213201911-202004

main32922-26390iKDH201..SP..4FC..GEN201312-202301

main32922-26430iGDH201,223201701

32922AHOSE(FOR OIL COOLER OUTLET)

main32941-26250iTRH200201501-202107

main32942-26140iKDH201..SG..4FC;KDH201..4FC..ARL;KDH221,223..4FC..STD..(ARL,GEN)201312-201605

main32942-26150iKDH201..SG..4FC;KDH201..4FC..ARL;KDH221,223..4FC..STD..(ARL,GEN)201605-202301

main32942-26190iGDH201,223201701

main90445-17073iTRH203..4FC201908-202004

32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32909-25080iTRH200201312-201501

main32909-25081iTRH200201501-202107

main32929-24060iKDH213..TH201312-201906

32923BCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1

main32909-26180iTRH223..4FC..STD..GCC201312-201902

main32909-35190iKDH213201911-202301

32923CCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.4

main32909-26200iKDH213..4FC..GEN;KDH201,212,221,222,223..4FC201312-202301

main32909-34040iTRH223..4FC201911-202507

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-30020×6iTRH200201312-201501

L=35,ID=10,NO.2

32941HOSE, OIL COOLER INLET, NO.1

main32941-26180×2iKDH201,21#,221,222,223,TRH201,203,213,22#..4FC201312-201412

main32941-26181×2iTRH203..4FC201501-201901

8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

→ Go to FIG 84-10

9161160814

main91611-60814

91611G0612

main91611-G0612

91612B1014

main91612-B1014

9165160816

main91651-60816

19 parts on this diagram · 5 diagrams in section
