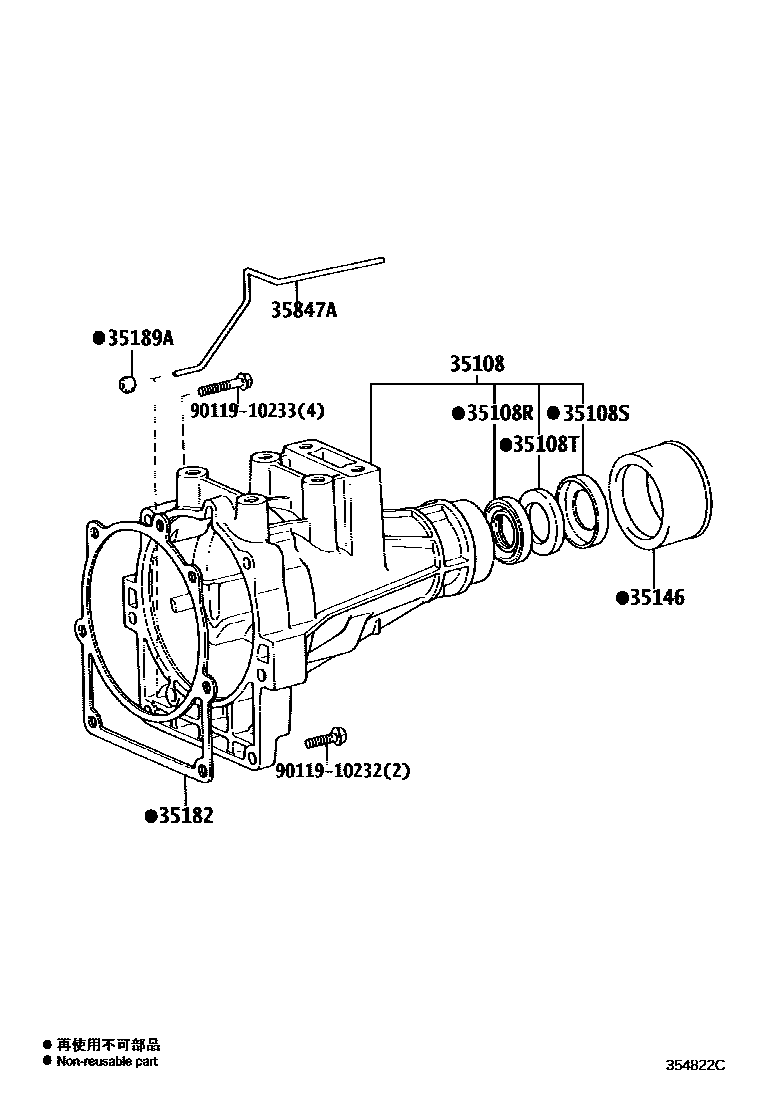

Toyota HIACE — EXTENSION HOUSING (ATM)
35108HOUSING SUB-ASSY, EXTENSION (ATM)
35108RSEAL, OIL (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING)
35108SRETAINER, EXTENSION HOUSING DUST SEAL (ATM)
35108TSEAL, DUST (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING)
35146DEFLECTOR, EXTENSION HOUSING DUST (ATM)
35182GASKET, EXTENSION HOUSING (ATM)
35189AGASKET, EXTENSION HOUSING BUSH APPLY TUBE
35847ATUBE, EXTENSION HOUSING BUSH APPLY
9011910232
9011910233
10 parts on this diagram · 3 diagrams in section
EXTENSION HOUSING (ATM) for Toyota HIACE
This section contains 13 genuine Toyota parts for the EXTENSION HOUSING (ATM) system of the Toyota HIACE. Key components include: PLUG, W/HEAD STRAIGHT SCREW(FOR TRANSMISSION CASE ADAPTER), RING, O(FOR TRANSMISSION CASE ADAPTER PLUG), HOUSING SUB-ASSY, EXTENSION (ATM), SEAL, OIL (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING), RETAINER, EXTENSION HOUSING DUST SEAL (ATM).
