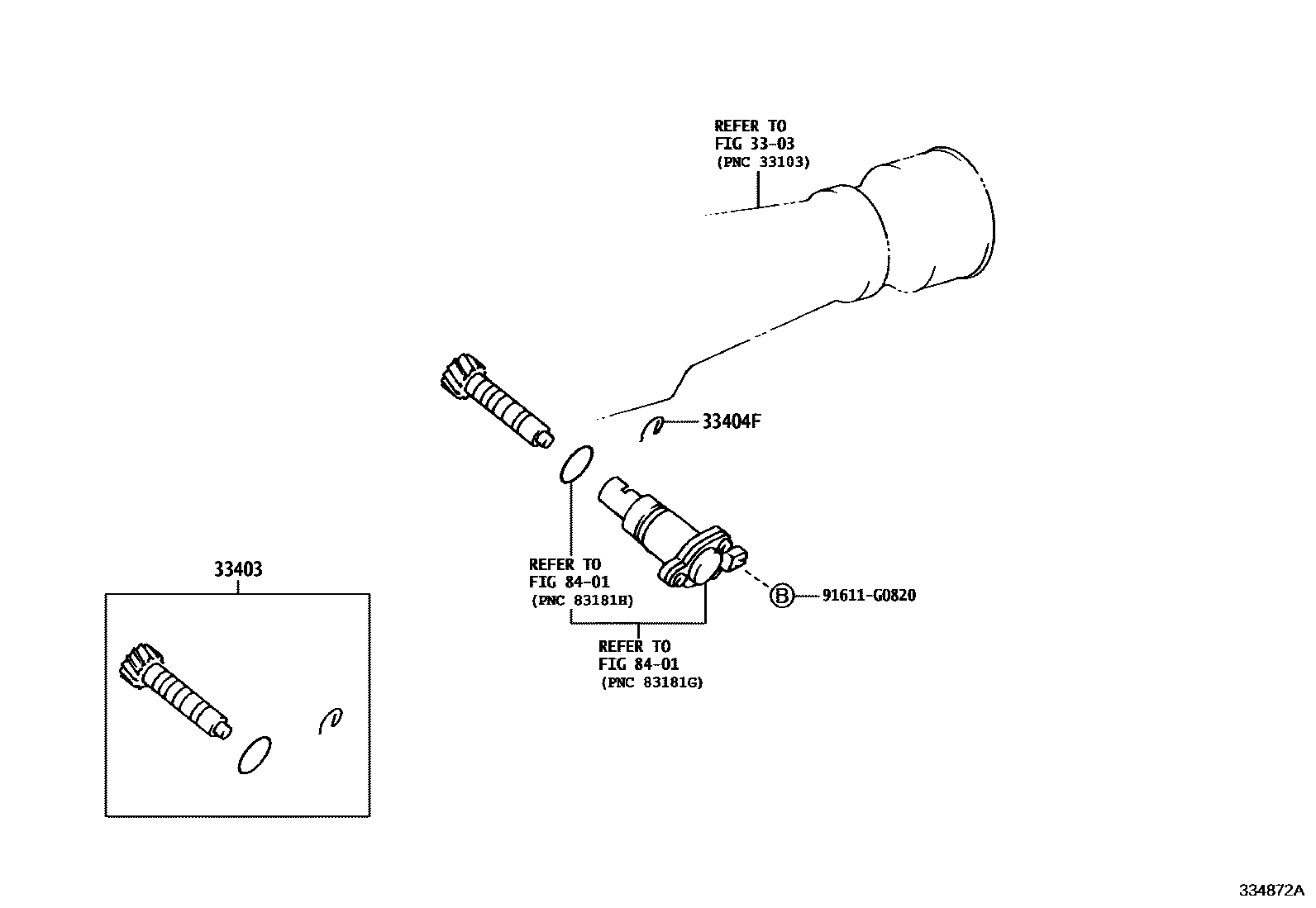

SPEEDOMETER DRIVEN GEAR (MTM)

0001 1G55 0002 1R351 0003 1G55

3303EXTENSION HOUSING (MTM)

→ Go to FIG 33-03

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33403-26060iTRH200..5F202302-202506

main33403-29315iTRH213..RHD..5F201312-201901

N=32,MARK 32:10

main33403-39305iLH200..5D201908-202506

N=19,MARK 19:6

main33403-39345iKDH201,203..RHD..(02S,03S)..5F..GEN201312-202301

N=31,MARK 31:11

main33403-39415iKDH200..MA201312-202312

N=33,MARK 33:11

33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iLH200..5D;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)201312-201901

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

91611G0820

main91611-G0820

5 parts on this diagram · 3 diagrams in section
