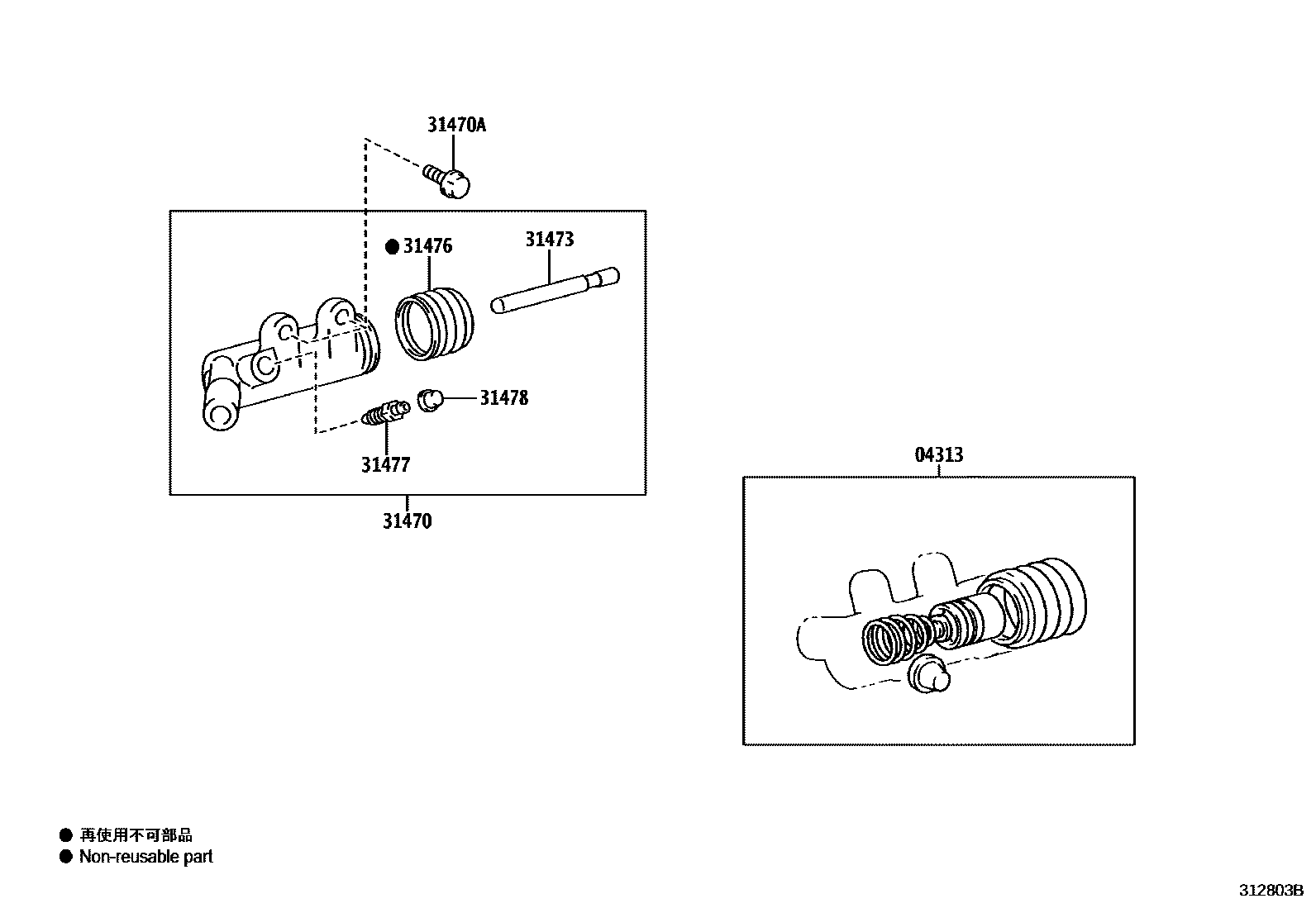

CLUTCH RELEASE CYLINDER

0001 1 0002 1

04313CYLINDER KIT, CLUTCH RELEASE

main04313-22030iTRH213..RHD..GEN201908-202312

main04313-35060iKDH222..KEN201312-202212

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-26061iLH20#,212,222..4D201312-202506

main31470-26110iTRH200..5F202302-202506

main31470-26120iTRH213..RHD..5F201312-201901

main31470-60201iKDH222..GL..GCC201909

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-B0825×2iLH200..5D;TRH213..RHD..5F201312-201901

*8-1.25PX25-25

main91611-G0820×2iKDH200..MA201312-202312

*8-1.25PX20-20

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-20031iLH200..5D201908-202506

main31473-32010iKDH212..LHD..5F;KDH200,201..LHD..5D;KDH220,221,223..5F..(ARL,GEN,KEN,RUS,VN);KDH201,202,203,213..4D..(03S,10S,12S,15S)..5F;KDH201,220,222..(02S,05S,06S,16S)..5F..(A201312

main31473-35050iTRH221..SG;TRH223..5F..GCC201911

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iTRH213..RHD..GEN201908-202312

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iLH20#..4D;LH222..LHD;TRH200..5F;TRH203..5F..GCC201312-202506

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iLH200..5D;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)201312-201901

7 parts on this diagram · 2 diagrams in section
