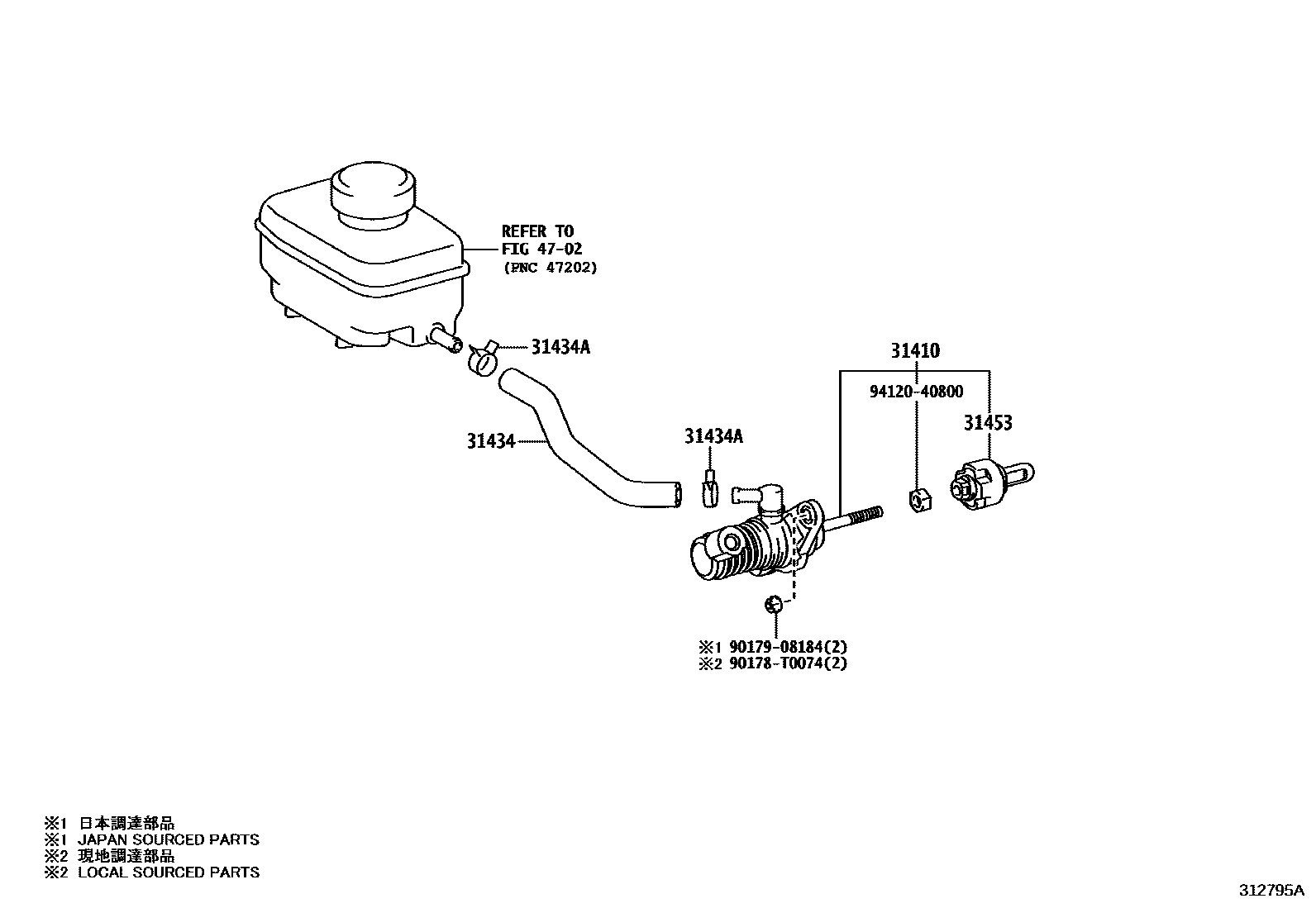

CLUTCH MASTER CYLINDER

31410CYLINDER ASSY, CLUTCH MASTER

main31420-26200iKDH20#,21#,22#,LH20#,212,222,TRH201,203,213,22#..5F201312-201612

main31420-26201iLH200..5D;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)201701-201901

31434TUBE, CLUTCH RESERVOIR

main31434-26290iKDH20#,212,22#,LH20#,212,222,TRH201,203,213,22#..RHD..5F201312-201501

main31434-26300iKDH20#,212,220,222,223,LH20#,212,222,TRH201,203,213,22#..LHD..5F201312-201501

main31434-26310iLH200..5D201908-202506

main31434-26320iKDH200..LHD..4D;TRH221..SP..GEN;TRH223..GL..GEN201908

31434ACLIP(FOR CLUTCH RESERVOIR TUBE)

main96136-41801×2iLH200..5D;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)201312-201901

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-26020iKDH20#,21#,22#,LH20#,212,222,TRH201,203,213,22#..5F201312-201612

main31404-26021iLH200..5D;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)201701-201901

4702

90178T0074

main90178-T0074

9017908184

main90179-08184

9412040800

main94120-40800

8 parts on this diagram · 1 diagram in section
