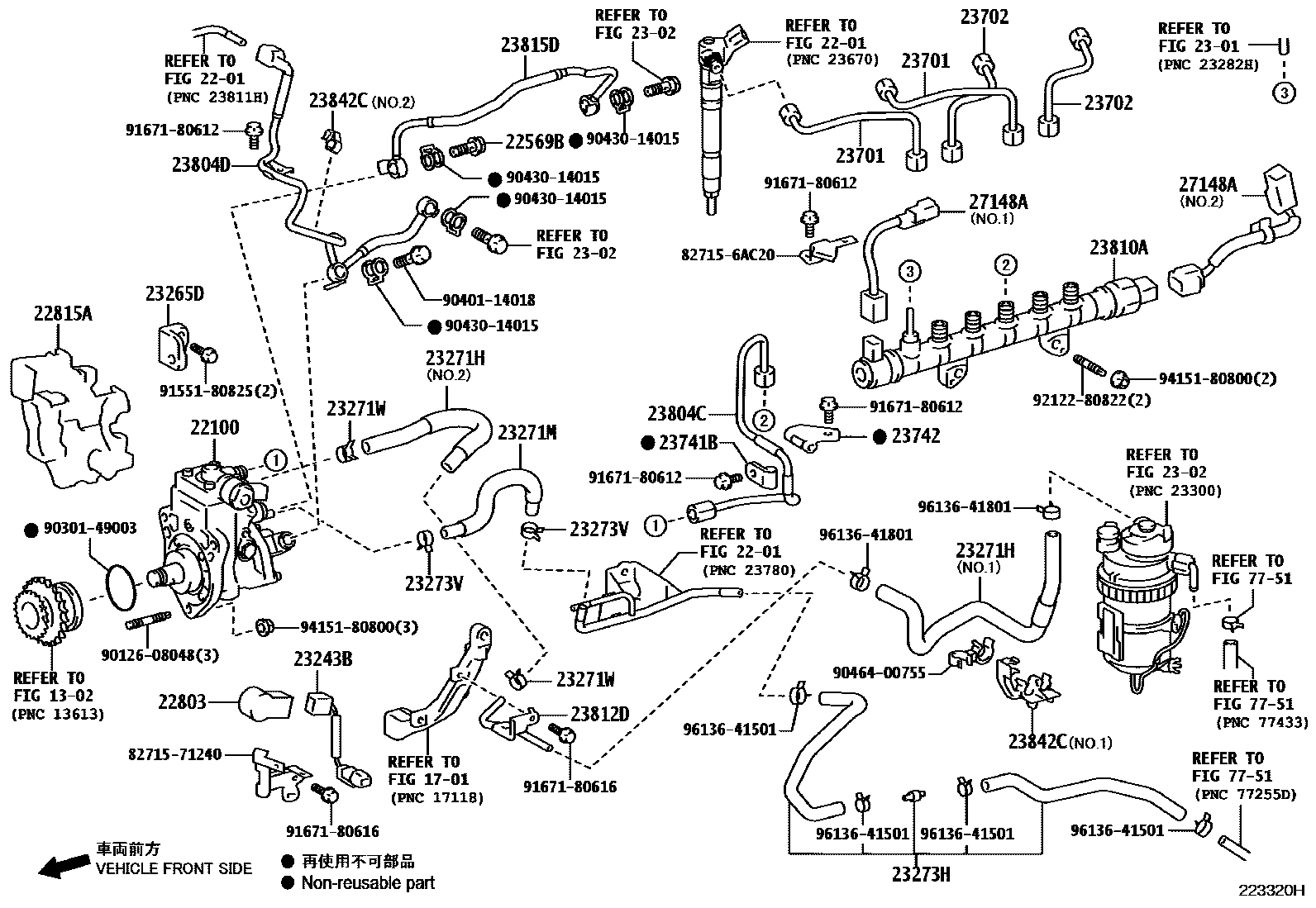

INJECTION PUMP ASSEMBLY

0001 1 0002 1 0003 1EXCEPT EURO 5 REGULATION 0011 1EURO 5 REGULATION 0015 1SINGAPOLE SPEC 0016 1 0017 1 0018 1COLD AREA SPEC

1302

1701

2201

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-0L050i1KDFTV..KDH223..5F..TH201401-201904

FIJI SPEC

main22100-0L050i1KDFTV..KDH223..5F..TH201401-201904

CBU PACKAGE

main22100-0L050i1KDFTV..KDH223..VN;1KDFTV..KDH223..4FC..TH;1KDFTV,2KDFTV..KDH200,202,203..MA,TH201401-202312

main22100-11010i1GDFTV..GDH201,223201701

main22100-30090i2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL201312-202301

main22100-30160i1KDFTV..KDH203..GEN;1KDFTV..KDH201..SP..(03S,06S)..GEN201312-201410

SINGAPORE SPEC

sub22100-30161

main22100-30161i1KDFTV..KDH223..RUS201411-202301

main22100-5D180i5LE..LH200..5D201312-202506

22569BSCREW, SUPPLY PUMP HOLLOW

main22569-11010i1GDFTV..GDH201,223201701

22803COVER SUB-ASSY, FUEL INJECTION PUMP

main22803-11010i1GDFTV..GDH201,223201701-202303

22815AINSULATOR, INJECTION PUMP

main22815-11010i1GDFTV..GDH201201701-201901

sub22815-11011

main22815-11011i1GDFTV..GDH201,223202302

2301

2302

23243BWIRE, FUEL PUMP MOTOR

main23243-11010i1GDFTV..GDH201,223201701

23265DBRACKET, FUEL PUMP, NO.1

main23265-11010i1GDFTV..GDH201,223201701

23271HHOSE, FUEL, NO.1

main23271-11370i1GDFTV..GDH201201701-201809

NO.2

sub23271-11371

main23271-11371i1GDFTV..GDH201,223201810

NO.2

main23271-30140i1KDFTV,2KDFTV..KDH20#201312-201612

sub23271-30141

main23271-30141i2KDFTV..KDH200..MA201701-202312

main23271-30150i1KDFTV,2KDFTV..KDH21#,22#201312-201612

sub23271-30151

main23271-30151i1KDFTV..KDH223..5F..TH201701-202301

main23271-54220i5LE..LH20#201312-201612

sub23271-54221

main23271-54221i5LE..LH200..5D201701-202506

main23271-54230i5LE..LH212,222201312-201612

sub23271-54231

main23271-54231i5LE..LH212,222201701-202506

main23271-75330i1GDFTV..GDH201201701-201901

NO.1

sub23271-75331

main23271-75331i1GDFTV..GDH201202302

NO.1

main23271-75341i1GDFTV..GDH223202302

NO.1

23271MHOSE, FUEL

main23273-11030i1GDFTV..GDH201,223201701

23271WCLIP(FOR FUEL HOSE NO.1)

main90466-13003i2KDFTV..KDH200..LHD..5D;1KDFTV..KDH201..4D..03S..5F;1KDFTV..KDH223..4FC..(GEN,TH);1KDFTV,2KDFTV..KDH201,220..02S,05S,06S;1KDFTV..KDH223..5F..(ARL,GEN,KEN,RUS,VN);1K201312-202312

NO.2:REFER ILLUST.

main96135-51300i2KDFTV..KDH222..GL..GCC201312-202312

NO.1:REFER ILLUST.

main96136-51801i1GDFTV..GDH201,223201701-202306

main96138-41801i1GDFTV..GDH201,223202307

23273HHOSE, FUEL, NO.2

main23273-30110i2KDFTV..KDH200..LHD..4D;2KDFTV..KDH200..RHD..GEN201312-202312

main23273-30130i2KDFTV..KDH212..16S..GEN201312-202301

main23273-30220i1KDFTV..KDH203..12S..GEN201312-202301

main23273-30270i1KDFTV..KDH221,223..(02S,03S,14S)..STD201506-202301

main23273-30280i1KDFTV..KDH223..RUS201312-201902

main23273-54150i5LE..LH200..5D201312-202506

main23273-54170i5LE..LH212,222201312-202506

main23273-75410i1GDFTV..GDH201201701-201901

main23273-75421i1GDFTV..GDH201202302

main23273-75441i1GDFTV..GDH223202302

23273VCLIP(FOR FUEL HOSE NO.2)

main96132-51300i1KDFTV..KDH223..RUS201312-201902

NO.2:REFER ILLUST.

main96135-51300i2KDFTV..KDH200..LHD..4D;2KDFTV..KDH200,212..RHD..(03S,10S)..(GEN,SA)201312-201901

COLD AREA SPEC,NO.1:REFER ILLUST.

main96135-51300i1KDFTV..KDH223..RUS201312-201902

NO.1:REFER ILLUST.

main96135-51300i1KDFTV..KDH223..5F..TH201312-202312

main96136-41501i1GDFTV..GDH201,223201701-202306

main96138-41501i1GDFTV..GDH201,223202307

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-0E010i1GDFTV..GDH201201701-201812

sub23701-0E011

main23701-0E011i1GDFTV..GDH201201812-201901

sub23701-0E012

main23701-0E012i1GDFTV..GDH201,223202302

main23701-30040i2KDFTV..KDH200..MA201312-202312

main23701-30070i1KDFTV..KDH213..TH201312-201906

main23701-30081i1KDFTV..KDH201..SG;1KDFTV..KDH201..ARL;1KDFTV..KDH221,223..(02S,03S,14S)..STD201312-202301

main23701-54140i5LE..LH20#,212,222..4D201312-202506

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-0E010i1GDFTV..GDH201201701-201812

sub23702-0E011

main23702-0E011i1GDFTV..GDH201201812-201901

sub23702-0E012

main23702-0E012i1GDFTV..GDH201,223202302

main23702-30040i2KDFTV..KDH200..MA201312-202312

main23702-30070i1KDFTV..KDH203..15S;1KDFTV..KDH223..4FC..TH;1KDFTV..KDH223..GEN,KEN,VN;1KDFTV..KDH201..4D..5F..(GEN,MA,TH);1KDFTV..KDH203,213..COM..(11S,12S,13S)..GL201312-201906

main23702-30081i1KDFTV..KDH223..RUS201312-202301

main23702-54140i5LE..LH20#,212,222..4D201312-202506

23741CLAMP, INJECTION PIPE, NO.1

main23741-0L010i1KDFTV..KDH223..5F..TH201401-201904

FIJI SPEC

main23741-0L010i1KDFTV..KDH223..5F..TH201401-201904

CBU PACKAGE

main23741-0L010i1KDFTV..KDH223..VN;1KDFTV..KDH223..4FC..TH;1KDFTV,2KDFTV..KDH200,202,203..MA,TH201401-202312

main23741-30010i1KDFTV..KDH203..12S..GEN201312-202301

main23741-54030i5LE..LH20#,212,222..4D201312-202506

23741BCLAMP, INJECTION PIPE

main23741-30010i1KDFTV..KDH203..12S..GEN201312-202301

main23741-56010i5LE..LH20#,212,222..4D201312-202506

23742CLAMP, INJECTION PIPE, NO.2

main23742-0L090i1KDFTV..KDH223..5F..TH201401-201904

FIJI SPEC

main23742-0L090i1KDFTV..KDH223..5F..TH201401-201904

CBU PACKAGE

main23742-0L090i2KDFTV..KDH200,202..MA201401-202312

main23742-11010i1GDFTV..GDH201,223201701

main23742-27010i2KDFTV..KDH200..LHD..4D;2KDFTV..KDH200..RHD..GEN201312-202301

23804CPIPE SUB-ASSY, FUEL INLET

main23804-11010i1GDFTV..GDH201201701-201901

sub23804-11011

main23804-11012i1GDFTV..GDH201,223202302

main23804-30040i2KDFTV..KDH200..MA201312-202312

main23804-39025i1KDFTV..KDH223..TH201312-201906

main23804-39036i1KDFTV..KDH201..SG;1KDFTV..KDH201..ARL;1KDFTV..KDH221,223..(02S,03S,14S)..STD201312-202301

23804DPIPE SUB-ASSY, FUEL, NO.4

main23816-0E010i1GDFTV..GDH201201701-201709

sub23816-0E012

main23816-0E012i1GDFTV..GDH201201710-201808

sub23816-0E013

main23816-0E013i1GDFTV..GDH201201808-201901

sub23816-0E014

main23816-0E014i1GDFTV..GDH201,223202302

23810ARAIL ASSY, COMMON

main23810-0L011i2KDFTV..KDH222..5F..GL;2KDFTV..KDH220..03S..SA;2KDFTV..KDH222..STD..GCC201312-202312

main23810-11030i1GDFTV..GDH201201701-201901

sub23810-11031

main23810-11031i1GDFTV..GDH201,223202302

main23810-30110i1KDFTV..KDH201..SG;1KDFTV..KDH201..ARL;1KDFTV..KDH221,223..RHD..(ARL,GEN)201312-201906

main23810-30130i1KDFTV..KDH203..12S..GEN201312-202301

23812DPIPE, FUEL, NO.2

main23812-11030i1GDFTV..GDH201201701-201811

sub23812-11031

main23812-11031i1GDFTV..GDH201,223201812

23815DPIPE, FUEL, NO.3

main23815-0E011i1GDFTV..GDH201201701-201808

sub23815-0E014

sub23300-0E011

sub23816-0E014

sub23816-0E021

main23815-0E012i1GDFTV..GDH201201808-201810

sub23815-0E014

main23815-0E014i1GDFTV..GDH201,223201810

23842CCLAMP, FUEL PIPE, NO.2(FOR INJECTION PUMP)

main23842-11060i5LE..LH200..5D201701-202506

main23842-11060i1GDFTV..GDH201,223201701

NO.1

main23842-11070i1GDFTV..GDH201201710-201812

NO.2

sub23842-11071

main23842-11071i1GDFTV..GDH201,223202302

NO.2

main90929-01441i5LE..LH20#,212,222201312-201612

sub23842-11060

27148AWIRE, CONNECTING

main27148-11030i1GDFTV..GDH201,223201701

NO.1

main27148-11040i1GDFTV..GDH201,223201701

NO.2

7751

827156AC20BRACKET,WIRING HARNESS CLAMP

main82715-6AC20

8271571240BRACKET,WIRING HARNESS CLAMP

main82715-71240

9012608048

main90126-08048

9030149003

main90301-49003

9040114018

main90401-14018

9043014015

main90430-14015

9046400755

main90464-00755

9155180825

main91551-80825

9167180612

main91671-80612

9167180616

main91671-80616

9212280822

main92122-80822

9415180800

main94151-80800

9613641501

main96136-41501

9613641801

main96136-41801
