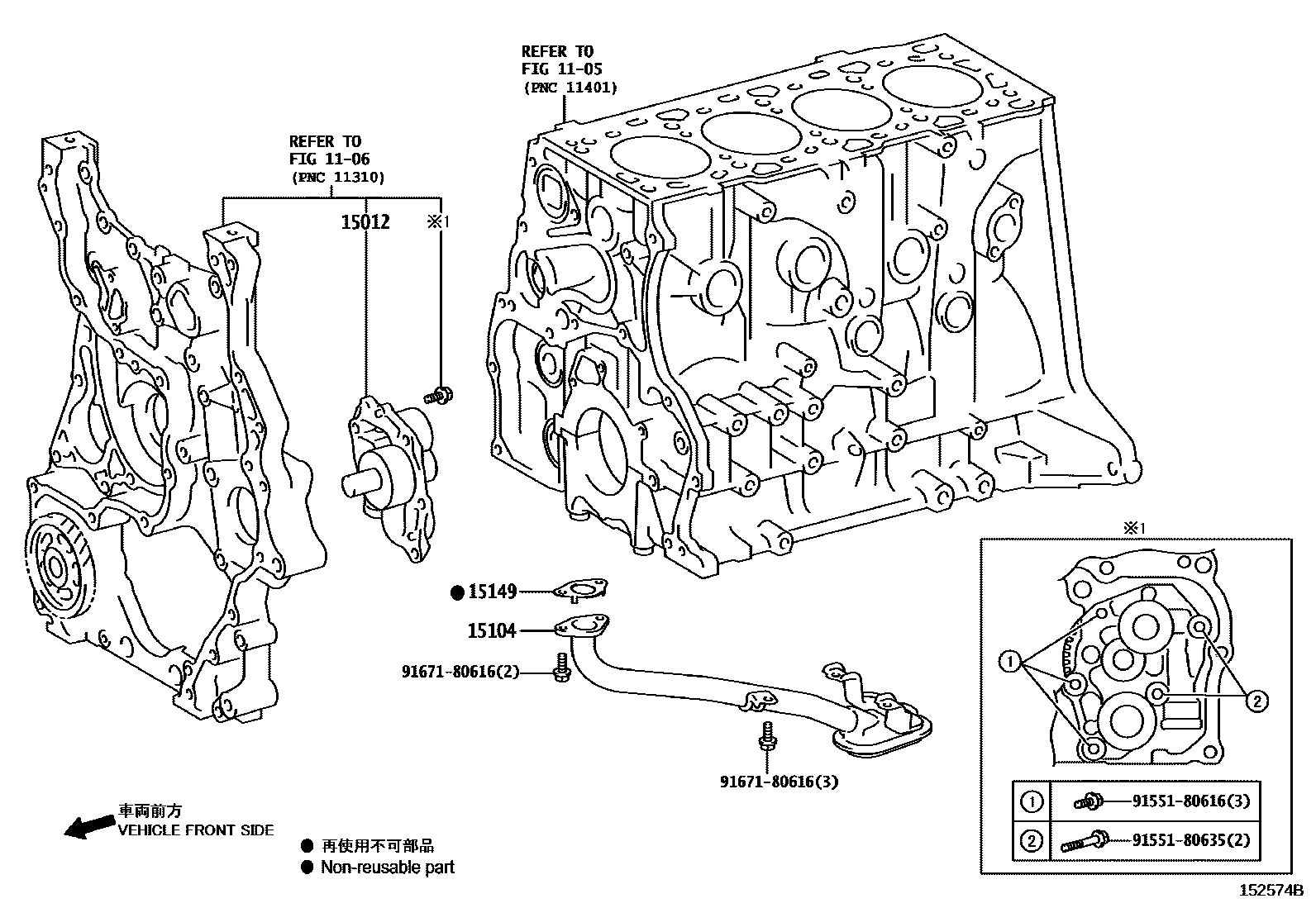

ENGINE OIL PUMP

0001 1 0002 1 0003 1 0004 1 0005 1 0008 1

1105

1106

15012COVER SUB-ASSY, OIL PUMP

main15012-11030i1GDFTV..GDH201,223201701

15104STRAINER SUB-ASSY, OIL

main15104-11220i1GDFTV..GDH201201701-201901

sub15104-11221

main15104-11221i1GDFTV..GDH201,223202302

main15104-54240i5LE..LH200..5D201312-202506

main15104-67060i2KDFTV..KDH222..GL..GCC201312-202312

main15104-75111i2TRFE..TRH201,22#..5F;2TRFE..TRH223..LHD..4FC;2TRFE..TRH203,213..SMRF,SRF201312-201503

main15104-75220i2TRFE..TRH203..4FC;2TRFE..TRH213,223..RHD..GEN201411-202212

sub15104-75221

main15104-75221i1TRFE..TRH200..5F;2TRFE..TRH203..GCC202301-202507

15149GASKET, OIL STRAINER FLANGE

main15149-0L010i1KDFTV..KDH223..5F..TH201401-201904

CBU PACKAGE

main15149-0L010i1KDFTV..KDH223..5F..TH201401-201904

FIJI SPEC

main15149-0L010i1KDFTV..KDH223..VN;1KDFTV..KDH223..4FC..TH;1KDFTV,2KDFTV..KDH200,202,203..MA,TH201401-202312

main15149-11120i1GDFTV..GDH201,223201701

main15149-67010i1KDFTV..KDH223..TH;2KDFTV..KDH200..LHD..4D;2KDFTV..KDH200..RHD..GEN201312-202301

9155180616

main91551-80616

9155180635

main91551-80635

9167180616

main91671-80616

8 parts on this diagram · 6 diagrams in section
