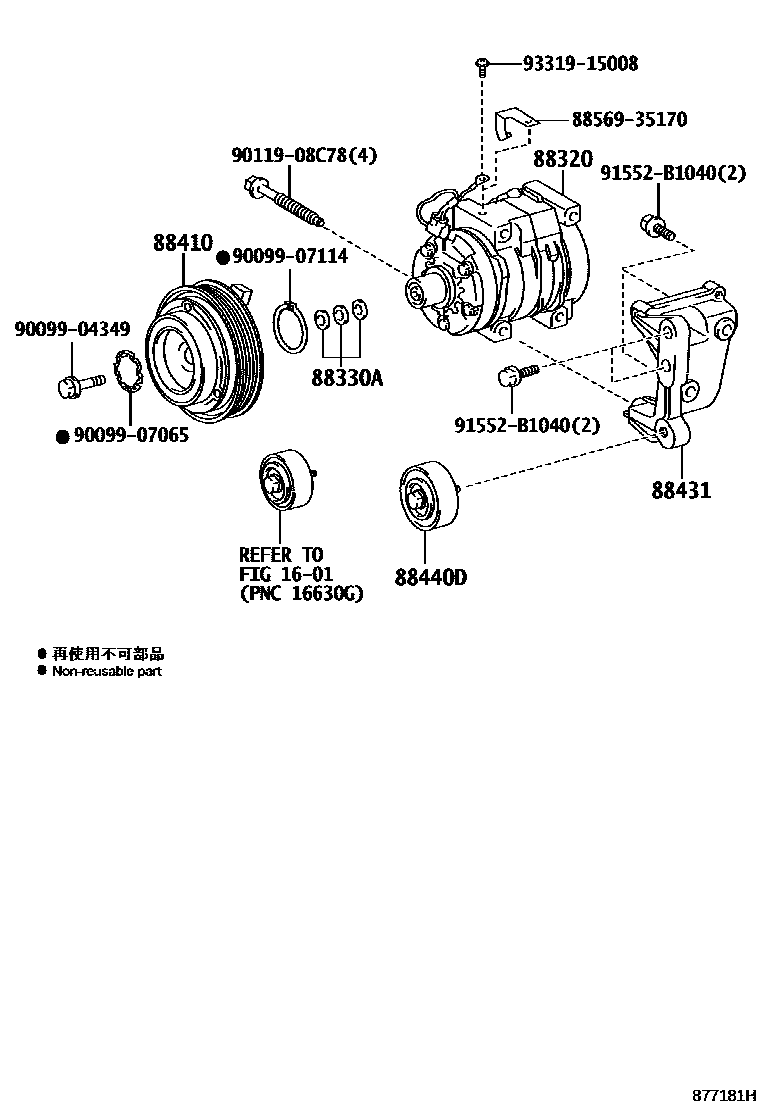

HEATING & AIR CONDITIONING - COMPRESSOR
1601WATER PUMP
88320COMPRESSOR ASSY, COOLER
main88320-25110iKDH200,201..SG..GEN;KDH200,201,220,221..03S..(ARL,GEN,SA,TH); KDH200..MA;KDH200..SP..06S200501
AIR CONDITIONER-SINGLE AIR CONDITIONER
main88320-2F020iKDH201..SG;KDH201..03S;KDH200,220,221..ARL,GEN,SA,TH; KDH202,203..SRF..GEN; KDH212,222..(15S,16S)..(GEN,SA); KDH212..VN;KDH222..GL..SA;KDH201..SP..06S;KDH202,203,222,223..(12S,14S)..(ARL,MA,RUS,TH);KDH202,212..(HRF,SMRF)..(10S,11S,12S)..(GEN,SA); KDH222,223..ARL200501
AIR CONDITIONER-DUAL AIR CONDITIONER; AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS); AIR CONDITIONER-WITHOUT
AIR CONDITIONER-DUAL AIR CONDITIONER; AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS)
AIR CONDITIONER-SINGLE AIR CONDITIONER
AIR CONDITIONER-SINGLE AIR CONDITIONER
88330AWASHER (FOR MAGNET CLUTCH)
main88335-14020iKDH222..GL..SA;KDH200,212..MA,VN;KDH200,201..SP..06S;KDH202,203,222,223..(12S,14S)..(ARL,MA,RUS,TH);KDH202,212..(HRF,SMRF)..(10S,11S,12S)..(GEN,SA)200501-201401
88410CLUTCH ASSY, MAGNET
main88410-28200iKDH200,201..SG..GEN;KDH200,201,220,221..03S..(ARL,GEN,SA,TH); KDH202,203..SRF..GEN; KDH212,222..(15S,16S)..(GEN,SA); KDH222,223..ARL; KDH222..GL..SA;KDH200,212..MA,VN;KDH200,201..SP..06S;KDH202,203,222,223..(12S,14S)..(ARL,MA,RUS,TH);KDH202,212..(HRF,SMRF)..(10S,11S,12S)..(GEN,SA)200501
AIR CONDITIONER-DUAL AIR CONDITIONER; AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS); AIR CONDITIONER-SINGLE AIR CONDITIONER; AIR CONDITIONER-WITHOUT
AIR CONDITIONER-DUAL AIR CONDITIONER; AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS); AIR CONDITIONER-SINGLE AIR CONDITIONER
88431BRACKET, COMPRESSOR MOUNTING, NO.1
main88431-26430iTRH201..SG..06S;TRH201,221..SP..03S; TRH203..SRF; TRH213,22#..SG..(03S,15S,16S)..STD..(GCC,GEN,SA,TH); TRH221;TRH201..SG;TRH201..SP..03S; TRH223..ARL; TRH223..GL..SA;TRH223..4FC..GL;TRH201..SP..06S;TRH213,223..(12S,14S,16S)..(ARL,CIS,VN);TRH203,213..(HRF,SMRF)..(09S,10S,11S,12S)200501-201207
AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS),W/O BUSH; AIR CONDITIONER-DUAL AIR CONDITIONER,W/O BUSH; AIR CONDITIONER-SINGLE AIR CONDITIONER,W/O BUSH; AIR CONDITIONER-WITHOUT,W/O BUSH; W/O BUSH
main88431-26440iTRH223..ARL; TRH223..GL;TRH223..ARL;TRH201..SP..06S;TRH200,203,213..06S,10S,11S,12S201207-201401
AIR CONDITIONER-WITHOUT,W/BUSH; W/BUSH
main88431-35250iKDH222..GL..SA;KDH200,212..MA,VN;KDH200,201..SP..06S;KDH202,203,222,223..(12S,14S)..(ARL,MA,RUS,TH);KDH202,212..(HRF,SMRF)..(10S,11S,12S)..(GEN,SA)200501-201401
AIR CONDITIONER-DUAL AIR CONDITIONER; AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS); AIR CONDITIONER-SINGLE AIR CONDITIONER
88440DPULLEY ASSY, IDLE NO.2
8856935170CLAMP (FOR COOLER RELAY)
main88569-35170
9009904349
main90099-04349
9009907065
main90099-07065
9009907114
main90099-07114
9011908C78
main90119-08C78
91552B1040
main91552-B1040
9331915008
main93319-15008
13 parts on this diagram · 5 diagrams in section
