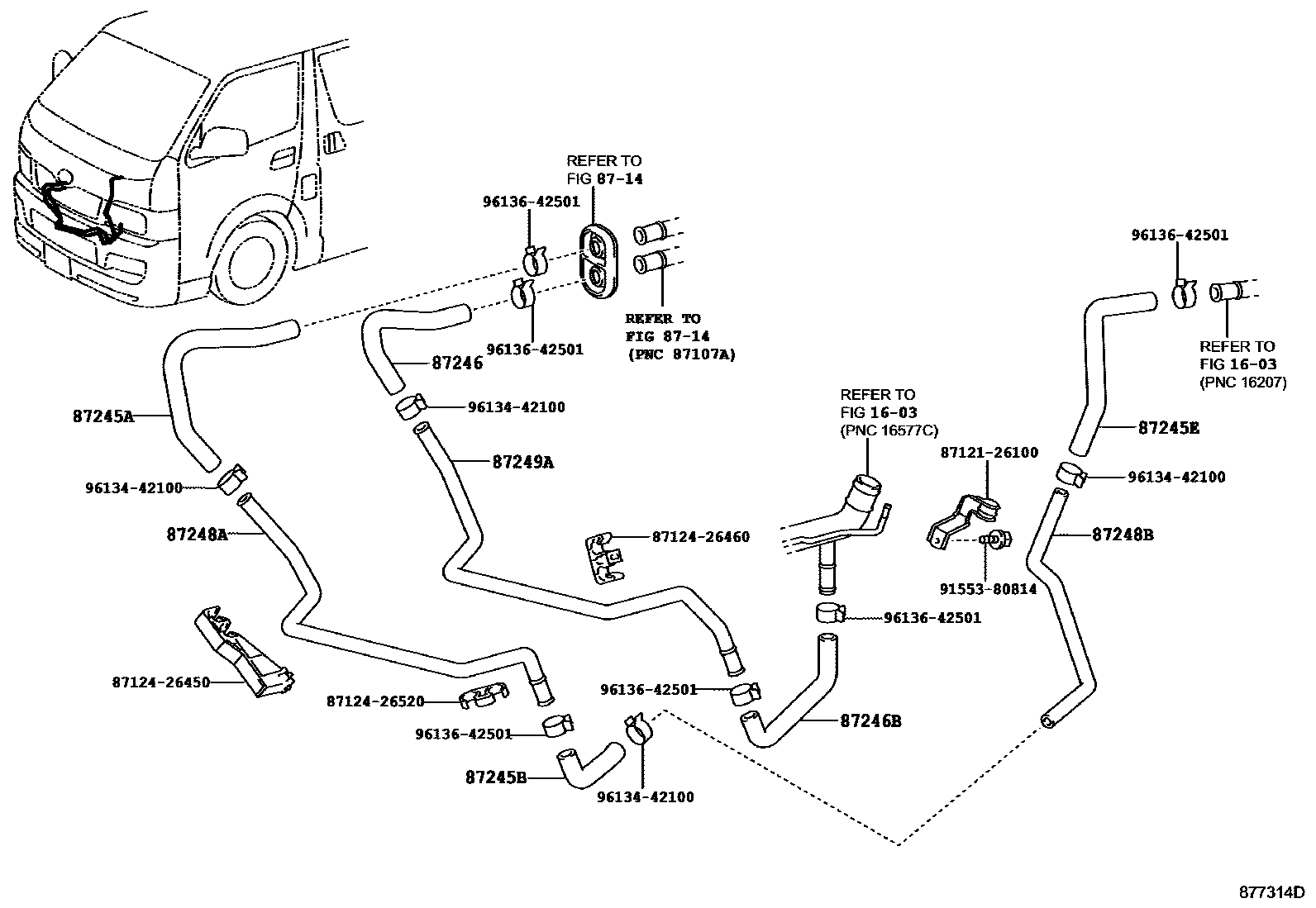

HEATING & AIR CONDITIONING - WATER PIPING
1603RADIATOR & WATER OUTLET
8714HEATING & AIR CONDITIONING - COOLER UNIT
87245AHOSE, HEATER WATER, INLET A
main87245-26A90iKDH200,201,TRH201..ARL,SA;KDH200,201,TRH200,201..06S..GEN; KDH200,202,LH20#,TRH201,203..RHD..(03S,15S)..GEN; KDH200,202..RHD..(03S,15S)..GEN200501-201312
FRONT HEATER-WITH; FRONT HEATER-WITH(PTC HEATER)
main87245-26B20iTRH223..GL..SA;KDH223,TRH213..10S,12S,14S,15S;TRH223..(12S,13S,14S)..(ARL,CIS,GEN);KDH212,220,221,222,TRH221..RHD..(03S,10S,14S,15S)200501-201402
FRONT HEATER-WITH
FRONT HEATER-WITH
87245BHOSE, HEATER WATER, INLET B
main87245-26B40iLH202;TRH203..LHD..GEN; TRH201..06S..GCC;LH20#,TRH203..SRF;TRH201..03S..(GCC,GEN); TRH201..ARL,SA;TRH200,201..06S..GEN200501-201312
FRONT HEATER-WITH; FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)
main87245-26B80iTRH221..RHD;TRH223..GL..SA;TRH213..10S,15S;TRH223..(12S,13S,14S)..(ARL,CIS,GEN)200501-201402
main87245-26C00iKDH202..RHD..15S; KDH222..GL..GCC;KDH202..15S..GEN;KDH202,203,222..LHD..(12S,16S)..5F..GEN; KDH223..RUS200501-201310
FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET); FRONT HEATER-WITH(PTC HEATER)&REAR HEATER-WITH(FLOOR SET)
87245EHOSE, HEATER WATER, INLET E
main87245-26B60iTRH223..GL..SA;TRH201,221..ARL,SA;TRH223..(12S,13S,14S)..(ARL,CIS,GEN);TRH200,201,213..(06S,10S,15S)..(GEN,SA,VN)200501-201402
main87245-26C10iKDH202..RHD..GEN; KDH212,222..GL..SA; KDH222..GL..GCC;KDH202,203,222..(12S,15S,16S)..GEN; KDH223..RUS201310-201311
FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET); FRONT HEATER-WITH(PTC HEATER)&REAR HEATER-WITH(FLOOR SET); REAR HEATER-WITH(FLOOR SET)
FRONT HEATER-WITH; FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)
FRONT HEATER-WITH; FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)
87246HOSE, HEATER WATER, OUTLET
main87245-26B30iTRH223..GL..SA;KDH223,TRH213..10S,12S,14S,15S;TRH223..(12S,13S,14S)..(ARL,CIS,GEN);KDH212,220,221,222,TRH221..RHD..(03S,10S,14S,15S)200501-201402
main87245-26D60iKDH200,201,TRH201..ARL,SA;KDH200,201,TRH200,201..06S..GEN; KDH200,202,LH20#,TRH201,203..RHD..(03S,15S)..GEN; KDH200,202..RHD..(03S,15S)..GEN200501-201312
FRONT HEATER-WITH; FRONT HEATER-WITH(PTC HEATER)
FRONT HEATER-WITH
FRONT HEATER-WITH
87246BHOSE, HEATER WATER, OUTLET B
main87245-26B50iLH202;TRH203..LHD..GEN; TRH201..06S..GCC;LH20#,TRH203..SRF;TRH201..03S..(GCC,GEN); TRH201..ARL,SA;TRH200,201..06S..GEN200501-201312
FRONT HEATER-WITH; FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)
main87245-26B90iTRH221..RHD;TRH223..GL..SA;TRH213..10S,15S;TRH223..(12S,13S,14S)..(ARL,CIS,GEN)200501-201402
main87245-26C20iKDH202..RHD..GEN; KDH212,222..GL..SA; KDH222..GL..GCC;KDH202,203,222..(12S,15S,16S)..GEN; KDH223..RUS201311-201312
FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET); FRONT HEATER-WITH(PTC HEATER)&REAR HEATER-WITH(FLOOR SET); REAR HEATER-WITH(FLOOR SET)
main87245-26C80iKDH200,201..ARL,SA;KDH200,201..06S..GEN;KDH212,22#..RHD..(03S,10S,14S,15S)200501-201402
87248APIPE, HEATER WATER INLET, A
main87248-26400iKDH200,201,TRH201..ARL,SA;KDH200,201,TRH200,201..06S..GEN; KDH200,202,LH20#,TRH201,203..RHD..(03S,15S)..GEN; KDH200,202..RHD..(03S,15S)..GEN200501-201312
FRONT HEATER-WITH; FRONT HEATER-WITH(PTC HEATER)
main87248-26440iTRH223..GL..SA;KDH223,TRH213..10S,12S,14S,15S;TRH223..(12S,13S,14S)..(ARL,CIS,GEN);KDH212,220,221,222,TRH221..RHD..(03S,10S,14S,15S)200501-201402
FRONT HEATER-WITH(PTC HEATER)
FRONT HEATER-WITH
87248BPIPE, HEATER WATER INLET, B
main87248-26480iTRH201..ARL,SA;TRH200,201..06S..GEN; TRH203..SRF;TRH201..06S..GCC;TRH201..03S..(GCC,GEN)200501-201312
FRONT HEATER-WITH
main87248-26500iTRH213,223..GL..SA; TRH213,223..LHD..(10S,12S,13S); TRH223..5F..GEN;TRH223..GL..GCC200501-201312
FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET); REAR HEATER-WITH(FLOOR SET)
main87248-26570iKDH200,201..ARL,SA;KDH200,201..06S..GEN;KDH212,22#..RHD..(03S,10S,14S,15S)200501-201402
FRAME NO.=0,8XXXXXX
FRAME NO.=0,8XXXXXX; FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET),FRAME NO.=0,8XXXXXX; REAR HEATER-WITH(FLOOR SET),FRAME NO.=0,8XXXXXX
FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)
FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET); FRONT HEATER-WITH(PTC HEATER)&REAR HEATER-WITH(FLOOR SET)
FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET); FRONT HEATER-WITH(PTC HEATER)&REAR HEATER-WITH(FLOOR SET)
FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET); FRONT HEATER-WITH(PTC HEATER)&REAR HEATER-WITH(FLOOR SET)
FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET),FRAME NO.=5,6XXXXXX; FRONT HEATER-WITH(PTC HEATER)&REAR HEATER-WITH(FLOOR SET),FRAME NO.=5,6XXXXXX
main87248-26580iKDH222..5F..ARL; KDH222..ARL; KDH222..GL;KDH222..LHD..GEN; KDH222..LHD..GEN200501-200610
FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET); FRONT HEATER-WITH(PTC HEATER)&REAR HEATER-WITH(FLOOR SET); NEW ZEALAND SPEC&REAR HEATER-WITH(FLOOR SET); SOUTH AFRICA SPEC&REAR HEATER-WITH(FLOOR SET)
FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET); REAR HEATER-WITH(FLOOR SET)
FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)
FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)
FRONT HEATER-WITH
FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)
FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)
FRONT HEATER-WITH
87249APIPE, HEATER WATER OUTLET, A
main87248-26410iKDH200,201,TRH201..ARL,SA;KDH200,201,TRH200,201..06S..GEN; KDH200,202,LH20#,TRH201,203..RHD..(03S,15S)..GEN; KDH200,202..RHD..(03S,15S)..GEN200501-201312
FRONT HEATER-WITH; FRONT HEATER-WITH(PTC HEATER)
main87248-26450iTRH223..GL..SA;KDH223,TRH213..10S,12S,14S,15S;TRH223..(12S,13S,14S)..(ARL,CIS,GEN);KDH212,220,221,222,TRH221..RHD..(03S,10S,14S,15S)200501-201402
FRONT HEATER-WITH(PTC HEATER)
FRONT HEATER-WITH
8712126100BRACKET, HEATER, FRONT RH
main87121-26100
8712426450CLAMP, HEATER
main87124-26450
8712426460CLAMP, HEATER
main87124-26460
8712426520CLAMP, HEATER
main87124-26520
9155380814
main91553-80814
9613442100
main96134-42100
9613642501
main96136-42501
17 parts on this diagram · 26 diagrams in section
