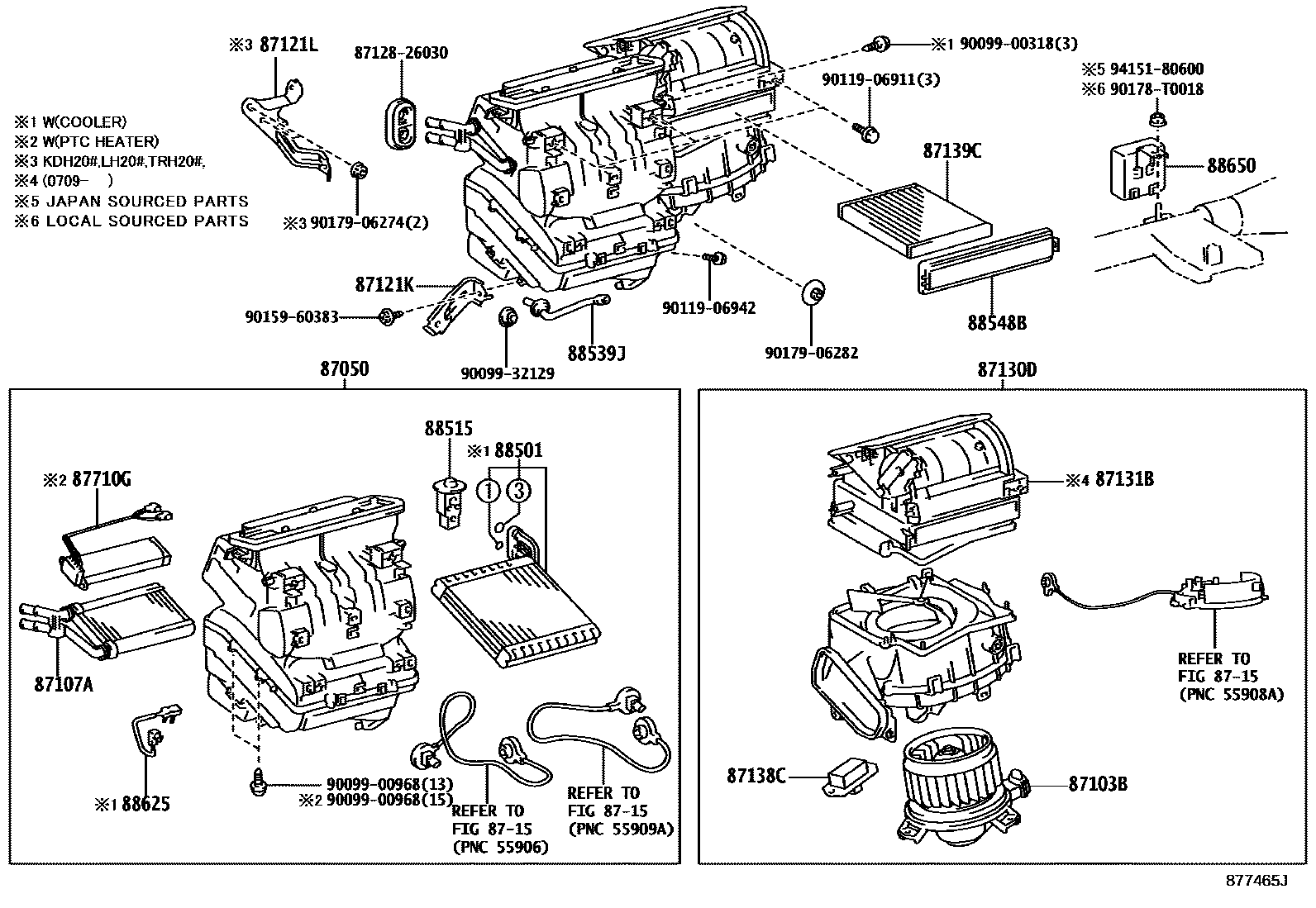

HEATING & AIR CONDITIONING - COOLER UNIT
87050RADIATOR ASSY, AIR CONDITIONER
main87050-26010iKDH200,LH200,TRH201..RHD..03S..GEN; KDH202,LH202,TRH203..RHD..15S; KDH212,LH212,222,TRH213,223..RHD..STD..GEN; KDH220,221,TRH221..RHD;KDH200,201,TRH201..ARL,SA;KDH200,201,TRH201..SG..06S..GEN; KDH222,TRH223..ARL;KDH222,TRH223..GL..SA;KDH200,201,TRH201..SP..06S;KDH212,223,TRH200,213..RHD..(06S,10S,14S)200501-201312
AIR CONDITIONER-DUAL AIR CONDITIONER; AIR CONDITIONER-SINGLE AIR CONDITIONER; FRONT HEATER-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER; FRONT HEATER-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS); FRONT HEATER-WITH&AIR CONDITIONER-SINGLE AIR CONDITIONER
main87050-26040iKDH200,201,LH200,TRH201..RHD..03S..GEN; KDH202,203,LH202,TRH203..RHD..SRF..GEN; KDH212,222,LH212,222,TRH213,223..RHD..STD..(GEN,TH); TRH213..4FC200501-200709
AIR CONDITIONER-DUAL AIR CONDITIONER; AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS); AIR CONDITIONER-SINGLE AIR CONDITIONER
main87050-26050iKDH202..RHD..SRF..GEN;KDH200,201,203,212,222,LH20#,212,222,TRH20#,213,223..RHD..(03S,14S,15S,16S)..(GEN,TH)200501-200709
main87050-26051iKDH20#,212,222,LH20#,212,222,TRH20#,213,223..RHD..(03S,14S,15S,16S)..(GEN,TH)200709-201205
main87050-26060supersedes 87050-26081iKDH200,201,220,LH200,TRH201,221..LHD; KDH202,203,LH202,TRH203..LHD; KDH212..GCC;KDH222,LH212,222,TRH213,22#..LHD..SG..(03S,16S)..STD..(GCC,GEN); TRH201,221..LHD..5D;KDH200,201,220,LH200..LHD; TRH213,223..LHD..(10S,12S,13S)200501-201312
FRONT HEATER-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER; FRONT HEATER-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS); FRONT HEATER-WITH&AIR CONDITIONER-SINGLE AIR CONDITIONER
main87050-26081iKDH200,201,220,LH200,TRH201,221..LHD; KDH202,203,LH202,TRH203..LHD; KDH212,222,LH212,222,TRH213,22#..LHD..SG..STD..(GCC,GEN); KDH212..GL..GEN;TRH223..4FC..GL..GCC;KDH212,TRH213..STD..VN; TRH201..LHD..5D;KDH200,201,220,LH200,TRH221..LHD..SP; TRH213..GL..GEN200709-201312
AIR CONDITIONER-DUAL AIR CONDITIONER; AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS); AIR CONDITIONER-SINGLE AIR CONDITIONER; FRONT HEATER-BOOST VENTIRATOR
main87050-26090iTRH213..LHD..STD;KDH200,202,212,220,222,LH20#,212,222,TRH20#,22#..LHD..(03S,06S,10S,12S,15S,16S)..(GCC,GEN)200501-200709
COLD AREA SPEC&AIR CONDITIONER-DUAL AIR CONDITIONER; COLD AREA SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER; NEW ZEALAND SPEC&COLD AREA SPEC; SOUTH AFRICA SPEC&COLD AREA SPEC; SOUTH AFRICA SPEC&COLD AREA SPEC&AIR CONDITIONER-DUAL AIR CONDITIONER; SOUTH AFRICA SPEC&COLD AREA SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER
FRONT HEATER-WITH(PTC HEATER)&AIR CONDITIONER-DUAL AIR CONDITIONER
main87050-26110iKDH212..GCC;KDH20#,220,222,LH20#,212,222,TRH201,203,213,22#..LHD..(03S,06S,12S,15S,16S)..STD..(GCC,GEN)200501-201312
FRONT HEATER-WITH
main87050-26120iKDH200,220..5F..ARL; KDH200,220..SG..GEN; KDH212..RHD; KDH222..5F..ARL; KDH222..ARL200501-200610
COLD AREA SPEC; FRONT HEATER-WITH(PTC HEATER); NEW ZEALAND SPEC&COLD AREA SPEC&AIR CONDITIONER-WITHOUT; SOUTH AFRICA SPEC&COLD AREA SPEC; SOUTH AFRICA SPEC&COLD AREA SPEC&AIR CONDITIONER-WITHOUT
FRONT HEATER-WITH(PTC HEATER)
87103BMOTOR SUB-ASSY, BLOWER W/FAN
CKD PACKAGE(THAILAND)&AIR CONDITIONER-SINGLE AIR CONDITIONER
main87103-26060iKDH201..SP..06S;KDH223,TRH223..14S;TRH201..SP..06S..5F;KDH212,222,TRH213..GL..SA200501-200709
main87103-26062iKDH221;KDH200,201,220,222,TRH201,221..STD..(ARL,SA);KDH201,TRH201,223..SG..(06S,14S)..STD..(GEN,SA)201101-201402
main87103-26072iKDH20#,212,220,222,LH20#,212,222,TRH201,203,213,22#..LHD..STD..(GCC,GEN)201101-201312
main87103-26100iKDH200,TRH201..RHD..03S..GEN; KDH201,TRH201..SG..06S..GEN;KDH200,201,220,221,TRH201,221..RHD..03S..(ARL,GEN,SA,TH); KDH202,203,TRH203..RHD..GEN; KDH202,TRH203..RHD..GEN; KDH202..TH; KDH212,222,TRH213,223..RHD..GEN; KDH212,222,TRH213,223..RHD..STD..(GEN,TH); TRH223..ARL;KDH222,TRH223..GL..SA;KDH201,TRH201..SP..06S;KDH212,223,TRH213..RHD..(10S,11S,14S)200709-201012
AIR CONDITIONER-DUAL AIR CONDITIONER; AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS); AIR CONDITIONER-SINGLE AIR CONDITIONER; FRONT HEATER-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER; FRONT HEATER-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS); FRONT HEATER-WITH&AIR CONDITIONER-SINGLE AIR CONDITIONER; WITHOUT(CKD PACKAGE)
main87103-26101iKDH201..TH;TRH223..ARL;KDH222,TRH223..GL..SA;KDH201,TRH200,201..SP..06S;KDH212,223,TRH213..ARL,SA,TH201101-201401
main87103-26110iKDH200,201,220,TRH201,221..LHD; KDH202,203,TRH203..LHD; KDH212,222,TRH213,22#..LHD..SG..STD..(GCC,GEN); KDH212,TRH213..STD..VN;KDH212,TRH213,223..LHD..(10S,11S,12S,13S); TRH201..LHD..5D;KDH200,201,220,TRH221..LHD..SP200709-201012
AIR CONDITIONER-DUAL AIR CONDITIONER; AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS); AIR CONDITIONER-SINGLE AIR CONDITIONER; FRONT HEATER-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER; FRONT HEATER-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS); FRONT HEATER-WITH&AIR CONDITIONER-SINGLE AIR CONDITIONER
main87103-26111iKDH200,201,220,TRH201,221..LHD; KDH202,203,TRH203..LHD; KDH212,222,TRH213,22#..LHD..SG..STD..(GCC,GEN); KDH212,TRH213..STD..VN;KDH212,222,223,TRH213,223..LHD..GL; TRH201..LHD..5D;KDH200,201,220,TRH221..LHD..SP201101-201312
AIR CONDITIONER-DUAL AIR CONDITIONER; AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS); AIR CONDITIONER-SINGLE AIR CONDITIONER; FRONT HEATER-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER; FRONT HEATER-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS); FRONT HEATER-WITH&AIR CONDITIONER-SINGLE AIR CONDITIONER
87107AUNIT SUB-ASSY, HEATER RADIATOR
main87107-26210iTRH223..GL..SA;KDH200,201,TRH201..ARL,SA;TRH223..(12S,13S,14S)..(ARL,CIS,GEN);KDH212,220,221,222,TRH200,221..RHD..(03S,06S,10S,14S,15S);KDH200,201,223,TRH201,213..(06S,10S,12S,14S,15S)..(ARL,GEN,RUS,SA,VN)200501-201402
87121KBRACKET, HEATER
main87121-26030iKDH202..RHD..SRF..GEN;KDH200,201,203,212,22#,LH20#,212,222,TRH20#,213,22#..RHD..(03S,06S,10S,11S,14S,15S,16S)..(ARL,GEN,SA,TH)200501-201007
main87121-26200iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#..RHD..(03S,06S,10S,11S,14S,15S,16S)..(ARL,GEN,SA,TH)201008-201402
CKD PACKAGE(MALAYSIA); CKD PACKAGE(THAILAND)
87121LBRACKET, HEATER
87130DBLOWER ASSY
main87130-26110iKDH202..RHD..SRF..GEN;KDH200,201,203,212,22#,LH20#,212,222,TRH20#,213,22#..RHD..(03S,06S,10S,11S,14S,15S,16S)..(ARL,GEN,SA,TH)200501-200709
main87130-26111iKDH201..RHD..03S..GEN;KDH200,202,203,212,222,LH20#,212,222,TRH203,213,223..RHD..(03S,14S,15S,16S)..5F..(GEN,TH)200709-201205
main87130-26151iKDH20#,212,220,222,LH20#,212,222,TRH201,203,213,22#..LHD..STD..(GCC,GEN)200709-201312
main87130-26180iKDH201..TH;TRH223..ARL;KDH222,TRH223..GL..SA;KDH201,TRH200,201..SP..06S;KDH212,223,TRH213..(10S,11S,14S,16S)..(ARL,SA,TH)200709-201401
main87130-26160iKDH200,22#..5F..ARL; KDH200,220..5F..ARL; KDH200,220..SG..GEN; KDH212..RHD; KDH222..5F..ARL; KDH222..ARL200501-200610
COLD AREA SPEC; COLD AREA SPEC&AIR CONDITIONER-DUAL AIR CONDITIONER; COLD AREA SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER; FRONT HEATER-WITH(PTC HEATER); NEW ZEALAND SPEC&COLD AREA SPEC; NEW ZEALAND SPEC&COLD AREA SPEC&AIR CONDITIONER-WITHOUT; SOUTH AFRICA SPEC&COLD AREA SPEC; SOUTH AFRICA SPEC&COLD AREA SPEC&AIR CONDITIONER-DUAL AIR CONDITIONER; SOUTH AFRICA SPEC&COLD AREA SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER; SOUTH AFRICA SPEC&COLD AREA SPEC&AIR CONDITIONER-WITHOUT
FRONT HEATER-WITH(PTC HEATER)&AIR CONDITIONER-DUAL AIR CONDITIONER; FRONT HEATER-WITH(PTC HEATER)&AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS); FRONT HEATER-WITH(PTC HEATER)&AIR CONDITIONER-SINGLE AIR CONDITIONER
FRONT HEATER-WITH(PTC HEATER); FRONT HEATER-WITH(PTC HEATER)&AIR CONDITIONER-DUAL AIR CONDITIONER
87131BCASE, HEATER BLOWER
main87131-26010iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#..RHD..(03S,06S,10S,11S,14S,15S,16S)..(ARL,GEN,SA,TH)200709-201402
87138CRESISTOR, BLOWER
main87138-26150iKDH202..RHD..SRF..GEN;KDH200,201,203,212,22#,LH20#,212,222,TRH20#,213,22#..RHD..(03S,06S,10S,11S,14S,15S,16S)..(ARL,GEN,SA,TH)200501-201402
87139CFILTER, CLEAN AIR
main87139-26010iTRH223;KDH202,203,LH202,TRH203..GCC,GEN;KDH200,201,212,22#,LH200,212,222,TRH200,201,213,221..(03S,06S,10S,11S,12S,14S,16S)..(ARL,GCC,GEN,RUS,SA,TH,VN)200709-201402
8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT
87710GQUICK HEATER ASSY
main87710-26060iKDH200,22#..5F..ARL; KDH200,220..5F..ARL; KDH200,220..SG..GEN; KDH212..RHD; KDH222..5F..ARL; KDH222..ARL200501-200610
COLD AREA SPEC; COLD AREA SPEC&AIR CONDITIONER-DUAL AIR CONDITIONER; COLD AREA SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER; FRONT HEATER-WITH(PTC HEATER); NEW ZEALAND SPEC&COLD AREA SPEC; NEW ZEALAND SPEC&COLD AREA SPEC&AIR CONDITIONER-WITHOUT; SOUTH AFRICA SPEC&COLD AREA SPEC; SOUTH AFRICA SPEC&COLD AREA SPEC&AIR CONDITIONER-DUAL AIR CONDITIONER; SOUTH AFRICA SPEC&COLD AREA SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER; SOUTH AFRICA SPEC&COLD AREA SPEC&AIR CONDITIONER-WITHOUT
FRONT HEATER-WITH(PTC HEATER); FRONT HEATER-WITH(PTC HEATER)&AIR CONDITIONER-DUAL AIR CONDITIONER; FRONT HEATER-WITH(PTC HEATER)&AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS); FRONT HEATER-WITH(PTC HEATER)&AIR CONDITIONER-SINGLE AIR CONDITIONER
FRONT HEATER-WITH(PTC HEATER)&AIR CONDITIONER-DUAL AIR CONDITIONER; FRONT HEATER-WITH(PTC HEATER)&AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS); FRONT HEATER-WITH(PTC HEATER)&AIR CONDITIONER-SINGLE AIR CONDITIONER
88501EVAPORATOR SUB-ASSY, COOLER, NO.1
main88501-26210iKDH200,201,TRH201..SG..06S..GEN;KDH200,201,220,221,LH200,TRH201,221..RHD..03S..(ARL,GEN,SA,TH); KDH200,LH200,TRH201..RHD..03S..GEN; KDH200..RHD..03S..GEN; KDH202,203,LH202,TRH203..RHD..SRF..GEN; KDH202,LH202,TRH203..RHD..15S; KDH202..RHD..15S; KDH212,222,LH212,222,TRH213,223..RHD..STD..(GEN,TH); KDH212,LH212,222,TRH213,223..RHD..STD..GEN; TRH223..ARL;TRH223..GL..SA;KDH200,201,TRH201..SP..06S;KDH212,222,223,TRH213..RHD..(10S,11S,14S)200501-200805
AIR CONDITIONER-DUAL AIR CONDITIONER; AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS); AIR CONDITIONER-SINGLE AIR CONDITIONER; FRONT HEATER-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER; FRONT HEATER-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS); FRONT HEATER-WITH&AIR CONDITIONER-SINGLE AIR CONDITIONER; FRONT HEATER-WITH(PTC HEATER)&AIR CONDITIONER-DUAL AIR CONDITIONER; FRONT HEATER-WITH(PTC HEATER)&AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS); FRONT HEATER-WITH(PTC HEATER)&AIR CONDITIONER-SINGLE AIR CONDITIONER
main88501-26211iKDH200,LH200,TRH201..RHD..03S..GEN; KDH200..RHD..GEN; KDH202,203,LH202,TRH203..RHD..GEN; KDH202,LH202,TRH203..RHD..GEN; KDH202..RHD..GEN; KDH202..TH; KDH212,222,LH212,222,TRH213,223..RHD..GEN; KDH212,222,LH212,222,TRH213,223..RHD..STD..(GEN,TH); TRH201..ARL,SA;KDH201,TRH201..SG..06S..GEN;KDH200..RHD..5F..(GEN,SA,TH);KDH201,220,221,LH200,TRH221..RHD..SP..03S; TRH223..ARL;TRH223..GL..SA;KDH201,TRH201..SP..06S;KDH212,222,223,TRH213..RHD..(10S,11S,14S)200806-201008
AIR CONDITIONER-DUAL AIR CONDITIONER; AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS); AIR CONDITIONER-SINGLE AIR CONDITIONER; FRONT HEATER-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER; FRONT HEATER-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS); FRONT HEATER-WITH&AIR CONDITIONER-SINGLE AIR CONDITIONER; FRONT HEATER-WITH(PTC HEATER)&AIR CONDITIONER-DUAL AIR CONDITIONER; FRONT HEATER-WITH(PTC HEATER)&AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS); FRONT HEATER-WITH(PTC HEATER)&AIR CONDITIONER-SINGLE AIR CONDITIONER; WITHOUT(CKD PACKAGE)
main88501-26230iKDH200..LHD..03S;KDH220,TRH201,221..LHD; KDH200..LHD..GEN; KDH202,TRH203..LHD..5F; KDH202..LHD..GEN; KDH212..GCC;KDH222,TRH213,22#..LHD..SG..(03S,16S); TRH201..LHD..5D;KDH200,220,TRH221..LHD..SP; TRH213,223..LHD..(10S,12S,13S)200501-200709
FRONT HEATER-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER; FRONT HEATER-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS); FRONT HEATER-WITH&AIR CONDITIONER-SINGLE AIR CONDITIONER; FRONT HEATER-WITH(PTC HEATER)&AIR CONDITIONER-DUAL AIR CONDITIONER; FRONT HEATER-WITH(PTC HEATER)&AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS); FRONT HEATER-WITH(PTC HEATER)&AIR CONDITIONER-SINGLE AIR CONDITIONER
main88501-26231iKDH200,220,LH200,TRH201,221..LHD; KDH200,220,TRH201,221..LHD; KDH202..LHD;TRH203..LHD..15S; KDH212,222,TRH213,22#..LHD..SG..(03S,16S)..(GCC,GEN); KDH212,TRH213..STD..VN;KDH212,TRH213,223..LHD..(10S,11S,12S,13S); LH200..LHD; LH202..LHD; LH212,222..LHD; TRH201..LHD..5D;KDH200,220,LH200,TRH221..LHD..SP; TRH201..LHD..5D;KDH200,220,TRH221..LHD..SP; TRH203..LHD..15S;KDH202,LH202..LHD; TRH213..LHD..STD..(GCC,GEN);KDH212,222,LH212,222,TRH22#..LHD..SG..(03S,10S,16S)..(GCC,GEN)200806-201008
AIR CONDITIONER-DUAL AIR CONDITIONER; AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS); AIR CONDITIONER-SINGLE AIR CONDITIONER; FRONT HEATER-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER; FRONT HEATER-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS); FRONT HEATER-WITH&AIR CONDITIONER-SINGLE AIR CONDITIONER
main88501-26290iKDH200,201,220,LH200,TRH201,221..LHD; KDH202,203,LH202,TRH203..LHD; KDH212,222,LH212,222,TRH213,22#..LHD..SG..STD..(GCC,GEN); KDH212,TRH213..STD..VN;KDH212,222,TRH213,223..LHD..GL; TRH201..LHD..5D;KDH200,201,220,LH200,TRH221..LHD..SP201009-201203
AIR CONDITIONER-DUAL AIR CONDITIONER; AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS); AIR CONDITIONER-SINGLE AIR CONDITIONER; FRONT HEATER-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER; FRONT HEATER-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS); FRONT HEATER-WITH&AIR CONDITIONER-SINGLE AIR CONDITIONER
main88501-26291iKDH200,201,220,LH200,TRH201,221..LHD; KDH202,203,LH202,TRH203..LHD; KDH212,222,LH212,222,TRH213,22#..LHD..SG..STD..(GCC,GEN); KDH212,TRH213..STD..VN;KDH212,222,TRH213,223..LHD..GL; TRH201..LHD..5D;KDH200,201,220,LH200,TRH221..LHD..SP201204-201312
AIR CONDITIONER-DUAL AIR CONDITIONER; AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS); AIR CONDITIONER-SINGLE AIR CONDITIONER; FRONT HEATER-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER; FRONT HEATER-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS); FRONT HEATER-WITH&AIR CONDITIONER-SINGLE AIR CONDITIONER
main88501-72011iKDH200,LH200..RHD..GEN; KDH200..RHD..GEN; KDH201,TRH201..SG..06S..GEN;KDH200,201,220,221,LH200,TRH201,221..RHD..03S..(ARL,GEN,SA,TH); KDH202,203,LH202,TRH203..RHD..GEN; KDH202,LH202,TRH203..RHD..GEN; KDH202..RHD..GEN; KDH202..TH; KDH212,222,LH212,222,TRH213,223..RHD..GEN; KDH212,222,LH212,222,TRH213,223..RHD..STD..(GEN,TH); KDH221..ARL; TRH223..ARL;KDH222,TRH223..GL..SA;KDH201,TRH201..SP..06S;KDH212,223,TRH213..ARL,SA,TH201009-201106
AIR CONDITIONER-DUAL AIR CONDITIONER; AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS); AIR CONDITIONER-SINGLE AIR CONDITIONER; FRONT HEATER-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER; FRONT HEATER-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS); FRONT HEATER-WITH&AIR CONDITIONER-SINGLE AIR CONDITIONER; FRONT HEATER-WITH(PTC HEATER)&AIR CONDITIONER-DUAL AIR CONDITIONER; FRONT HEATER-WITH(PTC HEATER)&AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS); FRONT HEATER-WITH(PTC HEATER)&AIR CONDITIONER-SINGLE AIR CONDITIONER; SINGAPORE SPEC&AIR CONDITIONER-DUAL AIR CONDITIONER; SINGAPORE SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER; WITHOUT(CKD PACKAGE)
main88501-72020iKDH200,LH200..RHD..GEN; KDH200..RHD..GEN; KDH201,TRH201..SG..06S..GEN;KDH200,201,220,221,LH200,TRH201,221..RHD..03S..(ARL,GEN,SA,TH); KDH202,203,LH202,TRH203..RHD..GEN; KDH202,LH202,TRH203..RHD..GEN; KDH202..RHD..GEN; KDH202..TH; KDH212,222,LH212,222,TRH213,223..RHD..GEN; KDH212,222,LH212,222,TRH213,223..RHD..STD..(GEN,TH); KDH221..ARL; TRH223..ARL;KDH222,TRH223..GL..SA;KDH201,TRH201..SP..06S;KDH212,223,TRH213..ARL,SA,TH201106-201203
AIR CONDITIONER-DUAL AIR CONDITIONER; AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS); AIR CONDITIONER-SINGLE AIR CONDITIONER; FRONT HEATER-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER; FRONT HEATER-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS); FRONT HEATER-WITH&AIR CONDITIONER-SINGLE AIR CONDITIONER; FRONT HEATER-WITH(PTC HEATER)&AIR CONDITIONER-DUAL AIR CONDITIONER; FRONT HEATER-WITH(PTC HEATER)&AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS); FRONT HEATER-WITH(PTC HEATER)&AIR CONDITIONER-SINGLE AIR CONDITIONER; SINGAPORE SPEC&AIR CONDITIONER-DUAL AIR CONDITIONER; SINGAPORE SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER; WITHOUT(CKD PACKAGE)
88515VALVE, COOLER EXPANSION
SINGAPORE SPEC&AIR CONDITIONER-DUAL AIR CONDITIONER; SINGAPORE SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER
main88515-26100iTRH223..ARL;KDH223,TRH200..STD;KDH201,TRH201..SP..06S;KDH212,222,TRH213,223..GL;KDH201,212,TRH213..STD..(TH,VN)201009-201401
88539JHOSE, DRAIN COOLER
88548BCASE, AIR FILTER
main87498-26010iKDH202..RHD..SRF..GEN;KDH200,201,203,212,22#,LH20#,212,222,TRH20#,213,22#..RHD..(03S,06S,10S,11S,14S,15S,16S)..(ARL,GEN,SA,TH)200501-200709
main88548-26070iKDH212,TRH213..RHD..(10S,11S,16S);KDH20#,22#,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,14S,15S,16S)..(ARL,GEN,SA,TH)200709-201402
88625THERMISTOR, COOLER, NO.1
main88625-26090iKDH200..MA;KDH201..TH;TRH223..4FC..GL;KDH222,TRH223..GL..SA;KDH200,201,TRH201..SP..06S;KDH222,TRH200,203..RHD..(06S,12S,14S)..(ARL,GEN,MA);KDH202,212,TRH213..(HRF,SMRF)..(09S,10S,11S,12S)..(GEN,SA,TH,VN);KDH202,203,212,223,TRH213,223..(12S,14S,16S)..(ARL,CIS,MA,RUS,TH,VN)200501-201401
88650AMPLIFIER ASSY, COOLER STABILIZER
main88650-26380iKDH200,201..SG;KDH200,201,220,221..03S..(ARL,GCC,GEN,SA); KDH200,202..MA;KDH200,201..SP..06S;KDH202,212,222,223..(HRF,SMRF)..(10S,11S,12S,14S); KDH202,203..SRF..(GCC,GEN); KDH212,222..15S,16S; KDH222,223..ARL200501-200709
AIR CONDITIONER-DUAL AIR CONDITIONER; AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS); AIR CONDITIONER-SINGLE AIR CONDITIONER; AIR CONDITIONER-WITHOUT
main88650-26421iTRH201,221..RHD..03S;TRH201..SG..06S..GEN; TRH201..SP..06S;TRH203,213,223..(HRF,SMRF)..(10S,11S,12S,14S)..(ARL,GEN,SA); TRH203..RHD..15S; TRH213,223..RHD..(15S,16S); TRH223..ARL200501-200709
AIR CONDITIONER-DUAL AIR CONDITIONER; AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS); AIR CONDITIONER-SINGLE AIR CONDITIONER; AIR CONDITIONER-WITHOUT
main88650-26422iTRH201,221..RHD..03S;TRH201..SG..06S..GEN; TRH203..RHD..GEN; TRH213,223..RHD..(15S,16S); TRH223..ARL; TRH223..ARL;TRH223..GL..SA;TRH201..SP..06S;TRH203,213..RHD..(10S,11S,12S)200709-201110
AIR CONDITIONER-DUAL AIR CONDITIONER; AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS); AIR CONDITIONER-SINGLE AIR CONDITIONER; AIR CONDITIONER-WITHOUT
main88650-26480iTRH223..ARL; TRH223..ARL;TRH223..GL..SA;TRH201..SP..06S;TRH200,203,213..RHD..(06S,10S,11S,12S)201110-201401
AIR CONDITIONER-WITHOUT
main88650-26490iTRH201,221..LHD; TRH201,221..LHD..5D; TRH203..LHD; TRH213,22#..LHD..SG..(03S,16S); TRH213,223..09S,12S,13S; TRH213..10S..GEN200501-200709
AIR CONDITIONER-DUAL AIR CONDITIONER; AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS); AIR CONDITIONER-SINGLE AIR CONDITIONER; VIETNAM SPEC
main88650-26491iTRH201,221..LHD; TRH201,221..LHD..5D; TRH203..LHD; TRH213,22#..LHD..SG..STD..(GCC,GEN); TRH213..STD..VN;TRH213,223..LHD..(10S,12S,13S)200709-201110
AIR CONDITIONER-DUAL AIR CONDITIONER; AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS); AIR CONDITIONER-SINGLE AIR CONDITIONER
main88650-26560iTRH201,221..LHD; TRH201,221..LHD..5D; TRH203..LHD; TRH213,22#..LHD..SG..STD..(GCC,GEN); TRH213..STD..VN;TRH213,223..LHD..GL201110-201312
AIR CONDITIONER-DUAL AIR CONDITIONER; AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS); AIR CONDITIONER-SINGLE AIR CONDITIONER
main88650-26410iKDH200,22#..5F..ARL; KDH200,220..5F..ARL; KDH200,220..SG..GEN; KDH212..RHD;KDH222..LHD..GEN; KDH222..5F..ARL; KDH222..ARL200501-200610
COLD AREA SPEC; COLD AREA SPEC&AIR CONDITIONER-DUAL AIR CONDITIONER; COLD AREA SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER; COLD AREA SPEC&FRONT HEATER-WITH(PTC HEATER); COLD AREA SPEC&FRONT HEATER-WITH(PTC HEATER)&AIR CONDITIONER-DUAL AIR CONDITIONER; NEW ZEALAND SPEC&COLD AREA SPEC; NEW ZEALAND SPEC&COLD AREA SPEC&AIR CONDITIONER-WITHOUT; SOUTH AFRICA SPEC&COLD AREA SPEC; SOUTH AFRICA SPEC&COLD AREA SPEC&AIR CONDITIONER-DUAL AIR CONDITIONER; SOUTH AFRICA SPEC&COLD AREA SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER; SOUTH AFRICA SPEC&COLD AREA SPEC&AIR CONDITIONER-WITHOUT
AIR CONDITIONER-DUAL AIR CONDITIONER; AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS); AIR CONDITIONER-SINGLE AIR CONDITIONER
8712826030GROMMET, HEATER
main87128-26030
9009900318
main90099-00318
9009900968
main90099-00968
9009932129
main90099-32129
9011906911
main90119-06911
9011906942
main90119-06942
9015960383
main90159-60383
90178T0018
main90178-T0018
9017906274
main90179-06274
9017906282
main90179-06282
9415180600
main94151-80600
28 parts on this diagram · 9 diagrams in section
