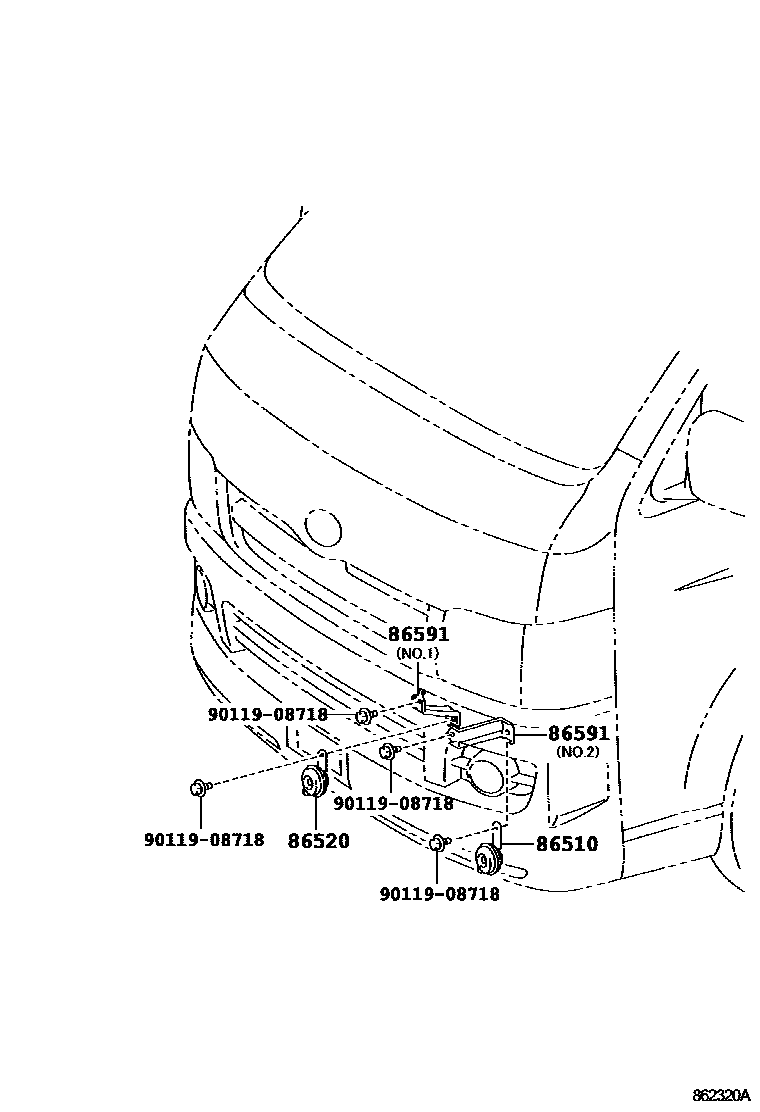

HORN
86510HORN ASSY, HIGH PITCHED
CHINA(PRC) SPEC
main86510-26111iTRH223..4FC..GL..GCC;KDH212,220,222,TRH221..SA;TRH213,223..(10S,13S,14S,15S)..(GEN,SA); TRH223..5F..GL..GEN200608-201209
CHINA(PRC) SPEC
main86510-26120iTRH223..GL..GCC;KDH212,220,222,TRH221..SA;TRH223..(13S,14S)..(GEN,SA);KDH222,TRH213..(10S,16S)..GL201210-201402
86520HORN ASSY, LOW PITCHED
CHINA(PRC) SPEC
main86520-26171iKDH200,202,212,222..LHD..(03S,15S,16S)..GEN; KDH200,202,212,222..LHD..STD..GEN; LH20#,212,222;TRH201,221..SG..03S;KDH202,TRH203..RHD..GEN; TRH201..SP..03S..GEN;KDH200,202,212,222,TRH203,213,223..LHD..(03S,12S,15S,16S)..GEN; TRH213..LHD..STD..GEN; TRH221..SP..GEN;TRH223..LHD..5F..GEN;TRH201,213..LHD..(SMRF,SRF)..STD..GEN; TRH223..5F..GL..GEN;TRH201,221..SP..03S..GEN201008-201209
CENTRAL AMERICA(4COUNTRY) SPEC; COSTA RICA SPEC; EL SALVADOR SPEC; MEXICO SPEC; PERU SPEC; VENEZUERA SPEC
main86520-26180iTRH213..GCC;LH20#,212,222;KDH202,TRH203..RHD..GEN;TRH201,213,221..SG..(03S,10S);KDH201,203,TRH223..LHD..(03S,12S,13S)..GEN;KDH200,202,212,220,222,TRH201,203,22#..GCC,SA201210-201402
86591BRACKET, HORN
NO.1
main86591-26050iKDH202..LHD..15S..GEN; TRH223..5F..GL..GEN; TRH223..GL..GCC;KDH212,TRH213..10S,11S,15S;TRH223..(13S,14S)..(GEN,SA);KDH200,201,202,222..(06S,12S,16S)..GL;KDH212,220,222,TRH213,221..(03S,14S,16S)..(SA,VN)200501-201204
CHINA(PRC) SPEC,NO.2; NO.2; PHILIPPINE SPEC,NO.2
main86591-26051iTRH223..GL..GCC;TRH223..(13S,14S)..(GEN,SA);KDH212,220,222,TRH213,221..(03S,14S,16S)..(SA,VN);KDH201,202,203,212,222,TRH213..(06S,10S,11S,12S,16S)..GL201204-201402
NO.2
9011908718
main90119-08718
4 parts on this diagram · 1 diagram in section
