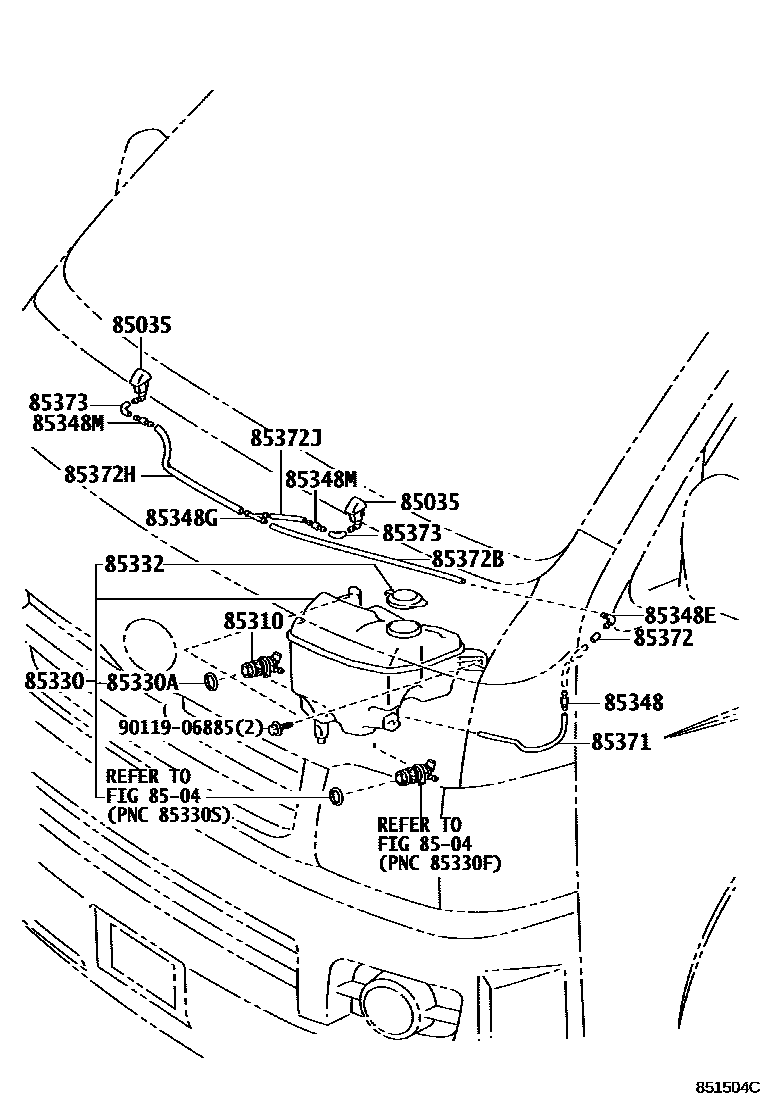

WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-26221×2iKDH20#,LH20#,TRH20#..RHD200501-201401

main85381-26230iKDH212,22#,LH212,222,TRH213,22#..RHD200501-201402

DRIVER SIDE

main85381-26240iKDH212,22#,LH212,222,TRH213,22#..RHD200501-201402

PASSENGER SIDE

main85381-26250iKDH212,220,222,223,LH212,222,TRH213,22#..LHD200501-201312

DRIVER SIDE

main85381-26260iKDH212,220,222,223,LH212,222,TRH213,22#..LHD200501-201312

PASSENGER SIDE

main85381-26270×2iKDH20#,LH20#,TRH201,203..LHD200501-201312

8504REAR WASHER

→ Go to FIG 85-04

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-21010iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

85330JAR ASSY, WINDSHIELD WASHER

main85315-26100supersedes 85315-26110iKDH222..RHD..GEN200501-200709

main85315-26110iKDH201..ARL,TH;TRH201..SP..03S;TRH213..RHD..5F;KDH222..ARL,GCC,SA;KDH201,222..LHD..GEN;KDH200,201,TRH201..SG;TRH213..LHD..(09S,16S);KDH200,202,203,220,221,LH20#,212,222,TRH203,221..(03S,10S,12S,15S,16S)..STD;KDH212,223,TRH223..4D..(10S,11S,12S,14S,15S,16S)..(ARL,CIS,GCC,GEN,RUS,SA,VN)200501-201402

85330ABUSH, WINDSHIELD WASHER JAR

main85336-60300iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

85332CAP, WINDSHIELD WASHER JAR

main85316-34050iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2

main85355-20200iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85348-12250iKDH20#,LH20#,TRH20#200501-201401

main85348-14390iKDH212,22#,LH212,222,TRH213,22#200501-201402

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85349-89122×2iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90446-07001iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

L=1800(*H,L=320)

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

L=1450(*H,L=60)

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90446-07001iKDH20#,LH20#,TRH20#200501-201401

L=1800(*H,L=540)

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90446-07001iKDH212,22#,LH212,222,TRH213,22#200501-201210

L=1800(*H,L=550)

85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4

main90446-07001iKDH20#,LH20#,TRH20#200501-201401

L=1800(*H,L=170)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main85336-12230×2iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

L=15

9011906885

main90119-06885
