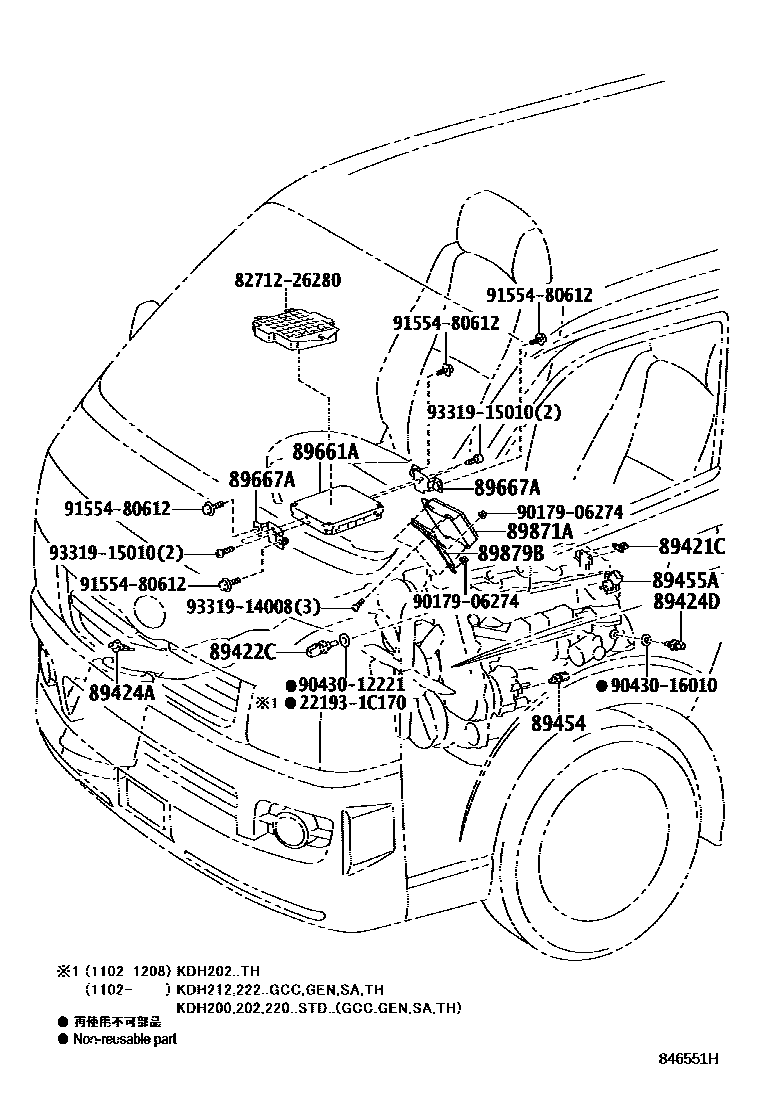

ELECTRONIC CONTROLED DIESEL (ECD)

0001 1 0002 1 0003 1 0004 1

89421CSENSOR, TURBO PRESSURE (FOR DIESEL TURBO)

main89421-12150iLH20#,212,222200501-201312

main89421-20200iKDH201,203,221,223200610-200611

main89421-71020iKDH200,202,212,220,222200501-201402

main89421-71030iKDH201,203,221,223200612-201401

89422CSENSOR, DIESEL ENGINE WATER TEMPERATURE

main89422-33030iKDH20#,212,22#,LH20#,212,222200501-201402

89424ASENSOR, INLET AIR TEMPERATURE (FOR DIESEL TURBO)

main89424-12010iKDH200,202,212,220,222,LH20#,212,222200501-201402

89424DSENSOR, INLET AIR TEMPERATURE

main89424-60010iKDH222..RHD..GEN200501-200709

89454SENSOR, FUEL TEMPERATURE

main89454-20010iKDH20#,212,22#200509-201402

main89454-60010iKDH20#,212,22#200501-200508

89455ASENSOR, EGR VALVE POSITION

main89455-35020iKDH201..SP..06S200501-201110

89661ACOMPUTER, ENGINE CONTROL

main89661-0L010iKDH202,212..(SMRF,SRF)..(MA,TH,VN)200602-201111

main89661-0L011iKDH202,212..TH,VN201111-201309

main89661-0L020iKDH200..MA;KDH202..HRF200508-201111

main89661-0L021iKDH200,202..MA201111-201401

main89661-0L060iKDH203..TH201309-201401

main89661-26B20iKDH222..RHD..GEN200501-200709

main89661-26B21iKDH222..TH201110-201309

main89661-26B30iKDH200,220..SA;KDH212,222..5F..GL..(GEN,SA); KDH202..LHD..15S..GEN; KDH202..TH200709-201110

PHILIPPINE SPEC; WITHOUT(CKD PACKAGE)

main89661-26B31iKDH212..5F..GL;KDH200,220,222..(03S,14S)..(SA,TH)201110-201402

main89661-26B40supersedes 89661-26B50iKDH212..5F..GL200505-200609

main89661-26B41iKDH212..STD..SA200610-200710

main89661-26B50iKDH222..RHD..GEN200709-201110

main89661-26B51iKDH200,202,212,220,222..(03S,12S,15S,16S)..(GCC,GEN)201110-201312

main89661-26B60iKDH200,202,212..4FC200501-201110

main89661-26B61iKDH212..4FC201110-201312

main89661-26B70iLH20#,212,222200501-201109

main89661-26B71iLH20#,212,222201110-201312

main89661-26B80iKDH22#..4FC200501-200610

main89661-26C90iKDH201,203,221,223..5F200610-200706

main89661-26C91iKDH201,203,221,223..5F200706-201008

main89661-26D00iKDH201,221,223..4FC200610-200706

main89661-26D01iKDH201,221,223..4FC200706-201008

main89661-26F20iKDH201..SP..06S..5F201110-201312

main89661-26F30iKDH201..SP..06S..4FC201110-201312

main89661-26F40iKDH201,203,221,223..5F201008-201109

main89661-26F41iKDH201,203..LHD201110-201212

main89661-26F50iKDH201,221,223..4FC201008-201109

main89661-26F51iKDH201..SG..4FC;KDH201,221,223..(03S,14S)..4FC201110-201312

89667ABRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-26140×2iKDH221..ARL;KDH201,203,223200501-201008

main89667-26141×2iKDH200,202,212,220,222,LH20#,212,222201209-201402

main89667-26160iKDH201,203,221,223201008-201401

89871ADRIVER, INJECTOR

main89871-20080iKDH201..SP..06S201110-201301

main89871-25010iKDH201,203,221,223201008-201110

main89871-26030iKDH201,203..LHD;KDH201..SP..06S201301-201312

main89871-71010iKDH200,202,212,220,222200501-201402

main89871-71020iKDH201,203,221,223200610-201008

main89871-71030iKDH201..SG;KDH201,203,221,223..03S,12S,14S201111-201201

89879BBRACKET, INJECTOR DRIVER

main89879-26020iKDH221..ARL;KDH201,203,223200501-201008

main89879-26030iKDH201..SP..06S201110-201212

main89879-26050iKDH201..SP..06S201008-201110

main89879-26060iKDH201,203..LHD;KDH201..SP..06S201301-201312

221931C170RING, O(FOR LEVER CONNECTING PIN)

main22193-1C170

8271226280CLAMP, WIRING HARNESS

main82712-26280

9017906274

main90179-06274

9043012221

main90430-12221

9043016010

main90430-16010

9155480612

main91554-80612

9331914008

main93319-14008

9331915010

main93319-15010

18 parts on this diagram · 4 diagrams in section
