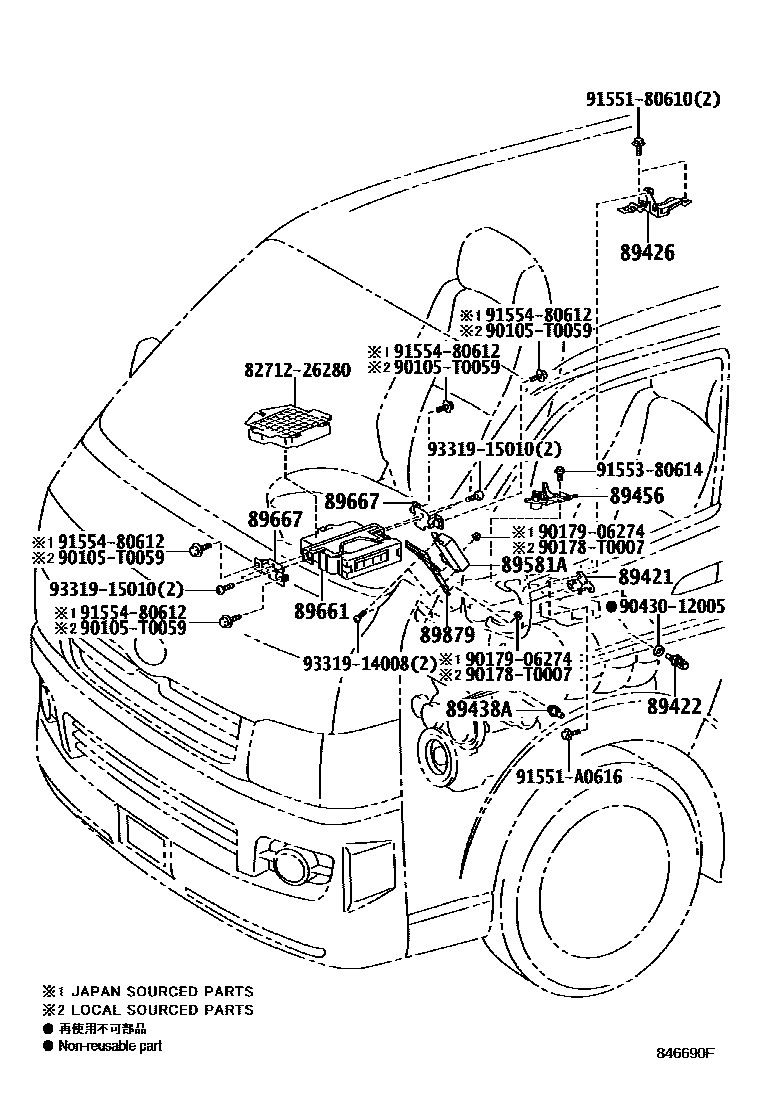

ELECTRONIC FUEL INJECTION SYSTEM
89421SENSOR ASSY, VACUUM (FOR E.F.I.)
CHINA(PRC) SPEC
89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89426BRACKET, VACUUM SENSOR
main89426-26110iTRH201..SP..06S;TRH213,223..(10S,13S)..GEN; TRH213..GL..GEN; TRH223..5F..GL..GEN201110-201312
CHINA(PRC) SPEC; MEXICO SPEC
89438ASWITCH, POWER STEERING OIL PRESSURE
89456RESISTOR, VARIABLE
89581ADRIVER, AIR INJECTION CONTROL
main89581-34040iTRH201,221..5D..03S..GEN; TRH201,221..ARL;TRH201,221..SG..03S;TRH201,213,223..(06S,09S,10S,11S,13S,14S,15S)..(ARL,GEN,TH); TRH201..5D..03S..GEN; TRH203,213..LHD..(15S,16S)..GEN; TRH223..5F..GL..GEN200611-200706
CHILI SPEC; EXHAUST EMISSION CONTROL-EC STEP3,WITH(*DPFS); EXHAUST EMISSION CONTROL-GASOLINE EURO3; EXHAUST EMISSION CONTROL-TIER1; MEXICO SPEC; PERU SPEC
main89581-34041iTRH201,221..ARL;TRH201,213..(06S,09S,10S,11S)..(GEN,TH);TRH200,203,213,223..(06S,13S,14S,15S,16S)..4FC;TRH201,22#..SG..(03S,14S,15S)..5F..(ARL,GEN,TH)200707-201401
main89581-71010iTRH201,221..ARL;TRH201,221..SG..03S;TRH201,213,223..(06S,09S,10S,11S,13S,14S)..(ARL,GEN); TRH201..5D..03S..GEN; TRH223..5F..GL..GEN200501-200610
CHILI SPEC; CHINA(PRC) SPEC
89661COMPUTER, ENGINE CONTROL
NEW ZEALAND SPEC
main89661-26A80iTRH221..SP..GEN;TRH223..5F..GEN;TRH213..RHD..STD..GEN;TRH20#..SRF..(03S,12S,15S)..GEN200501-201008
main89661-26C20iTRH201,213,221..SG..(03S,09S); TRH223..5F..GL..GEN;TRH201,221..5D..03S..GEN200505-200610
MEXICO SPEC
MEXICO SPEC
main89661-26F70iTRH201,221..SG..03S; TRH221..SP..GEN;TRH223..5F..GL..GEN;TRH201,213..LHD..(SMRF,SRF)..(03S,10S)..GEN200907-201008
MEXICO SPEC
main89661-26G40iTRH221..SP..GEN;TRH223..5F..GEN;TRH20#,213..(SMRF,SRF)..(03S,15S,16S)..GEN201008-201110
main89661-26G80iTRH201,221..SG..03S; TRH221..SP..GEN;TRH223..5F..GL..GEN;TRH201,213..(SMRF,SRF)..(03S,10S)..GEN201008-201110
MEXICO SPEC
main89661-26J10iTRH20#,213,22#..GCC,SA; TRH221..SP..GEN;TRH223..LHD..5F..GEN;TRH201,213..LHD..(SMRF,SRF)..STD..GEN; TRH223..LHD..5F..GEN;TRH20#,213..LHD..(SMRF,SRF)..STD..GEN201008-201110
CENTRAL AMERICA(4COUNTRY) SPEC; VENEZUERA SPEC
main89661-26J70iTRH221..SP..GEN;TRH223..5F..GEN;TRH201,203,213..(SMRF,SRF)..(03S,15S,16S)..GEN201110-201312
main89661-26K00iTRH201,221..SG..03S; TRH221..SP..GEN;TRH223..5F..GL..GEN;TRH201,213..(SMRF,SRF)..(03S,10S)..GEN201110-201312
MEXICO SPEC
CHINA(PRC) SPEC
CHINA(PRC) SPEC&EXHAUST EMISSION CONTROL-GASOLINE EURO3
CHINA(PRC) SPEC&EXHAUST EMISSION CONTROL-EC STEP3,WITH(*DPFS); EXHAUST EMISSION CONTROL-EC STEP3,WITH(*DPFS)
EXHAUST EMISSION CONTROL-EC STEP3,WITH(*DPFS)
89667BRACKET, ENGINE CONTROL COMPUTER
89879BRACKET, INJECTOR DRIVER
8271226280CLAMP, WIRING HARNESS
main82712-26280
90105T0059
main90105-T0059
90178T0007
main90178-T0007
9017906274
main90179-06274
9043012005
main90430-12005
9155180610
main91551-80610
91551A0616
main91551-A0616
9155380614
main91553-80614
9155480612
main91554-80612
9331914008
main93319-14008
9331915010
main93319-15010
20 parts on this diagram · 1 diagram in section
