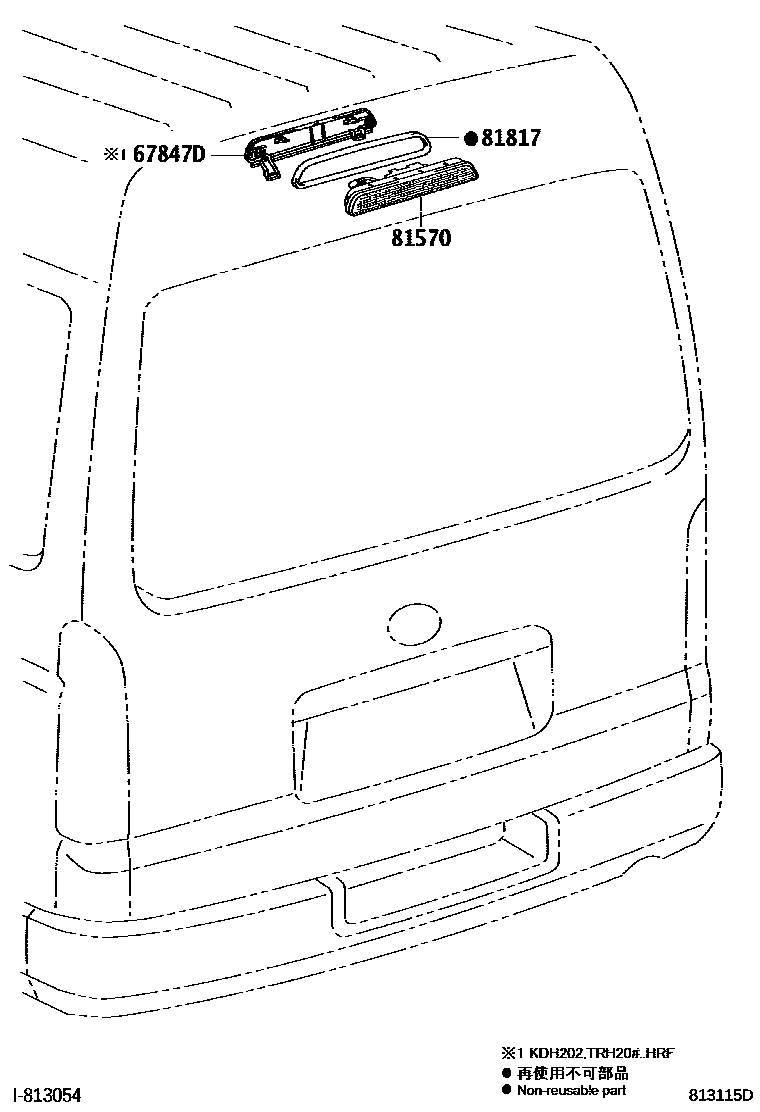

CENTER STOP LAMP
67847DCOVER, BACK DOOR SERVICE HOLE
LT.GRAY,TRIM1#
81570LAMP ASSY, CENTER STOP
HIGH MOUNT STOP LAMP-WITH(LED)
main81570-26171iKDH201,203..LHD;KDH222..STD..(SA,TH);TRH223..4FC..GL..GCC;KDH202,TRH213..GL..(TH,VN);KDH202,TRH203,223..HRF..(12S,14S)..STD..(GEN,MA,SA); KDH221..5D..GEN;TRH203,213,223..4FC..STD..GCC;KDH200,202,212,TRH213..STD..(TH,VN)200610-201203
HIGH MOUNT STOP LAMP-WITH(LED)
main81570-26172iKDH200,201,221,223,TRH201,22#..ARL,MA; KDH201,203..RHD..STD..GEN;TRH201..SRF..(GCC,GEN,SA);KDH222,TRH223..STD..(GCC,GEN);KDH200,202,212,220,221,LH20#,212,222,TRH203,213,221..STD..(GCC,GEN,SA,TH,VN); KDH201..LHD;KDH202,222,TRH203..MA,SA,TH;KDH203,212,TRH213..10S,11S,12S;KDH201,222,TRH223..(06S,16S)..GL;TRH223..(12S,13S,14S,15S)..(CIS,GEN,SA,TH)201204-201205
HIGH MOUNT STOP LAMP-WITH(LED); REAR WINDOW WIPER-WITH(INTERMITTENT)
main81570-26190iKDH200,201,221,223,TRH201,22#..ARL,MA; KDH201..LHD;KDH203,212..(10S,11S,12S)..(GEN,SA);KDH202,222,223,TRH203..MA,RUS,SA,TH;TRH223..(12S,13S,14S,15S)..(CIS,GEN,SA,TH);KDH201,222,TRH213,223..(06S,10S,11S,16S)..GL; TRH201..SRF..(GCC,GEN,SA);KDH222,TRH223..STD..(GCC,GEN);KDH201,203..RHD..STD..(GEN,TH);KDH200,202,212,220,221,LH20#,212,222,TRH200,203,213,221..STD..(GCC,GEN,SA,TH)201205
HIGH MOUNT STOP LAMP-WITH(LED); REAR WINDOW WIPER-WITH(INTERMITTENT)
81817PACKING, CENTER STOP LAMP
main81817-26040iKDH201..LHD;KDH203,212..(10S,11S,12S)..(GEN,SA);KDH202,222,223,TRH203..MA,RUS,SA,TH;TRH223..(12S,13S,14S,15S)..(CIS,GEN,SA,TH);KDH201,222,TRH213,223..(06S,10S,11S,16S)..GL201205-201402
3 parts on this diagram · 1 diagram in section
