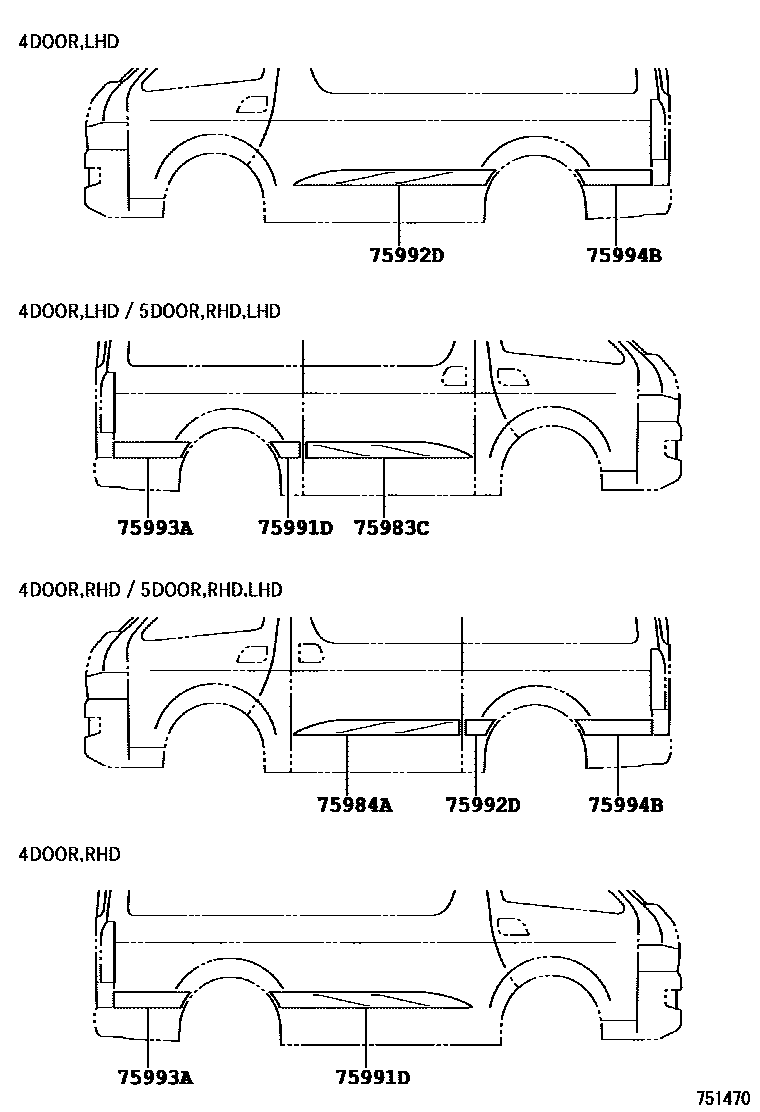

BODY STRIPE
75983CSTRIPE, SLIDE DOOR, RH
main75983-26210-B0iKDH200,201..GL; KDH222,TRH213,223..(10S,12S,13S,16S)..GL..(CIS,GCC,GEN); TRH221;KDH200,201,220,221,LH200,TRH201..5D..STD;KDH200,202,212,222,LH20#,212,222,TRH20#,213,223..LHD..4D..STD200501-201008
BODY STRIPE-WITH,WARM GRAY,058; BODY STRIPE-WITH,WARM GRAY,058 ,2JM ,2JZ ,593; BODY STRIPE-WITH,WARM GRAY,058 ,599
main75983-26210-B1iKDH200,201..GL; KDH222,TRH213..(09S,16S)..GL;TRH213,223..GL..(CIS,GCC,VN); TRH213,223..(10S,13S,16S)..GL..GEN; TRH221;KDH200,201,220,221,LH200,TRH201..5D..STD;KDH200,202,212,222,LH20#,212,222,TRH20#,213,223..LHD..4D..STD200501-201008
BODY STRIPE-WITH,COOL GRAY,1E2 ,1E7 ,8P4; BODY STRIPE-WITH,COOL GRAY,1E7 ,2JN ,8P4; BODY STRIPE-WITH,COOL GRAY,1E7 ,6S3 ,8P4; BODY STRIPE-WITH,COOL GRAY,1E7 ,8P4
BODY COLOR-TWO-TONE(METALLIC),GRAY ME.,2JN
BODY COLOR-TWO-TONE(METALLIC),GOLD ME.,2JM
BODY COLOR-TOW-TONE(METAL FOR THAI)
main75983-26280iTRH221;TRH201..GCC,GEN;KDH200..LHD..4D;KDH200,201,220,221,LH200,TRH200..5D;KDH202,203,212,222,223,LH20#,212,222,TRH203,213,223..LHD201008-201312
BODY STRIPE-WITH
75984ASTRIPE, SLIDE DOOR
main75984-26500-B0iKDH222,TRH223..TH;KDH200,201,202..GL; TRH221..SP;TRH201..SRF;KDH200..LHD..5D;KDH201,203,220,221,223..STD;KDH222,TRH223..RHD..STD..(ARL,GEN,SA);KDH200,202,212,LH20#,212,222,TRH203,213..RHD..STD200501-201008
BODY STRIPE-WITH,WARM GRAY,058; BODY STRIPE-WITH,WARM GRAY,058 ,599
BODY STRIPE-WITH,COOL GRAY,1E7
BODY COLOR-TWO-TONE(METALLIC),GRAY ME.,2JN
BODY COLOR-TWO-TONE(METALLIC),GOLD ME.,2JM ,2JZ
BODY COLOR-TWO-TONE(METALLIC)
BODY STRIPE-WITH
75991DSTRIPE, QUARTER, FRONT RH
BODY STRIPE-WITH,WARM GRAY,058; BODY STRIPE-WITH,WARM GRAY,058 ,599
BODY STRIPE-WITH,COOL GRAY,1E2 ,1E7
main75991-26550-B0iKDH200,201,LH200,TRH201..5D..STD;KDH200,202,212,LH20#,212,TRH20#,213..LHD..4D..STD; KDH200,201..GL; TRH213..10S..GEN200501-201008
BODY STRIPE-WITH,WARM GRAY,058; BODY STRIPE-WITH,WARM GRAY,058 ,2JM ,2JZ ,593; BODY STRIPE-WITH,WARM GRAY,058 ,599
main75991-26550-B1iKDH200,201,LH200,TRH201..5D..STD;KDH200,202,212,LH20#,212,TRH20#,213..LHD..4D..STD; KDH200,201..GL; TRH213..10S..GEN200501-201008
BODY STRIPE-WITH,COOL GRAY,1E2 ,1E7 ,8P4; BODY STRIPE-WITH,COOL GRAY,1E7 ,2JN ,8P4; BODY STRIPE-WITH,COOL GRAY,1E7 ,6S3 ,8P4
BODY STRIPE-WITH,WARM GRAY,058; BODY STRIPE-WITH,WARM GRAY,058 ,2JM ,2JZ ,593
BODY STRIPE-WITH,COOL GRAY,1E7 ,6S3 ,8P4
main75991-26570-B0iKDH222,TRH223..LHD..GL; TRH221;KDH220,221..SP;KDH222,LH222,TRH223..LHD..STD200501-201008
BODY STRIPE-WITH,WARM GRAY,058 ,2JM ,2JZ ,593; BODY STRIPE-WITH,WARM GRAY,058 ,599
main75991-26570-B1iKDH222,TRH223..GL..(CIS,GCC); TRH221;KDH220,221..SP;KDH222,LH222,TRH223..LHD..STD; TRH223..GL..GEN200501-201008
BODY STRIPE-WITH,COOL GRAY,1E2 ,1E7 ,8P4; BODY STRIPE-WITH,COOL GRAY,1E7 ,6S3 ,8P4; BODY STRIPE-WITH,COOL GRAY,1E7 ,8P4
BODY COLOR-TWO-TONE(METALLIC),GRAY ME.,2JN
BODY COLOR-TWO-TONE(METALLIC),GOLD ME.,2JM
BODY COLOR-TWO-TONE(METALLIC)
BODY STRIPE-WITH
main75991-26630iTRH201..GCC,GEN;KDH200..LHD..4D;KDH200,201,LH200,TRH200..5D;KDH202,203,212,LH20#,212,TRH203,213..LHD201008-201312
BODY STRIPE-WITH
main75991-26640iKDH222,TRH223..GL..SA;TRH223..RHD..(ARL,GEN,TH);KDH222,223,LH222..RHD..(ARL,GEN)201008-201401
BODY STRIPE-WITH
BODY STRIPE-WITH
75992STRIPE, QUARTER, LH NO.1
BODY COLOR-TWO-TONE(METALLIC),GRAY ME.,2JN
BODY COLOR-TWO-TONE(METALLIC),GOLD ME.,2JM ,2JZ
75992DSTRIPE, QUARTER, FRONT LH
main75992-26350-B0iKDH200,201,202..GL; TRH201..SRF;KDH200..LHD..5D;KDH20#,212,LH20#,212,TRH203,213..RHD..STD200501-201008
BODY STRIPE-WITH,WARM GRAY,058; BODY STRIPE-WITH,WARM GRAY,058 ,599
main75992-26350-B1iKDH200,201..GL; TRH201..SRF;KDH200..LHD..5D;KDH20#,212,LH20#,212,TRH203,213..RHD..STD200501-201008
BODY STRIPE-WITH,COOL GRAY,1E7 ,2JN ,8P4; BODY STRIPE-WITH,COOL GRAY,1E7 ,6S3 ,8P4
BODY STRIPE-WITH,WARM GRAY,058 ,2JM ,2JZ ,593; BODY STRIPE-WITH,WARM GRAY,058 ,599
BODY STRIPE-WITH,COOL GRAY,1E2 ,1E7 ,209; BODY STRIPE-WITH,COOL GRAY,1E7 ,8P4
BODY STRIPE-WITH,WARM GRAY,058; BODY STRIPE-WITH,WARM GRAY,058 ,2JM ,2JZ ,593
main75992-26370-B1iTRH221..SP;KDH220,221,223;KDH222,LH222,TRH223..RHD..STD..(ARL,GEN,SA)200501-201008
BODY STRIPE-WITH,COOL GRAY,1E7 ,6S3 ,8P4
BODY STRIPE-WITH,WARM GRAY,058 ,2JM ,2JZ ,593; BODY STRIPE-WITH,WARM GRAY,058 ,599
main75992-26380-B1iKDH222,LH222,TRH22#..LHD..SG..STD; KDH222,TRH223..GL..(CIS,GCC); TRH223..GL..GEN200501-201008
BODY STRIPE-WITH,COOL GRAY,1E2 ,1E7 ,8P4; BODY STRIPE-WITH,COOL GRAY,1E7 ,6S3 ,8P4; BODY STRIPE-WITH,COOL GRAY,1E7 ,8P4
BODY COLOR-TWO-TONE(METALLIC),GRAY ME.,2JN
BODY COLOR-TWO-TONE(METALLIC),GOLD ME.,2JM ,2JZ
BODY COLOR-TWO-TONE(METALLIC)
main75992-26430iKDH200,212..LHD..5D;KDH212,TRH213..RHD..5F;KDH200,202,LH20#,212,TRH203..RHD..STD;KDH201,203,TRH200,201..SRF..(03S,06S,14S)201008-201401
BODY STRIPE-WITH
BODY STRIPE-WITH
main75992-26450iTRH221..SP;KDH222,TRH223..GL..SA;KDH222,LH222..RHD..GEN;KDH220,221,223..03S,14S;TRH223..RHD..(ARL,GEN,TH)201008-201401
BODY STRIPE-WITH
BODY STRIPE-WITH
75993ASTRIPE, QUARTER, REAR RH
main75993-26290-B0iKDH212,222,TRH213,223..(10S,12S,13S,14S,16S)..GL..(CIS,GCC,GEN,SA); KDH222,TRH223..STD..(ARL,GCC,GEN,SA);KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,221..STD; KDH222,TRH223..TH;KDH200,201,202..GL200501-201008
BODY STRIPE-WITH,WARM GRAY,058; BODY STRIPE-WITH,WARM GRAY,058 ,2JM ,2JZ ,593; BODY STRIPE-WITH,WARM GRAY,058 ,599
main75993-26290-B1iKDH200,201..GL; KDH222,TRH223..STD..(ARL,GCC,GEN,SA);KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,221..STD; TRH213,223..(10S,13S,16S)..GL..GEN; TRH223..GL..(CIS,GCC,SA);TRH213,223..(09S,15S)..(GEN,TH);KDH212,222..(10S,14S,16S)..(SA,TH);KDH222,TRH213..(10S,16S)..GL..(GCC,SA,VN)200501-201008
BODY STRIPE-WITH,COOL GRAY,1E2 ,1E7 ,8P4; BODY STRIPE-WITH,COOL GRAY,1E7 ,2JN ,8P4; BODY STRIPE-WITH,COOL GRAY,1E7 ,6S3 ,8P4; BODY STRIPE-WITH,COOL GRAY,1E7 ,8P4
BODY COLOR-TWO-TONE(METALLIC),GRAY ME.,2JN
BODY COLOR-TWO-TONE(METALLIC),GOLD ME.,2JM ,2JZ
BODY COLOR-TWO-TONE(METALLIC)
BODY STRIPE-WITH
75994BSTRIP, QUARTER, REAR LH
main75994-26410-B0iKDH212,222,TRH213,223..(10S,12S,13S,14S,16S)..GL..(CIS,GCC,GEN,SA); KDH222,TRH223..STD..(ARL,GCC,GEN,SA);KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,221..STD; KDH222,TRH223..TH;KDH200,201,202..GL200501-201008
BODY STRIPE-WITH,WARM GRAY,058; BODY STRIPE-WITH,WARM GRAY,058 ,2JM ,2JZ ,593; BODY STRIPE-WITH,WARM GRAY,058 ,599
main75994-26410-B1iKDH200,201..GL; KDH222,TRH223..STD..(ARL,GCC,GEN,SA);KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,221..STD; TRH213,223..(10S,13S,16S)..GL..GEN; TRH223..GL..(CIS,GCC,SA);TRH213,223..(09S,15S)..(GEN,TH);KDH212,222..(10S,14S,16S)..(SA,TH);KDH222,TRH213..(10S,16S)..GL..(GCC,SA,VN)200501-201008
BODY STRIPE-WITH,COOL GRAY,1E2 ,1E7 ,8P4; BODY STRIPE-WITH,COOL GRAY,1E7 ,2JN ,8P4; BODY STRIPE-WITH,COOL GRAY,1E7 ,6S3 ,8P4; BODY STRIPE-WITH,COOL GRAY,1E7 ,8P4
BODY COLOR-TWO-TONE(METALLIC),GRAY ME.,2JN
BODY COLOR-TWO-TONE(METALLIC),GOLD ME.,2JM
BODY COLOR-TWO-TONE(METALLIC)
BODY STRIPE-WITH
7 parts on this diagram · 5 diagrams in section
