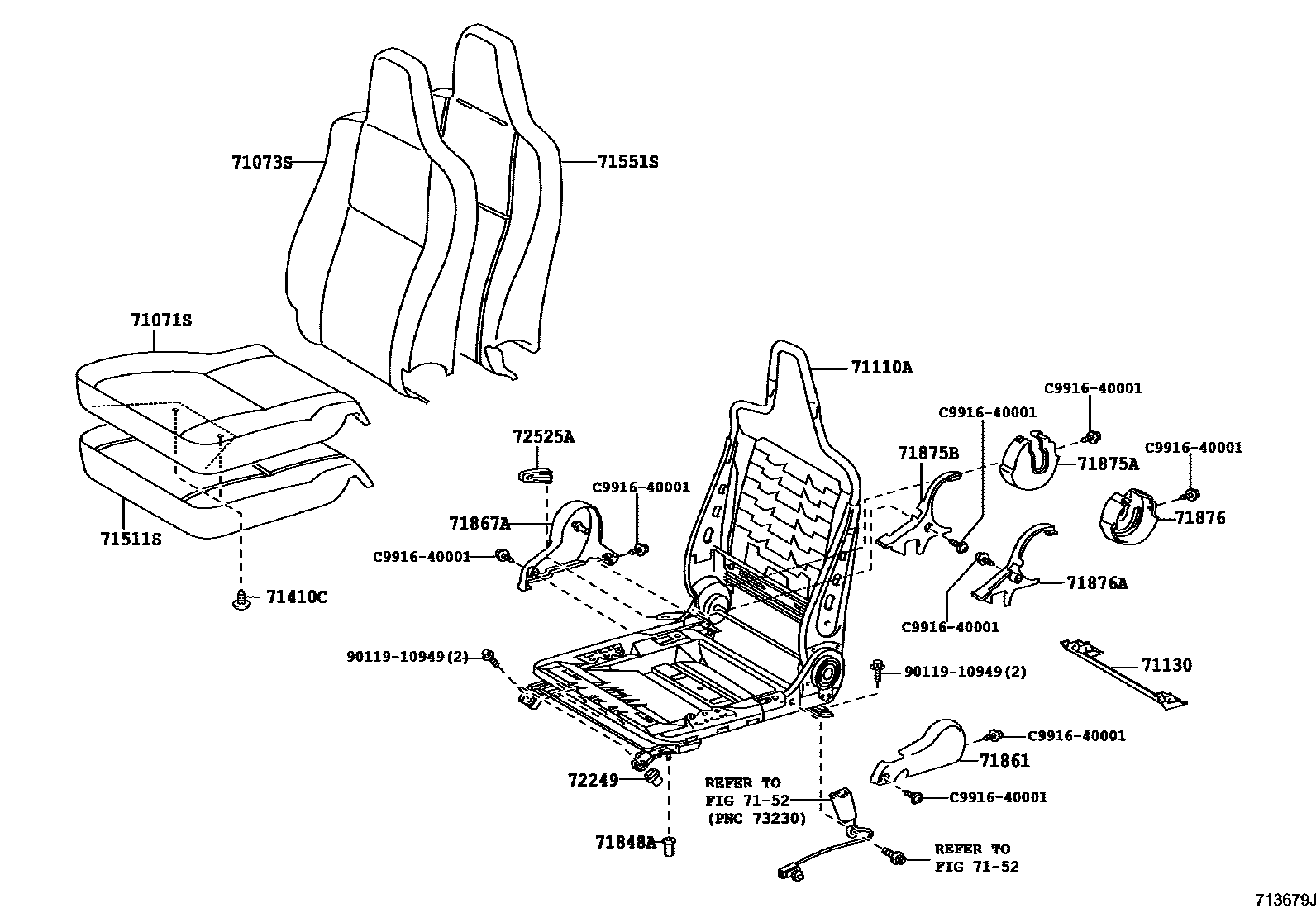

SEAT & SEAT TRACK
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
GRAY,TRIM1#
BLUISH GRAY,TRIM1#
GRAY,TRIM1#
GRAY,TRIM1#
GRAY,TRIM1#
CKD PACKAGE(THAILAND),GRAY,TRIM1#
BLUISH GRAY,TRIM1#
BLUISH GRAY,TRIM1#
BLUISH GRAY,TRIM1#
main71071-26A00-B4iKDH201..SP..06S;KDH212,TRH213..GCC;TRH201..RHD..SP..GEN;KDH202..RHD..SRF..GEN;KDH220,222,LH212,222,TRH22#..STD..(GCC,GEN,TH);KDH200,212,LH20#,TRH203,213..RHD..(03S,200501-201008
GRAY,TRIM1#
sub71071-26C00
NEW ZEALAND SPEC&SRS AIR BAG-WITHOUT,GRAY,TRIM1#
sub71071-26C00
SOUTH AFRICA SPEC&SRS AIR BAG-WITHOUT,GRAY,TRIM1#
sub71071-26C00
main71071-26A01-B6iTRH201..SP..06S;KDH200,202,LH20#,TRH203..RHD..STD..(GEN,TH);KDH212,220,222,LH212,222,TRH213,22#..STD..(GCC,GEN,TH)201008-201106
WITHOUT(CKD PACKAGE),BLUISH GRAY,TRIM1#
sub71071-26A51
main71071-26A01-B6iTRH201..SP..06S;KDH200,202,LH20#,TRH203..RHD..STD..(GEN,TH);KDH212,220,222,LH212,222,TRH213,22#..STD..(GCC,GEN,TH)201008-201106
FRONT SEAT SLIDE-*DRS:225MM & *PAS:120MM&SRS AIR BAG-WITHOUT,BLUISH GRAY,TRIM1#
sub71071-26A51
GRAY,TRIM1#
THAILAND SPEC&SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1#
DARK GRAY,TRIM1#
GRAY,TRIM1#
SRS AIR BAG-WITHOUT,GRAY,TRIM1#
GRAY,TRIM1#
GRAY,TRIM1#
BLUISH GRAY,TRIM1#
FRONT SEAT SLIDE-*DRS:225MM & *PAS:120MM&SRS AIR BAG-WITH(DRIVER & PASSENGER SEATSIDE),GRAY,TRIM1#
sub71071-26A52
WITHOUT(CKD PACKAGE)&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),GRAY,TRIM1#
sub71071-26A52
WITHOUT(CKD PACKAGE)&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),GRAY,TRIM1#
sub71071-26A52
FRONT SEAT SLIDE-*DRS:225MM & *PAS:120MM&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),GRAY,TRIM1#
sub71071-26A52
main71071-26A50-B2iKDH201..SG;KDH221,TRH223..(03S,14S)..(ARL,GEN);KDH200,201,220,222,223,TRH201,221..STD..(ARL,SA)200501-201008
SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),GRAY,TRIM1#
sub71071-26A52
main71071-26A50-B2iKDH201..SP..06S;TRH201..RHD..SP..GEN;KDH202..RHD..SRF..GEN;KDH200,212,220,222,LH20#,212,222,TRH203,213,223..RHD..(03S,06S,15S,16S)..(GEN,TH)200501-201008
SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),GRAY,TRIM1#
sub71071-26A52
BLUISH GRAY,TRIM1#
main71071-26A51-B4iKDH201..06S;KDH201..ARL,TH;TRH201..SG..06S..GEN;TRH213,223..4FC..STD..GCC;KDH200,220,223,TRH201,221..ARL,SA;KDH203,221,TRH200,223..(03S,06S,14S)..(ARL,GEN)201008-201312
FRONT SEAT SLIDE-*DRS:225MM & *PAS:120MM,BLUISH GRAY,TRIM1#
main71071-26A51-B4iKDH201..06S;KDH201..ARL,TH;TRH201..SG..06S..GEN;TRH213,223..4FC..STD..GCC;KDH200,220,223,TRH201,221..ARL,SA;KDH203,221,TRH200,223..(03S,06S,14S)..(ARL,GEN)201008-201312
FRONT SEAT SLIDE-*DRS:225MM & *PAS:120MM&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),BLUISH GRAY,TRIM1#
main71071-26A51-B4iKDH201..06S;KDH201..ARL,TH;TRH201..SG..06S..GEN;TRH213,223..4FC..STD..GCC;KDH200,220,223,TRH201,221..ARL,SA;KDH203,221,TRH200,223..(03S,06S,14S)..(ARL,GEN)201008-201312
FRONT SEAT SLIDE-*DRS:225MM & *PAS:120MM&SRS AIR BAG-WITH(DRIVER & PASSENGER SEATSIDE),BLUISH GRAY,TRIM1#
GRAY,TRIM1#
GRAY,TRIM1#
GRAY,TRIM1#
GRAY,TRIM1#
GRAY,TRIM1#
MEDIUM GRAY,TRIM1#
SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1#
sub71071-26A10
SEAT COVER MATERIAL-VINYL LEATHER,DARK GRAY,TRIM1#
sub71071-26A10
SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),DARK GRAY,TRIM1#
sub71071-26A10
SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),DARK GRAY,TRIM1#
sub71071-26A10
DARK GRAY,TRIM1#
sub71071-26A10
GRAY,TRIM1#
CHINA(PRC) SPEC&REAR SEAT-4-ROW(FOR 11 PERSONS)&REAR SEAT BELT-3 POINT TYPE X 11(FOR 11PERSONS & CHINA),GRAY,TRIM1#
GRAY,TRIM1#
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71027-26040-B3iKDH201,212,TRH213..ARL,GCC;TRH223..STD..(ARL,GCC,GEN,TH);KDH203,22#,LH212,222,TRH221..STD;KDH200,LH20#,TRH20#..RHD..SRF..(ARL,GEN,SA,TH);KDH201,202,212,TRH213..RHD.200501-201008
GRAY,TRIM1#
sub71073-26A90
BLUISH GRAY,TRIM1#
main71027-26041-B4iKDH201..06S;KDH201..ARL,TH;KDH222,TRH223..STD..(ARL,GCC,GEN);KDH200,202,LH20#,TRH201,203..RHD..STD..(ARL,GEN,SA,TH);KDH203,212,220,221,223,LH212,222,TRH200,213,221.201008-201312
FRONT SEAT SLIDE-*DRS:225MM & *PAS:120MM,BLUISH GRAY,TRIM1#
main71027-26041-B4iKDH201..06S;KDH201..ARL,TH;KDH222,TRH223..STD..(ARL,GCC,GEN);KDH200,202,LH20#,TRH201,203..RHD..STD..(ARL,GEN,SA,TH);KDH203,212,220,221,223,LH212,222,TRH200,213,221.201008-201312
FRONT SEAT SLIDE-*DRS:225MM & *PAS:120MM&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),BLUISH GRAY,TRIM1#
main71027-26041-B4iKDH201..06S;KDH201..ARL,TH;KDH222,TRH223..STD..(ARL,GCC,GEN);KDH200,202,LH20#,TRH201,203..RHD..STD..(ARL,GEN,SA,TH);KDH203,212,220,221,223,LH212,222,TRH200,213,221.201008-201312
FRONT SEAT SLIDE-*DRS:225MM & *PAS:120MM&SRS AIR BAG-WITH(DRIVER & PASSENGER SEATSIDE),BLUISH GRAY,TRIM1#
GRAY,TRIM1#
BLUISH GRAY,TRIM1#
GRAY,TRIM1#
GRAY,TRIM1#
SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),GRAY,TRIM1#
CKD PACKAGE(THAILAND),GRAY,TRIM1#
GRAY,TRIM1#
SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),GRAY,TRIM1#
BLUISH GRAY,TRIM1#
BLUISH GRAY,TRIM1#
SEAT COVER MATERIAL-VINYL LEATHER&FRONT SEAT SLIDE-*DRS:225MM & *PAS:225MM,GRAY,TRIM1#
GRAY,TRIM1#
SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),GRAY,TRIM1#
SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1#
SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),GRAY,TRIM1#
DARK GRAY,TRIM1#
GRAY,TRIM1#
GRAY,TRIM1#
GRAY,TRIM1#
BLUISH GRAY,TRIM1#
GRAY,TRIM1#
GRAY,TRIM1#
MEDIUM GRAY,TRIM1#
CHINA(PRC) SPEC&REAR SEAT-4-ROW(FOR 11 PERSONS)&REAR SEAT BELT-3 POINT TYPE X 11(FOR 11PERSONS & CHINA),GRAY,TRIM1#
GRAY,TRIM1#
71110AFRAME ASSY, FRONT SEAT W/ADJUSTER, RH
sub71110-0L021
sub71110-0L031
sub71110-26011
sub71110-26021
MEXICO SPEC&REAR SEAT-FOR 10 PERSONS(BACK-ROW:SPACE UP SEAT)&REAR SEAT BELT-2 POINT TYPE X 10(FOR 10 PERSONS)
sub71110-26032
SAUDI ARABIA SPEC&AMBURANCE BASE
sub71110-26052
SAUDI ARABIA SPEC&AMBURANCE BASE
sub71110-26052
SAUDI ARABIA SPEC&AMBURANCE BASE
CHINA(PRC) SPEC&REAR SEAT-4-ROW(FOR 11 PERSONS)&REAR SEAT BELT-3 POINT TYPE X 11(FOR 11PERSONS & CHINA)
sub71110-26091
CHINA(PRC) SPEC&REAR SEAT-4-ROW(FOR 11 PERSONS)&REAR SEAT BELT-3 POINT TYPE X 11(FOR 11PERSONS & CHINA)
71130LEG ASSY, FRONT SEAT, RH
71410CCLIP(FOR FRONT SEAT CUSHION)
main90467-08186iKDH200..ARL;KDH200..06S..GEN;KDH212,22#,LH212,222,TRH213,22#..RHD..(03S,16S)200602-200610
NEW ZEALAND SPEC&SRS AIR BAG-WITHOUT
main90467-08186iKDH200..ARL;KDH200..06S..GEN;KDH212,22#,LH212,222,TRH213,22#..RHD..(03S,16S)200602-200610
SAUDI ARABIA SPEC&AMBURANCE BASE
main90467-08188iTRH213..GL;TRH213..LHD..STD;KDH222,TRH223..LHD..GEN;KDH222,TRH223..ARL,CIS,GCC;KDH20#,212,LH20#,212,222,TRH20#,221..LHD200501-200602
SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER
main90467-08188iTRH213..GL;TRH213..LHD..STD;KDH222,TRH223..LHD..GEN;KDH222,TRH223..ARL,CIS,GCC;KDH20#,212,LH20#,212,222,TRH20#,221..LHD200501-200602
SINGAPORE SPEC&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY)
main90467-08188iTRH213..GL;TRH213..LHD..STD;KDH222,TRH223..LHD..GEN;KDH222,TRH223..ARL,CIS,GCC;KDH20#,212,LH20#,212,222,TRH20#,221..LHD200501-200602
SINGAPORE SPEC&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE)
main90467-08188iTRH213..GL;TRH213..LHD..STD;KDH222,TRH223..LHD..GEN;KDH222,TRH223..ARL,CIS,GCC;KDH20#,212,LH20#,212,222,TRH20#,221..LHD200501-200602
SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER SEAT SIDEONLY)
main90467-08188iTRH213..GL;TRH213..LHD..STD;KDH222,TRH223..LHD..GEN;KDH222,TRH223..ARL,CIS,GCC;KDH20#,212,LH20#,212,222,TRH20#,221..LHD200501-200602
SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE)
SINGAPORE SPEC
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
SAUDI ARABIA SPEC
SAUDI ARABIA SPEC&AMBURANCE BASE&FRONT SEAT SLIDE-*DRS:225MM & *PAS:225MM
SAUDI ARABIA SPEC&FRONT SEAT SLIDE-*DRS:225MM & *PAS:225MM
FRONT SEAT SLIDE-*DRS:225MM & *PAS:225MM
7152
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
71848ACAP, SEAT ADJUSTER COVER, RH
SINGAPORE SPEC
SINGAPORE SPEC&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY)
SINGAPORE SPEC&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE)
71861SHIELD, FRONT SEAT CUSHION, INNER RH
main71861-26010-B0iKDH212..GCC,VN;KDH212..RHD..GEN;KDH212..10S,11S,15S;KDH20#,22#,LH20#,212,222,TRH20#,213,22#200501-201008
GRAY,TRIM1#
main71861-26010-B1iKDH222,223..ARL,GCC,GEN,RUS,SA;KDH20#,212,220,221,LH20#,212,222,TRH20#,213,22#201008-201402
DK.GRAY,TRIM1#
71867ASHIELD, FRONT SEAT CUSHION, INNER NO.1 RH
main71867-26010-B0iKDH200,202,212,222,LH20#,212,222,TRH20#,213,22#..LHD..STD..(GCC,GEN)200501-201008
GRAY,TRIM1#
main71867-26010-B0iKDH200,202,212,222,LH20#,212,222,TRH20#,213,22#..LHD..STD..(GCC,GEN)200610-201008
FRONT SEAT SLIDE-*DRS:225MM & *PAS:120MM,GRAY,TRIM1#
main71867-26010-B0iKDH200,202,212,222,LH20#,212,222,TRH20#,213,22#..LHD..STD..(GCC,GEN)200610-201008
FRONT SEAT SLIDE-*DRS:225MM & *PAS:120MM&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),GRAY,TRIM1#
main71867-26010-B0iKDH200,202,212,222,LH20#,212,222,TRH20#,213,22#..LHD..STD..(GCC,GEN)200610-201008
FRONT SEAT SLIDE-*DRS:225MM & *PAS:120MM&SRS AIR BAG-WITH(DRIVER & PASSENGER SEATSIDE),GRAY,TRIM1#
DK.GRAY,TRIM1#
GRAY,TRIM1#
SAUDI ARABIA SPEC&AMBURANCE BASE,GRAY,TRIM1#
71875ACOVER, RECLINING ADJUSTER INSIDE, RH
GRAY,TRIM1#
sub71875-26010
71875BCOVER, RECLINING ADJUSTER INSIDE, RH
GRAY,TRIM1#
sub71875-26020
71876COVER, RECLINING ADJUSTER INSIDE, LH
GRAY,TRIM1#
sub71876-26010
71876ACOVER, RECLINING ADJUSTER INSIDE, LH
GRAY,TRIM1#
sub71876-26030
72249GUIDE, SEAT TRACK LOCKING
main72249-26020iKDH222,TRH223..LHD..GEN;TRH213..09S,10S,11S,15S;KDH222,TRH223..ARL,CIS,GCC,SA;KDH203,212,223..(10S,11S,12S,14S,15S)..(ARL,GEN,RUS,SA);KDH200,201,202,212,220,LH20#,2200501-201402
LH SEAT
RH SEAT
72525AHANDLE, RECLINING ADJUSTER RELEASE, RH
GRAY,TRIM1#
FRONT SEAT SLIDE-*DRS:225MM & *PAS:120MM&SRS AIR BAG-WITH(DRIVER & PASSENGER SEATSIDE),GRAY,TRIM1#
main72525-26080-B0iKDH200,202,212,222,LH20#,212,222,TRH20#,213,22#..LHD..STD..(GCC,GEN)200610-201008
FRONT SEAT SLIDE-*DRS:225MM & *PAS:120MM&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),GRAY,TRIM1#
FRONT SEAT SLIDE-*DRS:225MM & *PAS:120MM,GRAY,TRIM1#
DK.GRAY,TRIM1#
9011910949
main90119-10949
C991640001
mainC9916-40001
19 parts on this diagram · 60 diagrams in section
