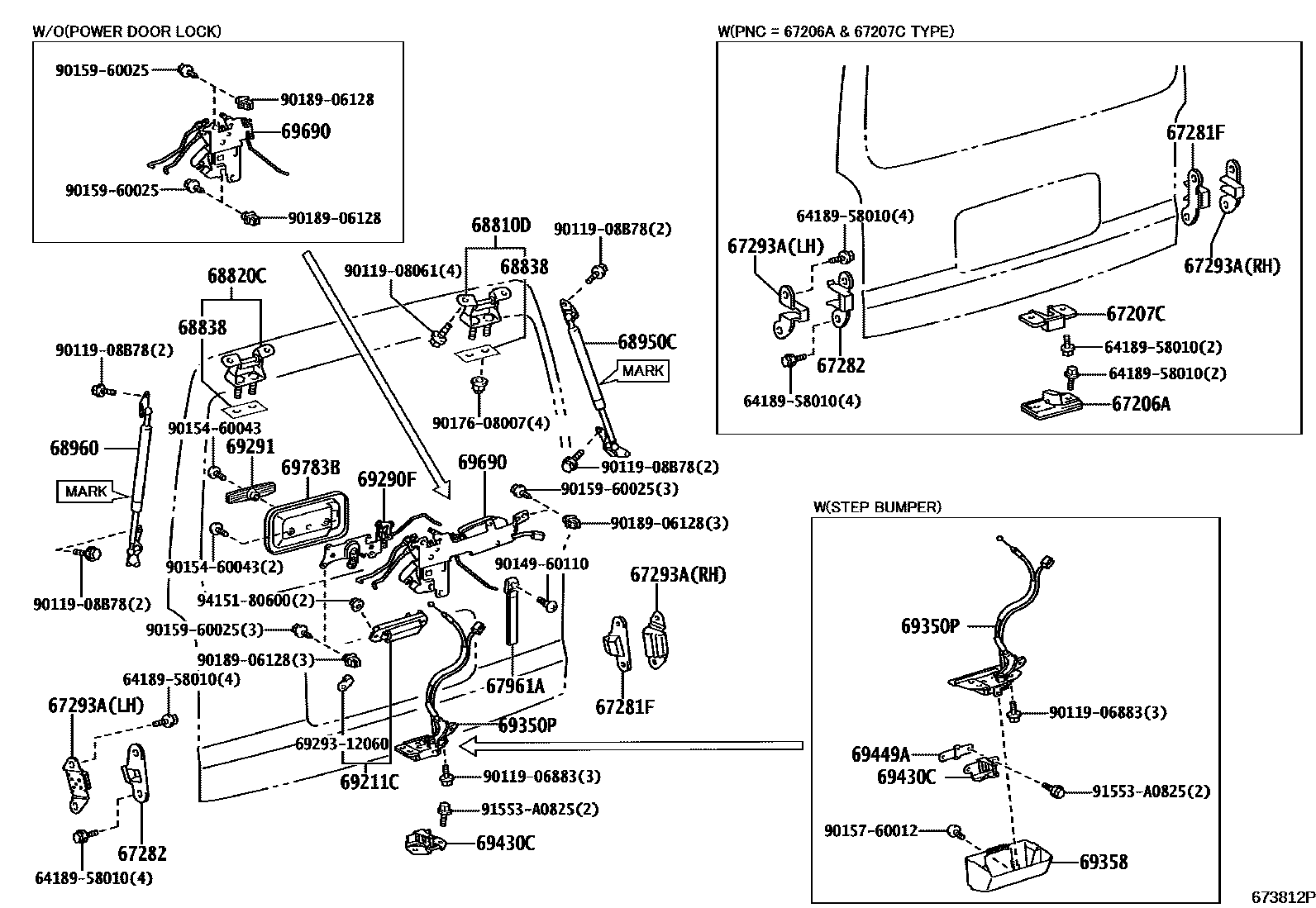

BACK DOOR LOCK & HINGE

67206ABRACKET SUB-ASSY, BACK DOOR STOPPER

main67206-26010iTRH213..10S,15S;KDH200,212,220,222,223,TRH201,213,221..(03S,12S,14S,16S)..(MA,RUS,SA,VN);KDH202,212,TRH203,22#..(HRF,SMRF)..SG..(03S,10S,11S,12S,13S,14S,15S)..(CIS,GEN,MA,SA)200501-201402

67207CSTOPPER SUB-ASSY, BACK DOOR

main67207-95J01iTRH213..10S,15S;KDH200,212,220,222,223,TRH201,213,221..(03S,12S,14S,16S)..(MA,RUS,SA,VN);KDH202,212,TRH203,22#..(HRF,SMRF)..SG..(03S,10S,11S,12S,13S,14S,15S)..(CIS,GEN,MA,SA)200501-201402

67281FSTOPPER, BACK DOOR, LOWER

main67281-28010iTRH221..LHD..SP;KDH212,TRH213..GCC;KDH212,TRH213..RHD..(GEN,TH);KDH221,223,TRH223..SG..(03S,15S,16S);KDH202,TRH203,213..(SMRF,SRF)..(09S,12S,15S)..(GCC,GEN,MA,TH);KDH200,201,203,220,222,LH20#,212,222,TRH200,201..ARL,GCC,GEN,TH200501-201401

main69403-26060iTRH213..10S,15S;KDH200,212,220,222,223,TRH201,213,221..(03S,12S,14S,16S)..(MA,RUS,SA,VN);KDH202,212,TRH203,22#..(HRF,SMRF)..SG..(03S,10S,11S,12S,13S,14S,15S)..(CIS,GEN,MA,SA)200501-201402

67282STOPPER, BACK DOOR, NO.1

main67282-28010iKDH221,223,TRH22#..ARL200501-201205

main69404-26010iTRH213..10S,15S;KDH200,212,220,222,223,TRH201,213,221..(03S,12S,14S,16S)..(MA,RUS,SA,VN);KDH202,212,TRH203,22#..(HRF,SMRF)..SG..(03S,10S,11S,12S,13S,14S,15S)..(CIS,GEN,MA,SA)200501-201402

67293ACUSHION, BACK DOOR STOPPER

main67293-28020iKDH221,223,TRH22#..ARL200501-201205

RH

main67294-28010iKDH221,223,TRH22#..ARL200501-201205

LH

main69401-26030supersedes 69402-26010iKDH221,223,TRH22#..ARL201205-201402

RH

main69402-26010iTRH213..10S,15S;KDH200,212,220,222,223,TRH201,213,221..(03S,12S,14S,16S)..(MA,RUS,SA,VN);KDH202,212,TRH203,22#..(HRF,SMRF)..SG..(03S,10S,11S,12S,13S,14S,15S)..(CIS,GEN,MA,SA)200501-201402

LH

67961ASTRAP, BACK DOOR PULL

main67961-26050-B0iTRH201..SG..03S200505-201008

GRAY,TRIM1#

main67961-26050-B1iKDH201,TRH201..SG..GEN;KDH201,203,221,223,TRH201,22#..RHD..(03S,14S)..(ARL,GEN)201008-201312

DK.GRAY,TRIM1#

68810DHINGE ASSY, BACK DOOR, RH

main68810-26010iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

68820CHINGE ASSY, BACK DOOR, LH

main68820-26010iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

68838PAD, BACK DOOR HINGE, NO.1

main68838-26030×2iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

T=1.1

68950CSTAY ASSY, BACK DOOR, RH

main68950-26010supersedes 68950-26026iKDH212,TRH213..SA200501-200611

MARK = A

main68950-26011iTRH213..10S..GEN; TRH213..RHD;KDH212,LH212;TRH213..LHD..(09S,16S)200611-200701

MARK = A; VIETNAM SPEC,MARK = A

main68950-26012iTRH213..RHD;KDH212,LH212;TRH213..GL..VN;TRH213..LHD..(09S,16S)200702-200910

MARK = A

main68950-26013iTRH213..GL..GEN; TRH213..RHD;KDH212,LH212;TRH213..GL..VN;TRH213..LHD..STD200911-201007

MARK = A; MEXICO SPEC,MARK = A; VENEZUERA SPEC,MARK = A

main68950-26014iTRH213..GL..GEN; TRH213..RHD;KDH212,LH212;TRH213..GL..VN;TRH213..LHD..STD201008-201206

MARK = P; MEXICO SPEC,MARK = P

main68950-26015iTRH213..GL..GEN; TRH213..RHD;KDH212,LH212;TRH213..LHD..STD201206-201209

MARK = P; MEXICO SPEC,MARK = P

main68950-26016iTRH213..GL..GEN; TRH213..RHD;KDH212,LH212;TRH213..LHD..STD201210-201312

MARK = P; MEXICO SPEC,MARK = P

main68950-26030iTRH223..TH;KDH220..SP..GEN200501-200611

MARK = F

main68950-26031iTRH221..LHD..SP;KDH220,222,LH222,TRH223..5F..(GCC,GEN,TH); TRH221..SG200611-200701

ECUADOR SPEC,MARK = F; MARK = F

main68950-26032iTRH221..LHD..SP;KDH220,222,LH222,TRH223..5F..(GCC,GEN,TH); TRH221..SG200702-200910

ECUADOR SPEC,MARK = F; MARK = F

main68950-26033iTRH221..LHD..SP;KDH220,222,LH222,TRH223..5F..(GCC,GEN,TH); TRH221..SG200911-201007

ECUADOR SPEC,MARK = F; MARK = F

main68950-26034iTRH221..LHD..SP;KDH220,222,LH222,TRH223..5F..(GCC,GEN,TH)201008-201102

MARK = C

main68950-26035iTRH221..LHD..SP;KDH220,222,223,LH222,TRH223..(03S,15S,16S)..(GCC,GEN,TH)201103-201209

MARK = C

main68950-26036iTRH221..LHD..SP;KDH220,222,223,LH222,TRH223..(03S,15S,16S)..(GCC,GEN,TH)201210-201401

MARK = C

main68950-26040iTRH221..SP..GEN;KDH222..LHD..GEN;LH222,TRH223..5F..GEN; TRH223..12S,13S200501-200610

COLD AREA SPEC,MARK = G; MARK = G

main68950-26041iTRH221..SP..GEN;TRH223..5F..GEN; TRH223..12S,13S200611-200701

COLD AREA SPEC,MARK = G; MARK = G

main68950-26042iTRH221..SP..GEN;TRH223..5F..GEN; TRH223..12S,13S200702-200910

COLD AREA SPEC,MARK = G; MARK = G

main68950-26043iTRH221..SP..GEN;TRH223..5F..GEN; TRH223..12S,13S200911-201007

COLD AREA SPEC,MARK = G; MARK = G

main68950-26044iTRH221..SP..GEN;TRH223..5F..GEN; TRH223..12S,13S201008-201102

COLD AREA SPEC,MARK = W; MARK = W

main68950-26045iKDH223,TRH223..12S,13S; TRH221..SP..GEN;TRH223..5F..GEN201103-201209

COLD AREA SPEC,MARK = W; MARK = W

main68950-26046iKDH223,TRH223..12S,13S; TRH221..SP..GEN;TRH223..5F..GEN201210-201312

COLD AREA SPEC,MARK = W; MARK = W

main68950-26050iKDH200,TRH201..ARL;KDH200,TRH201..SG..06S..GEN200501-200508

MARK = Z

main68950-26060iTRH221..SG;TRH22#..ARL; TRH221..SP..GEN;TRH223..5F..GL..GEN200501-200610

MARK = X; MEXICO SPEC,MARK = X

main68950-26061iTRH221..SG;KDH22#,TRH22#..RHD..(03S,14S); TRH221..SP..GEN;TRH223..5F..GL..GEN200611-200701

MARK = X; MEXICO SPEC,MARK = X

main68950-26062iTRH221..SG;KDH22#,TRH22#..RHD..(03S,14S); TRH221..SP..GEN;TRH223..5F..GL..GEN200702-200910

MARK = X; MEXICO SPEC,MARK = X

main68950-26063iTRH221..SG;KDH22#,TRH22#..RHD..(03S,14S); TRH221..SP..GEN;TRH223..5F..GL..GEN200911-201007

MARK = X; MEXICO SPEC,MARK = X

main68950-26064iTRH221..SG;KDH22#,TRH22#..RHD..(03S,14S); TRH221..SP..GEN;TRH223..5F..GL..GEN201008-201102

MARK = H; MEXICO SPEC,MARK = H

main68950-26065iTRH221..SG;KDH22#,TRH22#..RHD..(03S,14S); TRH221..SP..GEN;TRH223..5F..GL..GEN201103-201209

MARK = H; MEXICO SPEC,MARK = H

main68950-26066iTRH221..SG;KDH22#,TRH22#..RHD..(03S,14S)201210-201402

MARK = H

main68950-26070iKDH202,LH20#,TRH203;KDH200,TRH201..06S..GCC;KDH200,TRH201..SP..(GCC,GEN)200501-200508

MARK = E

main68950-26170iTRH201..SG..03S200505-200508

MARK = N

main68950-26190iKDH203;KDH200..SP..06S;KDH201..SP..GEN200508-200611

MARK = E

main68950-26191iTRH201..06S..GCC;KDH201,TRH201..SP..(GCC,GEN);KDH200,202,203,LH20#,TRH203..SRF..(GCC,GEN,MA)200611-200701

MARK = E

main68950-26192iTRH201..06S..GCC;KDH201,TRH201..SP..(GCC,GEN);KDH200,202,203,LH20#,TRH203..SRF..(GCC,GEN,MA,TH)200702-200910

MARK = E

main68950-26193iTRH201..06S..GCC;KDH201,TRH201..SP..(GCC,GEN);KDH200,202,203,LH20#,TRH203..SRF..(GCC,GEN,MA,TH)200911-201007

MARK = E

main68950-26194iTRH201..06S..GCC;KDH201,TRH201..SP..(GCC,GEN);KDH200,202,203,LH20#,TRH203..SRF..(GCC,GEN,MA,TH)201008-201009

MARK = J

main68950-26195iTRH201..06S..GCC;KDH201,TRH201..SP..(GCC,GEN);KDH200,202,203,LH20#,TRH203..SRF..(GCC,GEN,MA,TH)201010-201012

MARK = J

main68950-26196iTRH201..06S..GCC;KDH201,TRH201..SP..(GCC,GEN,TH);KDH200,202,203,LH20#,TRH203..SRF..(GCC,GEN,MA,TH)201101-201209

MARK = J

main68950-26197iTRH201..06S..GCC;KDH201,TRH201..SP..(GCC,GEN,TH);KDH200,202,203,LH20#,TRH200,203..SRF..(GCC,GEN,MA,TH)201210-201401

MARK = J

main68950-26230iTRH201..ARL;TRH201..SG..06S..GEN200508-200610

MARK = Z

main68950-26231iKDH200,201,TRH201..ARL,SA;KDH201,TRH201..SG..06S..GEN200611-200701

MARK = Z

main68950-26232iKDH200,201,TRH201..ARL,SA;KDH201,TRH201..SG..06S..GEN200702-200910

MARK = Z

main68950-26233iKDH200,201,TRH201..ARL,SA;KDH201,TRH201..SG..06S..GEN200911-201007

MARK = Z

main68950-26234iKDH200,201,TRH201..ARL,SA;KDH201,TRH201..SG..06S..GEN201008-201012

MARK = Z

main68950-26235iKDH200,201,TRH201..ARL,SA;KDH201,TRH201..SG..06S..GEN201101-201209

MARK = Z

main68950-26236iKDH200,201,TRH201..ARL,SA;KDH201,TRH201..SG..06S..GEN201210-201312

MARK = Z

main68950-26240iKDH202,TRH203..HRF200602-200610

MARK = K

main68950-26241iKDH202,TRH203..HRF200611-200701

MARK = K

main68950-26242iKDH202,TRH203..HRF200702-200910

MARK = K

main68950-26243iKDH202,TRH203..MA200911-201007

MARK = K

main68950-26244iKDH202,TRH203..MA201008-201206

MARK = N

main68950-26245iKDH202,TRH203..MA201206-201209

MARK = N

main68950-26246iKDH202,TRH203..MA201210-201401

MARK = N

main68950-26250iTRH201..SG..03S200508-200610

MARK = N

main68950-26251iTRH201..SG..03S200611-200701

MARK = N

main68950-26252iTRH201..SG..03S200702-200910

MARK = N

main68950-26253iTRH201..SG..03S200911-201007

MARK = N

main68950-26254iTRH201..SG..03S201008-201206

MARK = X

main68950-26255iTRH201..SG..03S201206-201209

MARK = X

main68950-26256iTRH201..SG..03S201210-201312

MARK = X

main68950-0L010iKDH20#..RHD..4D..(03S,12S)..5F..GEN; KDH200..RHD..4D..5F..GEN200501-200602

CKD PACKAGE(MALAYSIA); CKD PACKAGE(THAILAND)

main68950-26020iKDH212,LH212,TRH213..16S..GEN200512-200610

COLD AREA SPEC,MARK = B

main68950-26021iTRH213..10S..GEN; TRH213..STD..GEN200611-200701

COLD AREA SPEC,MARK = B; MARK = B

main68950-26022iTRH213..10S..GEN; TRH213..STD..GEN200702-200910

COLD AREA SPEC,MARK = B; MARK = B

main68950-26023iTRH213..GL..GEN; TRH213..STD..GEN200911-201007

COLD AREA SPEC,MARK = B; MARK = B

main68950-26024iTRH213..GL..GEN; TRH213..STD..GEN201008-201206

COLD AREA SPEC,MARK = T; MARK = T

main68950-26025iTRH213..GL..GEN; TRH213..STD..GEN201206-201209

COLD AREA SPEC,MARK = T; MARK = T

main68950-26026iTRH213..GL..GEN; TRH213..STD..GEN201210-201312

COLD AREA SPEC,MARK = T; MARK = T

main68950-26080iKDH202..15S..GEN;KDH202..LHD..12S;KDH200,LH20#,TRH20#..SRF..(03S,12S,15S)..GEN200501-200508

COLD AREA SPEC,MARK = C

main68950-26200iKDH202..15S..GEN;KDH202..LHD..12S;KDH200,LH20#,TRH20#..SRF..(03S,12S,15S)..GEN200508-200610

COLD AREA SPEC,MARK = C

main68950-26201iKDH202..15S..GEN;KDH202..LHD..12S;KDH200,LH20#,TRH20#..SRF..(03S,12S,15S)..GEN200611-200701

COLD AREA SPEC,MARK = C

main68950-26202iKDH202..15S..GEN;KDH202..LHD..12S;KDH200,LH20#,TRH20#..SRF..(03S,12S,15S)..GEN200702-200910

COLD AREA SPEC,MARK = C

main68950-26203iKDH200,202,LH20#,TRH20#..SRF..(03S,12S,15S)..GEN200911-201007

COLD AREA SPEC,MARK = C

main68950-26204iKDH201,TRH203..LHD..GEN;KDH200,202,203,LH20#,TRH201..SRF..(03S,12S,15S)..GEN201008-201012

COLD AREA SPEC,MARK = Y

main68950-26205iKDH201,TRH203..LHD..GEN;KDH200,202,203,LH20#,TRH201..SRF..(03S,12S,15S)..GEN201101-201209

COLD AREA SPEC,MARK = Y

main68950-26206iKDH201,TRH203..LHD..GEN;KDH200,202,203,LH20#,TRH201..SRF..(03S,12S,15S)..GEN201210-201312

COLD AREA SPEC,MARK = Y

68960STAY ASSY, BACK DOOR, LH

main68960-26010supersedes 68960-26026iKDH212,TRH213..SA200501-200611

MARK = A

main68960-26011iTRH213..10S..GEN; TRH213..RHD;KDH212,LH212;TRH213..LHD..(09S,16S)200611-200701

MARK = A; VIETNAM SPEC,MARK = A

main68960-26012iTRH213..RHD;KDH212,LH212;TRH213..GL..VN;TRH213..LHD..(09S,16S)200702-200910

MARK = A

main68960-26013iTRH213..GL..GEN; TRH213..RHD;KDH212,LH212;TRH213..GL..VN;TRH213..LHD..STD200911-201007

MARK = A; MEXICO SPEC,MARK = A; VENEZUERA SPEC,MARK = A

main68960-26014iTRH213..GL..GEN; TRH213..RHD;KDH212,LH212;TRH213..GL..VN;TRH213..LHD..STD201008-201206

MARK = P; MEXICO SPEC,MARK = P

main68960-26015iTRH213..GL..GEN; TRH213..RHD;KDH212,LH212;TRH213..LHD..STD201206-201209

MARK = P; MEXICO SPEC,MARK = P

main68960-26016iTRH213..GL..GEN; TRH213..RHD;KDH212,LH212;TRH213..LHD..STD201210-201312

MARK = P; MEXICO SPEC,MARK = P

main68960-26030iTRH221..LHD..SP;KDH222,LH222,TRH223..16S200501-200610

MARK = F

main68960-26031iTRH221..LHD..SP;KDH220,222,LH222,TRH223..5F..(GCC,GEN,TH); TRH221..SG200611-200701

ECUADOR SPEC,MARK = F; MARK = F

main68960-26032iTRH221..LHD..SP;KDH220,222,LH222,TRH223..5F..(GCC,GEN,TH); TRH221..SG200702-200910

ECUADOR SPEC,MARK = F; MARK = F

main68960-26033iTRH221..LHD..SP;KDH220,222,LH222,TRH223..5F..(GCC,GEN,TH); TRH221..SG200911-201007

ECUADOR SPEC,MARK = F; MARK = F

main68960-26034iTRH221..LHD..SP;KDH220,222,LH222,TRH223..5F..(GCC,GEN,TH)201008-201102

MARK = C

main68960-26035iTRH221..LHD..SP;KDH220,222,223,LH222,TRH223..(03S,15S,16S)..(GCC,GEN,TH)201103-201209

MARK = C

main68960-26036iTRH221..LHD..SP;KDH220,222,223,LH222,TRH223..(03S,15S,16S)..(GCC,GEN,TH)201210-201401

MARK = C

main68960-26040iTRH221..SP..GEN;KDH222..LHD..GEN;LH222,TRH223..5F..GEN; TRH223..12S,13S200501-200610

COLD AREA SPEC,MARK = G; MARK = G

main68960-26041iTRH221..SP..GEN;TRH223..5F..GEN; TRH223..12S,13S200611-200701

COLD AREA SPEC,MARK = G; MARK = G

main68960-26042iTRH221..SP..GEN;TRH223..5F..GEN; TRH223..12S,13S200702-200910

COLD AREA SPEC,MARK = G; MARK = G

main68960-26043iTRH221..SP..GEN;TRH223..5F..GEN; TRH223..12S,13S200911-201007

COLD AREA SPEC,MARK = G; MARK = G

main68960-26044iTRH221..SP..GEN;TRH223..5F..GEN; TRH223..12S,13S201008-201102

COLD AREA SPEC,MARK = W; MARK = W

main68960-26045iKDH223,TRH223..12S,13S; TRH221..SP..GEN;TRH223..5F..GEN201103-201209

COLD AREA SPEC,MARK = W; MARK = W

main68960-26046iKDH223,TRH223..12S,13S; TRH221..SP..GEN;TRH223..5F..GEN201210-201312

COLD AREA SPEC,MARK = W; MARK = W

main68960-26050iKDH200,TRH201..ARL;KDH200,TRH201..SG..06S..GEN200501-200508

MARK = Z

main68960-26060iTRH221..SG;TRH22#..ARL; TRH221..SP..GEN;TRH223..5F..GL..GEN200501-200610

MARK = X; MEXICO SPEC,MARK = X

main68960-26061iTRH221..SG;KDH22#,TRH22#..RHD..(03S,14S); TRH221..SP..GEN;TRH223..5F..GL..GEN200611-200701

MARK = X; MEXICO SPEC,MARK = X

main68960-26062iTRH221..SG;KDH22#,TRH22#..RHD..(03S,14S); TRH221..SP..GEN;TRH223..5F..GL..GEN200702-200910

MARK = X; MEXICO SPEC,MARK = X

main68960-26063iTRH221..SG;KDH22#,TRH22#..RHD..(03S,14S); TRH221..SP..GEN;TRH223..5F..GL..GEN200911-201007

MARK = X; MEXICO SPEC,MARK = X

main68960-26064iTRH221..SG;KDH22#,TRH22#..RHD..(03S,14S); TRH221..SP..GEN;TRH223..5F..GL..GEN201008-201102

MARK = H; MEXICO SPEC,MARK = H

main68960-26065iTRH221..SG;KDH22#,TRH22#..RHD..(03S,14S); TRH221..SP..GEN;TRH223..5F..GL..GEN201103-201209

MARK = H; MEXICO SPEC,MARK = H

main68960-26066iTRH221..SG;KDH22#,TRH22#..RHD..(03S,14S)201210-201402

MARK = H

main68960-26070iKDH202,LH20#,TRH203;KDH200,TRH201..06S..GCC;KDH200,TRH201..SP..(GCC,GEN)200501-200508

MARK = E

main68960-26170iTRH201..SG..03S200505-200508

MARK = N

main68960-26190iTRH201..SP..(GCC,GEN);KDH200,TRH201..06S..GCC;KDH20#,LH20#,TRH203..SRF..(03S,12S,15S)..(GCC,GEN,MA)200508-200610

MARK = E

main68960-26191iTRH201..06S..GCC;KDH201,TRH201..SP..(GCC,GEN);KDH200,202,203,LH20#,TRH203..SRF..(GCC,GEN,MA)200611-200701

MARK = E

main68960-26192iTRH201..06S..GCC;KDH201,TRH201..SP..(GCC,GEN);KDH200,202,203,LH20#,TRH203..SRF..(GCC,GEN,MA,TH)200702-200910

MARK = E

main68960-26193iTRH201..06S..GCC;KDH201,TRH201..SP..(GCC,GEN);KDH200,202,203,LH20#,TRH203..SRF..(GCC,GEN,MA,TH)200911-201007

MARK = E

main68960-26194iTRH201..06S..GCC;KDH201,TRH201..SP..(GCC,GEN);KDH200,202,203,LH20#,TRH203..SRF..(GCC,GEN,MA,TH)201008-201009

MARK = J

main68960-26195iTRH201..06S..GCC;KDH201,TRH201..SP..(GCC,GEN);KDH200,202,203,LH20#,TRH203..SRF..(GCC,GEN,MA,TH)201010-201012

MARK = J

main68960-26196iTRH201..06S..GCC;KDH201,TRH201..SP..(GCC,GEN,TH);KDH200,202,203,LH20#,TRH203..SRF..(GCC,GEN,MA,TH)201101-201209

MARK = J

main68960-26197iTRH201..06S..GCC;KDH201,TRH201..SP..(GCC,GEN,TH);KDH200,202,203,LH20#,TRH200,203..SRF..(GCC,GEN,MA,TH)201210-201401

MARK = J

main68960-26230iTRH201..SA;KDH200,201..ARL,SA;KDH200,201..SG..GEN200508-200611

MARK = Z

main68960-26231iKDH200,201,TRH201..ARL,SA;KDH201,TRH201..SG..06S..GEN200611-200701

MARK = Z

main68960-26232iKDH200,201,TRH201..ARL,SA;KDH201,TRH201..SG..06S..GEN200702-200910

MARK = Z

main68960-26233iKDH200,201,TRH201..ARL,SA;KDH201,TRH201..SG..06S..GEN200911-201007

MARK = Z

main68960-26234iKDH200,201,TRH201..ARL,SA;KDH201,TRH201..SG..06S..GEN201008-201012

MARK = Z

main68960-26235iKDH200,201,TRH201..ARL,SA;KDH201,TRH201..SG..06S..GEN201101-201209

MARK = Z

main68960-26236iKDH200,201,TRH201..ARL,SA;KDH201,TRH201..SG..06S..GEN201210-201312

MARK = Z

main68960-26240iKDH202,TRH203..HRF200602-200610

MARK = K

main68960-26241iKDH202,TRH203..HRF200611-200701

MARK = K

main68960-26242iKDH202,TRH203..HRF200702-200910

MARK = K

main68960-26243iKDH202,TRH203..MA200911-201007

MARK = K

main68960-26244iKDH202,TRH203..MA201008-201206

MARK = N

main68960-26245iKDH202,TRH203..MA201206-201209

MARK = N

main68960-26246iKDH202,TRH203..MA201210-201401

MARK = N

main68960-26250iTRH201..SG..03S200508-200610

MARK = N

main68960-26251iTRH201..SG..03S200611-200701

MARK = N

main68960-26252iTRH201..SG..03S200702-200910

MARK = N

main68960-26253iTRH201..SG..03S200911-201007

MARK = N

main68960-26254iTRH201..SG..03S201008-201206

MARK = X

main68960-26255iTRH201..SG..03S201206-201209

MARK = X

main68960-26256iTRH201..SG..03S201210-201312

MARK = X

main68960-0L010iKDH20#..RHD..4D..(03S,12S)..5F..GEN; KDH200..RHD..4D..5F..GEN200501-200602

CKD PACKAGE(MALAYSIA); CKD PACKAGE(THAILAND)

main68960-26020iKDH212,LH212,TRH213..16S..GEN200512-200610

COLD AREA SPEC,MARK = B

main68960-26021iTRH213..10S..GEN; TRH213..STD..GEN200611-200701

COLD AREA SPEC,MARK = B; MARK = B

main68960-26022iTRH213..10S..GEN; TRH213..STD..GEN200702-200910

COLD AREA SPEC,MARK = B; MARK = B

main68960-26023iTRH213..GL..GEN; TRH213..STD..GEN200911-201007

COLD AREA SPEC,MARK = B; MARK = B

main68960-26024iTRH213..GL..GEN; TRH213..STD..GEN201008-201206

COLD AREA SPEC,MARK = T; MARK = T

main68960-26025iTRH213..GL..GEN; TRH213..STD..GEN201206-201209

COLD AREA SPEC,MARK = T; MARK = T

main68960-26026iTRH213..GL..GEN; TRH213..STD..GEN201210-201312

COLD AREA SPEC,MARK = T; MARK = T

main68960-26080iKDH202..15S..GEN;KDH202..LHD..12S;KDH200,LH20#,TRH20#..SRF..(03S,12S,15S)..GEN200501-200508

COLD AREA SPEC,MARK = C

main68960-26200iKDH202..15S..GEN;KDH202..LHD..12S;KDH200,LH20#,TRH20#..SRF..(03S,12S,15S)..GEN200508-200610

COLD AREA SPEC,MARK = C

main68960-26201iKDH202..15S..GEN;KDH202..LHD..12S;KDH200,LH20#,TRH20#..SRF..(03S,12S,15S)..GEN200611-200701

COLD AREA SPEC,MARK = C

main68960-26202iKDH202..15S..GEN;KDH202..LHD..12S;KDH200,LH20#,TRH20#..SRF..(03S,12S,15S)..GEN200702-200910

COLD AREA SPEC,MARK = C

main68960-26203iKDH200,202,LH20#,TRH20#..SRF..(03S,12S,15S)..GEN200911-201007

COLD AREA SPEC,MARK = C

main68960-26204iKDH201,TRH203..LHD..GEN;KDH200,202,203,LH20#,TRH201..SRF..(03S,12S,15S)..GEN201008-201012

COLD AREA SPEC,MARK = Y

main68960-26205iKDH201,TRH203..LHD..GEN;KDH200,202,203,LH20#,TRH201..SRF..(03S,12S,15S)..GEN201101-201209

COLD AREA SPEC,MARK = Y

main68960-26206iKDH201,TRH203..LHD..GEN;KDH200,202,203,LH20#,TRH201..SRF..(03S,12S,15S)..GEN201210-201312

COLD AREA SPEC,MARK = Y

69211CHANDLE, BACK DOOR OUTSIDE

main69023-26040iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

69290FHANDLE ASSY, BACK DOOR INSIDE

main69290-26040-B0iKDH201..SP..GEN;KDH222..GL..GCC;KDH222..ARL,SA,TH;TRH223..(14S,16S)..GL;KDH200,TRH201..SP..06S;TRH223..(12S,13S,14S)..(ARL,CIS,GEN);KDH202,203,212,223,LH202,212,TRH20#,213,221..SG..(03S,09S,10S,11S,12S,14S,15S,16S); KDH222..LHD..STD;LH222,TRH223..16S..STD200501-201008

GRAY,TRIM1#; REAR SEAT-WITHOUT,GRAY,TRIM1#

main69290-26040-B1iKDH222..TH;KDH222,TRH223..GL;KDH201,TRH201..RHD..SP..GEN;TRH201,22#..SG..(03S,14S,15S)..(ARL,GEN,TH);KDH202,203,212,223,LH202,212,TRH200,203,213201008-201401

DK.GRAY,TRIM1#

69291HANDLE ASSY, BACK DOOR INSIDE

main69291-95J00-B5iKDH201..SP..GEN;KDH222..GL..GCC;KDH222..ARL,SA,TH;TRH223..(14S,16S)..GL;KDH200,TRH201..SP..06S;TRH223..(12S,13S,14S)..(ARL,CIS,GEN);KDH202,203,212,223,LH202,212,TRH20#,213,221..SG..(03S,09S,10S,11S,12S,14S,15S,16S); KDH222..LHD..STD;LH222,TRH223..16S..STD200501-201008

GRAY,TRIM1#; REAR SEAT-WITHOUT,GRAY,TRIM1#

main69291-95J00-B6iKDH222..TH;KDH222,TRH223..GL;KDH201,TRH201..RHD..SP..GEN;TRH201,22#..SG..(03S,14S,15S)..(ARL,GEN,TH);KDH202,203,212,223,LH202,212,TRH200,203,213201008-201401

DK.GRAY,TRIM1#

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-26120iTRH203..15S..GEN;KDH220..SP..(GEN,SA);TRH201,203..ARL,GCC,MA,SA;TRH213..(10S,16S)..(GCC,GEN,SA);KDH212..(10S,11S,16S)..(GCC,GEN,SA);KDH202,TRH201..LHD..(03S,12S)..5F..GEN;KDH202,221,TRH213..(HRF,SMRF)..(ARL,MA,TH);KDH200,202,222..(03S,14S,15S,16S)..5F..(GCC,GEN,MA,SA);KDH201,203,223,LH20#,212,222,TRH22#..03S,12S,13S,14S,15S,16S200501-201309

main69350-26121iKDH221..ARL;TRH201..06S..GCC;KDH20#,212,220,222,223,LH20#,212,222,TRH201,203,213,22#..03S,10S,11S,12S,13S,14S,15S,16S201310-201402

main69350-26130iKDH220,221..SG;KDH200,201,TRH200,201..06S..GEN200501-201312

69358PROTECTOR, BACK DOOR LOCK

main69358-26010iKDH220,221..SG;KDH200,201,TRH200,201..06S..GEN200501

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-95J00iKDH220,221..SP;KDH200,TRH201..06S..GCC;KDH20#,212,222,223,LH20#,212,222,TRH201,203,213,22#..03S,09S,10S,11S,12S,13S,14S,15S,16S200501-201402

main69430-95J01iKDH220,221..SG;KDH200,201,TRH200,201..06S..GEN200501-201312

69449ASHIM, BACK DOOR LOCK STRIKER

main69449-26010iKDH220,221..SG;KDH200,201,TRH200,201..06S..GEN200501-201312

T=2.0

main69449-26020iKDH220,221..SG;KDH200,201,TRH200,201..06S..GEN200501-201312

T=1.0

main69449-26030iKDH220,221..SG;KDH200,201,TRH200,201..06S..GEN200501-201312

T=0.5

main69449-95J00iKDH220,221..SG;KDH200,201,TRH200,201..06S..GEN200501-201312

T=1.6

69690CONTROL ASSY, BACK DOOR REMOTE

main69690-26170supersedes 69690-26160iKDH202,203,212,LH202,212,TRH201,203,213,221..SG..(03S,10S,12S,15S,16S)..STD200501-201401

main69690-26180supersedes 69690-26160iKDH222,TRH223..STD..SA201205-201402

main69690-26190iKDH201..RHD..SP..GEN;KDH200,TRH201..SP..06S;KDH222,223..ARL,RUS,TH;KDH202,212,222,TRH213,223..GL;KDH203,TRH200,223..RHD..(06S,12S,14S)..(ARL,GEN,TH); KDH202,203,212,LH202,212,TRH201,203,213,221..SG..(03S,10S,12S,15S,16S)..STD..(GCC,GEN,MA,SA,VN)200501-201401

POWER DOOR LOCK-W(DRIVER&PASSENGER W/KEY ACTION SWITCH)

main69690-26160iKDH200,220,TRH201,221..5F..ARL200501-200610

POWER DOOR LOCK-WITHOUT

69783BBEZEL, BACK DOOR INSIDE HANDLE

main69783-26010-B0iKDH222..LHD..STD;LH222,TRH223..16S..STD; LH212;KDH201..SP..GEN;KDH200,TRH201..SP..06S;KDH222,TRH223..(14S,16S)..(ARL,TH);KDH202,203,212,223,LH202,TRH20#,213,221..SG..(03S,12S,14S,15S,16S)200501-201008

GRAY,TRIM1#; REAR SEAT-WITHOUT,GRAY,TRIM1#

main69783-26010-B1iTRH201,221..SG..03S;KDH222,TRH223..ARL,TH;KDH201,TRH201..RHD..SP..GEN;KDH202,203,212,223,LH202,212,TRH200,203,213..(06S,12S,14S,15S,16S)..(ARL,GCC,GEN,MA,TH,VN)201008-201401

DK.GRAY,TRIM1#

6418958010CLAMP, BACK PANEL SILENCER

main64189-58010

6929312060HANDLE, BACK DOOR

main69293-12060

9011906883

main90119-06883

9011908061

main90119-08061

9011908B78

main90119-08B78

9014960110

main90149-60110

9015460043

main90154-60043

9015760012

main90157-60012

9015960025

main90159-60025

9017608007

main90176-08007

9018906128

main90189-06128

91553A0825

main91553-A0825

9415180600

main94151-80600

33 parts on this diagram · 1 diagram in section
