BACK DOOR PANEL & GLASS

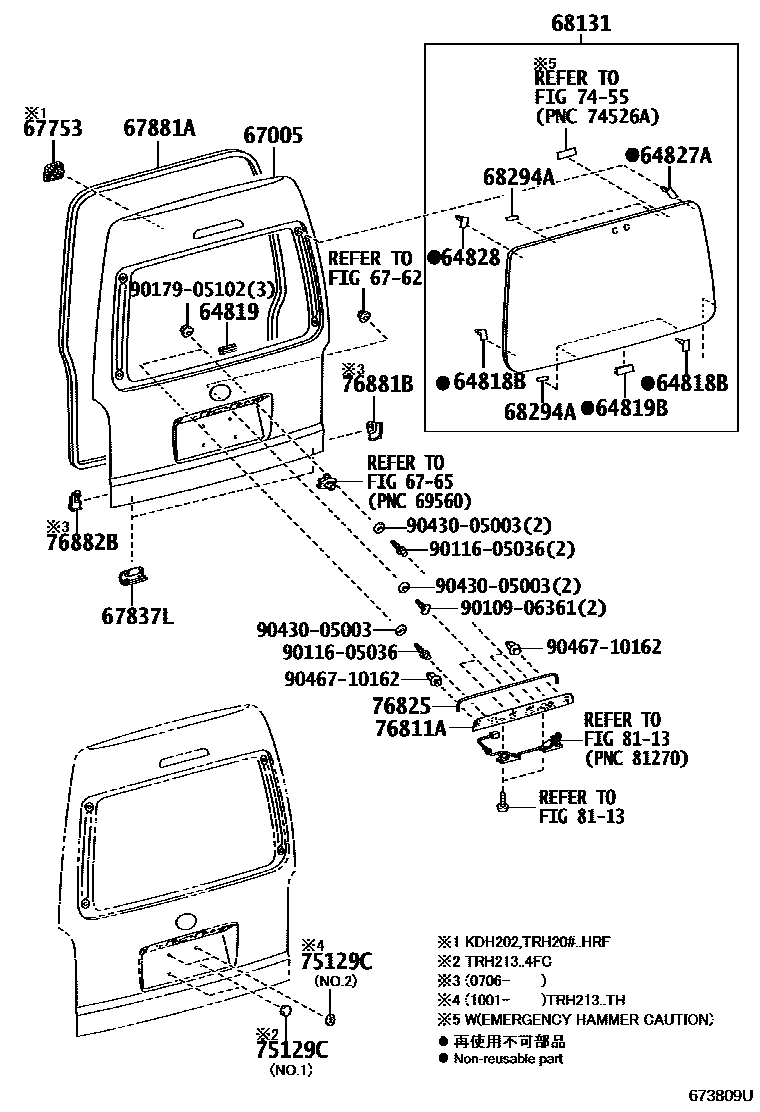

Parts diagram
64818BSPACER, BACK DOOR GLASS, NO.1
main64818-26050i200501-201402
RH
main64819-26050i200501-201402
LH
64819SPACER, BACK WINDOW GLASS, NO.2
main64819-26060×2i200501-201402
64819BSPACER, BACK WINDOW GLASS, NO.2
main64819-26010×2i200501-201402
64827ACLIP, BACK WINDOW GLASS, RH
main64827-26030i200501-200612
main64827-26040i200701-201401
64828CLIP, BACK WINDOW GLASS, LH
main64828-26030i200501-201402
67005PANEL SUB-ASSY, BACK DOOR
main67005-26A41i200704-201205
HIGH MOUNT STOP LAMP-WITH(LED); ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION; ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION&HIGH MOUNT STOP LAMP-WITH(LED)
main67005-26A42i201205-201402
main67005-26A60supersedes 67005-26A40i200501-200703
REAR WINDOW WIPER-WITH(INTERMITTENT); ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION&REAR WINDOW WIPER-WITH(INTERMITTENT); ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION&REAR WINDOW WIPER-WITH(INTERMITTENT)&HIGH MOUNT STOP LAMP-WITH(LED)
main67005-26A61i200704-201205
REAR WINDOW WIPER-WITH(INTERMITTENT); REAR WINDOW WIPER-WITH(INTERMITTENT)&HIGH MOUNT STOP LAMP-WITH(LED); ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION&REAR WINDOW WIPER-WITH(INTERMITTENT); ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION&REAR WINDOW WIPER-WITH(INTERMITTENT)&HIGH MOUNT STOP LAMP-WITH(LED)
main67005-26A62i201205-201312
REAR WINDOW WIPER-WITH(INTERMITTENT); REAR WINDOW WIPER-WITH(INTERMITTENT)&HIGH MOUNT STOP LAMP-WITH(LED); ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION&REAR WINDOW WIPER-WITH(INTERMITTENT); ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION&REAR WINDOW WIPER-WITH(INTERMITTENT)&HIGH MOUNT STOP LAMP-WITH(LED)
main67005-26B60supersedes 67005-26B50i200501-200508
HIGH MOUNT STOP LAMP-WITH(LED); SINGAPORE SPEC&REAR WINDOW WIPER-WITH(INTERMITTENT)&HIGH MOUNT STOP LAMP-WITH(LED)
main67005-26B80i200501-200508
REAR WINDOW WIPER-WITH(INTERMITTENT)&HIGH MOUNT STOP LAMP-WITH(LED)
main67005-26C90i200506-200703
main67005-26C91i200704-201205
main67005-26C92i201205-201312
main67005-26D10supersedes 67005-26D01i200501-200506
main67005-26D50i200501-200703
main67005-26D51i200704-201205
main67005-26D90supersedes 67005-26D80i200501-200703
ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION&REAR WINDOW WIPER-WITH(INTERMITTENT)
main67005-26D91supersedes 67005-26D81i200704-201205
REAR WINDOW WIPER-WITH(INTERMITTENT); REAR WINDOW WIPER-WITH(INTERMITTENT)&HIGH MOUNT STOP LAMP-WITH(LED); ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION&REAR WINDOW WIPER-WITH(INTERMITTENT)&HIGH MOUNT STOP LAMP-WITH(LED)
main67005-26D92supersedes 67005-26D82i201205-201312
REAR WINDOW WIPER-WITH(INTERMITTENT); ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION&REAR WINDOW WIPER-WITH(INTERMITTENT)&HIGH MOUNT STOP LAMP-WITH(LED)
main67005-26E40i200508-200512
main67005-26E61i200709-201205
main67005-26E62i201205-201401
main67005-26G10i200508-200703
main67005-26G11i200704-201312
main67005-26G21i201008-201205
main67005-26G40i200508-200703
REAR WINDOW WIPER-WITH(INTERMITTENT)&HIGH MOUNT STOP LAMP-WITH(LED)
main67005-26G41i200704-201205
REAR WINDOW WIPER-WITH(INTERMITTENT); REAR WINDOW WIPER-WITH(INTERMITTENT)&HIGH MOUNT STOP LAMP-WITH(LED)
main67005-26G42supersedes 67005-26G22i201205-201401
main67005-26G51i200704-201312
main67005-26G60supersedes 67005-26G50i200508-200703
HIGH MOUNT STOP LAMP-WITH(LED)
main67005-26G61i200704-201205
HIGH MOUNT STOP LAMP-WITH(LED); REAR WINDOW WIPER-WITH(INTERMITTENT)
main67005-26G70i200602-200703
main67005-26G71i200704-201401
main67005-26A00i200501-200703
HIGH MOUNT STOP LAMP-WITH(LED); NEW ZEALAND SPEC&REAR WINDOW WIPER-WITH(INTERMITTENT)&HIGH MOUNT STOP LAMP-WITH(LED); REAR WINDOW WIPER-WITH(INTERMITTENT); REAR WINDOW WIPER-WITH(INTERMITTENT)&HIGH MOUNT STOP LAMP-WITH(LED)
main67005-26A01i200704-201205
REAR WINDOW WIPER-WITH(INTERMITTENT); REAR WINDOW WIPER-WITH(INTERMITTENT)&HIGH MOUNT STOP LAMP-WITH(LED)
main67005-26A02i201205-201312
REAR WINDOW WIPER-WITH(INTERMITTENT); REAR WINDOW WIPER-WITH(INTERMITTENT)&HIGH MOUNT STOP LAMP-WITH(LED)
main67005-26A30i200501-200610
SOUTH AFRICA SPEC
main67005-26A31i201008-201312
ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION
main67005-26A40i200501-200703
ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION; ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION&HIGH MOUNT STOP LAMP-WITH(LED)
main67005-26A50i200501-200703
ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION&REAR WINDOW WIPER-WITH(INTERMITTENT)
main67005-26A51i201008-201312
ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION&REAR WINDOW WIPER-WITH(INTERMITTENT)
main67005-26B40supersedes 67005-26B30i200501-200508
HIGH MOUNT STOP LAMP-WITH(LED)
main67005-26B50i200501-200508
SINGAPORE SPEC&REAR WINDOW WIPER-WITH(INTERMITTENT)
main67005-26B70supersedes 67005-26B30i200501-200508
REAR WINDOW WIPER-WITH(INTERMITTENT)
main67005-26B90i200501-200507
ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION; SOUTH AFRICA SPEC
main67005-26C00i200501-200508
ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION&HIGH MOUNT STOP LAMP-WITH(LED); SOUTH AFRICA SPEC&HIGH MOUNT STOP LAMP-WITH(LED)
main67005-26C10i200501-200508
ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION&REAR WINDOW WIPER-WITH(INTERMITTENT); SOUTH AFRICA SPEC&REAR WINDOW WIPER-WITH(INTERMITTENT)
main67005-26C20i200501-200508
ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION&REAR WINDOW WIPER-WITH(INTERMITTENT)&HIGH MOUNT STOP LAMP-WITH(LED); SOUTH AFRICA SPEC&REAR WINDOW WIPER-WITH(INTERMITTENT)&HIGH MOUNT STOP LAMP-WITH(LED)
main67005-26D00supersedes 67005-26K10i200512-200703
HIGH MOUNT STOP LAMP-WITH(LED)
main67005-26D01i200709-201205
MEXICO SPEC&REAR WINDOW WIPER-WITHOUT
main67005-26D02i201205-201312
HIGH MOUNT STOP LAMP-WITH(LED); MEXICO SPEC&REAR WINDOW WIPER-WITHOUT
main67005-26D11i200709-201008
VENEZUERA SPEC
main67005-26D12i201205-201312
MEXICO SPEC; REAR WINDOW WIPER-WITH(INTERMITTENT)&HIGH MOUNT STOP LAMP-WITH(LED)
main67005-26D60i200501-200703
HIGH MOUNT STOP LAMP-WITH(LED); NEW ZEALAND SPEC&HIGH MOUNT STOP LAMP-WITH(LED)
main67005-26D61i200704-201205
HIGH MOUNT STOP LAMP-WITH(LED)
main67005-26D62i201205-201312
HIGH MOUNT STOP LAMP-WITH(LED)
main67005-26D70i200501-200703
NEW ZEALAND SPEC&REAR WINDOW WIPER-WITH(INTERMITTENT); REAR WINDOW WIPER-WITH(INTERMITTENT)
main67005-26D71i200704-201008
NEW ZEALAND SPEC&REAR WINDOW WIPER-WITH(INTERMITTENT)
main67005-26D80i200512-200703
ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION&HIGH MOUNT STOP LAMP-WITH(LED)
main67005-26D81i200704-201205
HIGH MOUNT STOP LAMP-WITH(LED); ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION&HIGH MOUNT STOP LAMP-WITH(LED)
main67005-26D82i201205-201312
ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION&HIGH MOUNT STOP LAMP-WITH(LED)
main67005-26E41i200704-201312
ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION
main67005-26E60i200501-200703
REAR WINDOW WIPER-WITH(INTERMITTENT); REAR WINDOW WIPER-WITH(INTERMITTENT)&HIGH MOUNT STOP LAMP-WITH(LED)
main67005-26E80supersedes 67005-26E70i200505-200508
HIGH MOUNT STOP LAMP-WITH(LED)
main67005-26E90supersedes 67005-26E70i200505-200508
REAR WINDOW WIPER-WITH(INTERMITTENT)
main67005-26F00supersedes 67005-26E70i200505-200508
REAR WINDOW WIPER-WITH(INTERMITTENT)&HIGH MOUNT STOP LAMP-WITH(LED)
main67005-26G20i200508-200610
HIGH MOUNT STOP LAMP-WITH(LED)
main67005-26G22i201205-201312
HIGH MOUNT STOP LAMP-WITH(LED)
main67005-26G30i200508-200703
REAR WINDOW WIPER-WITH(INTERMITTENT)
main67005-26G31i200704-201312
REAR WINDOW WIPER-WITH(INTERMITTENT)
main67005-26G50i200508-200610
SINGAPORE SPEC&REAR WINDOW WIPER-WITH(INTERMITTENT)
main67005-26G62i201205-201312
HIGH MOUNT STOP LAMP-WITH(LED); REAR WINDOW WIPER-WITH(INTERMITTENT)
main67005-26G80i200610-200703
HIGH MOUNT STOP LAMP-WITH(LED)
main67005-26G81i201008-201205
ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION&HIGH MOUNT STOP LAMP-WITH(LED)
main67005-26G82i201205-201312
HIGH MOUNT STOP LAMP-WITH(LED); ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION&HIGH MOUNT STOP LAMP-WITH(LED)
main67005-26G90i200508-200610
SOUTH AFRICA SPEC&REAR WINDOW WIPER-WITH(INTERMITTENT)
main67005-26G91i200704-201312
REAR WINDOW WIPER-WITH(INTERMITTENT); ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION&REAR WINDOW WIPER-WITH(INTERMITTENT)
main67005-26J00i200508-200703
ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION&REAR WINDOW WIPER-WITH(INTERMITTENT)&HIGH MOUNT STOP LAMP-WITH(LED)
main67005-26J01i200704-201205
REAR WINDOW WIPER-WITH(INTERMITTENT); REAR WINDOW WIPER-WITH(INTERMITTENT)&HIGH MOUNT STOP LAMP-WITH(LED); ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION&REAR WINDOW WIPER-WITH(INTERMITTENT)&HIGH MOUNT STOP LAMP-WITH(LED)
main67005-26J02i201205-201312
REAR WINDOW WIPER-WITH(INTERMITTENT)&HIGH MOUNT STOP LAMP-WITH(LED); ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION&REAR WINDOW WIPER-WITH(INTERMITTENT)&HIGH MOUNT STOP LAMP-WITH(LED)
main67005-26J60supersedes 67005-26J50i200602-200703
REAR WINDOW WIPER-WITH(INTERMITTENT)
main67005-26J61supersedes 67005-26J51i200704-201205
REAR WINDOW WIPER-WITH(INTERMITTENT)
main67005-26J62supersedes 67005-26J52i201205-201401
REAR WINDOW WIPER-WITH(INTERMITTENT)
main67005-26J80supersedes 67005-26J71i200508-200703
HIGH MOUNT STOP LAMP-WITH(LED)
main67005-26J81i200704-201008
HIGH MOUNT STOP LAMP-WITH(LED)
main67005-26J90supersedes 67005-26J71i200508-200703
REAR WINDOW WIPER-WITH(INTERMITTENT)
main67005-26J91i200704-201008
REAR WINDOW WIPER-WITH(INTERMITTENT)
main67005-26K00supersedes 67005-26J71i200508-200703
REAR WINDOW WIPER-WITH(INTERMITTENT)&HIGH MOUNT STOP LAMP-WITH(LED)
main67005-26K01i200704-201008
REAR WINDOW WIPER-WITH(INTERMITTENT)&HIGH MOUNT STOP LAMP-WITH(LED)
main67005-26K20supersedes 67005-26K10i200512-200703
REAR WINDOW WIPER-WITH(INTERMITTENT)
main67005-26K21supersedes 67005-26K11i200704-201312
REAR WINDOW WIPER-WITH(INTERMITTENT)
main67005-26K30i200512-200703
ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION&REAR WINDOW WIPER-WITH(INTERMITTENT)
main67005-26K31supersedes 67005-26E41i200704-201205
REAR WINDOW WIPER-WITH(INTERMITTENT)
main67005-26K70i201205-201312
BACK MONITOR-WITH; ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION&BACK MONITOR-WITH
main67005-26K80i201205-201312
HIGH MOUNT STOP LAMP-WITH(LED)&BACK MONITOR-WITH; ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION&HIGH MOUNT STOP LAMP-WITH(LED)&BACK MONITOR-WITH
main67005-26K90i201205-201312
REAR WINDOW WIPER-WITH(INTERMITTENT)&BACK MONITOR-WITH; ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION&REAR WINDOW WIPER-WITH(INTERMITTENT)&BACK MONITOR-WITH
main67005-26L00i201205-201312
REAR WINDOW WIPER-WITH(INTERMITTENT)&HIGH MOUNT STOP LAMP-WITH(LED)&BACK MONITOR-WITH; ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION&REAR WINDOW WIPER-WITH(INTERMITTENT)&HIGH MOUNT STOP LAMP-WITH(LED)&BACK MONITOR-WITH
main67005-26L10i201205-201312
BACK MONITOR-WITH
main67005-26L20i201205-201312
BACK MONITOR-WITH; HIGH MOUNT STOP LAMP-WITH(LED)&BACK MONITOR-WITH
main67005-26L30i201205-201312
BACK MONITOR-WITH; REAR WINDOW WIPER-WITH(INTERMITTENT)&BACK MONITOR-WITH
main67005-26L50i201205-201312
BACK MONITOR-WITH; HIGH MOUNT STOP LAMP-WITH(LED)&BACK MONITOR-WITH; REAR WINDOW WIPER-WITH(INTERMITTENT)&BACK MONITOR-WITH; REAR WINDOW WIPER-WITH(INTERMITTENT)&HIGH MOUNT STOP LAMP-WITH(LED)&BACK MONITOR-WITH
main67005-26L90i201205-201312
BACK MONITOR-WITH
main67005-26M10i201205-201312
BACK MONITOR-WITH
main67005-26M20i201205-201312
HIGH MOUNT STOP LAMP-WITH(LED)&BACK MONITOR-WITH; MEXICO SPEC&REAR WINDOW WIPER-WITHOUT&BACK MONITOR-WITH
main67005-26M40i201205-201312
REAR WINDOW WIPER-WITH(INTERMITTENT)&BACK MONITOR-WITH
main67005-26M50i201205-201312
MEXICO SPEC&BACK MONITOR-WITH; REAR WINDOW WIPER-WITH(INTERMITTENT)&HIGH MOUNT STOP LAMP-WITH(LED)&BACK MONITOR-WITH
main67005-26M60i201205-201312
ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION&BACK MONITOR-WITH
main67005-26M70i201205-201312
BACK MONITOR-WITH; ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION&HIGH MOUNT STOP LAMP-WITH(LED)&BACK MONITOR-WITH
main67005-26M80i201205-201312
BACK MONITOR-WITH; REAR WINDOW WIPER-WITH(INTERMITTENT)&BACK MONITOR-WITH; ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION&REAR WINDOW WIPER-WITH(INTERMITTENT)&HIGH MOUNT STOP LAMP-WITH(LED)&BACK MONITOR-WITH
main67005-26M90i201205-201312
ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION&REAR WINDOW WIPER-WITH(INTERMITTENT)&BACK MONITOR-WITH
main67005-26N20i201205-201312
BACK MONITOR-WITH; NEW ZEALAND SPEC&BACK MONITOR-WITH; SINGAPORE SPEC&*POSD(LH) & *ECS(LH)&BACK MONITOR-WITH; SINGAPORE SPEC&BACK MONITOR-WITH
main67005-26N30i201205-201312
BACK MONITOR-WITH; HIGH MOUNT STOP LAMP-WITH(LED)&BACK MONITOR-WITH
main67005-26N40i201205-201312
REAR WINDOW WIPER-WITH(INTERMITTENT)&BACK MONITOR-WITH
main67005-26N50i201205-201312
NEW ZEALAND SPEC&REAR WINDOW WIPER-WITH(INTERMITTENT)&BACK MONITOR-WITH; REAR WINDOW WIPER-WITH(INTERMITTENT)&BACK MONITOR-WITH; REAR WINDOW WIPER-WITH(INTERMITTENT)&HIGH MOUNT STOP LAMP-WITH(LED)&BACK MONITOR-WITH; SINGAPORE SPEC&*POSD(LH) & *ECS(LH)&REAR WINDOW WIPER-WITH(INTERMITTENT)&BACK MONITOR-WITH; SINGAPORE SPEC&REAR WINDOW WIPER-WITH(INTERMITTENT)&BACK MONITOR-WITH
main67005-26N70i201205-201312
BACK MONITOR-WITH; ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION&BACK MONITOR-WITH
main67005-26N80i201205-201312
BACK MONITOR-WITH; HIGH MOUNT STOP LAMP-WITH(LED)&BACK MONITOR-WITH; ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION&BACK MONITOR-WITH; ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION&HIGH MOUNT STOP LAMP-WITH(LED)&BACK MONITOR-WITH
main67005-26N90i201205-201312
REAR WINDOW WIPER-WITH(INTERMITTENT)&BACK MONITOR-WITH; ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION&REAR WINDOW WIPER-WITH(INTERMITTENT)&BACK MONITOR-WITH
main67005-26P00i201205-201312
REAR WINDOW WIPER-WITH(INTERMITTENT)&BACK MONITOR-WITH; REAR WINDOW WIPER-WITH(INTERMITTENT)&HIGH MOUNT STOP LAMP-WITH(LED)&BACK MONITOR-WITH; ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION&REAR WINDOW WIPER-WITH(INTERMITTENT)&BACK MONITOR-WITH; ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION&REAR WINDOW WIPER-WITH(INTERMITTENT)&HIGH MOUNT STOP LAMP-WITH(LED)&BACK MONITOR-WITH
main67005-26Q10supersedes 67005-26A31i201205-201312
REAR WINDOW WIPER-WITH(INTERMITTENT)
6762BACK DOOR LOCK & HINGE
→ Go to FIG 67-62
67753COVER, BACK DOOR
main82719-26050-B0i200602-201401
LT.GRAY,TRIM1#
main82719-26050i200505-200602
HIGH MOUNT STOP LAMP-WITH(LED)
67837LSEAL, DOOR DUST PROOF
main67837-26040×2i200501-201402
67881AWEATHERSTRIP, BACK DOOR
main67881-26070i200501-200906
main67881-26071i200907-201203
main67881-26072i201204-201312
main67881-26073i201312-201401
main67881-26080i200505-200906
main67881-26081i200907-201203
main67881-26082i201204-201312
main67881-26083i201312-201401
main67881-26090i200501-200906
main67881-26091i200907-201203
main67881-26092i201204-201312
main67881-26100i200501-200906
main67881-26101i200907-201203
main67881-26102i201204-201312
main67881-26103i201312-201402
68131GLASS, BACK DOOR
main68105-0L010supersedes 68105-0L020i200602-200604
*EHT,T=3.1,GREEN; *EHT,T=3.1,GREEN,REAR WINDOW WIPER-WITH(INTERMITTENT)
main68105-0L040supersedes 68105-26211i201205-201402
*UVCT,T=3.1,GREEN
main68105-26080i200501-201312
*UVCT,T=3.1,GREEN
main68105-26091supersedes 68105-26092i201204-201209
*UVCEHT,T=3.1,GREEN; *UVCEHT,T=3.1,GREEN,MEXICO SPEC&BACK GLASS-UV CUT GREEN; *UVCEHT,T=3.1,GREEN,REAR WINDOW WIPER-WITH(INTERMITTENT)
main68105-26120supersedes 68105-26090i200501-201203
*EHT,T=3.1,DR.GRAY; *EHT,T=3.1,DR.GRAY,BACK GLASS-TINTED GRAY; *EHT,T=3.1,DR.GRAY,BACK GLASS-TINTED GRAY&REAR WINDOW WIPER-WITH(INTERMITTENT)
main68105-26121supersedes 68105-26092i201204-201312
*EHT,T=3.1,DR.GRAY; *EHT,T=3.1,DR.GRAY,BACK GLASS-TINTED GRAY&REAR WINDOW WIPER-WITH(INTERMITTENT); *EHT,T=3.1,DR.GRAY,MEXICO SPEC; *EHT,T=3.1,DR.GRAY,REAR WINDOW WIPER-WITH(INTERMITTENT)
main68105-26130i200501-201108
main68105-26140i200501-201312
main68105-26150i200501-201401
main68105-26210i200501-201203
*UVCT,T=3.1,GREEN
main68105-26211i201204-201312
*UVCT,T=3.1,GREEN
main68105-26240i201108-201205
*EHT,T=3.1,DR.GRAY; *EHT,T=3.1,DR.GRAY,CHINA(PRC) SPEC&COLD AREA SPEC&BACK GLASS-TINTED GRAY&REAR WINDOW WIPER-WITH(INTERMITTENT)
main68105-26090i200709-201008
*UVCEHT,T=3.1,GREEN,VENEZUERA SPEC&BACK GLASS-UV CUT GREEN
main68105-26100i200501-200610
COLD AREA SPEC&REAR WINDOW WIPER-WITH(INTERMITTENT)
main68105-26110i200512-201312
*TEM,T=3.1,DR.GRAY,BACK GLASS-TINTED GRAY
main68105-26160i200501-201008
COLD AREA SPEC&REAR WINDOW WIPER-WITH(INTERMITTENT)
main68105-26170i200501-201312
BACK GLASS-TINTED GRAY
main68105-26180i200501-201312
BACK GLASS-TINTED GRAY&REAR WINDOW WIPER-WITH(INTERMITTENT)
main68105-26190i200501-201008
COLD AREA SPEC&BACK GLASS-TINTED GRAY&REAR WINDOW WIPER-WITH(INTERMITTENT)
main68105-26220i200512-201203
*TEM,T=3.1,DR.GRAY,BACK GLASS-TINTED GRAY
main68105-26221i201204-201312
*TEM,T=3.1,DR.GRAY,BACK GLASS-TINTED GRAY
main68105-26250i201108-201205
*TEM,T=3.1,DR.GRAY,REAR WINDOW WIPER-WITHOUT
main68105-26260i201108-201205
*TEM,T=3.1,DR.GRAY,CHINA(PRC) SPEC&COLD AREA SPEC&BACK GLASS-TINTED GRAY
68294ADAM, BACK DOOR GLASS ADHESIVE
main68294-26030×4i200501-201402
7455CAUTION PLATE
→ Go to FIG 74-55
75129CCUSHION, REAR LICENCE PLATE
main75129-26010×2i200506-201312
NO.1
main75129-26020×2i201001-201312
NO.2
76811AGARNISH, BACK DOOR, OUTSIDE
main76811-26130i201212-201402
NO PAINT REQ.
main76811-26140i200501-200807
PLATED
main76811-26170i200807-201312
PLATED
main76811-26150i201205-201312
PLATED,BACK MONITOR-WITH
main76811-26160i201205-201312
NO PAINT REQ.,BACK MONITOR-WITH
main76811-26200i201205-201312
PLATED,BACK MONITOR-WITH
76825PROTECTOR, BACK DOOR OUTSIDE GARNISH
main76825-26120i200501-201402
76881BPROTECTOR, BACK DOOR LOWER MOULDING, RH
main76881-26010i200706-201402
76882BPROTECTOR, BACK DOOR LOWER MOULDING, LH
main76882-26010i200706-201402
9010906361
main90109-06361
9011605036
main90116-05036
9017905102
main90179-05102
9043005003
main90430-05003
9046710162
main90467-10162

23 parts on this diagram · 2 diagrams in section

BACK DOOR PANEL & GLASS — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
