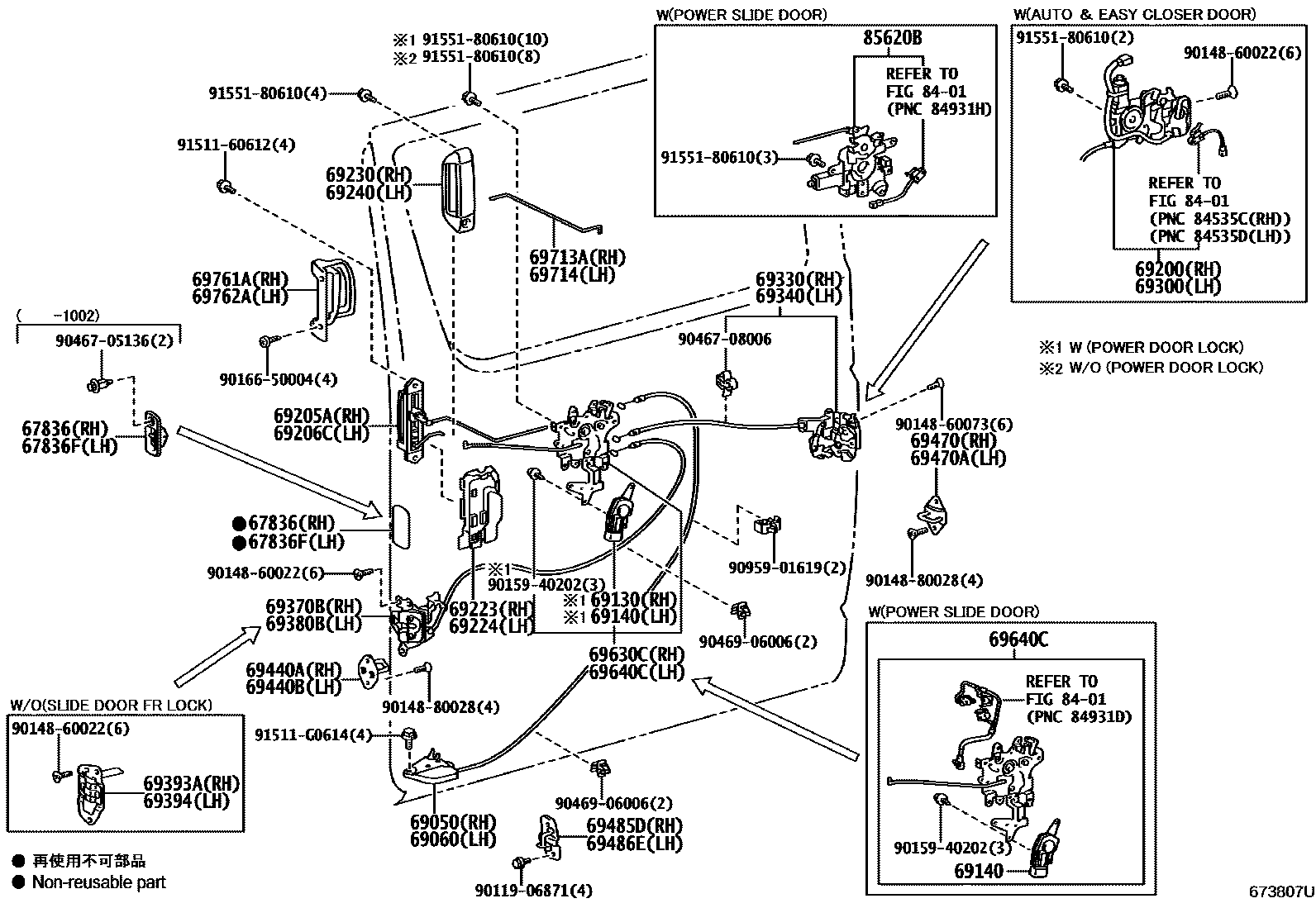

REAR DOOR LOCK & HANDLE

67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH

main67836-26010iTRH201,221..HRF;TRH213..GL..(GEN,TH,VN);KDH200,TRH213..LHD..4D..STD;KDH200,201,220,221,LH200,TRH201..5D;KDH202,212,222,LH20#,212,222,TRH203,223..LHD200501-201001

main67857-26060iTRH201,221..HRF;KDH200..LHD..4D;TRH213..GL..(GEN,TH,VN);KDH200,201,220,221,LH200,TRH200,201..5D;KDH202,203,212,222,223,LH20#,212,222,TRH203,213,223..LHD..(03S,11S,12S,13S,15S,16S)201002-201312

67836FCOVER, REAR DOOR LOCK CHILD PROTECTION, LH

main67836-26010iKDH220;TRH201..SRF;KDH200..LHD..5D;KDH212,TRH221..5D;KDH20#,212,221,222,223,LH20#,212,222,TRH203,213,223..RHD200501-201001

main67857-26060iTRH201..SRF;KDH200..LHD..5D;KDH212,TRH221..5D;KDH201,220,221,223,TRH200..ARL,GEN,SA,TH;KDH200,202,203,212,222,LH20#,212,222,TRH203,213,223..RHD201002-201402

69050LOCK ASSY, SLIDE DOOR FULL OPEN STOP, RH

main69050-26010iTRH201,221..HRF;TRH213..GL..(GEN,TH,VN);KDH200,TRH213..LHD..4D..STD;KDH200,201,220,221,LH200,TRH201..5D;KDH202,203,212,222,223,LH20#,212,222,TRH203,223..LHD200501-201302

main69050-26011iTRH221;KDH200..LHD..4D;KDH200,201,220,221,LH200,TRH200..5D;TRH201,213..(03S,06S,10S,11S)..(GCC,GEN,TH);KDH202,203,212,222,223,LH20#,212,222,TRH203,213,223..LHD..(03S,11S,12S,13S,15S,16S)201302-201312

69060LOCK ASSY, SLIDE DOOR FULL OPEN STOP, LH

main69060-26010iTRH201..SRF;KDH200..LHD..5D;KDH212,TRH221..5D;KDH201,203,220,221,223..03S,06S,14S,16S;KDH200,202,212,222,LH20#,212,222,TRH203,213,223..RHD200501-201302

main69060-26011iTRH201..SRF;KDH200..LHD..5D;KDH212,TRH221..5D;KDH201,220,221,223,TRH200..ARL,GEN,SA,TH;KDH200,202,203,212,222,LH20#,212,222,TRH203,213,223..RHD201302-201402

69130ACTUATOR ASSY, REAR DOOR LOCK, RH

main69130-26010iKDH200..LHD..4D;KDH200..06S..GCC;TRH221..GCC,GEN,SA;KDH200,220,LH200..5D..03S..(GCC,GEN,SA);KDH201,202,203,212,222,LH20#,212,222,TRH201,203,213,223..LHD..STD; KDH222,TRH223..LHD..GL;KDH201,220,221,TRH221..RHD..5D..(ARL,GEN);KDH200,212,223,TRH200,201,213..(06S,09S,10S,11S,12S)..(GEN,RUS,TH,VN)200501-201312

POWER DOOR LOCK-W(DRIVER&PASSENGER W/KEY ACTION SWITCH)

69140ACTUATOR ASSY, REAR DOOR LOCK, LH

main69140-26010iKDH222..RHD..GEN200501-200709

main69140-26020iKDH223,TRH223..ARL; TRH213..TH201008-201312

*ECS(RH & LH) & *POSD(LH); *POSD(LH) & *ECS(LH)

69200LOCK ASSY, POWER SLIDE DOOR, RH

main69200-26040iKDH212,TRH213..4FC..GL200501-201205

main69200-26041iKDH201..SP..06S..4FC..STD; KDH212,TRH213..4FC..GL201205-201312

3ROOM REFRIGERATOR VAN

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69207-26010-B0iTRH201,221..HRF;TRH213..GL..(GEN,TH,VN);KDH200,TRH213..LHD..4D..STD;KDH200,201,220,221,LH200,TRH201..5D;KDH202,212,222,LH20#,212,222,TRH203,223..LHD200501-201008

GRAY,TRIM1#

main69207-26010-B1iTRH221;KDH200..LHD..4D;KDH200,201,220,221,LH200,TRH200..5D;TRH201,213..(03S,06S,10S,11S)..(GCC,GEN,TH,VN);KDH202,203,212,222,223,LH20#,212,222,TRH203,213,223..LHD..(03S,11S,12S,13S,15S,16S)201008-201312

DK.GRAY,TRIM1#

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69208-26010-B0iKDH220;TRH201..SRF;KDH200..LHD..5D;KDH212,TRH221..5D;KDH20#,212,221,222,223,LH20#,212,222,TRH203,213,223..RHD200501-201008

GRAY,TRIM1#

main69208-26010-B1iTRH201..SRF;KDH200..LHD..5D;KDH212,TRH221..5D;KDH201,220,221,223,TRH200..ARL,GEN,SA,TH;KDH200,202,203,212,222,LH20#,212,222,TRH203,213,223..RHD201008-201402

DK.GRAY,TRIM1#

69223CASE, REAR DOOR OUTSIDE HANDLE, RH

main69241-26030iTRH213..VN200501-201205

69224CASE, REAR DOOR OUTSIDE HANDLE, LH

main69242-26030iTRH201..SRF;KDH200..LHD..5D;KDH212,TRH221..5D;KDH201,220,221,223,TRH200..ARL,GEN,SA,TH;KDH200,202,203,212,222,LH20#,212,222,TRH203,213,223..RHD200501-201402

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69230-26070iTRH221;KDH200,201,220,221,LH200,TRH200,201..5D..STD;KDH200,202,203,212,222,LH20#,212,222,TRH201,203,213,223..LHD..4D..STD200501-201312

NO PAINT REQ.

main69230-26080iKDH200,201,212,222,223,TRH213,223..GL..(CIS,GCC,GEN,RUS,TH,VN)200501-201312

PLATED

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69240-26080iTRH221..SP;TRH201..SRF;KDH200..LHD..5D;KDH200,222,TRH223..RHD..STD;KDH201,220,221,223,TRH200..STD;KDH202,203,212,LH20#,212,222,TRH203,213..RHD..(03S,12S,14S,15S,16S)200501-201402

NO PAINT REQ.

main69240-26090iKDH212..4FC;KDH200,201,212,222,TRH213,223..RHD..GL200501-201312

PLATED

69300LOCK ASSY, POWER SLIDE DOOR, LH

main69300-26140iKDH212,TRH213..4FC..GL200501-201205

main69300-26141iKDH201..SP..06S..4FC..STD; KDH212,TRH213..4FC..GL201205-201312

3ROOM REFRIGERATOR VAN

main69300-26130iKDH223,TRH223..ARL; TRH213..TH201008-201312

*ECS(RH & LH) & *POSD(LH); *POSD(LH) & *ECS(LH)

69330LOCK ASSY, REAR DOOR, RH

main69330-26040iTRH221;KDH200,201,220,221,LH200,TRH201..5D;KDH200,202,203,212,222,LH20#,212,222,TRH20#,213,223..LHD..4D200501-201205

main69330-26050iTRH221;TRH201..GCC,GEN;KDH200,201,220,221,LH200,TRH200..5D;KDH200,202,203,212,222,223,LH20#,212,222,TRH203,213,223..LHD..4D201205

69340LOCK ASSY, REAR DOOR, LH

main69340-26040iTRH221..SP;TRH201..SRF;KDH200..LHD..5D;KDH201,203,220,221,223..03S,06S,14S;KDH200,202,212,222,LH20#,212,222,TRH203,213,223..RHD..(03S,06S,10S,12S,14S,15S,16S)200501-201205

main69340-26050iTRH221..SP;TRH201..SRF;KDH200..LHD..5D;KDH201,220,221,223,TRH200..ARL,GEN,SA,TH;KDH200,202,203,212,222,LH20#,212,222,TRH203,213,223..RHD..(03S,10S,12S,14S,15S,16S)201205-201402

main00000-00000iTRH213..4FC200610-201008

3ROOM REFRIGERATOR VAN, W/O(IMMOBILIZER),NOT APPLICABLE

69370BLOCK ASSY, SLIDE DOOR, FRONT RH

main69370-26010iTRH213..LHD..STD;TRH213..GL..(GEN,TH,VN);KDH200,201,203,223,TRH200,201..(06S,12S)..(GCC,GEN,RUS);KDH202,212,222,LH202,212,222,TRH201,203,22#..LHD..SG..(03S,10S,11S,12S,13S,15S,16S)200501-201312

69380BLOCK ASSY, SLIDE DOOR, FRONT LH

main69380-26010iKDH212..4FC;KDH200,201,223,TRH200,201..06S,14S,16S;KDH202,203,212,222,LH202,212,222,TRH203,213,223..RHD200501-201402

69393ACOVER, REAR DOOR LOCK, OUTER RH

main69393-26010iKDH220..ARL200501-200610

69394COVER, REAR DOOR LOCK, OUTER LH

main69394-26010iKDH200..TH200501-201309

69440APLATE ASSY, SLIDE DOOR FRONT LOCK STRIKER

main69440-28050iTRH213..LHD..STD;TRH213..GL..(GEN,TH,VN);KDH200,201,203,223,TRH200,201..(06S,12S)..(GCC,GEN,RUS);KDH202,212,222,LH202,212,222,TRH201,203,22#..LHD..SG..(03S,10S,11S,12S,13S,15S,16S)200501-201312

69440BPLATE ASSY, SLIDE DOOR FRONT LOCK STRIKER

main69440-28050iKDH212..4FC;KDH200,201,223,TRH200,201..06S,14S,16S;KDH202,203,212,222,LH202,212,222,TRH203,213,223..RHD200501-201402

69470PLATE ASSY, SLIDE DOOR LOCK STRIKER

main69470-28100iKDH212,TRH213..4FC..GL200905-201312

main69470-28110iKDH212,TRH213..4FC200501-200905

69470APLATE ASSY, SLIDE DOOR LOCK STRIKER, LH

main69470-28100iTRH221..SP;TRH201..SRF;KDH200..LHD..5D;KDH201,220,221,223,TRH200..ARL,GEN,SA,TH;KDH200,202,203,212,222,LH20#,212,222,TRH203,213,223..RHD..(03S,06S,10S,12S,14S,15S,16S)200501-201402

main69470-28110iKDH212,TRH213..4FC200501-200905

69485DSTRIKER, SLIDE DOOR OPEN, RH

main69485-26020iTRH201,221..HRF;TRH213..GL..(GEN,TH,VN);KDH200,TRH213..LHD..4D..STD;KDH200,201,220,221,LH200,TRH200,201..5D;KDH202,203,212,222,223,LH20#,212,222,TRH203,223..LHD200501-201312

69486ESTRIKER, SLIDE DOOR OPEN, LH

main69486-26020iTRH201..SRF;KDH200..LHD..5D;KDH212,TRH221..5D;KDH201,220,221,223,TRH200..ARL,GEN,SA,TH;KDH200,202,203,212,222,LH20#,212,222,TRH203,213,223..RHD200501-201402

69630CCONTROL ASSY, SLIDE DOOR LOCK REMOTE, RH

main69630-26220supersedes 69630-26210iKDH200..LHD..4D;KDH200..06S..GCC;TRH221..GCC,GEN,SA;KDH200,220,LH200..5D..03S..(GCC,GEN,SA);KDH201,202,203,212,222,LH20#,212,222,TRH20#,213,223..LHD..STD; KDH222,TRH223..LHD..GL;KDH201,220,221,TRH221..RHD..5D..(ARL,GEN);KDH200,212,223,TRH201,213..(06S,09S,10S,11S,12S)..(GEN,RUS,TH,VN)200501-201302

POWER DOOR LOCK-W(DRIVER&PASSENGER W/KEY ACTION SWITCH)

main69630-26221supersedes 69630-26211iKDH200..LHD..4D;KDH200,LH200..5D;KDH220,TRH221..GCC,GEN,SA;KDH201,202,203,212,222,LH20#,212,222,TRH201,203,213,223..LHD..STD; KDH222,TRH223..LHD..GL;KDH201,TRH201,221..RHD..5D..(ARL,GEN);KDH212,221,223,TRH200,213..(03S,06S,10S,11S,12S)..(ARL,GEN,RUS,TH)201303-201312

POWER DOOR LOCK-W(DRIVER&PASSENGER W/KEY ACTION SWITCH)

main69630-26210iKDH220,TRH221..5F..ARL200501-200610

POWER DOOR LOCK-WITHOUT

69640CCONTROL ASSY, SLIDE DOOR LOCK REMOTE, LH

main69640-26350supersedes 69640-26340iKDH222..RHD..GEN200501-200709

main69640-26351supersedes 69640-26341iKDH212..4FC;KDH201..RHD..(ARL,GEN);KDH212,222,TRH213,223..ARL,SA,TH;KDH202,203,221,223,TRH200,201,221..RHD..(03S,06S,12S,14S,16S)..(ARL,GEN,TH)201303-201402

main69640-26340iKDH200,22#,TRH201,22#..5F..ARL200501-200610

POWER DOOR LOCK-WITHOUT

main69640-26360iKDH223..4FC200904-201008

SINGAPORE SPEC&POWER WINDOW-WITH(DRIVER SIDE & PASSENGER SIDE)

main69640-26361iKDH223,TRH223..ARL; TRH213..TH201008-201302

*ECS(RH & LH) & *POSD(LH); *POSD(LH) & *ECS(LH)

main69640-26362iKDH223,TRH223..ARL; TRH213..TH201303-201312

*ECS(RH & LH) & *POSD(LH); *POSD(LH) & *ECS(LH)

69713ALINK, REAR DOOR LOCK REMOTE CONTROL, RH

main69713-26020iTRH201,221..HRF;TRH213..GL..(GEN,TH,VN);KDH200,TRH213..LHD..4D..STD;KDH200,201,220,221,LH200,TRH200,201..5D;KDH202,203,212,222,223,LH20#,212,222,TRH203,223..LHD200501-201312

69714LINK, REAR DOOR LOCK REMOTE CONTROL, LH

main69714-26020iTRH201..SRF;KDH200..LHD..5D;KDH212,TRH221..5D;KDH201,220,221,223,TRH200..ARL,GEN,SA,TH;KDH200,202,203,212,222,LH20#,212,222,TRH203,213,223..RHD200501-201402

69761ABEZEL, DOOR LOCK CONTROL KNOB, RH

main69761-26010-B0iTRH221;KDH200,201,220,221,LH200,TRH201..5D;KDH200,202,212,222,LH20#,212,222,TRH20#,213,223..LHD..4D..STD200501-201008

GRAY,TRIM1#

main69761-26010-B1iTRH221;TRH201..GCC,GEN;KDH200,201,220,221,LH200,TRH200..5D;KDH200,202,203,212,222,LH20#,212,222,TRH203,213,223..LHD..4D..STD201008-201312

DK.GRAY,TRIM1#

69762ABEZEL, DOOR LOCK CONTROL KNOB, LH

main69762-26010-B0iKDH220;TRH221..SP;TRH201..SRF;KDH200..LHD..5D;KDH222,TRH223..RHD..STD;KDH20#,212,221,223,LH20#,212,222,TRH203,213..RHD..(03S,06S,12S,14S,15S,16S)200501-201008

GRAY,TRIM1#

main69762-26010-B1iTRH221..SP;TRH201..SRF;KDH200..LHD..5D;KDH222,TRH223..RHD..STD;KDH201,220,221,223,TRH200..ARL,GEN,SA,TH;KDH200,202,203,212,LH20#,212,222,TRH203,213..RHD..(03S,12S,14S,15S,16S)201008-201402

DK.GRAY,TRIM1#

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

85620BMOTOR ASSY, SLIDE DOOR LOCK RELEASE

main85620-26050iTRH213..4FC200610-201008

3ROOM REFRIGERATOR VAN, W/O(IMMOBILIZER)

9011906871

main90119-06871

9014860022

main90148-60022

9014860073

main90148-60073

9014880028

main90148-80028

9015940202

main90159-40202

9016650004

main90166-50004

9046705136

main90467-05136

9046708006

main90467-08006

9046906006

main90469-06006

9095901619

main90959-01619

9151160612

main91511-60612

91511G0614

main91511-G0614

9155180610

main91551-80610

47 parts on this diagram · 1 diagram in section
