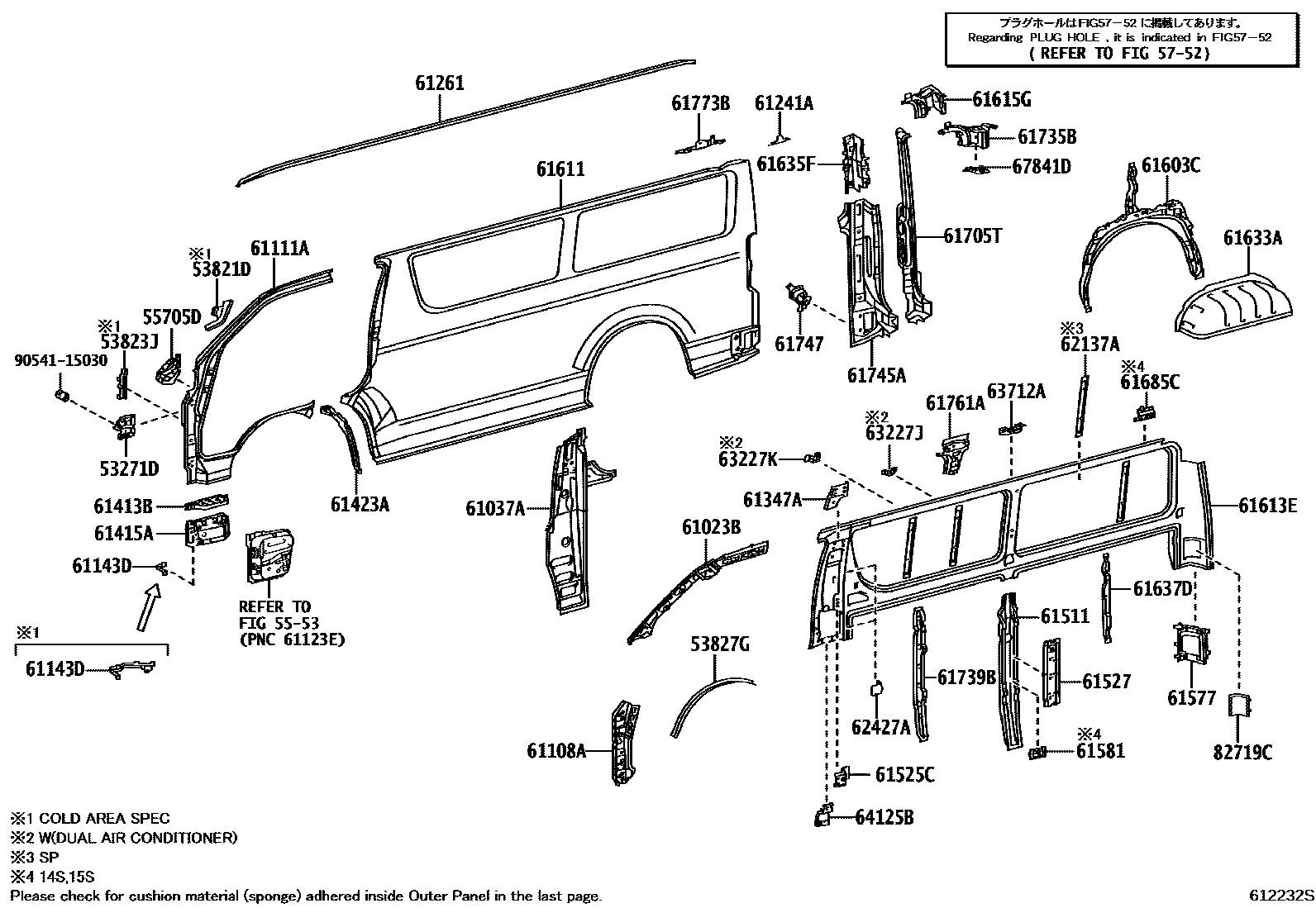

SIDE MEMBER
53271DBRACKET, HEADLAMP MOUNTING, RH
53821DPROTECTOR, FRONT SIDE PANEL, NO.1 RH
main53821-26030iTRH213,223..LHD..(10S,12S,13S); TRH213..10S..GEN; TRH221..SP..GEN;KDH202..LHD..12S;KDH202,TRH223..(15S,16S)..GEN;KDH200,LH20#,TRH20#,213..(SMRF,SRF)..(03S,12S,15S,16S)..GEN200607-200708
COLD AREA SPEC; MEXICO SPEC; VENEZUERA SPEC; VIETNAM SPEC
main53821-26031iKDH223,TRH213,223..(10S,12S,13S)..(CIS,GEN,RUS); TRH213..GL..GEN; TRH221..SP..GEN;TRH223..5F..GEN;KDH201,TRH203..LHD..GEN;KDH200,202,203,LH20#,TRH201,213..(SMRF,SRF)..(03S,12S,15S,16S)..GEN200709-201312
COLD AREA SPEC; MEXICO SPEC; VENEZUERA SPEC; VIETNAM SPEC
53823JPROTECTOR, FRONT SIDE PANEL, NO.2 RH
main53823-26010iTRH213,223..LHD..(10S,12S,13S); TRH213..10S..GEN; TRH221..SP..GEN;KDH202..LHD..12S;KDH202,TRH223..(15S,16S)..GEN;KDH200,LH20#,TRH20#,213..(SMRF,SRF)..(03S,12S,15S,16S)..GEN200607-200708
COLD AREA SPEC; MEXICO SPEC; VENEZUERA SPEC; VIETNAM SPEC
main53823-26011iKDH223,TRH213,223..(10S,12S,13S)..(CIS,GEN,RUS); TRH213..GL..GEN; TRH221..SP..GEN;TRH223..5F..GEN;KDH201,TRH203..LHD..GEN;KDH200,202,203,LH20#,TRH201,213..(SMRF,SRF)..(03S,12S,15S,16S)..GEN200709-201312
COLD AREA SPEC; MEXICO SPEC; VENEZUERA SPEC; VIETNAM SPEC
53827GPROTECTOR, FRONT FENDER SIDE PANEL, RH
5553COWL PANEL & WINDSHIELD GLASS
55705DPANEL SUB-ASSY, COWL TOP SIDE, RH,
5752HOLE PLUG
61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH
61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH
main61037-26030iKDH220..SP..(GEN,SA);KDH200,LH200..LHD..4D;KDH200,201,221,LH200,TRH201,221..5D..03S200501-200611
61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
main61108-26010iKDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22#200501-201402
61111APANEL, FRONT SIDE, OUTER RH
main61111-26300iKDH200,202,212,LH20#,212,TRH20#,213..RHD..4D..(03S,15S,16S)..GEN; KDH201,202,203,TRH203..RHD..4D..(03S,12S,14S);KDH200,212,TRH201,213..(03S,10S)..(ARL,MA,SA,TH); KDH212,TRH213..STD..SA200501-200710
AUDIO(FOR OVERSEAS MARKET)-AM(10KHZ)/FM & CASSETTE & CD 2SPEAKER; AUDIO(FOR OVERSEAS MARKET)-AM(10KHZ)/FM 2SPEAKER; AUDIO(FOR OVERSEAS MARKET)-AM(9KHZ)/FM & CASSETTE & CD 2SPEAKER; AUDIO(FOR OVERSEAS MARKET)-AM(9KHZ)/FM 2SPEAKER; AUDIO(FOR OVERSEAS MARKET)-ANTENNA & WIRE HARNESS 2SPEAKER; AUDIO(FOR OVERSEAS MARKET)-ANTENNA & WIRE HARNESS ONLY
main61111-26301supersedes 61111-26311iKDH201,203..RHD..4D;KDH200,202,212,TRH201,203,213..4D..(ARL,MA,SA,TH)200710-201401
main61111-26310iKDH212,TRH213..RHD..STD;KDH200,202,LH20#,212,TRH20#..RHD..4D..(03S,15S,16S)..GEN200501-200710
main61131-26090iKDH200,LH200..RHD..5D..03S; KDH200..06S..GEN;KDH201,TRH201,213..RHD..5D200501-200710
POWER DOOR LOCK-W(DRIVER&PASSENGER W/KEY ACTION SWITCH)&AUDIO(FOR OVERSEAS MARKET)-AM(10KHZ)/FM & CASSETTE & CD 2SPEAKER; POWER DOOR LOCK-W(DRIVER&PASSENGER W/KEY ACTION SWITCH)&AUDIO(FOR OVERSEAS MARKET)-AM(10KHZ)/FM 2SPEAKER; POWER DOOR LOCK-W(DRIVER&PASSENGER W/KEY ACTION SWITCH)&AUDIO(FOR OVERSEAS MARKET)-AM(9KHZ)/FM & CASSETTE & CD 2SPEAKER; POWER DOOR LOCK-W(DRIVER&PASSENGER W/KEY ACTION SWITCH)&AUDIO(FOR OVERSEAS MARKET)-AM(9KHZ)/FM 2SPEAKER; POWER DOOR LOCK-W(DRIVER&PASSENGER W/KEY ACTION SWITCH)&AUDIO(FOR OVERSEAS MARKET)-ANTENNA & WIRE HARNESS 2SPEAKER
POWER DOOR LOCK-W(DRIVER&PASSENGER W/KEY ACTION SWITCH)&AUDIO(FOR OVERSEAS MARKET)-AM(10KHZ)/FM 2SPEAKER; POWER DOOR LOCK-W(DRIVER&PASSENGER W/KEY ACTION SWITCH)&AUDIO(FOR OVERSEAS MARKET)-AM(9KHZ)/FM 2SPEAKER; POWER DOOR LOCK-W(DRIVER&PASSENGER W/KEY ACTION SWITCH)&AUDIO(FOR OVERSEAS MARKET)-ANTENNA & WIRE HARNESS 2SPEAKER
main61131-26101iKDH200..LHD..4D;KDH200,LH200..5D;KDH201,202,203,212,LH20#,212,TRH201,203,213..LHD..STD200710-201312
61143DRETAINER, FRONT BUMPER SIDE, RH
main61143-26011iKDH200,202,LH20#,TRH201,213,223..RHD..(03S,15S,16S)..GEN; KDH200,LH200,TRH221..5D..GEN;KDH200,TRH223..LHD..4D..STD..GEN;KDH201,202,203,LH20#,TRH201,203,213..LHD..(SMRF,SRF)..STD..GEN; KDH200,LH200..RHD..5D; KDH202,LH202,TRH213,223..RHD..GEN; TRH213..GL..GEN;KDH212,223,TRH213,223..(12S,13S,15S)..(CIS,GEN,RUS,SA); TRH221..SP..GEN;TRH223..5F..GEN;KDH201,TRH203..LHD..GEN;KDH200,202,203,LH20#,TRH201,213..(SMRF,SRF)..(03S,12S,15S,16S)..GEN200709-201312
COLD AREA SPEC; COLD AREA SPEC&AUDIO(FOR OVERSEAS MARKET)-AM(10KHZ)/FM 2SPEAKER; COLD AREA SPEC&AUDIO(FOR OVERSEAS MARKET)-AM(9KHZ)/FM 2SPEAKER; COLD AREA SPEC&AUDIO(FOR OVERSEAS MARKET)-ANTENNA & WIRE HARNESS 2SPEAKER; COLD AREA SPEC&AUDIO(FOR OVERSEAS MARKET)-ANTENNA & WIRE HARNESS 4SPEAKER; COLD AREA SPEC&POWER DOOR LOCK-W(DRIVER&PASSENGER W/KEY ACTION SWITCH); COLD AREA SPEC&POWER DOOR LOCK-W(DRIVER&PASSENGER W/KEY ACTION SWITCH)&AUDIO(FOR OVERSEAS MARKET)-AM(10KHZ)/FM 2SPEAKER; COLD AREA SPEC&POWER DOOR LOCK-W(DRIVER&PASSENGER W/KEY ACTION SWITCH)&AUDIO(FOR OVERSEAS MARKET)-AM(9KHZ)/FM 2SPEAKER; COLD AREA SPEC&POWER DOOR LOCK-W(DRIVER&PASSENGER W/KEY ACTION SWITCH)&AUDIO(FOR OVERSEAS MARKET)-ANTENNA & WIRE HARNESS 2SPEAKER
61241AGUSSET, ROOF SIDE RAIL, REAR RH
61261CHANNEL, ROOF DRIP, RH
61347AREINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, RH
main61347-26040iKDH222..RHD..(ARL,GEN,SA);KDH20#,212,220,221,223,LH20#,212,222,TRH201,203,213,223..RHD..4D200501-201402
61413BPANEL, FRONT STEP, RH
61415APANEL, FRONT STEP, UNDER, RH
61423APANEL, FENDER, INNER LOWER RH
61511PILLAR, QUARTER LOCK, RH
61525CRETAINER, SEPARATOR BAR BRACKET, RH NO.2
ROOM SEPARATOR-WITH(PIPE:IXED TYPE, HIGH ROOF); ROOM SEPARATOR-WITH(PIPE:IXED TYPE, HIGH ROOF)&AIR CONDITIONER-DUAL AIR CONDITIONER; WINDOW GUARD-WITH(QUATER WINDOW)&ROOM SEPARATOR-WITH(PIPE:IXED TYPE, HIGH ROOF); WINDOW GUARD-WITH(QUATER WINDOW)&ROOM SEPARATOR-WITH(PIPE:IXED TYPE, HIGH ROOF)&AIR CONDITIONER-DUAL AIR CONDITIONER
61527REINFORCEMENT, QUARTER LOCK PILLER, LOWER RH
61577PLATE, CAB REAR PILLAR, LOWER RH
main61071-26100iKDH212..4FC;KDH212,222,TRH223..GL..SA;KDH223,TRH213..10S,11S,12S,14S;KDH222,TRH223..(12S,13S,14S)..(ARL,CIS,GEN); KDH222,TRH223..16S..GL200501-201312
REAR SEAT BELT-3 POINT TYPE X 13(FOR 13 PERSONS)
61581BRACKET, REAR SEAT, NO.1
61603CPANEL SUB-ASSY, QUARTER WHEEL HOUSE, RH
main61605-26210iKDH200,TRH201..SG;TRH201..SP..03S..(GCC,GEN);KDH200,220,LH200..03S..(GCC,GEN); KDH202..15S;LH202,212,TRH203;KDH202..LHD..12S;LH222,TRH223..RHD..GEN200501-200510
AMBURANCE BASE
CHINA(PRC) SPEC&COLD AREA SPEC&REAR SEAT BELT-3 POINT TYPE X 11(FOR 11PERSONS & CHINA)&AUDIO(FOR OVERSEAS MARKET)-AM(9KHZ)/FM & CASSETTE & CD 6SPEAKER
main61605-26330iKDH200,220,TRH201..SG;KDH200,LH200,TRH201..SP..03S..(GCC,GEN); KDH202..15S;KDH202..LHD..12S;LH222,TRH223..RHD..GEN;KDH203,LH202,212,TRH203..(SMRF,SRF)..(10S,12S,14S,15S)200510-200704
AMBURANCE BASE
main61605-26331iKDH202..15S;KDH202..LHD..12S;LH222,TRH223..RHD..GEN;KDH203,LH202,212,TRH203..(SMRF,SRF)..(10S,12S,15S); KDH221..4D;KDH200,201,LH200,TRH201;KDH212,LH212,TRH213..LHD..16S..(GCC,GEN)200705-201211
AMBURANCE BASE
AMBURANCE BASE
AMBURANCE BASE
AMBURANCE BASE
CHINA(PRC) SPEC&COLD AREA SPEC&REAR SEAT BELT-3 POINT TYPE X 11(FOR 11PERSONS & CHINA)&AUDIO(FOR OVERSEAS MARKET)-AM(9KHZ)/FM & CASSETTE & CD 6SPEAKER
main61605-26870iKDH212,LH212,TRH213..LHD..STD;KDH200,201,203,LH200,TRH200,201..03S,06S,14S201211-201401
main61605-26B30iKDH220,221,TRH221; KDH222,LH222,TRH223..LHD..STD..GEN; KDH222,TRH223..STD..GCC201211-201312
AMBURANCE BASE; AMBURANCE BASE&REAR SEAT BELT-WITHOUT
CHINA(PRC) SPEC&COLD AREA SPEC&REAR SEAT BELT-3 POINT TYPE X 11(FOR 11PERSONS & CHINA)&AUDIO (OVERSEAS MARKET)-AM(9KHZ)/FM & 6CD MP3 6SPEAKER
SOUTH AFRICA SPEC&AUDIO(FOR OVERSEAS MARKET)-AM(9KHZ)/FM & CASSETTE & CD 2SPEAKER; SOUTH AFRICA SPEC&AUDIO(FOR OVERSEAS MARKET)-AM(9KHZ)/FM 2SPEAKER
NEW ZEALAND SPEC&REAR SEAT-4-ROW(FOR 10 PERSONS)
NEW ZEALAND SPEC&REAR SEAT-4-ROW(FOR 10 PERSONS)
main61605-26370iKDH200,LH200..LHD..4D;KDH200,TRH201..SG..06S..GEN;KDH200,LH200,TRH201..5D..03S..GEN; KDH202,LH202,TRH203..LHD..GEN200501-200510
AMBURANCE BASE&COLD AREA SPEC; COLD AREA SPEC
COLD AREA SPEC&AUDIO(FOR OVERSEAS MARKET)-AM(10KHZ)/FM & CASSETTE & CD 4SPEAKER; COLD AREA SPEC&AUDIO(FOR OVERSEAS MARKET)-AM(9KHZ)/FM & CASSETTE & CD 4SPEAKER; COLD AREA SPEC&AUDIO(FOR OVERSEAS MARKET)-ANTENNA & WIRE HARNESS 4SPEAKER
COLD AREA SPEC&AUDIO (OVERSEAS MARKET)-AM(10KHZ)/FM & CD 4SPEAKER; COLD AREA SPEC&AUDIO (OVERSEAS MARKET)-AM(9KHZ)/FM & CD 4SPEAKER
BODY COLOR-TWO-TONE(METALLIC)
COLD AREA SPEC
COLD AREA SPEC
COLD AREA SPEC
COLD AREA SPEC
COLD AREA SPEC&AUDIO(FOR OVERSEAS MARKET)-AM(10KHZ)/FM & CASSETTE & CD 4SPEAKER; COLD AREA SPEC&AUDIO(FOR OVERSEAS MARKET)-AM(9KHZ)/FM & CASSETTE & CD 4SPEAKER; COLD AREA SPEC&AUDIO(FOR OVERSEAS MARKET)-ANTENNA & WIRE HARNESS 4SPEAKER
COLD AREA SPEC&AUDIO(FOR OVERSEAS MARKET)-AM(10KHZ)/FM & CASSETTE & CD 4SPEAKER; COLD AREA SPEC&AUDIO(FOR OVERSEAS MARKET)-AM(9KHZ)/FM & CASSETTE & CD 4SPEAKER; COLD AREA SPEC&AUDIO(FOR OVERSEAS MARKET)-ANTENNA & WIRE HARNESS 4SPEAKER
AUDIO(FOR OVERSEAS MARKET)-AM(10KHZ)/FM & CASSETTE & CD 4SPEAKER; AUDIO(FOR OVERSEAS MARKET)-AM(9KHZ)/FM & CASSETTE & CD 4SPEAKER; AUDIO(FOR OVERSEAS MARKET)-ANTENNA & WIRE HARNESS 4SPEAKER
AMBURANCE BASE&COLD AREA SPEC; COLD AREA SPEC
AMBURANCE BASE&COLD AREA SPEC; COLD AREA SPEC
COLD AREA SPEC
COLD AREA SPEC
COLD AREA SPEC&AUDIO(FOR OVERSEAS MARKET)-AM(10KHZ)/FM & CASSETTE & CD 4SPEAKER; COLD AREA SPEC&AUDIO(FOR OVERSEAS MARKET)-AM(9KHZ)/FM & CASSETTE & CD 4SPEAKER; COLD AREA SPEC&AUDIO(FOR OVERSEAS MARKET)-ANTENNA & WIRE HARNESS 4SPEAKER
COLD AREA SPEC&AUDIO(FOR OVERSEAS MARKET)-AM(10KHZ)/FM & CASSETTE & CD 4SPEAKER; COLD AREA SPEC&AUDIO(FOR OVERSEAS MARKET)-AM(9KHZ)/FM & CASSETTE & CD 4SPEAKER
COLD AREA SPEC&REAR SEAT BELT-3 POINT TYPE X 13(FOR 13 PERSONS)
COLD AREA SPEC&REAR SEAT BELT-3 POINT TYPE X 13(FOR 13 PERSONS)
BODY COLOR-TWO-TONE(METALLIC)&VIETNAM SPEC
BODY COLOR-TWO-TONE(METALLIC)
AMBURANCE BASE&COLD AREA SPEC; COLD AREA SPEC
REAR SEAT BELT-3 POINT TYPE X 13(FOR 13 PERSONS)
REAR SEAT BELT-3 POINT TYPE X 13(FOR 13 PERSONS)
main61605-26600iKDH222,LH222,TRH223..LHD..STD; KDH222,LH222,TRH223..LHD..STD..GEN; KDH222,TRH223..16S..GL; KDH222,TRH223..STD..GCC200501-200707
AUDIO(FOR OVERSEAS MARKET)-AM(10KHZ)/FM & CASSETTE & CD 4SPEAKER; AUDIO(FOR OVERSEAS MARKET)-AM(9KHZ)/FM & CASSETTE & CD 4SPEAKER; AUDIO(FOR OVERSEAS MARKET)-AM(9KHZ)/FM & CASSETTE 4SPEAKER; AUDIO(FOR OVERSEAS MARKET)-ANTENNA & WIRE HARNESS 4SPEAKER
AUDIO(FOR OVERSEAS MARKET)-AM(10KHZ)/FM & CASSETTE & CD 4SPEAKER; AUDIO(FOR OVERSEAS MARKET)-AM(9KHZ)/FM & CASSETTE & CD 4SPEAKER
main61605-26610iKDH212,LH212,TRH213..LHD..16S; KDH212,LH212,TRH213..LHD..16S..GEN; KDH212,TRH213..GCC200610-200704
AUDIO(FOR OVERSEAS MARKET)-AM(10KHZ)/FM & CASSETTE & CD 4SPEAKER; AUDIO(FOR OVERSEAS MARKET)-AM(9KHZ)/FM & CASSETTE & CD 4SPEAKER; AUDIO(FOR OVERSEAS MARKET)-AM(9KHZ)/FM & CASSETTE 4SPEAKER; AUDIO(FOR OVERSEAS MARKET)-ANTENNA & WIRE HARNESS 4SPEAKER
VIETNAM SPEC
BODY COLOR-MONO-TONE SOLID&VENEZUERA SPEC&REAR SEAT-FOR 10 PERSONS(BACK-ROW:SPACEUP SEAT)&AUDIO(FOR OVERSEAS MARKET)-AM(10KHZ)/FM & CASSETTE & CD 4SPEAKER; BODY COLOR-MONO-TONE SOLID&VENEZUERA SPEC&REAR SEAT-FOR 10 PERSONS(BACK-ROW:SPACEUP SEAT)&AUDIO(FOR OVERSEAS MARKET)-AM(9KHZ)/FM & CASSETTE & CD 4SPEAKER; BODY COLOR-MONO-TONE SOLID&VENEZUERA SPEC&REAR SEAT-FOR 10 PERSONS(BACK-ROW:SPACEUP SEAT)&AUDIO(FOR OVERSEAS MARKET)-ANTENNA & WIRE HARNESS 4SPEAKER; BODY COLOR-MONO-TONE(METALLIC), EXCEPT COLOR NO.058&VENEZUERA SPEC&REAR SEAT-FOR 10 PERSONS(BACK-ROW:SPACE UP SEAT)&AUDIO(FOR OVERSEAS MARKET)-AM(10KHZ)/FM & CASSETTE & CD 4SPEAKER; BODY COLOR-MONO-TONE(METALLIC), EXCEPT COLOR NO.058&VENEZUERA SPEC&REAR SEAT-FOR 10 PERSONS(BACK-ROW:SPACE UP SEAT)&AUDIO(FOR OVERSEAS MARKET)-AM(9KHZ)/FM & CASSETTE & CD 4SPEAKER; BODY COLOR-MONO-TONE(METALLIC), EXCEPT COLOR NO.058&VENEZUERA SPEC&REAR SEAT-FOR 10 PERSONS(BACK-ROW:SPACE UP SEAT)&AUDIO(FOR OVERSEAS MARKET)-ANTENNA & WIRE HARNESS 4SPEAKER
BODY COLOR-TWO-TONE(METALLIC)
BODY COLOR-TWO-TONE(METALLIC)
BODY COLOR-TWO-TONE(METALLIC)
main61605-26661iKDH200..LHD..4D;KDH200,LH200..5D..GEN;KDH201,LH200,TRH201,213..LHD..(SMRF,SRF)..STD..GEN; KDH202,203,LH202,TRH203..LHD..GEN200705-201211
AMBURANCE BASE&COLD AREA SPEC; COLD AREA SPEC
BODY COLOR-TWO-TONE(METALLIC)&VIETNAM SPEC
BODY COLOR-TWO-TONE(METALLIC)
BODY COLOR-TWO-TONE(METALLIC)
main61605-26750supersedes 61605-26231iKDH202,203,212,LH202,212,TRH203,213..RHD..(14S,15S,16S); KDH202,212,LH202,212,TRH203,213..RHD..(15S,16S); KDH202,212,LH202,212,TRH203,213..RHD..(15S,16S)..GEN; KDH212,TRH213..STD..SA200610-200704
AUDIO(FOR OVERSEAS MARKET)-AM(10KHZ)/FM & CASSETTE & CD 4SPEAKER; AUDIO(FOR OVERSEAS MARKET)-AM(9KHZ)/FM & CASSETTE & CD 4SPEAKER; AUDIO(FOR OVERSEAS MARKET)-AM(9KHZ)/FM & CD & RDS 4SPEAKER; AUDIO(FOR OVERSEAS MARKET)-ANTENNA & WIRE HARNESS 4SPEAKER
main61605-26751supersedes 61605-26231iKDH202,212,LH202,212,TRH203,213..RHD..(15S,16S); KDH202,212,LH202,212,TRH203,213..RHD..(15S,16S)..GEN200705-201008
AUDIO(FOR OVERSEAS MARKET)-AM(10KHZ)/FM & CASSETTE & CD 4SPEAKER; AUDIO(FOR OVERSEAS MARKET)-AM(9KHZ)/FM & CASSETTE & CD 4SPEAKER
NEW ZEALAND SPEC&REAR SEAT-4-ROW(FOR 10 PERSONS)
COLD AREA SPEC&AUDIO (OVERSEAS MARKET)-AM(10KHZ)/FM & CD 4SPEAKER; COLD AREA SPEC&AUDIO (OVERSEAS MARKET)-AM(9KHZ)/FM & CD 4SPEAKER; COLD AREA SPEC&AUDIO(FOR OVERSEAS MARKET)-ANTENNA & WIRE HARNESS 4SPEAKER
COLD AREA SPEC
COLD AREA SPEC
BODY COLOR-TWO-TONE(METALLIC)
AMBURANCE BASE&COLD AREA SPEC; COLD AREA SPEC
COLD AREA SPEC
COLD AREA SPEC; COLD AREA SPEC&AUDIO (OVERSEAS MARKET)-AM(10KHZ)/FM & CD 4SPEAKER; COLD AREA SPEC&AUDIO (OVERSEAS MARKET)-AM(9KHZ)/FM & CD 4SPEAKER; COLD AREA SPEC&AUDIO(FOR OVERSEAS MARKET)-ANTENNA & WIRE HARNESS 4SPEAKER
COLD AREA SPEC&REAR SEAT BELT-3 POINT TYPE X 13(FOR 13 PERSONS)
BODY COLOR-TWO-TONE(METALLIC)
REAR SEAT BELT-3 POINT TYPE X 13(FOR 13 PERSONS)
main61605-26B50supersedes 61605-26B20iKDH222,LH222,TRH223..LHD..STD; KDH222,LH222,TRH223..LHD..STD..GEN; KDH222,TRH223..16S..GL201211-201312
AUDIO (OVERSEAS MARKET)-AM(10KHZ)/FM & CD 4SPEAKER; AUDIO (OVERSEAS MARKET)-AM(9KHZ)/FM & CD 4SPEAKER; AUDIO(FOR OVERSEAS MARKET)-ANTENNA & WIRE HARNESS 4SPEAKER
AUDIO (OVERSEAS MARKET)-AM(10KHZ)/FM & CD 4SPEAKER; AUDIO (OVERSEAS MARKET)-AM(9KHZ)/FM & CD 4SPEAKER; AUDIO(FOR OVERSEAS MARKET)-ANTENNA & WIRE HARNESS 4SPEAKER
BODY COLOR-MONO-TONE SOLID&MEXICO SPEC&REAR SEAT-FOR 10 PERSONS(BACK-ROW:SPACE UPSEAT)&AUDIO (OVERSEAS MARKET)-AM(10KHZ)/FM & CD 4SPEAKER; BODY COLOR-MONO-TONE SOLID&MEXICO SPEC&REAR SEAT-FOR 10 PERSONS(BACK-ROW:SPACE UPSEAT)&AUDIO(FOR OVERSEAS MARKET)-ANTENNA & WIRE HARNESS 4SPEAKER; BODY COLOR-MONO-TONE(METALLIC), EXCEPT COLOR NO.058&MEXICO SPEC&REAR SEAT-FOR 10 PERSONS(BACK-ROW:SPACE UP SEAT)&AUDIO (OVERSEAS MARKET)-AM(10KHZ)/FM & CD 4SPEAKER; BODY COLOR-MONO-TONE(METALLIC), EXCEPT COLOR NO.058&MEXICO SPEC&REAR SEAT-FOR 10 PERSONS(BACK-ROW:SPACE UP SEAT)&AUDIO(FOR OVERSEAS MARKET)-ANTENNA & WIRE HARNESS 4SPEAKER
BODY COLOR-TWO-TONE(METALLIC)&MEXICO SPEC&REAR SEAT-FOR 10 PERSONS(BACK-ROW:SPACEUP SEAT)&AUDIO (OVERSEAS MARKET)-AM(10KHZ)/FM & CD 4SPEAKER; BODY COLOR-TWO-TONE(METALLIC)&MEXICO SPEC&REAR SEAT-FOR 10 PERSONS(BACK-ROW:SPACEUP SEAT)&AUDIO(FOR OVERSEAS MARKET)-ANTENNA & WIRE HARNESS 4SPEAKER
main61605-26C10iKDH200..LHD..4D;KDH200,LH200..5D..GEN;KDH201,LH200,TRH201,213..LHD..(SMRF,SRF)..STD..GEN; KDH202,203,LH202,TRH203..LHD..GEN201211-201312
AMBURANCE BASE&COLD AREA SPEC; COLD AREA SPEC
BODY COLOR-TWO-TONE(METALLIC)
AUDIO (OVERSEAS MARKET)-AM(10KHZ)/FM & CD 4SPEAKER; AUDIO (OVERSEAS MARKET)-AM(9KHZ)/FM & CD 4SPEAKER; AUDIO(FOR OVERSEAS MARKET)-ANTENNA & WIRE HARNESS 4SPEAKER
61611PANEL, QUARTER, RH
main61611-26440iTRH213..GL..VN;TRH213..09S,11S;TRH213..LHD..STD;KDH202,212,LH202,212,TRH203..LHD;KDH200,201,203,TRH201..SG..(03S,06S,12S)..STD200501-201312
COLD AREA SPEC
main61611-26500iKDH200..LHD..4D;KDH200,LH200..5D..03S..GEN;KDH201,LH200,TRH201..LHD..SP..GEN200501-201312
COLD AREA SPEC
COLD AREA SPEC
BODY COLOR-TWO-TONE(METALLIC)
BODY COLOR-TWO-TONE(METALLIC)
COLD AREA SPEC
BODY COLOR-TWO-TONE(METALLIC)
61613EPANEL, QUARTER, INNER RH
main61613-26C40iKDH200,201,TRH201..SG..06S..GEN; KDH200,202,203,LH202,212,TRH201,203..LHD..SG..(03S,06S,10S,12S,15S)200501-201312
REAR SEAT-WITHOUT
CHINA(PRC) SPEC&REAR QUARTER GLASS(RH)-FIXED(TINTED GREY)&REAR SEAT BELT-3 POINT TYPE X 11(FOR 11PERSONS & CHINA)
main61613-26A30iKDH200,201,LH200,TRH201..RHD..4D..(ARL,GEN,SA,TH); KDH201..4D..(GEN,TH);KDH200,LH200,TRH201..RHD..4D..GEN200501-201312
AIR CONDITIONER-DUAL AIR CONDITIONER; ROOM SEPARATOR-WITH(PIPE:FIXED TYPE)&AIR CONDITIONER-DUAL AIR CONDITIONER
main61613-26B30supersedes 61613-26B50iKDH202,LH202,TRH203..RHD..15S; KDH202..RHD..SRF..12S..GEN200501-201312
AMBURANCE BASE
AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS)
WINDOW GUARD-WITH(QUATER WINDOW); WINDOW GUARD-WITH(QUATER WINDOW)&REAR SEAT-WITHOUT
EGYPT SPEC&WINDOW GUARD-WITH(QUATER WINDOW)&REAR SEAT BELT-OUTER:3 POINT TYPE & CENTER:2 POINT TYPE; SAUDI ARABIA SPEC&WINDOW GUARD-WITH(QUATER WINDOW)&REAR SEAT BELT-OUTER:3 POINT TYPE & CENTER:2 POINT TYPE
AMBURANCE BASE
WINDOW GUARD-WITH(QUATER WINDOW); WINDOW GUARD-WITH(QUATER WINDOW)&AIR CONDITIONER-DUAL AIR CONDITIONER; WINDOW GUARD-WITH(QUATER WINDOW)&ROOM SEPARATOR-WITH(PIPE:IXED TYPE, HIGH ROOF); WINDOW GUARD-WITH(QUATER WINDOW)&ROOM SEPARATOR-WITH(PIPE:IXED TYPE, HIGH ROOF)&AIR CONDITIONER-DUAL AIR CONDITIONER
AIR CONDITIONER-WITHOUT
NEW ZEALAND SPEC&AIR CONDITIONER-WITHOUT&REAR SEAT-4-ROW(FOR 10 PERSONS)
EGYPT SPEC&REAR SEAT BELT-OUTER:3 POINT TYPE & CENTER:2 POINT TYPE; SAUDI ARABIA SPEC&REAR SEAT BELT-OUTER:3 POINT TYPE & CENTER:2 POINT TYPE
AMBURANCE BASE&AIR CONDITIONER-DUAL AIR CONDITIONER
AIR CONDITIONER-DUAL AIR CONDITIONER
NEW ZEALAND SPEC&REAR SEAT-4-ROW(FOR 10 PERSONS)
AIR CONDITIONER-DUAL AIR CONDITIONER
WINDOW GUARD-WITH(QUATER WINDOW)
61615GREINFORCEMENT, REAR BODY REAR SIDE PANEL, RH
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
main61633-26050iLH202..LHD;KDH212..5F..GL;KDH202,TRH203..LHD..15S;KDH20#,220,221,223,LH200,212,TRH20#,213,22#..03S,06S,09S,10S,12S,13S200501-201401
61635FREINFORCEMENT, QUARTER PANEL, UPR RH
main61635-26040iKDH212..4FC;KDH212,222,TRH223..GL..SA;KDH223,TRH213..10S,11S,12S,14S;KDH222,TRH223..(12S,13S,14S)..(ARL,CIS,GEN); KDH222,TRH223..16S..GL; TRH223..5F..GL..GEN200501-201312
CHINA(PRC) SPEC&REAR SEAT BELT-3 POINT TYPE X 11(FOR 11PERSONS & CHINA); REAR SEAT BELT-3 POINT TYPE X 13(FOR 13 PERSONS)
61637DREINFORCEMENT, QUARTER, INNER RH
61685CBRACKET, REAR SEATBACK STOPPER, RH
61705TFRAME SUB-ASSY, BACK DOOR OPENING SIDE, RH
61735BEXTENSION, QUARTER PANEL, INNER RH
61739BREINFORCEMENT, EXTENSION QUARTER INNER PANEL
61745AREINFORCEMENT, BACK DOOR OPENING, LOWER RH
main61745-26050iKDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22#200501-201402
61747BRACE, ROOF SIDE INNER TO WHEEL HOUSE, RH
61761AREINFORCE, SEAT BELT ANCHOR, NO.1 UPPER RH
FRONT
REAR
61773BFRAME, BACK DOOR OPENING SIDE, UPPER RH
62137AREINFORCE, SIDE WINDOW PANEL
main62137-26050×2iKDH200,201,LH200,TRH201..RHD..4D; KDH200,LH200..LHD..4D;KDH200,201,220,221,LH200,TRH200,201,221..5D..SP200501
62427ABRACKET, CENTER PILLAR GARNISH, RH
main62427-26050iKDH200,201,220,221,LH200,TRH201..RHD..4D..(ARL,GEN,SA,TH); KDH201..4D..(GEN,TH);KDH200,LH200,TRH201..RHD..4D..GEN; KDH202,203,LH202,TRH203..RHD..SRF..GEN; KDH202..HRF..GEN;KDH222,TRH203,223..HRF..(12S,14S)..(ARL,GEN,MA);KDH202,203,212,223,TRH213..(12S,14S,15S)..(ARL,MA,SA,TH); KDH202..RHD..SRF..GEN;KDH222,TRH223..RHD..STD..(GEN,SA);KDH200,201,203,220,221,LH20#,222,TRH201,203..RHD..4D..(03S,14S,15S,16S); KDH222,LH222,TRH223..RHD..GEN; LH222,TRH223..RHD..GEN200501
AIR CONDITIONER-DUAL AIR CONDITIONER; AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS); AMBURANCE BASE&AIR CONDITIONER-DUAL AIR CONDITIONER; ROOM SEPARATOR-WITH(PIPE:FIXED TYPE)&AIR CONDITIONER-DUAL AIR CONDITIONER
63227JBRACKET, ROOF HEADLINING, FR RH NO.4
AIR CONDITIONER-DUAL AIR CONDITIONER; ROOM SEPARATOR-WITH(PIPE:IXED TYPE, HIGH ROOF)&AIR CONDITIONER-DUAL AIR CONDITIONER; WINDOW GUARD-WITH(QUATER WINDOW)&AIR CONDITIONER-DUAL AIR CONDITIONER; WINDOW GUARD-WITH(QUATER WINDOW)&ROOM SEPARATOR-WITH(PIPE:IXED TYPE, HIGH ROOF)&AIR CONDITIONER-DUAL AIR CONDITIONER
63227KBRACKET, ROOF HEADLINING, FR RH NO.5
AIR CONDITIONER-DUAL AIR CONDITIONER; ROOM SEPARATOR-WITH(PIPE:IXED TYPE, HIGH ROOF)&AIR CONDITIONER-DUAL AIR CONDITIONER; WINDOW GUARD-WITH(QUATER WINDOW)&AIR CONDITIONER-DUAL AIR CONDITIONER; WINDOW GUARD-WITH(QUATER WINDOW)&ROOM SEPARATOR-WITH(PIPE:IXED TYPE, HIGH ROOF)&AIR CONDITIONER-DUAL AIR CONDITIONER
63712ABRACKET, ROOF PANEL REINFORCEMENT, RH
64125BANCHOR, PILLAR SEAT BELT
main64125-26050iKDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22#200501-201402
67841DCOVER, QUARTER SERVICE HOLE, RH
LT.GRAY,TRIM1#
LT.GRAY,TRIM1#
AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1#; LT.GRAY,TRIM1#
82719CCOVER, WIRE HANRESS SERVICE HOLE
main82719-26030-B0iKDH222,LH212,TRH223..STD..(GCC,GEN,SA,TH);KDH20#,212,220,221,LH20#,222,TRH20#,213,221..03S,06S,12S,14S,15S,16S; KDH222..RHD..GEN; KDH222..STD..GCC200501-201008
EGYPT SPEC,GRAY,TRIM1#; GRAY,TRIM1#; INDONESIA HI PACKAGE,GRAY,TRIM1#; INDONESIA SPEC&INDONESIA HI PACKAGE,GRAY,TRIM1#
DK.GRAY,TRIM1#
9054115030
main90541-15030
47 parts on this diagram · 23 diagrams in section
