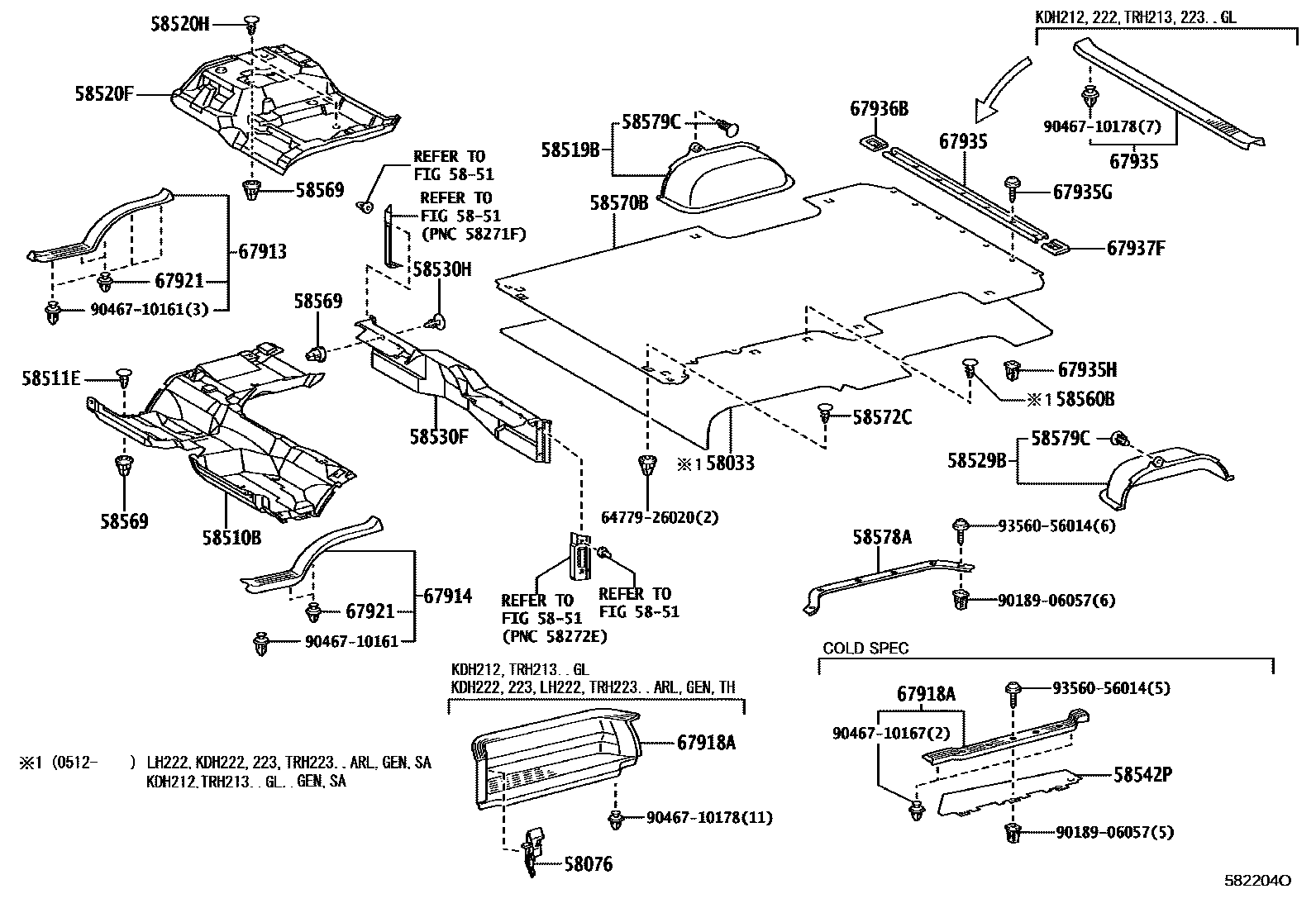

FLOOR MAT & SILENCER PAD
58033BOARD SUB-ASSY, REAR FLOOR
sub58033-V3350
sub58033-V3360
AMBURANCE BASE
sub58033-V3380
AMBURANCE BASE&REAR HEATER-WITH(FLOOR SET)
sub58033-V3380
AMBURANCE BASE&REAR HEATER-WITH(FLOOR SET)
sub58033-V3390
sub58033-V3450
sub58033-V3400
sub58033-V3470
sub58033-V3420
58076COVER SUB-ASSY, JACK BOX HOLE
main58076-26010-B0iKDH212..4FC;KDH222,LH222..RHD;TRH223..RHD..(ARL,GEN,TH);KDH212,TRH213,223..RHD..GL200501-201008
MD.GRAY,TRIM1#,LH
sub58076-26010
main58076-26020-B0iKDH222,LH222,TRH223..LHD;KDH212,LH212,TRH213..(09S,10S,11S)..5F..GEN200501-200611
MD.GRAY,TRIM1#
sub58076-26020
5851
58510BMAT, FRONT FLOOR, FRONT
main58510-26A32-B2iKDH201..RHD..5F;KDH203,LH20#,TRH20#..RHD;KDH200,202..RHD..(GEN,MA,SA)201304-201401
DK.GRAY,TRIM1#
DK.GRAY,TRIM1#
main58510-26B12-B2iTRH22#..RHD;KDH223..5F..STD;KDH212,220,221,222,LH212,222,TRH213..RHD..5F..(ARL,GEN,SA)201304-201402
DK.GRAY,TRIM1#
main58510-26B50-B3iTRH213..GL..VN;TRH213,223..LHD..(12S,16S);KDH212,220,222,223,LH212,222,TRH221..LHD..5F201008-201304
DK.GRAY,TRIM1#
sub58510-26B50
sub58510-26B51
sub45253-26141
main58510-26B51-B3iTRH213,223..LHD..(12S,16S);KDH212,220,222,223,LH212,222,TRH221..LHD..5F201304-201312
DK.GRAY,TRIM1#
sub58510-26B52
DK. GREY,TRIM1#
DK. GREY,TRIM1#
DK. GREY,TRIM1#
CHINA(PRC) SPEC,DK. GREY,TRIM1#
DK.GRAY,TRIM1#
DK.GRAY,TRIM1#
58511ECLIP(FOR FRONT FLOOR MAT)
MD.GRAY,TRIM1#
DK.GRAY,TRIM1#
58519BMAT, REAR WHEEL HOUSE, RH
58520FMAT ASSY, ENGINE COVER
CHINA(PRC) SPEC&REAR SEAT-4-ROW(FOR 11 PERSONS)&REAR SEAT BELT-3 POINT TYPE X 11(FOR 11PERSONS & CHINA),MEDIUM GRAY,TRIM1#
sub58520-26340
sub58520-26341
SAUDI ARABIA SPEC&REAR SEAT BELT-3 POINT TYPE X 13(FOR 13 PERSONS),DK.GRAY,TRIM1#
sub58520-26340
sub58520-26341
main58520-26360-B0iTRH223..RHD..(GEN,TH);KDH212,220,221,222,LH212,222,TRH213,221..RHD..(03S,16S)..(GEN,SA,TH)200501-201008
MEDIUM GRAY,TRIM1#
sub58520-26360
sub58520-26361
MEXICO SPEC&REAR SEAT-FOR 10 PERSONS(BACK-ROW:SPACE UP SEAT)&REAR SEAT BELT-2 POINT TYPE X 10(FOR 10 PERSONS),DK.GRAY,TRIM1#
sub58520-26370
sub58520-26371
MEDIUM GRAY,TRIM1#
DK. GREY,TRIM1#
CHINA(PRC) SPEC&REAR SEAT-4-ROW(FOR 11 PERSONS)&REAR SEAT BELT-3 POINT TYPE X 11(FOR 11PERSONS & CHINA),MD.GRAY,TRIM1#
sub58520-26521
CHINA(PRC) SPEC&REAR SEAT-4-ROW(FOR 11 PERSONS)&REAR SEAT BELT-3 POINT TYPE X 11(FOR 11PERSONS & CHINA),MEDIUM GRAY,TRIM1#
MEDIUM GRAY,TRIM1#
DK. GREY,TRIM1#
CHINA(PRC) SPEC&REAR SEAT-4-ROW(FOR 11 PERSONS)&REAR SEAT BELT-3 POINT TYPE X 11(FOR 11PERSONS & CHINA),DK. GREY,TRIM1#
58520HCLIP(FOR ENGINE COVER MAT)
MD.GRAY,TRIM1#
main64726-26010-B1iKDH222..GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22#201008-201402
DK.GRAY,TRIM1#
58529BMAT, REAR WHEEL HOUSE, LH
58530FMAT ASSY, HEADER
AMBURANCE BASE&REAR SEAT-WITHOUT,DK.GRAY,TRIM1#
sub58530-26761
AMBURANCE BASE&REAR SEAT-WITHOUT,DK.GRAY,TRIM1#
sub58530-26880
MEDIUM GRAY,TRIM1#
MEDIUM GRAY,TRIM1#
sub58530-26C40
MEXICO SPEC&REAR SEAT-FOR 10 PERSONS(BACK-ROW:SPACE UP SEAT)&REAR SEAT BELT-2 POINT TYPE X 10(FOR 10 PERSONS),DK.GRAY,TRIM1#
sub58530-26C40
SAUDI ARABIA SPEC&AMBURANCE BASE&REAR SEAT-WITHOUT,DK.GRAY,TRIM1#
sub58530-26C40
CHINA(PRC) SPEC&REAR SEAT-4-ROW(FOR 11 PERSONS)&REAR SEAT BELT-3 POINT TYPE X 11(FOR 11PERSONS & CHINA),MEDIUM GRAY,TRIM1#
sub58530-26C60
sub58530-26J90
SAUDI ARABIA SPEC&REAR SEAT BELT-3 POINT TYPE X 13(FOR 13 PERSONS),DK.GRAY,TRIM1#
sub58530-26C60
sub58530-26J90
AMBURANCE BASE,MEDIUM GRAY,TRIM1#
sub58530-26E21
CHINA(PRC) SPEC&REAR SEAT-4-ROW(FOR 11 PERSONS)&REAR SEAT BELT-3 POINT TYPE X 11(FOR 11PERSONS & CHINA),MD.GRAY,TRIM1#
sub58530-26F21
CHINA(PRC) SPEC&REAR SEAT-4-ROW(FOR 11 PERSONS)&REAR SEAT BELT-3 POINT TYPE X 11(FOR 11PERSONS & CHINA),MEDIUM GRAY,TRIM1#
sub58530-26F22
CHINA(PRC) SPEC&REAR SEAT-4-ROW(FOR 11 PERSONS)&REAR SEAT BELT-3 POINT TYPE X 11(FOR 11PERSONS & CHINA),DK. GREY,TRIM1#
sub58530-26F22
MEDIUM GRAY,TRIM1#
sub58530-26G10
AMBURANCE BASE&REAR SEAT-WITHOUT,MEDIUM GRAY,TRIM1#
sub58530-26G10
DK.GRAY,TRIM1#
DK.GRAY,TRIM1#
DK.GRAY,TRIM1#
DK.GRAY,TRIM1#
DK.GRAY,TRIM1#
58530HCLIP(FOR HEADER MAT & HEADER CARPET)
MD.GRAY,TRIM1#
DK.GRAY,TRIM1#
58542PMAT, STEP, LH
58569STOPPER, REAR FLOOR MAT
FOR FRONT FLOOR MAT
FOR ENGINE COVER MAT
FOR HEADER MAT
FOR ENGINE COVER MAT
FOR HEADER MAT
FOR FRONT FLOOR MAT
58570BMAT ASSY, REAR FLOOR
MEDIUM GRAY,TRIM1#
sub58517-26740
AMBURANCE BASE&REAR HEATER-WITH(FLOOR SET),MEDIUM GRAY,TRIM1#
sub58517-26780
AMBURANCE BASE&COLD AREA SPEC&REAR HEATER-WITH(FLOOR SET),MEDIUM GRAY,TRIM1#
sub58517-26780
AMBURANCE BASE,MEDIUM GRAY,TRIM1#
sub58517-26780
AMBURANCE BASE&REAR HEATER-WITH(FLOOR SET),MEDIUM GRAY,TRIM1#
sub58517-26820
AMBURANCE BASE,MEDIUM GRAY,TRIM1#
sub58517-26820
AMBURANCE BASE&COLD AREA SPEC&REAR HEATER-WITH(FLOOR SET),MEDIUM GRAY,TRIM1#
sub58517-26820
AMBURANCE BASE&COLD AREA SPEC&REAR HEATER-WITH(FLOOR SET),DK.GRAY,TRIM1#
sub58517-26820
AMBURANCE BASE&REAR HEATER-WITH(FLOOR SET),DK.GRAY,TRIM1#
sub58517-26820
AMBURANCE BASE,MEDIUM GRAY,TRIM1#
sub58517-26840
AMBURANCE BASE&COLD AREA SPEC&REAR HEATER-WITH(FLOOR SET),MEDIUM GRAY,TRIM1#
sub58517-26840
AMBURANCE BASE&REAR HEATER-WITH(FLOOR SET),MEDIUM GRAY,TRIM1#
sub58517-26840
AMBURANCE BASE&REAR HEATER-WITH(FLOOR SET),MEDIUM GRAY,TRIM1#
sub58517-26B20
AMBURANCE BASE,MEDIUM GRAY,TRIM1#
sub58517-26B20
AMBURANCE BASE,MEDIUM GRAY,TRIM1#
sub58517-26B21
AMBURANCE BASE&REAR HEATER-WITH(FLOOR SET),MEDIUM GRAY,TRIM1#
sub58517-26B21
AMBURANCE BASE&REAR HEATER-WITH(FLOOR SET),DK.GRAY,TRIM1#
sub58517-26B21
CHINA(PRC) SPEC&REAR HEATER-WITH(FLOOR SET),MEDIUM GRAY,TRIM1#
sub58517-26B90
AMBURANCE BASE&REAR HEATER-WITH(FLOOR SET),MEDIUM GRAY,TRIM1#
sub58517-26C00
AMBURANCE BASE,MEDIUM GRAY,TRIM1#
sub58517-26C00
AMBURANCE BASE,MEDIUM GRAY,TRIM1#
sub58517-26C01
AMBURANCE BASE&REAR HEATER-WITH(FLOOR SET),MEDIUM GRAY,TRIM1#
sub58517-26C01
AMBURANCE BASE&REAR HEATER-WITH(FLOOR SET),DK.GRAY,TRIM1#
sub58517-26C01
AMBURANCE BASE,DK.GRAY,TRIM1#
sub58517-26C01
AMBURANCE BASE,MEDIUM GRAY,TRIM1#
sub58517-26D00
AMBURANCE BASE&COLD AREA SPEC&REAR HEATER-WITH(FLOOR SET),MEDIUM GRAY,TRIM1#
sub58517-26D00
AMBURANCE BASE&REAR HEATER-WITH(FLOOR SET),MEDIUM GRAY,TRIM1#
sub58517-26D00
AMBURANCE BASE&COLD AREA SPEC&REAR HEATER-WITH(FLOOR SET),DK.GRAY,TRIM1#
sub58517-26D00
AMBURANCE BASE&REAR HEATER-WITH(FLOOR SET),DK.GRAY,TRIM1#
sub58517-26D00
AMBURANCE BASE,MEDIUM GRAY,TRIM1#
sub58517-26D30
AMBURANCE BASE&COLD AREA SPEC&REAR HEATER-WITH(FLOOR SET),MEDIUM GRAY,TRIM1#
sub58517-26D30
AMBURANCE BASE&REAR HEATER-WITH(FLOOR SET),MEDIUM GRAY,TRIM1#
sub58517-26D30
AMBURANCE BASE&COLD AREA SPEC&REAR HEATER-WITH(FLOOR SET),DK.GRAY,TRIM1#
sub58517-26D30
AMBURANCE BASE&REAR HEATER-WITH(FLOOR SET),DK.GRAY,TRIM1#
sub58517-26D30
AMBURANCE BASE,DK.GRAY,TRIM1#
sub58517-26D30
MEDIUM GRAY,TRIM1#
sub58517-26E50
MEDIUM GRAY,TRIM1#
DK. GREY,TRIM1#
CHINA(PRC) SPEC&REAR HEATER-WITH(FLOOR SET),MEDIUM GRAY,TRIM1#
sub58517-26G51
MEDIUM GRAY,TRIM1#
DK. GREY,TRIM1#
DK.GRAY,TRIM1#
DK.GRAY,TRIM1#
DK.GRAY,TRIM1#
AMBURANCE BASE,DK.GRAY,TRIM1#
AMBURANCE BASE&COLD AREA SPEC&REAR HEATER-WITH(FLOOR SET),DK.GRAY,TRIM1#
AMBURANCE BASE&REAR HEATER-WITH(FLOOR SET),DK.GRAY,TRIM1#
DK.GRAY,TRIM1#
AMBURANCE BASE,DK.GRAY,TRIM1#
AMBURANCE BASE&COLD AREA SPEC&REAR HEATER-WITH(FLOOR SET),DK.GRAY,TRIM1#
AMBURANCE BASE&REAR HEATER-WITH(FLOOR SET),DK.GRAY,TRIM1#
DK.GRAY,TRIM1#
AMBURANCE BASE,DK.GRAY,TRIM1#
AMBURANCE BASE&COLD AREA SPEC&REAR HEATER-WITH(FLOOR SET),DK.GRAY,TRIM1#
AMBURANCE BASE&REAR HEATER-WITH(FLOOR SET),DK.GRAY,TRIM1#
58572CCLIP, REAR FLOOR MAT SET
MD.GRAY,TRIM1#
main64726-26010-B0iKDH200,TRH201..SA;KDH212,220,221,TRH201,221..4D..SG;KDH200,201,202,222,223,LH202,212,222,TRH20#,213,223..06S,09S,10S,12S,13S,14S,15S,16S200501-201008
AMBURANCE BASE,MD.GRAY,TRIM1#
main64726-26010-B0iKDH200,TRH201..SA;KDH212,220,221,TRH201,221..4D..SG;KDH200,201,202,222,223,LH202,212,222,TRH20#,213,223..06S,09S,10S,12S,13S,14S,15S,16S200501-201008
AMBURANCE BASE&COLD AREA SPEC&REAR HEATER-WITH(FLOOR SET),MD.GRAY,TRIM1#
main64726-26010-B0iKDH200,TRH201..SA;KDH212,220,221,TRH201,221..4D..SG;KDH200,201,202,222,223,LH202,212,222,TRH20#,213,223..06S,09S,10S,12S,13S,14S,15S,16S200501-201008
AMBURANCE BASE&REAR HEATER-WITH(FLOOR SET),MD.GRAY,TRIM1#
DK.GRAY,TRIM1#
58578APLATE, REAR FLOOR MAT SUPPORT SIDE, LH
main58578-26040-B0iKDH220;TRH221..SP;TRH201..SRF;KDH200..LHD..5D;TRH223..STD..SA;KDH20#,212,221,LH20#,212,TRH203,213..RHD..(03S,06S,12S,14S,15S,16S)200501-201008
MD.GRAY,TRIM1#
DK.GRAY,TRIM1#
58579CCLIP, REAR FLOOR CARPET SET
67913PLATE, FRONT DOOR SCUFF, RH
main67913-26080-B0iTRH223;KDH200..06S..GCC;KDH200..03S..(GCC,GEN,MA);KDH202,212,222,LH20#,212,222,TRH20#,213,221..03S,06S,09S,10S,11S,12S,15S,16S200501-200611
MD.GRAY,TRIM1#
sub67913-26081
MD.GRAY,TRIM1#
sub67913-26082
main67913-26082-B1iKDH201,203,223,TRH213,223;KDH200,202,212,220,221,222,LH20#,212,222,TRH20#,221..ARL,GCC,GEN,MA,SA201307-201402
DK.GRAY,TRIM1#
67914PLATE, FRONT DOOR SCUFF, LH
main67914-26060-B0iTRH223;KDH200..06S..GCC;KDH200..03S..(GCC,GEN,MA);KDH202,212,222,LH20#,212,222,TRH20#,213,221..03S,06S,09S,10S,11S,12S,15S,16S200501-200611
MD.GRAY,TRIM1#
sub67914-26061
MD.GRAY,TRIM1#
sub67914-26062
main67914-26062-B1iKDH201,203,223,TRH213,223;KDH200,202,212,220,221,222,LH20#,212,222,TRH20#,221..ARL,GCC,GEN,MA,SA201307-201402
DK.GRAY,TRIM1#
67918APLATE, REAR DOOR SCUFF, LH
main67918-26110-B0iKDH212..4FC;KDH222,223,LH222..RHD;TRH223..RHD..(ARL,GEN,TH);KDH212,TRH213,223..RHD..GL200501-201008
MD.GRAY,TRIM1#
DK.GRAY,TRIM1#
DK.GRAY,TRIM1#
67921RETAINER, FRONT DOOR SCUFF PLATE
67935PLATE, BACK DOOR SCUFF
INDONESIA HI PACKAGE,DK.GRAY,TRIM1#
sub67935-V3060
67935GSCREW, BACK DOOR SCUFF PLATE
main93560-56014iKDH222..STD..(ARL,GCC,GEN,SA);KDH212,220,221,223,LH212,222,TRH213,22#..STD200501-201306
67935HGROMMET, BACK DOOR SCUFF PLATE
67936BCOVER, BACK DOOR SCUFF SIDE, RH
main67936-26020-B1iKDH222,TRH213,223..STD;KDH20#,212,220,LH20#,212,222,TRH20#,221..03S,06S,10S,12S,15S,16S200501-200509
MD.GRAY,TRIM1#
main67936-26040-B0iKDH222,LH212,TRH223..STD;KDH20#,212,220,221,223,LH20#,222,TRH20#,213,221..03S,06S,12S,14S,15S,16S200510-201008
MD.GRAY,TRIM1#
DK.GRAY,TRIM1#
67937FCOVER, BACK DOOR SCUFF SIDE, LH
main67937-26020-B1iKDH222,TRH213,223..STD;KDH20#,212,220,LH20#,212,222,TRH20#,221..03S,06S,10S,12S,15S,16S200501-200509
MD.GRAY,TRIM1#
main67937-26040-B0iKDH222,LH212,TRH223..STD;KDH20#,212,220,221,223,LH20#,222,TRH20#,213,221..03S,06S,12S,14S,15S,16S200510-201008
MD.GRAY,TRIM1#
DK.GRAY,TRIM1#
6477926020TRAY, SPARE WHEEL COVER
main64779-26020
9018906057
main90189-06057
9046710161
main90467-10161
9046710167
main90467-10167
9046710178
main90467-10178
9356056014
main93560-56014
33 parts on this diagram · 13 diagrams in section
