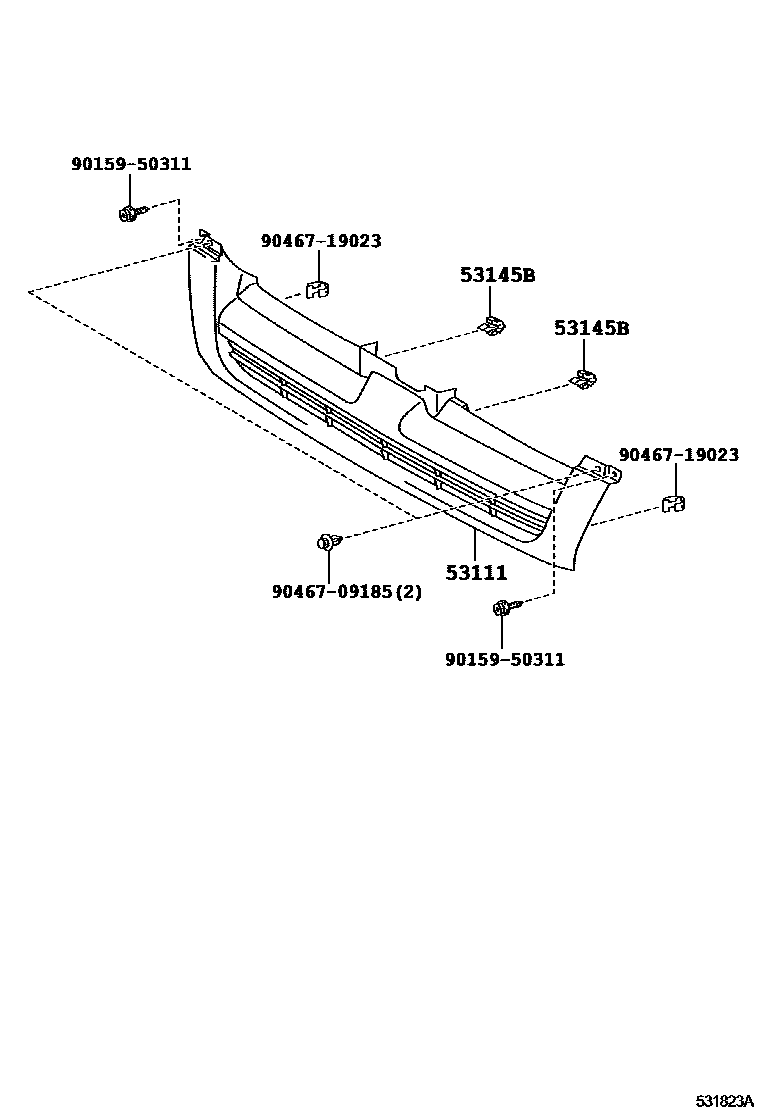

RADIATOR GRILLE

0001 1 0002 1 0003 1

53111GRILLE, RADIATOR

main53111-26340iKDH20#,LH20#,TRH20#..STD200501-200709

NO PAINT REQ.

main53111-26350iKDH200,201,202..GL200501-200709

PLATED

main53111-26360iKDH222..LHD..GEN;KDH222..STD..(ARL,GCC);KDH212,220,221,223,LH212,222,TRH213,22#..STD..(ARL,GCC,GEN,SA)200501-200709

NO PAINT REQ.

main53111-26370iTRH213..4FC200501-200506

PLATED

main53111-26390iKDH20#,LH20#,TRH20#..STD201008-201401

NO PAINT REQ.

main53111-26400iKDH201,202,203..GL201008-201401

PLATED

main53111-26410iKDH212,22#,LH212,222,TRH213,22#..STD..(ARL,GCC,GEN,SA,VN)201008-201402

NO PAINT REQ.

main53111-26420iKDH222..TH201212-201401

PLATED

main53111-26430iKDH20#,LH20#,TRH20#..STD200709-201008

NO PAINT REQ.

main53111-26440iKDH201,202..GL200709-201008

PLATED

main53111-26450iKDH212,22#,LH212,222,TRH213,22#..STD..(ARL,GCC,GEN,SA,VN)200709-201008

NO PAINT REQ.

main53111-26460iTRH223..CIS200709-200808

PLATED

main53111-26470iTRH223..CIS200808-201008

PLATED

main53111-26490iKDH223,TRH223..12S201008-201312

PLATED

53145BCLIP, RADIATOR GRILLE GARNISH

main53145-26010×2iTRH213..4FC200501-200506

9015950311

main90159-50311

9046709185

main90467-09185

9046719023

main90467-19023

5 parts on this diagram · 3 diagrams in section
