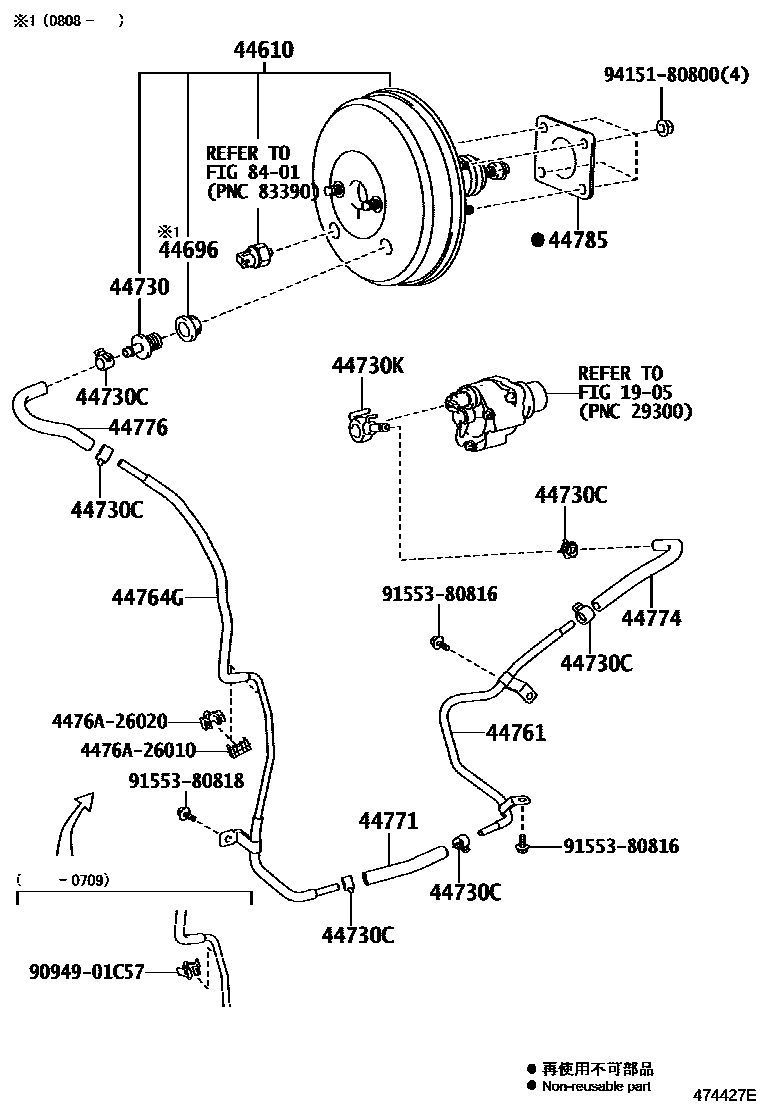

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

1905VACUUM PUMP

→ Go to FIG 19-05

44610BOOSTER ASSY, BRAKE

main44610-26660iTRH20#,213,22#..RHD..(03S,06S,10S,14S,15S,16S); TRH213..4FC200501-200703

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH

main44610-26661supersedes 44610-26671iTRH200,213..5D200704-201402

main44610-26670iTRH20#,213,22#..RHD..(03S,06S,10S,12S,14S,15S,16S)200501-200703

main44610-26671iTRH201..4D..SP..GEN;TRH201..SP..4FC..GEN;TRH201,203,213,223..RHD..SG..(06S,12S,15S,16S)200704-201401

main44610-26680supersedes 44610-26690iTRH20#,213,22#..LHD..(GCC,GEN); TRH223..CIS200501-200703

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH

main44610-26681supersedes 44610-26691iTRH213..GL..VN;TRH201,203,213,22#..LHD..(03S,06S,09S,12S,15S,16S)..(GCC,GEN,VN); TRH223..CIS200704-201312

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH

main44610-26701supersedes 44610-26711iKDH201..SP..06S;KDH221..5F..GEN;KDH201,221,222,223..STD..(ARL,SA)201205-201402

main44610-26710iKDH20#,212,22#,LH20#,212,222..RHD200501-200703

main44610-26711iKDH221..4D..5F;KDH221..4FC..GEN;KDH201,212,222..RHD..SG..(06S,15S,16S)..(GEN,SA);KDH20#,LH20#,212,222..RHD..(03S,12S,14S,15S,16S)..(GEN,MA,TH)200704-201401

main44610-26720iKDH212..4FC200601-200703

main44610-26721iKDH212..4FC;KDH223..RUS; KDH212..LHD..5F;KDH200,202,220,222,LH20#,212,222..LHD200704-201312

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH

main44610-26730iKDH202..4FC200501-200704

main44610-26731iKDH212..LHD..5F;KDH20#,220,222,LH20#,212,222..LHD200704-201312

main44610-26691iTRH213..GL..GEN201008-201312

ABS(ANTI-LOCK BRAKE SYSTEM)-WITHOUT

main44610-26700iKDH202..RHD..SRF..GEN;KDH200,201,203,212,22#,LH20#,212,222..RHD..(ARL,GEN,SA)200501-200703

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH

44696GROMMET, CHECK VALVE

main90480-24015iKDH222,TRH223..STD..SA200808-201204

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-28030iKDH222,TRH223..STD..SA200501-201204

44730CCLIP(FOR VACUUM HOSE)

main96133-41500×6iLH20#,212,222200501-201312

44730KUNION, VACUUM HOSE(FOR VACUUM PUMP)

main90405-09141iKDH222..RHD..GEN200709-201312

main90405-09175iKDH200..RHD..4D..5F..GEN; KDH222..RHD..GEN200501-200709

THAILAND SPEC

main90405-09192iLH20#,212,222200501-201312

44761TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR

main44761-26360iTRH20#,213,22#..LHD200501-200708

main44761-26381iKDH20#,212,22#..RHD200501-200608

main44761-26390iLH20#,212,222200501-201312

main44761-26410iTRH20#,213,22#..RHD200608-201402

main44761-26420iKDH20#,212,22#..RHD200608-201402

main44761-26430iTRH201,203,213,22#..LHD200709-201312

main44761-26440iKDH20#,212,220,222,223..LHD200709-201312

44764GTUBE, CONNECTOR TO BRAKE BOOSTER

main44764-26090iKDH20#,TRH20#..RHD200501-200608

main44764-26100iLH20#,212,222..RHD200501-201312

main44764-26110iKDH212,22#,TRH213,22#..RHD200501-200608

main44764-26120iKDH200,202,212,220,222,TRH20#,213,22#..LHD200501-200709

main44764-26130iLH20#..LHD200501-201312

main44764-26140iLH212,222..LHD200501-201312

main44764-26150iKDH20#,TRH20#..RHD200608-200708

main44764-26151iKDH20#,TRH20#..RHD200709-201401

main44764-26160iKDH212,22#,TRH213,22#..RHD200608-200708

main44764-26161iKDH212,22#,TRH213,22#..RHD200709-201402

main44764-26170iKDH20#,212,220,222,223,TRH201,203,213,22#..LHD200709-201312

44771HOSE, VACUUM TUBE CONNECTOR

main44770-26010iKDH20#,212,22#,TRH20#,213,22#..RHD200608-201402

main44770-26020iKDH20#,212,220,222,223,TRH201,203,213,22#..LHD200709-201312

main44771-26150iKDH20#,212,22#,TRH20#,213,22#200501-200604

main44771-26160iLH20#,212,222200501-201312

main95446-09160iKDH20#,212,22#,TRH20#,213,22#..RHD200605-200608

44774HOSE, UNION TO CONNECTOR TUBE

main44774-26380iTRH20#200501-201401

main44774-26391iKDH20#200501-201401

main44774-26400iLH20#200501-201312

main44774-26410iTRH213,22#200501-201402

main44774-26421iKDH212,22#200501-201402

main44774-26430iLH212,222200501-201312

44776HOSE, BRAKE BOOSTER

main44776-26040iKDH20#,212,22#,TRH20#,213,22#..RHD200501-201402

main44776-26050iLH20#,212,222..RHD200501-201312

main44776-26060iKDH20#,212,220,222,223,TRH201,203,213,22#..LHD200501-201312

main44776-26070iLH20#,212,222..LHD200501-201312

44785GASKET, BRAKE BOOSTER

main44785-32010iKDH222,TRH223..STD..SA201205-201402

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

4476A26010

main4476A-26010

4476A26020

main4476A-26020

9094901C57

main90949-01C57

9155380816

main91553-80816

9155380818

main91553-80818

9415180800

main94151-80800

19 parts on this diagram · 6 diagrams in section
