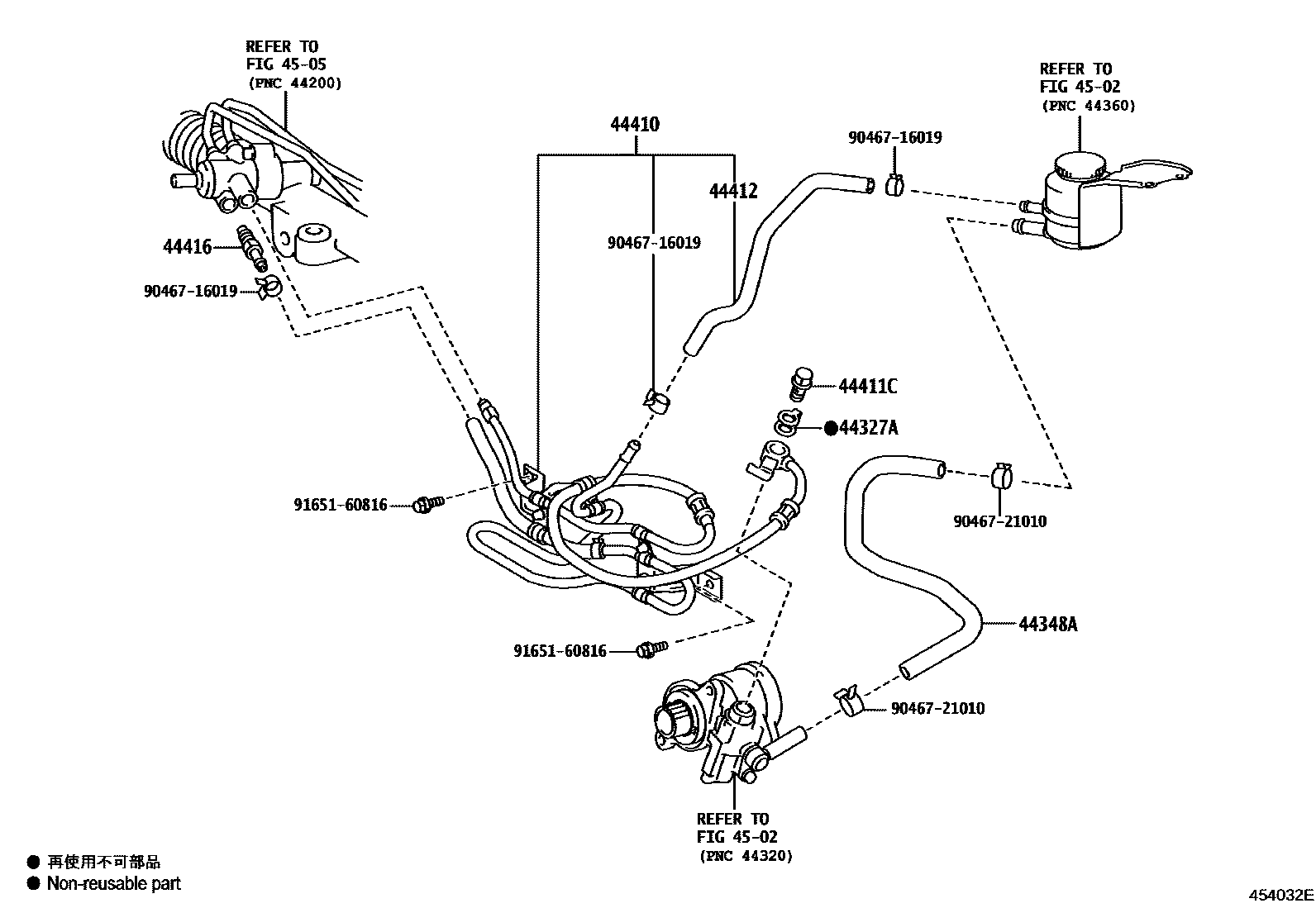

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1

44327AGASKET, PRESSURE PORT, NO.1

main44327-30040iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-26220iLH212,222200501-201312

main44348-26230iKDH212,22#200501-201402

main44348-26250iKDH20#200501-201401

main44348-26270iLH20#200501-201312

44410TUBE ASSY, PRESSURE FEED

main44410-26890iLH20#..RHD200501-201312

main44410-26A00iKDH212,220,222,223..LHD200501-201312

main44410-26A10iLH212,222..RHD200501-201312

main44410-26A20iLH212,222..LHD200501-201312

main44410-26A30iTRH213,22#..RHD200501-201402

main44410-26A40iTRH213,22#..LHD200501-201312

main44410-26A60iKDH212,22#..RHD200501-201402

main44410-26A80iTRH20#..RHD200501-201401

main44410-26A90iTRH201,203..LHD200501-201312

main44410-26B00iKDH20#..LHD200501-201312

main44410-26B10iKDH20#..RHD200501-201401

main44410-26B30iLH20#..LHD200501-201312

44411CBOLT, UNION(FOR PRESSURE FEED HOSE)

main90401-16014iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201103

main90401-16034iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#201104-201402

44412HOSE, RETURN

main44412-26170iTRH201,203..LHD200501-201312

main44412-26410iKDH212,22#..RHD200501-201402

main44412-26430iKDH20#,LH20#200501-201401

main44412-26440iLH212,222;KDH212,220,222,223..LHD200501-201312

main44412-26450iTRH213,22#;TRH20#..RHD200501-201402

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-26080iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-200511

main44416-60370iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200512-201402

4502VANE PUMP & RESERVOIR (POWER STEERING)

→ Go to FIG 45-02

4505FRONT STEERING GEAR & LINK

→ Go to FIG 45-05

9046716019

main90467-16019

9046721010

main90467-21010

9165160816

main91651-60816

11 parts on this diagram · 12 diagrams in section
