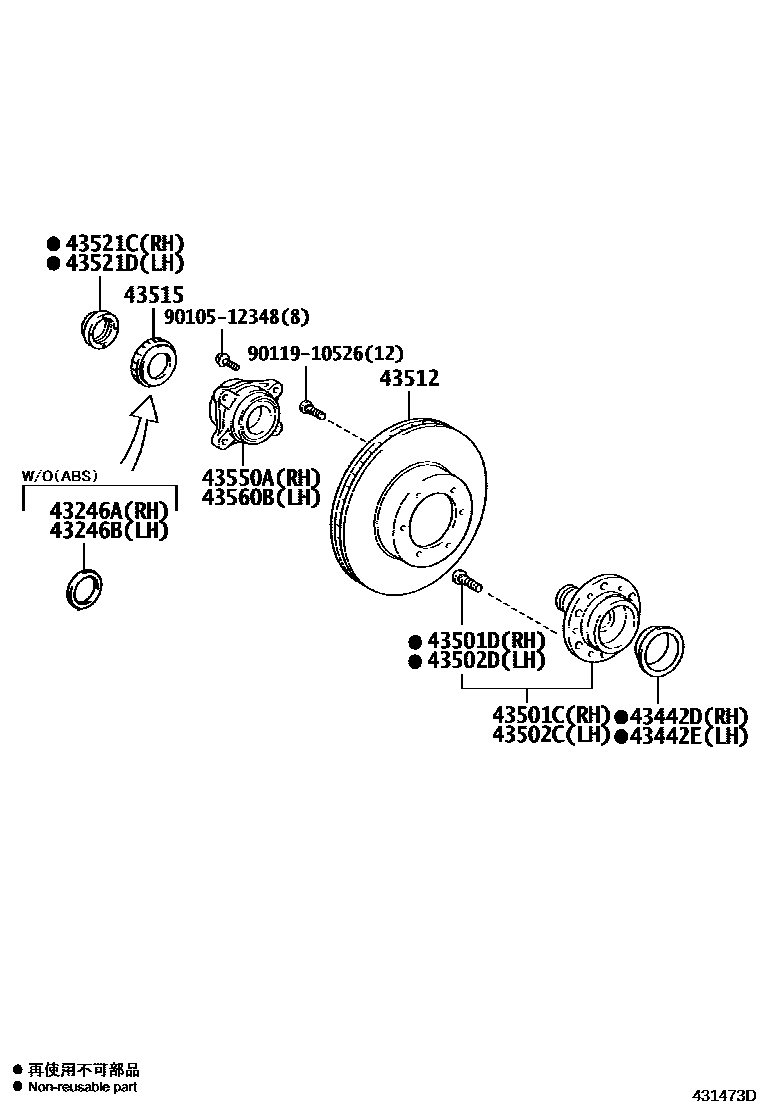

FRONT AXLE HUB

43246ADEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 RH

main43246-26010iKDH202..GCC,TH;TRH203..GCC,MA;TRH201..SG..4FC;KDH202..HRF..MA;KDH202..15S..GEN;TRH201..4FC..ARL;TRH203..SRF..GEN;KDH202..LHD..12S..5F;KDH220..SP..(GEN,SA);KDH212,TRH201..(03S,06S,10S,11S,16S)..5F;KDH201,203,221,223,LH20#,212,222,TRH22#..ARL,GCC,GEN,SA,TH;KDH200,222,TRH213..(03S,10S,14S,16S)..(GCC,GEN,MA,SA,TH,VN)200501-200804

43246BDEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 LH

main43246-26010iKDH202..GCC,TH;TRH203..GCC,MA;TRH201..SG..4FC;KDH202..HRF..MA;KDH202..15S..GEN;TRH201..4FC..ARL;TRH203..SRF..GEN;KDH202..LHD..12S..5F;KDH220..SP..(GEN,SA);KDH212,TRH201..(03S,06S,10S,11S,16S)..5F;KDH201,203,221,223,LH20#,212,222,TRH22#..ARL,GCC,GEN,SA,TH;KDH200,222,TRH213..(03S,10S,14S,16S)..(GCC,GEN,MA,SA,TH,VN)200501-200804

43442DCAP, KNUCKLE GREASE RETAINER, RH

main43442-26080iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200805-201402

43442ECAP, KNUCKLE GREASE RETAINER, LH

main43442-26080iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200805-201402

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-26110iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02047×6iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-26110iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02047×6iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

43512DISC, FRONT

main43512-26190×2iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

43515ROTOR, SKID CONTROL, FRONT

main43515-26030×2iKDH202,212,TRH203..(SMRF,SRF)..4D..(GCC,GEN,SA,TH,VN);KDH200,201,203,22#,LH20#,212,222,TRH201,213,22#..(03S,06S,09S,10S,12S,13S,14S,15S,16S)..(ARL,GCC,GEN,SA,TH,VN); TRH223..CIS;KDH212,TRH213..4FC200501-200804

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH

main43515-26031×2iKDH222..STD..SA;KDH212,TRH200,213..5D;KDH223,TRH223..(12S,16S)..(CIS,RUS,TH)200805-201402

43521CNUT, FRONT WHEEL ADJUSTING, RH

main43521-35010iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

43521DNUT, FRONT WHEEL ADJUSTING, LH

main43521-35010iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

43550ABEARING (FOR FRONT AXLE HUB RH)

main43560-26010iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

43560BBEARING (FOR FRONT AXLE HUB LH)

main43560-26010iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

9010512348

main90105-12348

9011910526

main90119-10526

16 parts on this diagram · 1 diagram in section
