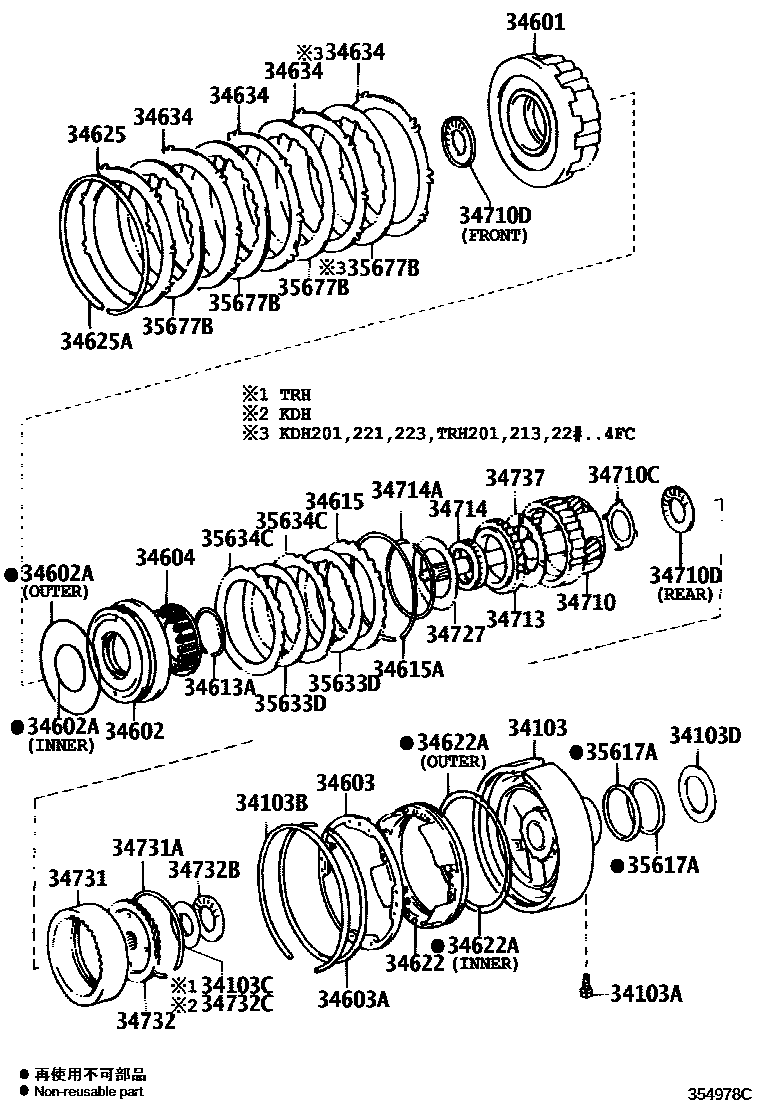

OVERDRIVE GEAR (ATM)

0001 1A340E,A343E 0002 1A45DE

34103SUPPORT SUB-ASSY, OVERDRIVE

main34103-30020iKDH200,201,202,212,22#,TRH201,203,213,22#..4FC200501-201312

34103ABOLT (FOR OVERDRIVE SUPPORT)

main90105-08281×2iKDH200,201,202,212,22#,TRH201,203,213,22#..4FC200501-201312

34103BRING, HOLE SNAP (FOR OVERDRIVE SUPPORT)

main90521-99033iKDH200,201,202,212,22#,TRH201,203,213,22#..4FC200501-201312

34103CRACE, THRUST BEARING (FOR OVERDRIVE SUPPORT FRONT)

main35789-22060iTRH201,203,213,22#..4FC200501-201312

34103DRACE, THRUST BEARING (FOR OVERDRIVE SUPPORT REAR)

main35789-30090iKDH200,201,202,212,22#,TRH201,203,213,22#..4FC200501-201312

34601DRUM SUB-ASSY, OVERDRIVE DIRECT CLUTCH

main34601-26020iKDH200,201,202,212,22#..4FC200501-201312

main34601-28010iTRH200201308-201312

main34601-50020iTRH201,203,213,22#..4FC200501-201312

34602PISTON SUB-ASSY, OVERDRIVE DIRECT CLUTCH

main34602-22010iTRH200201308-201312

main34602-30020iKDH200,201,202,212,22#,TRH201,203,213,22#..4FC200501-201312

34602ARING, O (FOR OVERDRIVE DIRECT CLUTCH PISTON)

main90301-56007iTRH200201308-201312

INNER

main90301-65006iKDH200,201,202,212,22#,TRH201,203,213,22#..4FC200501-201312

INNER

main90301-99058iTRH200201308-201312

OUTER

main90301-99086iKDH200,201,202,212,22#,TRH201,203,213,22#..4FC200501-201312

OUTER

34603SPRING SUB-ASSY, OVERDRIVE BRAKE RETURN

main34603-22010iTRH200201308-201312

main34603-30030iKDH200,201,202,212,22#,TRH201,203,213,22#..4FC200501-201312

34603ARING, HOLE SNAP (FOR OVERDRIVE BRAKE RETURN SPRING)

main90520-99039iKDH200,201,202,212,22#,TRH201,203,213,22#..4FC200501-201312

34604SPRING SUB-ASSY, OVERDRIVE CLUTCH RETURN

main34604-22010iTRH200201308-201312

main34604-30010iKDH200,201,202,212,22#,TRH201,203,213,22#..4FC200501-201312

34613ARING, SHAFT SNAP (FOR OVERDRIVE DIRECT CLUTCH RETURN SPRING)

main90520-58001iKDH200,201,202,212,22#,TRH201,203,213,22#..4FC200501-201312

34615FLANGE, OVERDRIVE CLUTCH

main34615-22010iKDH200,201,202,212,22#,TRH201,203,213,22#..4FC200501-201312

T=3.1

main34615-22020iKDH200,201,202,212,22#,TRH201,203,213,22#..4FC200501-201312

T=3.2

main34615-22030iKDH200,201,202,212,22#,TRH201,203,213,22#..4FC200501-201312

T=3.3

main34615-50030iKDH200,201,202,212,22#,TRH201,203,213,22#..4FC200501-201312

T=3.4

main34615-50040iKDH200,201,202,212,22#,TRH201,203,213,22#..4FC200501-201312

T=3.5

main34615-50050iKDH200,201,202,212,22#,TRH201,203,213,22#..4FC200501-201312

T=3.6

main35634-30070iTRH200201308-201312

T=2.0

34615ARING, HOLE SNAP (FOR OVERDRIVE CLUTCH FLANGE)

main90521-99001iKDH200,201,202,212,22#,TRH201,203,213,22#..4FC200501-201312

34622PISTON, OVERDRIVE BRAKE

main34622-22020iTRH200201308-201312

main34622-30090iKDH200,202,212,220,222..4FC200501-201312

main34622-30100iKDH201,221,223,TRH201,203,213,22#..4FC200501-201312

34622ARING, O (FOR OVERDRIVE BRAKE PISTON)

main90301-99088iKDH200,201,202,212,22#,TRH201,203,213,22#..4FC200501-201312

INNER

main90301-99090iKDH200,201,202,212,22#,TRH201,203,213,22#..4FC200501-201312

OUTER

main90301-99103iTRH200201308-201312

INNER

main90301-99111iTRH200201308-201312

OUTER

34625FLANGE, OVERDRIVE BRAKE, NO.1

main34625-22020iTRH200201308-201312

T=4.0

main34625-22030iKDH200,201,202,212,22#,TRH201,203,213,22#..4FC200501-201312

T=3.3,MARK 33

main34625-22040iKDH200,201,202,212,22#,TRH201,203,213,22#..4FC200501-201312

T=3.8,MARK 38

main34625-22050iKDH200,201,202,212,22#,TRH201,203,213,22#..4FC200501-201312

T=3.9,MARK 39

main34625-22060iKDH200,201,202,212,22#,TRH201,203,213,22#..4FC200501-201312

T=4.0,MARK 40

main34625-50020iKDH200,201,202,212,22#,TRH201,203,213,22#..4FC200501-201312

T=3.5,MARK 35

main34625-50030iKDH200,201,202,212,22#,TRH201,203,213,22#..4FC200501-201312

T=3.6,MARK 36

main34625-50040iKDH200,201,202,212,22#,TRH201,203,213,22#..4FC200501-201312

T=3.7,MARK 37

34625ARING, HOLE SNAP (FOR OVERDRIVE BRAKE FLANGE)

main90521-99004iTRH200201308-201312

main90521-99027iKDH200,201,202,212,22#,TRH201,203,213,22#..4FC200501-201312

34634PLATE, OVERDRIVE BRAKE

main34634-30021×3iKDH200,202,212,220,222..4FC; KDH201,221,223,TRH201,203,213,22#..4FC200501-201312

34710GEAR ASSY, OVERDRIVE PLANETARY

main34710-22031iKDH200,201,202,212,22#..4FC200501-201312

main34710-28030iTRH200201308-201312

main34710-60021iTRH201,203,213,22#..4FC200501-201312

34710CRACE, THRUST BEARING(FOR OVERDRIVE PLANETARY GEAR)

main34739-30041iTRH200201308-201312

FRONT

main35789-22010iTRH200201308-201312

REAR

main35789-30052iKDH200,201,202,212,22#,TRH201,203,213,22#..4FC200501-201312

34710DBEARING, THRUST NEEDLE ROLLER(FOR OVERDRIVE PLANETARY GEAR)

main90374-23012iTRH200201308-201312

REAR

main90374-31005iKDH200,201,202,212,22#,TRH201,203,213,22#..4FC200501-201312

FRONT

main90374-31008iKDH200,201,202,212,22#,TRH201,203,213,22#..4FC200501-201312

REAR

main90374-37003iTRH200201308-201312

FRONT

34713RACE, 1 WAY CLUTCH OUTER (FOR OVERDRIVE)

main34713-28010iTRH200201308-201312

main34713-32010iKDH200,201,202,212,22#,TRH201,203,213,22#..4FC200501-201312

34714CLUTCH, 1 WAY(FOR OVERDRIVE)

main35791-28010iTRH200201308-201312

main35791-30060iKDH200,202,212,220,222,TRH201,213,22#..4FC200501-200908

main35791-30130iKDH200,212,TRH201,203,213,22#..4FC200908-201312

main35791-50010iKDH201,221,223..4FC200610-201312

34714ARING, HOLE SNAP(FOR 1 WAY CLUTCH)

main90521-99028iKDH200,201,202,212,22#,TRH201,203,213,22#..4FC200501-201312

34727PLATE, RETAINING (FOR OVERDRIVE)

main34727-32010iKDH200,201,202,212,22#,TRH201,203,213,22#..4FC200501-201312

34731GEAR, OVERDRIVE PLANETARY RING

main34731-30030iKDH200,201,202,212,22#..4FC200501-201312

main34731-50010iTRH201,203,213,22#..4FC200501-201312

34731ARING, HOLE SNAP (FOR OVERDRIVE PLANETARY RING GEAR)

main90521-99024iKDH200,201,202,212,22#..4FC200501-201312

main90521-99118iTRH201,203,213,22#..4FC200501-201312

34732FLANGE, OVERDRIVE PLANETARY RING GEAR

main34732-22011iKDH200,201,202,212,22#..4FC200501-201312

main34732-40011iTRH201,203,213,22#..4FC200501-201312

34732BBEARING, THRUST(FOR OVERDRIVE PLANETARY RING GEAR FLANGE)

main90374-33002iKDH200,201,202,212,22#,TRH201,203,213,22#..4FC200501-201312

34732CRACE, THRUST BEARING (FOR OVERDRIVE PLANETARY RING GEAR)

main35789-22060iKDH22#..4FC;KDH200..4FC..ARL;KDH200..06S..4FC200501-200610

34737WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.3

main34737-28010iTRH200201308-201312

main34737-30030iKDH200,201,202,212,22#..4FC200501-201312

main34737-50010iTRH201,203,213,22#..4FC200501-201312

35617ARING, CLUTCH DRUM OIL SEAL (FOR OVERDRIVE)

main35617-30020×2iKDH200,201,202,212,22#,TRH201,203,213,22#..4FC200501-201312

main35617-43010×2iTRH200201308-201312

35633DDISC, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH)

main35633-14010×2iKDH200,201,202,212,22#,TRH201,203,213,22#..4FC200501-201312

35634CPLATE, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH)

main34616-30010×2iKDH200,201,202,212,22#,TRH201,203,213,22#..4FC200501-201312

T=2.0

main34634-30010iTRH200201308-201312

T=2.25-2.35

main35634-30080iTRH200201308-201312

T=1.95-2.05

35677BDISC, CLUTCH (FOR OVERDRIVE BRAKE)

main34633-60010×3iKDH200,202,212,220,222..4FC; KDH201,221,223,TRH201,203,213,22#..4FC200501-201312

36 parts on this diagram · 2 diagrams in section
