SPEEDOMETER DRIVEN GEAR (MTM)

0001 1G55 0002 1R351

3303EXTENSION HOUSING (MTM)

→ Go to FIG 33-03

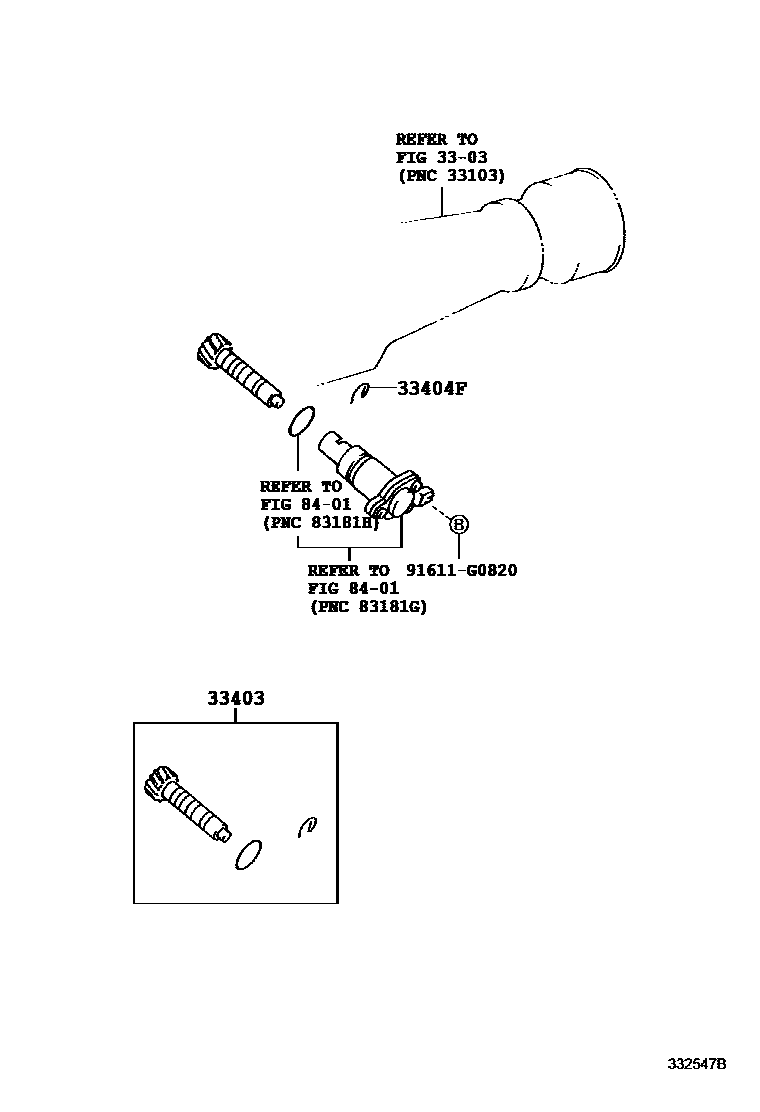

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33403-29315iTRH201,203,213,22#..5F..(ARL,CIS,GCC,GEN,MA,SA,TH)200501

N=32,MARK 32:10

main33403-39305iLH20#,212,222200501

N=19,MARK 19:6

main33403-39345iKDH223..5F..(ARL,RUS);KDH201,203,221..5F..STD201008

N=31,MARK 31:11

main33403-39415iKDH212..LHD..STD..GEN;KDH202..SRF..5F..(GCC,GEN,MA);KDH202,222..HRF..5F..(ARL,GCC,GEN,SA);KDH200,212,220..(03S,06S,10S,15S)..5F..(ARL,GCC,GEN,MA,SA)200501

N=33,MARK 33:11

main33403-39425iKDH201,203,221,223..5F200610-201008

N=32,MARK 32:11

33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iKDH222..TH200501-201008

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

91611G0820

main91611-G0820

5 parts on this diagram · 2 diagrams in section
