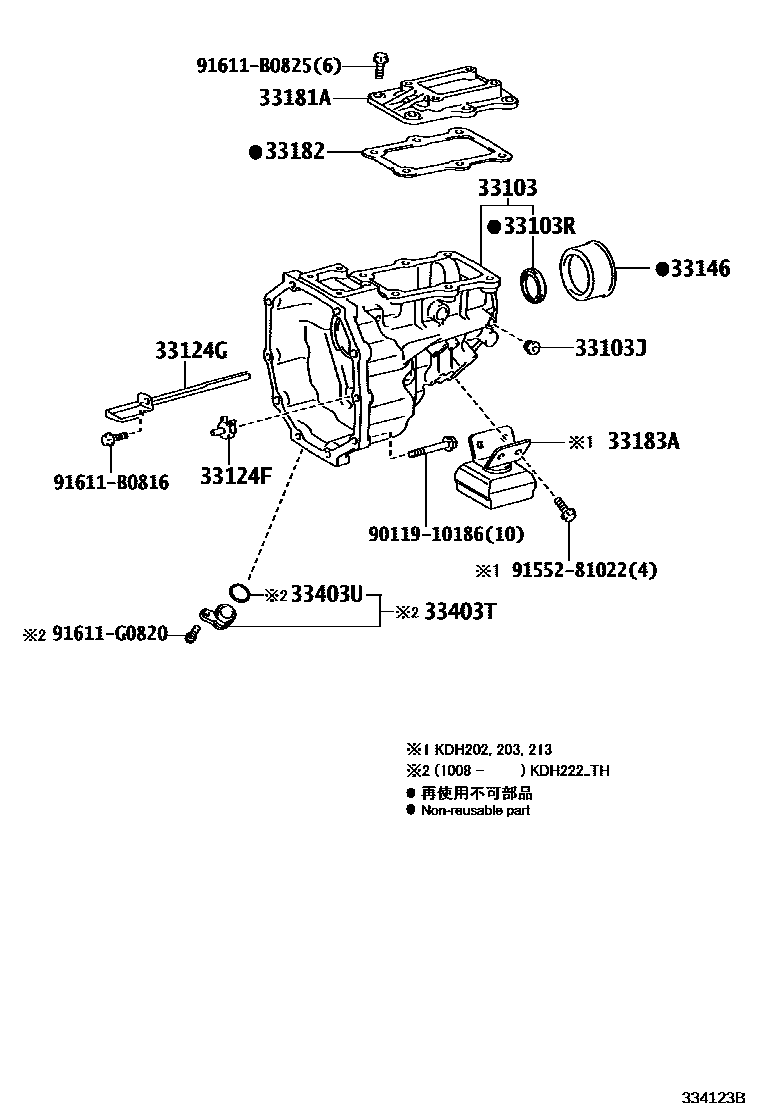

EXTENSION HOUSING (MTM)

0001 1R351 0002 1G55

33103HOUSING SUB-ASSY, EXTENSION(MTM)

main33103-0L010iLH20#,212,222200501-201312

main33103-26070iKDH20#,212,22#,TRH201,203,213,22#..5F200501-201402

33103JPLUG, TIGHT(FOR EXTENSION HOUSING)

main90341-10065iKDH20#,212,22#,TRH201,203,213,22#..5F200501-201402

33103RSEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90311-40001iKDH20#,212,22#,TRH20#,213,22#..5F200501-200706

main90311-40032iKDH20#,212,22#,TRH20#,213,22#..5F200706-201101

main90311-40035iKDH20#,212,22#,TRH201,203,213,22#..5F201101-201402

main90311-T0020iLH20#,212,222200501-201211

main90311-T0050iLH20#,212,222201211-201312

33124FPIPE, OIL RECEIVER, NO.1(FOR EXTENSION HOUSING)

main33124-35100iKDH20#,212,22#,TRH201,203,213,22#..5F200501-201402

main33124-36010iLH20#,212,222200501-201312

33124GPIPE, OIL RECEIVER, NO.2(FOR EXTENSION HOUSING)

main33124-0L010iLH20#,212,222200501-201312

main33124-35090iKDH20#,212,22#,TRH201,203,213,22#..5F200501-201402

33146DEFLECTOR, EXTENSION HOUSING DUST(MTM)

main33146-30010iTRH213..VN200501-201205

AISIN AI

main33146-30020iTRH213..VN200501-201205

KOJIMA

33181ACOVER, EXTENSION HOUSING(MTM)

main33181-26030iKDH20#,212,22#,TRH201,203,213,22#..5F200501-201402

33182GASKET, EXTENSION HOUSING COVER(MTM)

main33182-35020iKDH20#,212,22#,TRH20#,213,22#..5F200501-201101

main33584-71010iKDH20#,212,22#,TRH201,203,213,22#..5F201101-201402

33183ADAMPER, EXTENSION HOUSING DYNAMIC(MTM)

main33183-26030iKDH203..GEN;KDH202,212..5F200501

33403TCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE

main33403-26070iKDH222..TH201008-201309

33403URING, O(FOR MTM SPEEDOMETER DRIVEN HOLE COVER)

main96711-24030iKDH222..TH201008-201309

9011910186

main90119-10186

9155281022

main91552-81022

91611B0816

main91611-B0816

91611B0825

main91611-B0825

91611G0820

main91611-G0820

16 parts on this diagram · 2 diagrams in section
