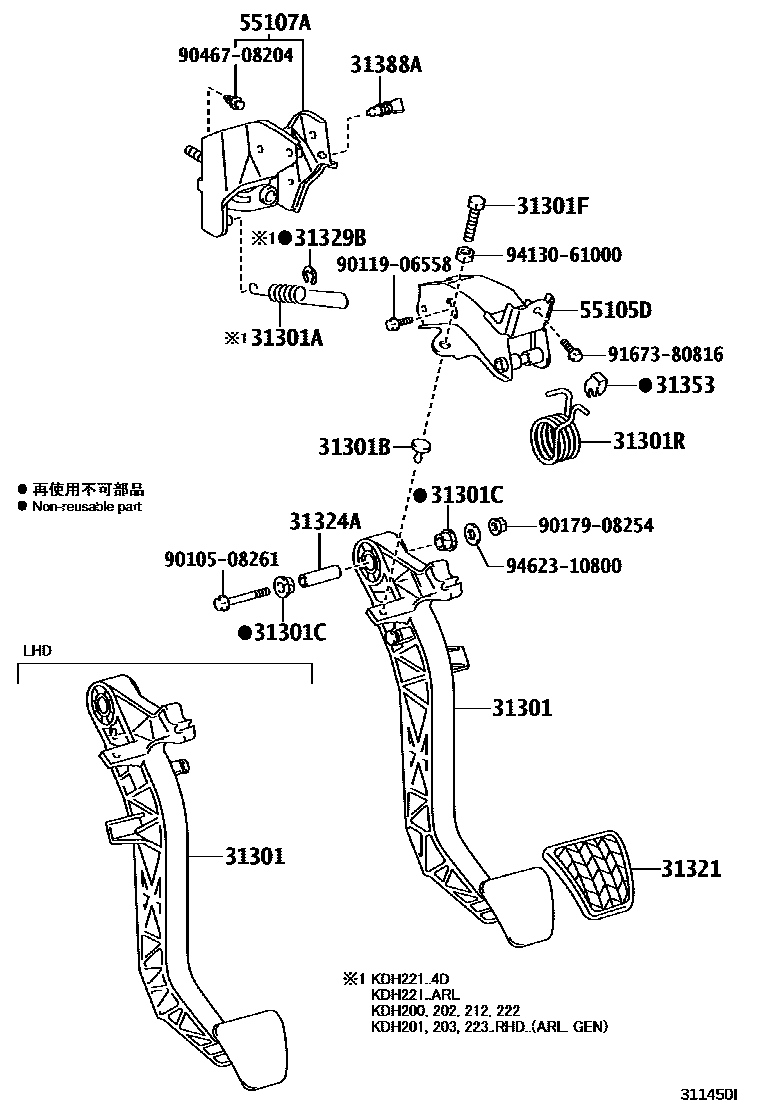

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1

31301PEDAL SUB-ASSY, CLUTCH

main31311-26150iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#..RHD..5F200501-201002

main31311-26151iKDH203..TH201003

main31311-26160iKDH200,202,212,220,222,LH20#,212,222,TRH20#,213,22#..LHD..5F200501-201002

main31311-26161iTRH213..VN201003-201205

31301ASPRING(FOR CLUTCH PEDAL)

main90507-23024iKDH200..06S..GCC;KDH202..RHD..12S200501-201309

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06071iKDH20#,212,22#,LH20#,212,222,TRH201,203,213,22#..5F200501-201402

31301CBUSH(FOR CLUTCH PEDAL)

main90386-14015iTRH213..VN200501-201205

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iTRH213..VN200501-201309

31301RSPRING, COMPRESSION(FOR TURNOVER SPRING SEAT)

main90949-03127iKDH221..4D..5F;KDH201,203,223..RHD..SG..5F..(ARL,GEN);KDH201,221..RHD..SP..03S..5F..(ARL,GEN)200501-201205

main90949-03131iKDH201..SG..5F;KDH201,203,221,223..(03S,14S)..5F200501-200905

31321PAD, CLUTCH PEDAL

main31321-52010iTRH213..VN200501-201205

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-08160iTRH213..VN200501-201205

31329BRING, E(FOR CLUTCH PEDAL PAWL)

main96160-00600iKDH201..SP..06S..5F200501-201309

31353HOLDER, CLUTCH PEDAL SPRING

main31353-26010iTRH213..VN200501-201205

31388ASTOPPER, CLUTCH RELEASE SECTOR

main31388-26010iTRH213..VN200501-201205

55105DBRACKET SUB-ASSY, CLUTCH PEDAL

main55105-26010iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#..5F200501-201007

main55105-26020iKDH222..GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH201,203,213,22#..5F201008-201402

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-26030iKDH20#,212,220,222,223,LH20#,212,222,TRH201,203,213,22#..LHD..5F200501-201312

main55107-26040iKDH222..TH200501-201402

9010508261

main90105-08261

9011906558

main90119-06558

9017908254

main90179-08254

9046708204

main90467-08204

9167380816

main91673-80816

9413061000

main94130-61000

9462310800

main94623-10800

20 parts on this diagram · 2 diagrams in section
