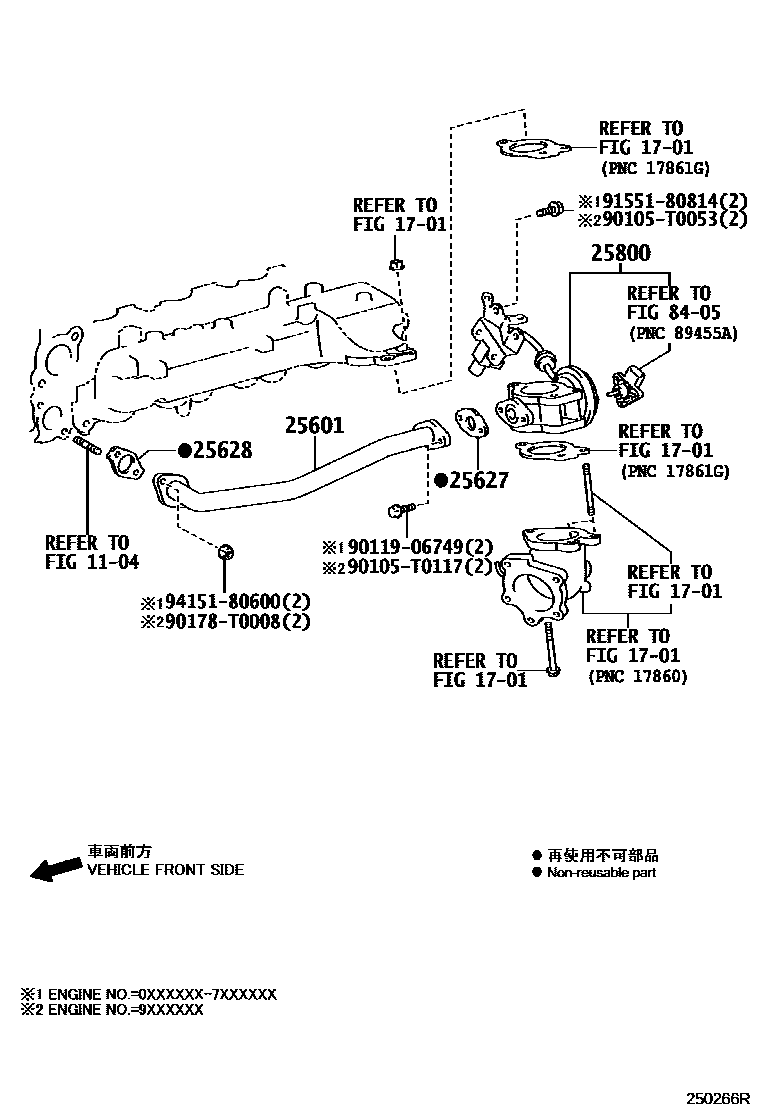

EXHAUST GAS RECIRCULATION SYSTEM
1104CYLINDER HEAD
1701MANIFOLD
25601PIPE SUB-ASSY, EGR, NO.1
THAILAND SPEC
25627GASKET, EGR VALVE
main25627-30010i2KDFTV..KDH200..RHD..4D..5F..GEN; 2KDFTV..KDH202..4FC;2KDFTV..KDH202..RHD..12S; 2KDFTV..KDH202..RHD..SRF..12S..GEN; 2KDFTV..KDH222..RHD..GEN200501-200709
CKD PACKAGE(THAILAND); THAILAND SPEC
CKD PACKAGE(THAILAND)
25628GASKET, EGR INLET
THAILAND SPEC
main25628-30030i2KDFTV..KDH200..TH; 2KDFTV..KDH202..LHD..15S..GEN; 2KDFTV..KDH202..TH; 2KDFTV..KDH212..GL;2KDFTV..KDH200..4FC;2KDFTV..KDH200,220,222..SA,TH; 2KDFTV..KDH220,222..STD..SA200910-201105
CKD PACKAGE(SOUTH AFRICA); CKD PACKAGE(THAILAND); PHILIPPINE SPEC; WITHOUT(CKD PACKAGE)
25800VALVE ASSY, ELECTRIC EGR CONTROL
THAILAND SPEC
8405ELECTRONIC CONTROLED DIESEL (ECD)
90105T0053
main90105-T0053
90105T0117
main90105-T0117
9011906749
main90119-06749
90178T0008
main90178-T0008
9155180814
main91551-80814
9415180600
main94151-80600
13 parts on this diagram · 4 diagrams in section
