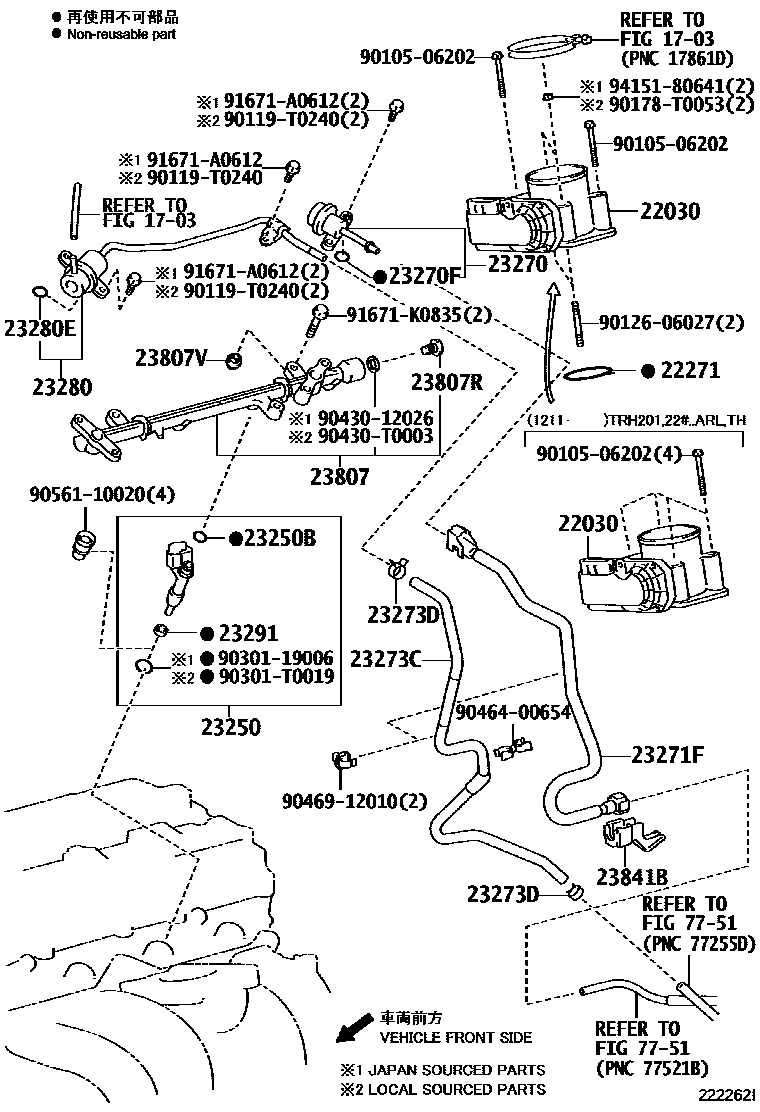

FUEL INJECTION SYSTEM
1703AIR CLEANER
22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
main22030-75020i2TRFE..TRH201,22#;2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN)200501-201402
22271GASKET, THROTTLE BODY
23250INJECTOR ASSY, FUEL
main23209-09055×4i2TRFE..TRH221..SP..GEN;2TRFE..TRH223..5F..GEN;2TRFE..TRH213..RHD..STD..GEN;2TRFE..TRH201,203..SRF..(03S,12S,15S)..GEN200501-201312
main23209-79155×4i2TRFE..TRH20#..LHD..SRF..GEN;2TRFE..TRH223..LHD..STD..GEN; 2TRFE..TRH201..5D..03S..GEN; 2TRFE..TRH203..LHD..15S..GEN; 2TRFE..TRH213..GCC;2TRFE..TRH201,22#..SG..(03S,13S);2TRFE..TRH201,213..(06S,09S,10S,11S,15S)..(GCC,GEN,SA,TH);2TRFE..TRH20#,22#..(03S,12S,14S,15S,16S)..(ARL,CIS,GCC,SA,TH); 2TRFE..TRH221..SP..GEN;2TRFE..TRH223..5F..GL..GEN; 2TRFE..TRH223..5F..GL..GEN200501-200801
CENTRAL AMERICA(4COUNTRY) SPEC; CHILI SPEC; CHINA(PRC) SPEC; COSTA RICA SPEC; ECUADOR SPEC; EL SALVADOR SPEC; MEXICO SPEC; PERU SPEC; VIETNAM SPEC
*272
23250BRING, O(FOR FUEL INJECTOR)
VIETNAM SPEC
23270DAMPER ASSY, FUEL PRESSURE PULSATION
23270FRING, O(FOR PULSATION DAMPER)
23271FHOSE, FUEL
23273CHOSE, FUEL, NO.2
23273DCLIP(FOR FUEL HOSE NO.2)
23280REGULATOR ASSY, FUEL PRESSURE
23280ERING, O(FOR FUEL PRESSURE REGULATOR)
23291INSULATOR, INJECTOR VIBRATION
main23291-73010×4i2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN)200501-201402
23807PIPE SUB-ASSY, FUEL DELIVERY
main23807-75050i2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN)200501-201402
23807RPLUG, FUEL DELIVARY PIPE
(L)
23807VSPACER, NO.1(FOR DELIVERY PIPE)
23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)
7751FUEL TANK & TUBE
9010506202
main90105-06202
90119T0240
main90119-T0240
9012606027
main90126-06027
90178T0053
main90178-T0053
9030119006
main90301-19006
90301T0019
main90301-T0019
9043012026
main90430-12026
90430T0003
main90430-T0003
9046400654
main90464-00654
9046912010
main90469-12010
9056110020
main90561-10020
91671A0612
main91671-A0612
91671K0835
main91671-K0835
9415180641
main94151-80641
32 parts on this diagram · 3 diagrams in section
