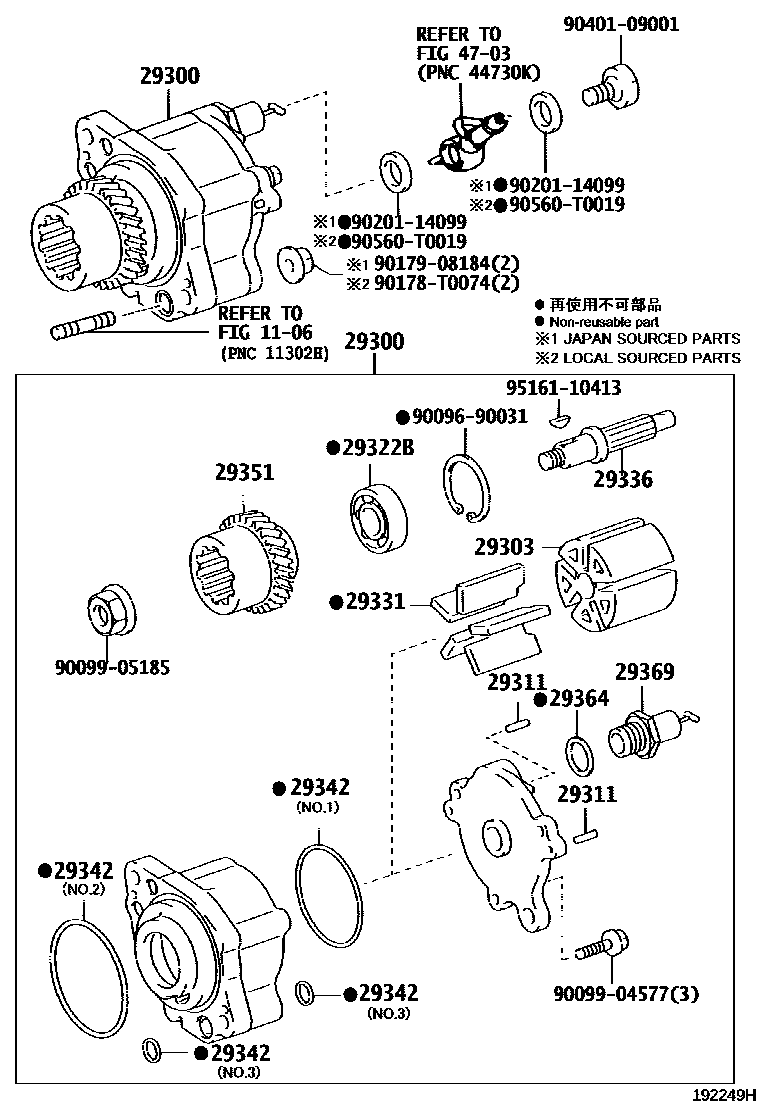

VACUUM PUMP

0001 1 0002 1

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

29300PUMP ASSY, VACUUM

main29300-0L010i2KDFTV..KDH212..STD200508-200512

main29300-30020i1KDFTV..KDH223..TH201008-201310

main29300-54220i5LE..LH20#,212,222200501-201312

main29300-67020i2KDFTV..KDH202..4FC;2KDFTV..KDH202..RHD..SRF..12S..GEN;2KDFTV..KDH200,212..(06S,15S)..(GCC,SA)200501-200708

29303ROTOR SUB-ASSY, VACUUM PUMP

main29303-67020i2KDFTV..KDH200..03S..GCC;2KDFTV..KDH202..GCC,MA,TH;2KDFTV..KDH202..LHD..12S..5F;2KDFTV..KDH202,222..HRF..(ARL,GCC,GEN,SA);2KDFTV..KDH200,202..(03S,06S,15S)..(ARL,GEN,MA,SA,TH);1KDFTV,2KDFTV..KDH201,203,212,220,221,223..03S,06S,10S,11S,12S,14S,16S200501

29311PIN, VACUUM PUMP DOWEL, NO.1

main29311-76010×2i2KDFTV..KDH202..4FC;2KDFTV..KDH202..RHD..SRF..12S..GEN;2KDFTV..KDH200,212..(06S,15S)..(GCC,SA)200501-200708

29322BBEARING, VACUUM PUMP

main90099-10185i2KDFTV..KDH222..TH200501-201205

main90099-10199i5LE..LH20#,212,222200501-200611

main90099-10227i5LE..LH20#,212,222200612

29331BLADE, VACUUM PUMP, A

main29331-54130×5i5LE..LH20#,212,222200501

main29331-67020×5i2KDFTV..KDH202..4FC;2KDFTV..KDH202..RHD..SRF..12S..GEN;2KDFTV..KDH200,212..(06S,15S)..(GCC,SA)200501-200708

29336SHAFT, VACUUM PUMP

main29336-58050i2KDFTV..KDH222..TH200501-201205

main29336-64031i5LE..LH20#,212,222200501

29342PACKING, VACUUM PUMP

main29342-58010i2KDFTV..KDH202..4FC;2KDFTV..KDH202..RHD..SRF..12S..GEN;2KDFTV..KDH200,212..(06S,15S)..(GCC,SA)200501-200708

NO.1

main29342-58040i1KDFTV..KDH223..TH201008-201310

NO.1

main29342-58060×2i1KDFTV..KDH203..GEN;1KDFTV..KDH201,221,223..03S,06S,12S,14S201008

NO.3

main29342-58070i1KDFTV..KDH223..TH201008-201310

NO.2

main29342-67020i1KDFTV..KDH223..TH201310

NO.2

main29342-68010×2i2KDFTV..KDH202..4FC;2KDFTV..KDH202..RHD..SRF..12S..GEN;2KDFTV..KDH200,212..(06S,15S)..(GCC,SA)200501-200708

NO.3

29351GEAR, VACUUM PUMP

main29351-67020i2KDFTV..KDH202..4FC;2KDFTV..KDH202..RHD..SRF..12S..GEN;2KDFTV..KDH200,212..(06S,15S)..(GCC,SA)200501-200708

29364WASHER, VACUUM PUMP

main29364-66010i2KDFTV..KDH202..4FC;2KDFTV..KDH202..RHD..SRF..12S..GEN;2KDFTV..KDH200,212..(06S,15S)..(GCC,SA)200501-200708

29369VALVE SUB-ASSY, CHECK

main29369-64030i2KDFTV..KDH202..4FC;2KDFTV..KDH202..RHD..SRF..12S..GEN;2KDFTV..KDH200,212..(06S,15S)..(GCC,SA)200501-200708

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

9009690031

main90096-90031

9009904577

main90099-04577

9009905185

main90099-05185

90178T0074

main90178-T0074

9017908184

main90179-08184

9020114099

main90201-14099

9040109001

main90401-09001

90560T0019

main90560-T0019

9516110413

main95161-10413

21 parts on this diagram · 2 diagrams in section
