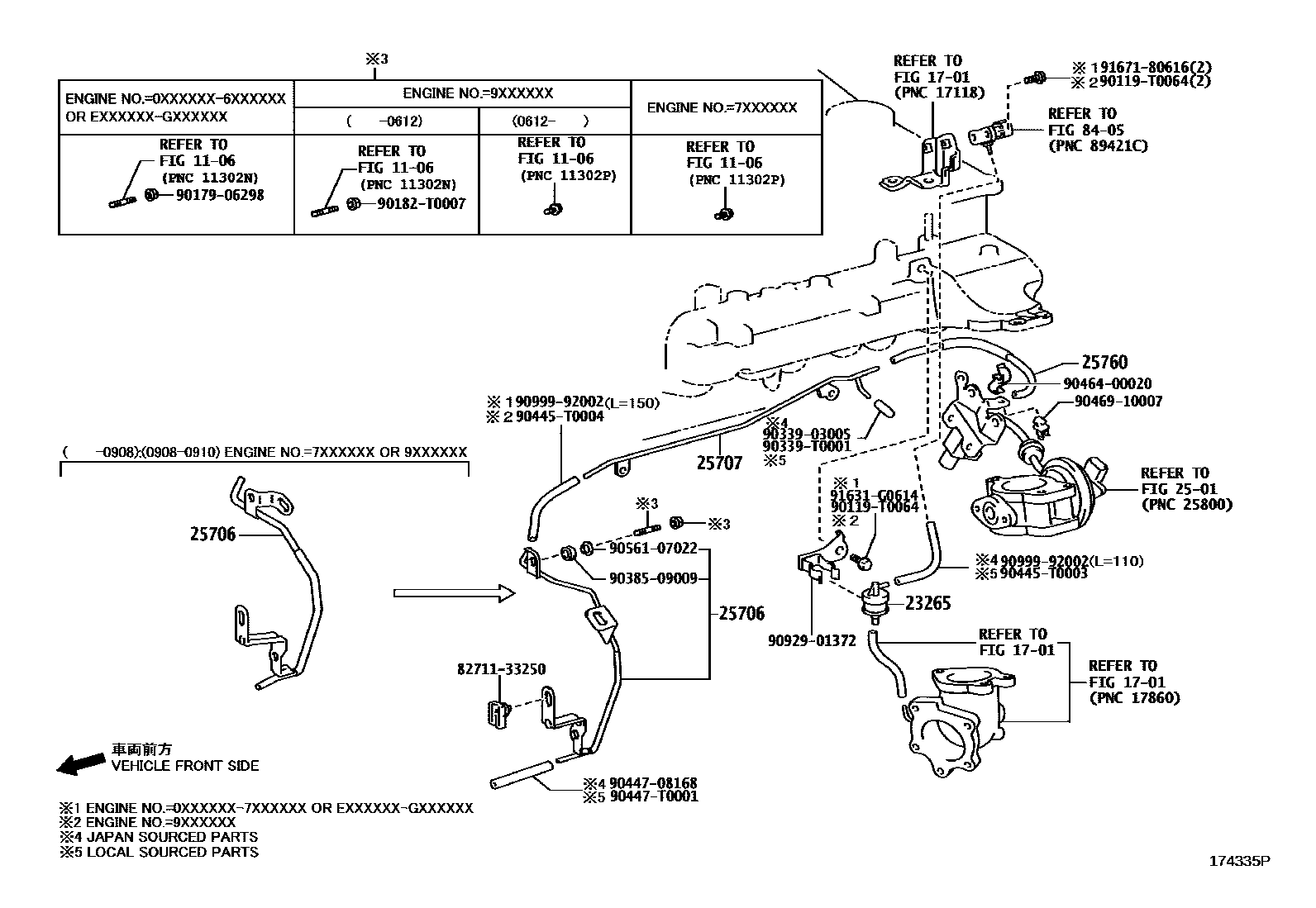

VACUUM PIPING

0001 1W(EGR) 0003 1 0005 1 0006 1 0009 1 0011 1

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

1701MANIFOLD

→ Go to FIG 17-01

23265FILTER, GAS, NO.1

main90917-11036i1KDFTV..KDH201,203,221,223200610-201008

main90917-11038i1KDFTV..KDH201..SP..06S201008-201110

2501EXHAUST GAS RECIRCULATION SYSTEM

→ Go to FIG 25-01

25706PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1

main25706-30040i1KDFTV..KDH201,203,221,223200610-200908

main25706-30041i1KDFTV..KDH201..SP..06S200908-201110

main25706-30050i1KDFTV..KDH201..SP..06S201110-201312

25707PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2

main25707-30030i1KDFTV..KDH201,203..LHD200610-201212

main25707-30040i1KDFTV..KDH201,203..LHD201212-201312

main25707-30050i1KDFTV..KDH203..TH201309-201401

main25707-67011i2KDFTV..KDH200,202..4D..4FC;2KDFTV..KDH202,220,222..RHD..(03S,12S,14S);2KDFTV..KDH200,212..(06S,10S,11S,15S)..(GEN,SA);2KDFTV..KDH200,212..(03S,16S)..5F..(ARL,MA,SA,TH,VN)200501-201402

25760HOSE ASSY, VACUUM TRANSMITTING

main25760-30050i2KDFTV..KDH200,202..4D..4FC;2KDFTV..KDH202,220,222..RHD..(03S,12S,14S);2KDFTV..KDH200,212..(06S,10S,11S,15S)..(GEN,SA);2KDFTV..KDH200,212..(03S,16S)..5F..(ARL,MA,SA,TH,VN); 2KDFTV..KDH202..LHD..15S..GEN200501

PHILIPPINE SPEC

main25760-30130i1KDFTV..KDH201,203,221,223200610-201008

8405ELECTRONIC CONTROLED DIESEL (ECD)

→ Go to FIG 84-05

8271133250WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-33250

90119T0064

main90119-T0064

9017906298

main90179-06298

90182T0007

main90182-T0007

9033903005

main90339-03005

90339T0001

main90339-T0001

9038509009

main90385-09009

90445T0003

main90445-T0003

90445T0004

main90445-T0004

9044708168

main90447-08168

90447T0001

main90447-T0001

9046400020

main90464-00020

9046910007

main90469-10007

9056107022

main90561-07022

9092901372

main90929-01372

9099992002

main90999-92002

91631G0614

main91631-G0614

9167180616

main91671-80616

26 parts on this diagram · 6 diagrams in section
