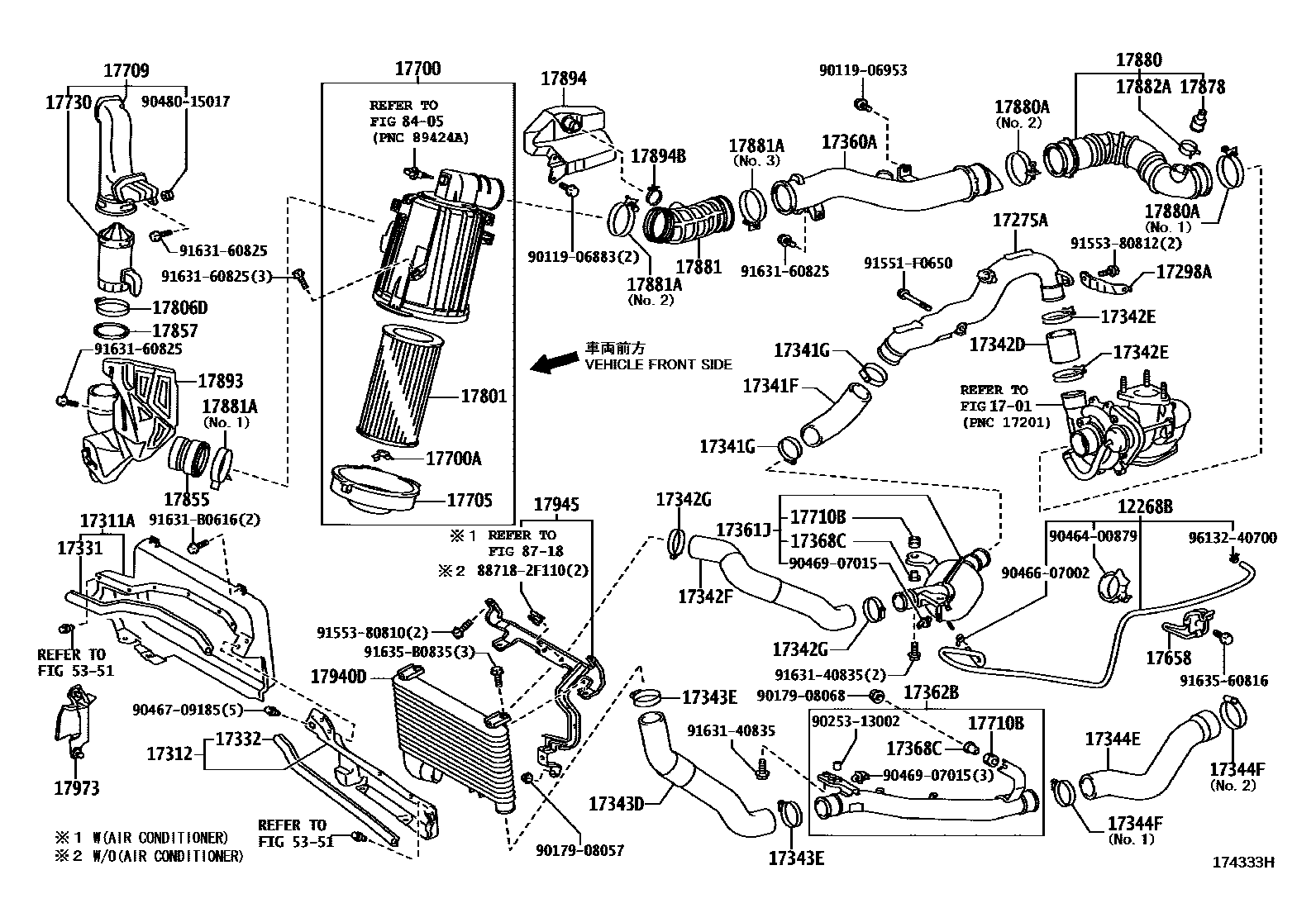

AIR CLEANER

0001 1W(INTERCOOLER) 0002 1 0003 1 0006 1 0007 1 0008 1 0009 1 0013 1 0014 1 0016 1 0017 1PERU SPEC & EUROPE STEP3 0018 1 0019 1 0024 1CHINA(PRC) OR PERU SPEC 0025 1 0027 1MEXICO SPEC 0028 1

12268BHOSE, OIL RETURN

main12268-30030i1KDFTV..KDH201,203..LHD201110

main12268-30050i1KDFTV..KDH201,203..LHD201008-201212

main12268-30080i2KDFTV..KDH222..ARL,TH;2KDFTV..KDH220..RHD..(ARL,GEN)200501-201309

main12268-30100i1KDFTV..KDH201,203,221,223200610-201008

1701

17275AELBOW, COMPRESSOR OUTLET

main17206-30020i1KDFTV..KDH201,203,221,223201307-201401

main17275-30020i2KDFTV..KDH200,202,212,220,222200501-201402

main17275-30040i1KDFTV..KDH201,203,221,223200610-201307

sub17206-30020

sub19529-30020

sub90460-67008

17298ASTAY, COMPRESSOR ELBOW

main17298-30020i2KDFTV..KDH200,202,212,220,222200501-201402

main17298-30030i1KDFTV..KDH201,203,221,223200610-200708

main17298-30040i1KDFTV..KDH201,203,221,223200709-201307

17311ADUCT, AIR INLET, NO.1

main17311-30020i1KDFTV..KDH201,203200610-201007

sub17311-30050

sub91631-60622

main17311-30030i2KDFTV..KDH222..ARL,TH;1KDFTV,2KDFTV..KDH220,221,223..RHD..(ARL,GEN)200501-201204

sub17311-30031

main17311-30031i1KDFTV..KDH221,223;2KDFTV..KDH222..TH201205

PERU SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO3

sub17311-30032

main17311-30050i1KDFTV..KDH201,203201007

17312DUCT, AIR INLET, NO.2

main17312-30020i1KDFTV..KDH201,203200610-201006

sub17312-30021

main17312-30021i1KDFTV..KDH201,203201006

main17312-30030i2KDFTV..KDH222..ARL,TH;1KDFTV,2KDFTV..KDH220,221,223..RHD..(ARL,GEN)200501-201204

sub17312-30031

main17312-30031i1KDFTV..KDH221,223;2KDFTV..KDH222..TH201205

PERU SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO3

sub17312-30032

17331SEAL, DUCT AIR INLET NO.1

main17331-30010i1KDFTV..KDH201,203200610-201007

main17331-30020i1KDFTV..KDH221,223;2KDFTV..KDH222..ARL,TH;2KDFTV..KDH220..RHD..(ARL,GEN)200501-200709

main17331-30030i1KDFTV..KDH201,203201007

17332SEAL, DUCT AIR INLET NO.2

main17332-30010i1KDFTV..KDH201,203200610

main17332-30020i2KDFTV..KDH222..RHD..GEN200501-200709

17341FHOSE, AIR, NO.1

main17341-30070i2KDFTV..KDH220..RHD;1KDFTV,2KDFTV..KDH20#,212,221,222,223200501-200708

sub17341-30071

main17341-30071i1KDFTV,2KDFTV..KDH20#,212,22#200709

17341GCLAMP OR CLIP(FOR AIR HOSE, NO.1)

main90460-67008i2KDFTV..KDH220..RHD;1KDFTV,2KDFTV..KDH20#,212,221,222,223200501

17342DHOSE, AIR, NO.2

main17342-30050i2KDFTV..KDH200,202..RHD..SRF..4D..(03S,12S)..5F..GEN200501

CKD PACKAGE(THAILAND)

main17342-30050i2KDFTV..KDH200,202,212,220,222200501

CKD PACKAGE(MALAYSIA)

main17342-30080i1KDFTV..KDH201,203,221,223201307

17342ECLAMP OR CLIP(FOR AIR HOSE, NO.2)

main90460-57005i2KDFTV..KDH202..HRF..MA;2KDFTV..KDH202..LHD..12S..5F;2KDFTV..KDH220..SP..(GEN,SA);2KDFTV..KDH212..(10S,11S,16S)..(GCC,GEN,SA);2KDFTV..KDH200,202,222..(03S,14S,15S,1200501-200709

CKD PACKAGE(THAILAND)

main90460-57005i2KDFTV..KDH200..RHD..4D..5F..GEN200501

CKD PACKAGE(MALAYSIA)

main90460-57005i2KDFTV..KDH200..ARL;2KDFTV..KDH22#..03S,14S;2KDFTV..KDH200..06S..GEN200501-201309

17342FHOSE, AIR, NO.2(FOR INTERCOOLER)

main17342-30060i2KDFTV..KDH22#..RHD200501-200604

sub17342-30061

main17342-30061i1KDFTV,2KDFTV..KDH201,203,22#..RHD..(ARL,GEN)200605-200708

sub17342-30062

main17342-30062i2KDFTV..KDH222..TH;1KDFTV..KDH201,203,221,223200709

17342GCLAMP, HOSE, NO.2(FOR INTERCOOLER)

main90460-67008i2KDFTV..KDH222..RHD..GEN200501-200709

17343DHOSE, AIR, NO.3

main17343-30020i2KDFTV..KDH22#..RHD200501-200509

sub17343-30021

main17343-30021i2KDFTV..KDH22#..RHD200510-200604

sub17343-30022

main17343-30022i2KDFTV..KDH222..RHD..GEN200605-201211

sub17343-30023

main17343-30023i2KDFTV..KDH222..TH;1KDFTV..KDH201,203,221,223201212

PERU SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO3

17343ECLAMP, HOSE(FOR AIR HOSE, NO.3)

main90460-67008i2KDFTV..KDH222..RHD..GEN200501-200709

17344EHOSE, AIR, NO.4

main17344-30010i2KDFTV..KDH220..GEN200501-201211

sub17344-30011

main17344-30011i2KDFTV..KDH200,202,212,220,222201212

main17344-30030i1KDFTV..KDH201,203,221,223201008-201211

sub17344-30031

main17344-30031i1KDFTV..KDH201,203,221,223201212

17344FCLAMP, HOSE(FOR AIR HOSE, NO.4)

main90460-67008i2KDFTV..KDH220..RHD;1KDFTV,2KDFTV..KDH20#,212,221,222,223200501

NO.1

main90460-77002i2KDFTV..KDH220..RHD;1KDFTV,2KDFTV..KDH20#,212,221,222,223200501

NO.2

17360ATUBE ASSY, AIR

main17360-30010i2KDFTV..KDH20#,212,22#200501-200606

sub17360-30011

main17360-30011i2KDFTV..KDH200,222..TH;2KDFTV..KDH202..GL..TH200607-201309

main17360-54100i5LE..LH20#,212,222200501-200606

sub17360-54101

main17360-54101i5LE..LH212..10S200607-200810

main17360-75050i2TRFE..TRH203,213..MA,VN200501-201402

main17360-75070i1TRFE..TRH200201308-201312

main17360-75080i2TRFE..TRH201..SG;2TRFE..TRH201..SP..03S;2TRFE..TRH213..RHD..5F;2TRFE..TRH213..LHD..STD..(GCC,GEN);2TRFE..TRH203,22#..(03S,12S,14S,15S,16S)..(ARL,CIS,GCC,GEN,SA)201008-201110

MEXICO SPEC

main17360-75080i2TRFE..TRH203,213..MA,VN201008-201312

main17360-75080i2TRFE..TRH213,223..(10S,13S)..GEN201205-201312

CHINA(PRC) SPEC

17361JTUBE, AIR, NO.1

main17361-30020i1KDFTV,2KDFTV..KDH201,203,22#..RHD..(ARL,GEN)200501-200708

sub17361-30021

sub91553-80812

main17361-30021i2KDFTV..KDH222..TH;1KDFTV..KDH201,203,221,223200709

main17361-30030i2KDFTV..KDH200,202200501-200703

sub17361-30031

main17361-30031i2KDFTV..KDH200,202200704-200709

sub17361-30032

sub91553-80812

main17361-30032i2KDFTV..KDH200,202200709

main17361-30040i2KDFTV..KDH212;2KDFTV..KDH222..LHD..GEN;2KDFTV..KDH220,222..GCC,SA200501-200705

sub17361-30041

main17361-30041i2KDFTV..KDH212;2KDFTV..KDH222..LHD..GEN;2KDFTV..KDH220,222..GCC,SA200706-200709

sub17361-30042

sub91553-80812

main17361-30042i2KDFTV..KDH212,220,222..GCC,GEN,SA,VN200709

17362BTUBE, AIR, NO.2

main17362-30010i1KDFTV,2KDFTV..KDH22#..RHD..(ARL,GEN)200501-200708

sub17362-30011

main17362-30011i1KDFTV..KDH221,223;2KDFTV..KDH222..TH200709

main17362-30020i1KDFTV..KDH201,203200610-200708

sub17362-30021

main17362-30021i1KDFTV..KDH201,203200709

17368CBUSH(FOR AIR TUBE SUPPORT)

main90389-09025i2KDFTV..KDH222..RHD..GEN200501-201309

17658BRACKET, VACUUM HOSE CLAMP

main17658-30020i2KDFTV..KDH22#..03S,14S200501-201309

17700CLEANER ASSY, AIR

main17700-30180i2KDFTV..KDH200,202,212,220,222200501-200705

sub17700-30181

main17700-30181i2KDFTV..KDH200,202,212,220,222200706

main17700-30210i1KDFTV..KDH201,203,221,223200610-201008

sub17700-30211

main17700-30280i1KDFTV..KDH201,203,221,223201008-201209

sub17700-30281

main17700-30281i1KDFTV..KDH201,203,221,223201210

sub17700-30282

main17700-54A00i5LE..LH20#,212,222200501-200705

sub17700-54A01

main17700-54A01i5LE..LH212..10S200706-200810

main17700-75460i2TRFE..TRH20#,213,22#200501-200705

sub17700-75461

main17700-75461i2TRFE..TRH203,213..MA,VN200706-201402

main17700-75471i2TRFE..TRH223..TH200709-201401

main17700-75550i2TRFE..TRH223..5F..GL..GEN201205-201209

CHINA(PRC) SPEC

sub17700-75551

main17700-75550i2TRFE..TRH201..SG;2TRFE..TRH201..SP..03S;2TRFE..TRH213..RHD..5F;2TRFE..TRH213..LHD..STD..(GCC,GEN);2TRFE..TRH203,22#..(03S,12S,14S,15S,16S)..(ARL,CIS,GCC,GEN,SA)201008-201110

MEXICO SPEC

sub17700-75551

main17700-75550i2TRFE..TRH203,213..MA,VN201008-201209

sub17700-75551

main17700-75551i2TRFE..TRH223..5F..GL..GEN201210-201312

CHINA(PRC) SPEC

sub17700-75552

17700ANUT, WING(FOR AIR CLEANER)

main90175-06003i2TRFE..TRH223..TH200709-201401

NO.1

main90175-08008i2KDFTV..KDH202..4FC;2KDFTV..KDH202..RHD..12S;2KDFTV..KDH200..06S..GCC200501-201402

main90175-08008i2KDFTV..KDH202..STD..TH;2KDFTV..KDH200..03S..4FC..GEN200501-201008

LPG CONVERSION PACKAGE,NO.2

main90175-08008i2TRFE..TRH223..TH200709-201401

NO.2

17705CAP SUB-ASSY, AIR CLEANER

main17705-30120i2KDFTV..KDH200,202,212,220,222200501-200705

sub17705-30121

main17705-30121i2KDFTV..KDH200,202,212,220,222200706

main17705-30140i2TRFE..TRH213..GL..GEN201008-201110

MEXICO SPEC

sub17705-30141

main17705-30140i2TRFE..TRH203,213..MA,VN200610-201312

sub17705-30141

main17705-30140i2TRFE..TRH213,223..(10S,13S)..GEN201205-201312

CHINA(PRC) SPEC

sub17705-30141

main17705-54540i5LE..LH20#,212,222200501-200705

sub17705-54541

main17705-54541i5LE..LH212..10S200706-200810

main17705-75300i2TRFE..TRH223..TH200709-201401

main17705-75310i2TRFE..TRH20#,213,22#200501-200705

sub17705-75311

main17705-75311i2TRFE..TRH203,213..MA,VN200706-201402

17709INLET SUB-ASSY, AIR CLEANER

main17709-30011i2TRFE..TRH20#,213..(03S,06S,09S,11S,12S,15S)..(ARL,GCC,GEN,MA,SA)200501-201008

sub17709-30012

main17709-30012i2TRFE..TRH213..LHD..STD..GEN201008-201110

PERU SPEC

main17709-30012i2TRFE..TRH213..LHD..STD..GEN201008-201110

CHINA(PRC) SPEC&COLD AREA SPEC

main17709-30021i2TRFE..TRH22#..SA201008-201402

17710BGROMMET

main90480-16021i2KDFTV..KDH200..ARL;2KDFTV..KDH200..06S..GEN;1KDFTV,2KDFTV..KDH201,203,22#..RHD..(ARL,GEN)200501-200709

17730PRECLEANER ASSY, AIR W/HOSE

main17730-30010i2TRFE..TRH213,223..(10S,13S)..GEN200501-201402

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-30050i2KDFTV..KDH200,202,212,220,222200501

main17801-30060i2TRFE..TRH213,223..(10S,13S)..GEN201205-201312

CHINA(PRC) SPEC

main17801-30060i1KDFTV..KDH201,203,221,223200610-201312

main17801-30060i2TRFE..TRH201..SG;2TRFE..TRH201..SP..03S;2TRFE..TRH213..RHD..5F;2TRFE..TRH213..LHD..STD..(GCC,GEN);2TRFE..TRH203,22#..(03S,12S,14S,15S,16S)..(ARL,CIS,GCC,GEN,SA)201008-201110

MEXICO SPEC

main17801-75010i2TRFE..TRH203,213..MA,VN200501-201402

17806DCLAMP(FOR AIR CLEANER PIPE)

main90460-92002i2KDFTV..KDH200,202,212,220,222200501-201402

17855GASKET, AIR INLET DUCT, NO.1

main17855-30010i2KDFTV..KDH200,202,212,220,222200501-201402

17857GASKET, AIR INLET DUCT, NO.2

main17857-30010i2TRFE..TRH201..5D..5F;2TRFE..TRH213..GL..VN;2TRFE..TRH201..SG..4FC;2TRFE..TRH213..LHD..STD;2TRFE..TRH203..15S..GEN;2TRFE..TRH213..RHD..(10S,16S);2TRFE..TRH20#..4D..200501-201402

17878PIPE, INTAKE AIR CONNECTOR, NO.3

main17878-30010i2KDFTV..KDH212..VN200501-201309

17880HOSE ASSY, AIR CLEANER

main17880-30020i2KDFTV..KDH202..HRF..MA;2KDFTV..KDH202..LHD..12S..5F;2KDFTV..KDH200,202..(03S,15S)..5F..(GCC,GEN,MA,SA)200501-201309

main17880-30030i2KDFTV..KDH22#..03S,14S200501-201309

17880ACLAMP, HOSE

main90460-67008i2KDFTV..KDH200,202,212,220,222200501

NO.1

main90460-80006i2KDFTV..KDH200,202,212,220,222200804-201102

NO.2

main90460-80006i1KDFTV..KDH201,203,221,223200804-201101

main90460-92002i2KDFTV..KDH200,202200501-201008

main96111-10800i1KDFTV..KDH201,203,221,223..ARL,GEN200501-200804

NO.2

main96111-10800i1KDFTV..KDH201,203,221,223200610-200803

17881HOSE, AIR CLEANER, NO.1

main17881-30080i2TRFE..TRH221;2TRFE..TRH201..SG;2TRFE..TRH201..SP..03S;2TRFE..TRH203..15S..5F;2TRFE..TRH213..RHD..5F;2TRFE..TRH223..5F..GCC;2TRFE..TRH213..LHD..5F..STD..(GCC,GEN);2200501-201402

main17881-30110i1KDFTV..KDH201,203,221,223200610-201008

main17881-30150i1KDFTV..KDH201,203,221,223201008-201312

main17881-30150i2TRFE..TRH223..5F..GL..GEN201205-201312

CHINA(PRC) SPEC

main17881-30150i2TRFE..TRH201..SG;2TRFE..TRH201..SP..03S;2TRFE..TRH213..RHD..5F;2TRFE..TRH213..LHD..STD..(GCC,GEN);2TRFE..TRH203,22#..(03S,12S,14S,15S,16S)..(ARL,CIS,GCC,GEN,SA)201008-201110

MEXICO SPEC

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main90460-80006i2KDFTV..KDH200,202,212,220,222200804-201102

NO.3

main90460-80006i1KDFTV..KDH201,203,221,223200804-201008

NO.1

main90466-78001i2KDFTV..KDH200,202,212,220,222200501-201402

NO.1

main96111-10800i5LE..LH212..10S200804-201312

NO.2

main96111-10800i1KDFTV..KDH201,203,221,223200610-201401

NO.1

main96111-10800i5LE..LH20#,212,222200501-200804

NO.2 & NO.3

main96111-10800i2TRFE..TRH201..SG;2TRFE..TRH201..SP..03S;2TRFE..TRH213..RHD..5F;2TRFE..TRH213..LHD..STD..(GCC,GEN);2TRFE..TRH203,22#..(03S,12S,14S,15S,16S)..(ARL,CIS,GCC,GEN,SA)201008-201110

MEXICO SPEC

main96111-10800i2TRFE..TRH203,213..MA,VN201008-201312

main96111-10800i5LE..LH20#,212,222201012-201312

NO.3

main96111-10800i2TRFE..TRH213,223..(10S,13S)..GEN201205-201312

CHINA(PRC) SPEC

main96111-10900i1KDFTV..KDH201,203,221,223200610-201401

NO.2

main96111-10900i1TRFE..TRH200201308-201312

17882HOSE, AIR CLEANER, NO.2

main17882-54520i5LE..LH20#200501

main17882-54530i5LE..LH212,222200501

main17882-75110i1TRFE..TRH200201308-201312

main17882-75120i2TRFE..TRH213,22#200501-201402

main17882-75130i2TRFE..TRH201,203200501-201401

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main90460-80006i5LE..LH20#,212,222200804-200805

NO.1

main90460-80006i5LE..LH20#,212,222200804-201012

NO.2

main90460-80006i2TRFE..TRH201..5D;2TRFE..TRH201..ARL,SA;2TRFE..TRH213..GL..VN;2TRFE..TRH203,213..RHD..5F;2TRFE..TRH203,213..LHD..(15S,16S);2TRFE..TRH201,22#..HRF..(03S,12S,14S,16S)200805-201012

NO.1 & NO.2

main90460-80006i2TRFE..TRH213..GL..VN;2TRFE..TRH213..RHD..5F;2TRFE..TRH213..LHD..STD;2TRFE..TRH20#,22#..(03S,06S,12S,14S,15S,16S)..(ARL,CIS,GCC,GEN,MA,SA)201008-201012

MEXICO SPEC,NO.2

main90460-80006i2TRFE..TRH213..GL..VN;2TRFE..TRH213..RHD..5F;2TRFE..TRH213..LHD..STD;2TRFE..TRH20#,22#..(03S,06S,12S,14S,15S,16S)..(ARL,CIS,GCC,GEN,MA,SA)201008-201012

CHINA(PRC) SPEC,NO.1 & NO.2

main90460-80006i2TRFE..TRH213..GL..VN;2TRFE..TRH213..RHD..5F;2TRFE..TRH213..LHD..STD;2TRFE..TRH20#,22#..(03S,06S,12S,14S,15S,16S)..(ARL,CIS,GCC,GEN,MA,SA)201008-201012

PERU SPEC,NO.1 & NO.2

main90467-31003i2KDFTV..KDH212..STD..SA200501-201309

main96111-10800i2TRFE..TRH203,213..MA,VN200804-201402

NO.1

main96111-10800i5LE..LH20#,212,222200501-201102

NO.1 & NO.2

main96111-10800i2TRFE..TRH201..SG;2TRFE..TRH201..SP..03S;2TRFE..TRH213..RHD..5F;2TRFE..TRH213..LHD..STD..(GCC,GEN);2TRFE..TRH203,22#..(03S,12S,14S,15S,16S)..(ARL,CIS,GCC,GEN,SA)201012-201401

NO.2

main96111-10800i1TRFE..TRH200201308-201312

main96111-10900i2TRFE..TRH201..SP..06S201008-201312

NO.1

main96111-10900i2TRFE..TRH201..SG;2TRFE..TRH201..SP..03S;2TRFE..TRH213..RHD..5F;2TRFE..TRH213..LHD..STD..(GCC,GEN);2TRFE..TRH203,22#..(03S,12S,14S,15S,16S)..(ARL,CIS,GCC,GEN,SA)201008-201110

MEXICO SPEC,NO.1

main96111-10900i2TRFE..TRH213,223..(10S,13S)..GEN201205-201312

CHINA(PRC) SPEC,NO.1

17893RESONATOR, INTAKE AIR

main17893-30030i2KDFTV..KDH200,202,212,220,222200501-201110

main17893-30060i2TRFE..TRH213..GL..GEN201008-201110

MEXICO SPEC

main17893-30060i2TRFE..TRH203,213..MA,VN201008-201312

main17893-30060i2TRFE..TRH213,223..(10S,13S)..GEN201205-201312

CHINA(PRC) SPEC

main17893-30070i5LE..LH20#,212,222201008-201402

17894BRACKET, RESONATOR

main17894-30010i2KDFTV..KDH212..VN200501-201402

17894BCLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.2)

main96111-10380i5LE..LH20#,212,222..03S,12S,15S,16S200501-201402

main96111-10690i1KDFTV..KDH201,203,221,223201008

17940DINTERCOOLER ASSY

main17940-30050i2KDFTV..KDH222..RHD..GEN200501-200709

17945BRACKET, INTERCOOLER SUPPORT

main17945-30040i2KDFTV..KDH22#..5F..ARL200501-200503

NEW ZEALAND SPEC

main17945-30040i2KDFTV..KDH22#..RHD200501-200503

SOUTH AFRICA SPEC

main17945-30040i1KDFTV..KDH201,203200501

main17945-30050i1KDFTV..KDH221,223;2KDFTV..KDH222..ARL,TH;2KDFTV..KDH220..RHD..(ARL,GEN)200503-200709

17973INLET, COOL AIR, NO.3

main17973-30010i5LE..LH20#,212,222200501-201402

5351

8405

8718

887182F110PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2F110

9011906883

main90119-06883

9011906953

main90119-06953

9017908057

main90179-08057

9017908068

main90179-08068

9025313002

main90253-13002

9046400879

main90464-00879

9046607002

main90466-07002

9046709185

main90467-09185

9046907015

main90469-07015

9048015017

main90480-15017

91551F0650

main91551-F0650

9155380810

main91553-80810

9155380812

main91553-80812

9163140835

main91631-40835

9163160825

main91631-60825

91631B0616

main91631-B0616

9163560816

main91635-60816

91635B0835

main91635-B0835

9613240700

main96132-40700

69 parts on this diagram · 17 diagrams in section
