WATER PUMP

0001 1 0002 1 0003 1

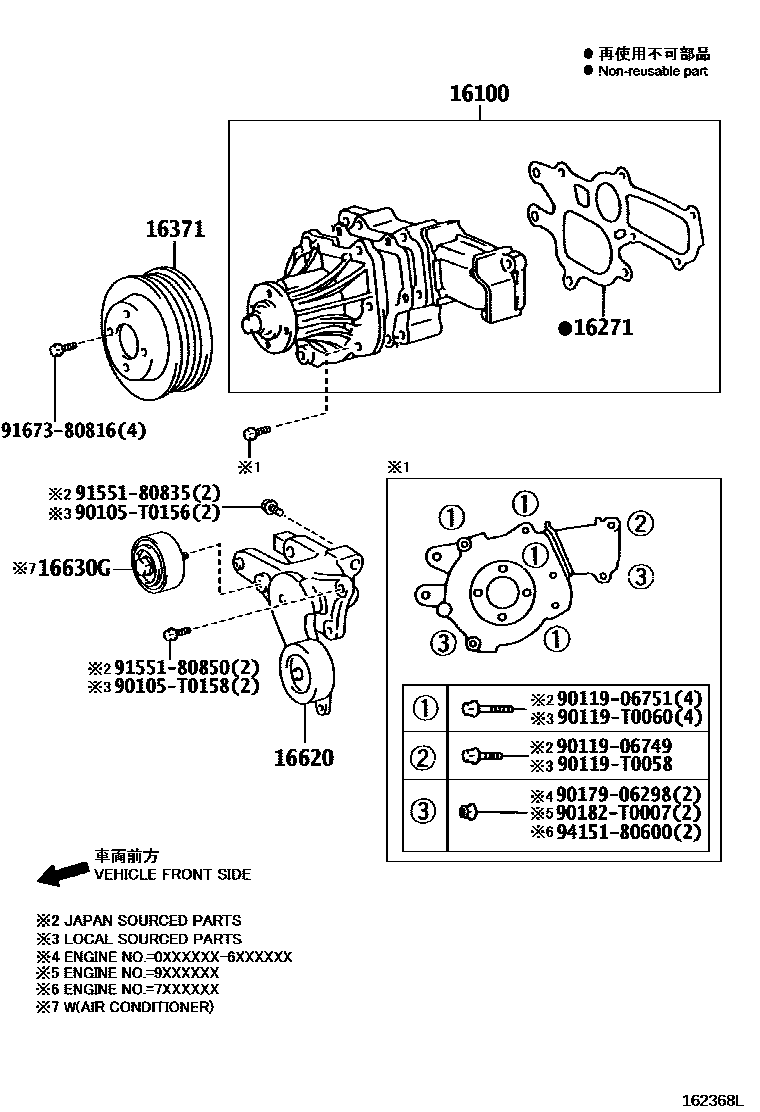

16100PUMP ASSY, ENGINE WATER

main16100-09400i2KDFTV..KDH202..MA,TH;2KDFTV..KDH202..HRF..GEN;2KDFTV..KDH200,212..MA,VN200508-200810

main16100-09460i2TRFE..TRH213..VN;2TRFE..TRH203..HRF200508-201201

main16100-39425i2KDFTV..KDH222..TH200501-201205

main16100-59257i5LE..LH20#,212,222..03S,12S,15S,16S200501

main16100-79445i2TRFE..TRH223..STD..SA200501-201312

16271GASKET, WATER PUMP

main16271-0L010i2KDFTV..KDH202..HRF..GEN;2KDFTV..KDH200,212..MA,VN;1KDFTV,2KDFTV..KDH202,203..MA,TH200508

main16271-54030i5LE..LH20#,212,222..03S,12S,15S,16S200501

main16271-67020i2KDFTV..KDH222..TH200501-201205

16371PULLEY, FAN

main16371-05010i5LE..LH20#,212,222..03S,12S,15S,16S200501

(L)

main16371-0C010i2TRFE..TRH213..VN;2TRFE..TRH203..HRF200508-201401

main16371-0L010i1KDFTV..KDH223..TH201310

main16371-30020i2KDFTV..KDH222..TH200501-201205

main16371-54030i5LE..LH212..10S200501-200810

(J)

main16371-75040i2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN)200501-201402

16620TENSIONER ASSY, V-RIBBED BELT

main16620-0L020i2KDFTV..KDH200,212..MA,VN;1KDFTV,2KDFTV..KDH202,203..RHD..12S201112-201401

(L)

main16620-30031i2KDFTV..KDH222..TH200501-201205

16630GPULLEY ASSY, IDLER

main88440-35130i2KDFTV..KDH222..GL..SA;2KDFTV..KDH200,212..MA,VN;1KDFTV,2KDFTV..KDH200,201..SP..06S;2KDFTV..KDH202,212..(HRF,SMRF)..(10S,11S,12S)..(GEN,SA);1KDFTV,2KDFTV..KDH202,203,222,223..(12S,14S)..(ARL,MA,RUS,TH)200501-201401

90105T0156

main90105-T0156

90105T0158

main90105-T0158

9011906749

main90119-06749

9011906751

main90119-06751

90119T0058

main90119-T0058

90119T0060

main90119-T0060

9017906298

main90179-06298

90182T0007

main90182-T0007

9155180835

main91551-80835

9155180850

main91551-80850

9167380816

main91673-80816

9415180600

main94151-80600

17 parts on this diagram · 3 diagrams in section
