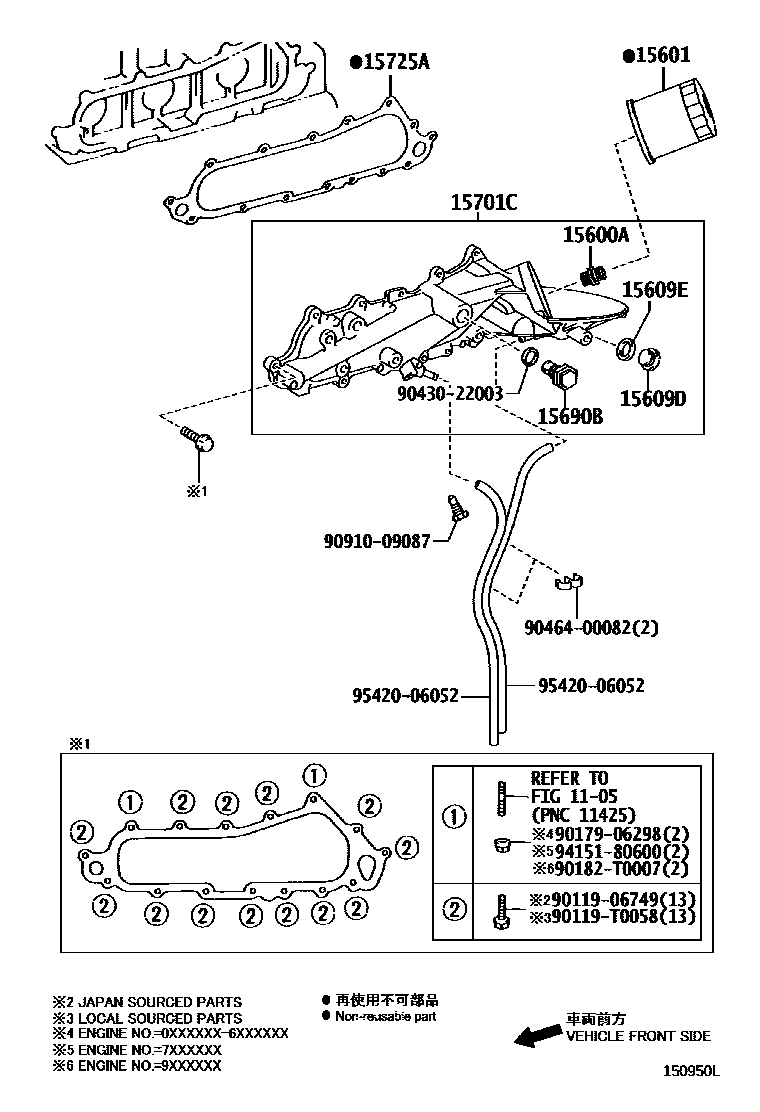

OIL FILTER

0001 1 0005 1 0007 1 0008 1 0009 1

1105

15600AUNION(FOR OIL FILTER)

main90404-19002i1KDFTV..KDH201..SP..06S200501-201402

main90404-19011i5LE..LH20#,212,222200501-200901

main90404-19015i2TRFE..TRH203,213..MA,VN200501-200808

main90404-19015i2TRFE..TRH213..10S..GEN200501-200907

VIETNAM SPEC

main90404-19022i2TRFE..TRH201,203,213,22#..ARL,CIS,GCC,GEN,SA,TH200907-201402

main90404-T0002i2TRFE..TRH203,213..MA,VN200808-201401

15601FILTER SUB-ASSY, OIL

main15600-41010i5LE..LH20#,212,222..03S,12S,15S,16S200501-200810

sub90915-40002

main90915-20003i2TRFE..TRH201,22#;2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN)200501-201402

sub90915-20005

main90915-TB001i2TRFE..TRH213..VN;2TRFE..TRH203..HRF200508-201401

15609BRACKET SUB-ASSY, OIL FILTER

main15609-54014i5LE..LH212..10S200501-200810

main15609-75070i2TRFE..TRH201,203,213,22#200501-201402

main15609-75080i1TRFE..TRH200201308-201312

15609DPLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET)

main90341-16023i1TRFE..TRH200201308-201312

main90341-20002i2KDFTV..KDH222..TH200501-201402

main90341-22002i2TRFE..TRH201,203,213,22#200501-201402

15609EGASKET, W/HEAD STRAIGHT SCREW PLUG

main15134-67020i1KDFTV..KDH201..03S;1KDFTV,2KDFTV..KDH200,202,203,212,220,221,223;1KDFTV,2KDFTV..KDH201,222..SG..(ARL,GCC,GEN,SA)200501-201402

main90430-16009i1TRFE..TRH200201308-201312

main90430-22011i2TRFE..TRH201,203,213,22#200501-201402

15690BVALVE ASSY, OIL COOLER RELIEF

main15690-64010i1KDFTV,2KDFTV..KDH20#,212,22#200501-201101

sub15690-64011

main15690-64011i2KDFTV..KDH222..TH201101-201402

main15690-64011i1KDFTV,2KDFTV..KDH201,222..SG..(GCC,GEN,SA);1KDFTV,2KDFTV..KDH20#,212,220,221,223..03S,10S,11S,12S,14S,15S,16S201101-201402

CKD PACKAGE(SOUTH AFRICA)

15701CCOVER SUB-ASSY, OIL COOLER

main15701-30060i1KDFTV..KDH201,203,221,223200610-201008

main15701-30070i2KDFTV..KDH222..TH200501-201402

main15701-30100i1KDFTV..KDH201..SP..06S201008-201401

main15701-30110i1KDFTV..KDH201..SP..06S201110-201312

sub15701-30111

15725AGASKET, OIL COOLER COVER

main15725-0L010i2KDFTV..KDH202..MA,TH;2KDFTV..KDH202..HRF..GEN;2KDFTV..KDH200,212..MA,VN200508-201401

main15725-67010i2KDFTV..KDH222..TH200501-201402

9011906749

main90119-06749

90119T0058

main90119-T0058

9017906298

main90179-06298

90182T0007

main90182-T0007

9043022003

main90430-22003

9046400082

main90464-00082

9091009087

main90910-09087

9415180600

main94151-80600

9542006052

main95420-06052

18 parts on this diagram · 5 diagrams in section
