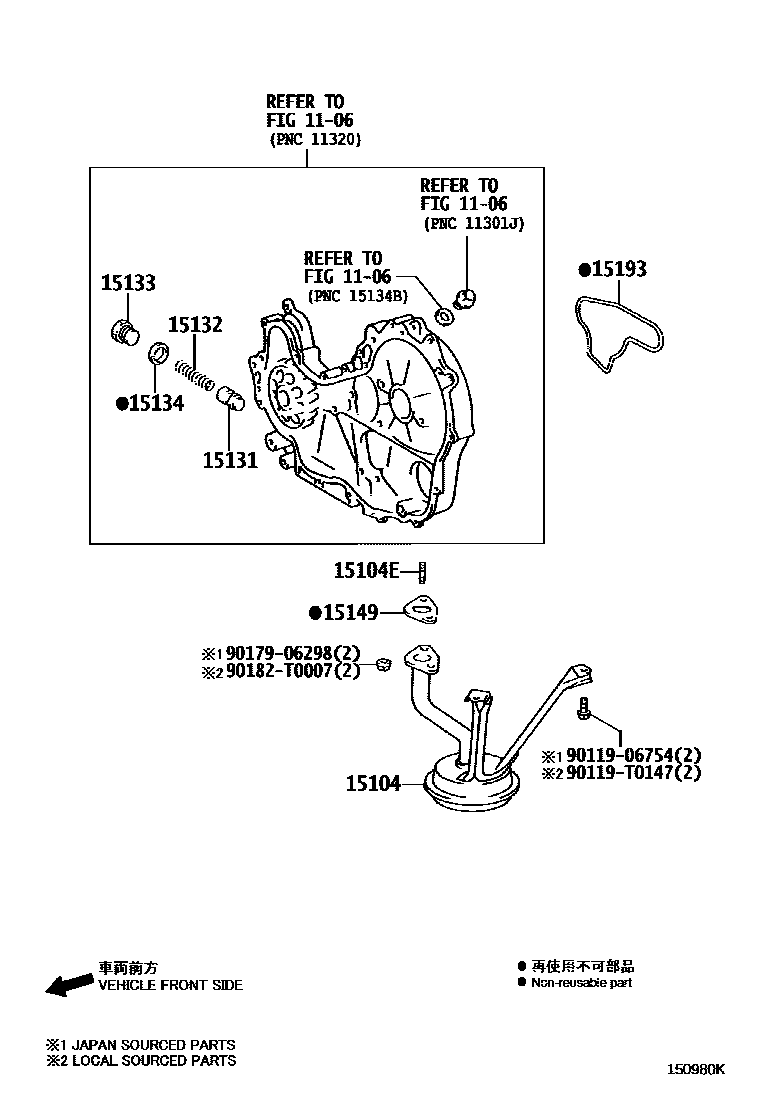

ENGINE OIL PUMP

0001 1 0002 1 0003 1 0004 1

1106

15104STRAINER SUB-ASSY, OIL

main15104-54240i5LE..LH212..10S200501-200810

main15104-67060i2KDFTV..KDH222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH20#,212,220,221,223200501-201205

main15104-75111i1TRFE,2TRFE..TRH20#,213,22#200501-201402

15104EBOLT, STUD(FOR OIL STRAINER)

main90116-06140i2KDFTV..KDH212..LHD..STD..GEN200501-201310

main90116-T0020i2KDFTV..KDH202..HRF..GEN;2KDFTV..KDH200,212..MA,VN;1KDFTV,2KDFTV..KDH202,203..MA,TH200508-200512

main90126-08037i2TRFE..TRH201..5D..5F;2TRFE..TRH201..SG..4FC;2TRFE..TRH201,223..4D..SG;2TRFE..TRH203,221..03S,15S;2TRFE..TRH213..(10S,16S)..(GCC,GEN,SA);2TRFE..TRH201,213..(03S,11S200501-201401

L=24.5

main90126-08052i2TRFE..TRH201,221;2TRFE..TRH203..15S..5F;2TRFE..TRH213,223..5F..GCC;2TRFE..TRH213,223..(10S,11S,12S,13S,14S,16S)..(ARL,CIS,GEN,SA,TH)201107-201402

L=29

main92122-80816i5LE..LH20#,212,222..03S,12S,15S,16S200501-200810

15131VALVE, OIL PUMP RELIEF

main15131-46040i2KDFTV..KDH222..TH200501-201401

main15131-54010i5LE..LH212..10S200501-200810

15132SPRING, OIL PUMP RELIEF VALVE

main15132-0C010i2TRFE..TRH213..VN;2TRFE..TRH203..HRF200508-201401

main15132-17010i1KDFTV..KDH201..SP..06S200501-201402

main15132-54010i5LE..LH212..10S200501-200810

15133PLUG, OIL PUMP RELIEF VALVE

main15133-0C010i2TRFE..TRH213..STD200508-201401

main15133-17010i2KDFTV..KDH222..TH200501-201402

main15133-54010i5LE..LH212..10S200501-200810

15134GASKET, OIL PUMP RELIEF VALVE

main15134-0L010i2KDFTV..KDH202..HRF..GEN;2KDFTV..KDH200,212..MA,VN;1KDFTV,2KDFTV..KDH202,203..MA,TH200508-200512

main15134-67020i1KDFTV..KDH201,203..LHD200501-201402

15149GASKET, OIL STRAINER FLANGE

main15149-0L010i1KDFTV..KDH223..TH200508-200512

main15149-67010i2KDFTV..KDH212..LHD..STD..GEN200501-201310

15193GASKET, OIL PUMP

main15193-0L010i2KDFTV..KDH202..HRF..GEN;2KDFTV..KDH200,212..MA,VN;1KDFTV,2KDFTV..KDH202,203..MA,TH200508-201401

main15193-67011i2KDFTV..KDH212..LHD..STD..GEN200501-201402

9011906754

main90119-06754

90119T0147

main90119-T0147

9017906298

main90179-06298

90182T0007

main90182-T0007

13 parts on this diagram · 4 diagrams in section
