CRANKSHAFT & PISTON

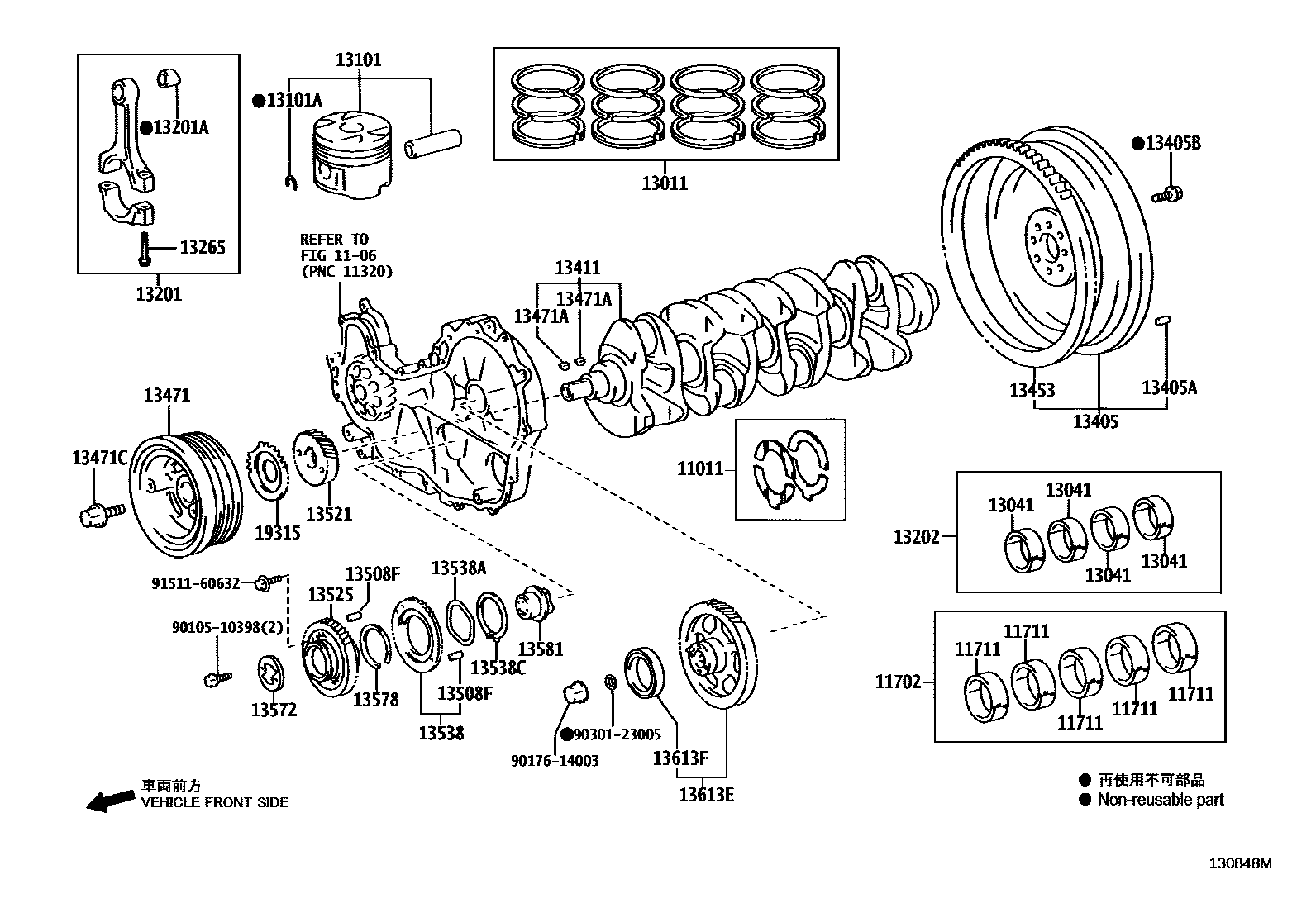

Parts diagram
11011WASHER SET, CRANKSHAFT THRUST
main11011-0C010×2i200508-201401
STD
main11011-0L020i201310
STD
main11011-30010i200501
STD
main11011-54020i200501-200810
STD
main11011-75020×2i200501-201402
STD
main11012-30010i200501
O/S 0.125
main11012-54020i200501
O/S 0.125
main11013-30010i200501
O/S 0.250
main11013-54020i200501-200810
O/S 0.250
1106TIMING GEAR COVER & REAR END PLATE
→ Go to FIG 11-06
11702BEARING SET, CRANKSHAFT
main11704-30020i200910
U/S 0.25; U/S 0.25,CKD PACKAGE(SOUTH AFRICA)
main11704-30030i200706-201310
U/S 0.25
main11704-54080i200501-200712
U/S 0.25
main11704-54081i200801-200810
U/S 0.25
main11704-75031i200501-201402
U/S 0.25
main11705-30020i200501-200705
U/S 0.50
main11705-30030i200706-201310
U/S 0.50
main11705-54080i200501-200712
U/S 0.50
main11705-54081i200801-200810
U/S 0.50
11711BEARING, CRANKSHAFT
main11701-0C010-01×5i200508-201401
MARK1,REFER REPAIR MANUAL
main11701-0C010-02×5i200508-201401
MARK2,REFER REPAIR MANUAL
main11701-0C010-03×5i200508-201401
MARK3,REFER REPAIR MANUAL
main11701-0L020-02×5i201310
MARK2,REFER REPAIR MANUAL
main11701-0L020-03×5i200508
MARK3,REFER REPAIR MANUAL
main11701-0L020-04×5i200508
MARK4,REFER REPAIR MANUAL
main11701-0L020-05×5i200508
MARK5,REFER REPAIR MANUAL
main11701-0L020-06×5i200508
MARK6,REFER REPAIR MANUAL
main11701-30020-02×5supersedes 11701-30020-06i200910
CKD PACKAGE(SOUTH AFRICA),MARK2,REFER REPAIR MANUAL; MARK2,REFER REPAIR MANUAL
main11701-30020-03×5i200501-200706
CKD PACKAGE(MALAYSIA),MARK3,REFER REPAIR MANUAL; CKD PACKAGE(THAILAND),MARK3,REFER REPAIR MANUAL; MALAYSIA SPEC,MARK3,REFER REPAIR MANUAL; MARK3,REFER REPAIR MANUAL
main11701-30020-04×5i200501-200706
CKD PACKAGE(MALAYSIA),MARK4,REFER REPAIR MANUAL; CKD PACKAGE(THAILAND),MARK4,REFER REPAIR MANUAL; MALAYSIA SPEC,MARK4,REFER REPAIR MANUAL; MARK4,REFER REPAIR MANUAL
main11701-30020-05×5i200910-201205
MARK5,REFER REPAIR MANUAL
main11701-30020-06×5i200910
CKD PACKAGE(SOUTH AFRICA),MARK6,REFER REPAIR MANUAL; MARK6,REFER REPAIR MANUAL
main11701-30030-02×5i200706-201310
MARK2,REFER REPAIR MANUAL
main11701-30030-03×5i200706
MARK3,REFER REPAIR MANUAL
main11701-30030-04×5i200706-200910
CKD PACKAGE(MALAYSIA),MARK4,REFER REPAIR MANUAL; CKD PACKAGE(THAILAND),MARK4,REFER REPAIR MANUAL; MALAYSIA SPEC,MARK4,REFER REPAIR MANUAL; MARK4,REFER REPAIR MANUAL; VIETNAM SPEC,MARK4,REFER REPAIR MANUAL
main11701-30030-05×5i200706
MARK5,REFER REPAIR MANUAL
main11701-30030-06×5i200706-200910
CKD PACKAGE(MALAYSIA),MARK6,REFER REPAIR MANUAL; CKD PACKAGE(THAILAND),MARK6,REFER REPAIR MANUAL; MALAYSIA SPEC,MARK6,REFER REPAIR MANUAL; MARK6,REFER REPAIR MANUAL; VIETNAM SPEC,MARK6,REFER REPAIR MANUAL
main11701-54080-01×5i200501-200801
MARK 1,REFER REPAIR MANUAL
main11701-54080-02×5i200501-200801
MARK 2,REFER REPAIR MANUAL
main11701-54080-03×5i200501-200801
MARK 3,REFER REPAIR MANUAL
main11701-54081-01×5i200801-200810
MARK1,REFER REPAIR MANUAL
main11701-54081-02×5i200801-200810
MARK2,REFER REPAIR MANUAL
main11701-54081-03×5i200801-200810
MARK3,REFER REPAIR MANUAL
main11701-75031-01×5supersedes 11701-75031-03i200501-201402
MARK1,REFER REPAIR MANUAL
main11701-75031-02×5i200501-201402
MARK2,REFER REPAIR MANUAL
main11701-75031-03×5i200501-201402
MARK3,REFER REPAIR MANUAL
13011RING SET, PISTON
main13011-0C030i200508-201401
STD
main13011-0L020i200508-201401
STD
main13011-0L060i201309-201401
STD
main13011-30060supersedes 13013-30060i200501-200910
STD; STD,CKD PACKAGE(THAILAND); STD,MALAYSIA SPEC; STD,MALAYSIA SPEC&CKD PACKAGE(MALAYSIA); STD,THAILAND SPEC&CKD PACKAGE(THAILAND)
main13011-30080i200910-201402
STD; STD,CKD PACKAGE(SOUTH AFRICA)
main13011-30090i200610-200906
STD
main13011-30150i200906-201312
STD
main13011-30160i201110-201312
STD
main13011-54130i200501
STD
main13011-75100i201308-201312
STD
main13011-75110supersedes 13013-75130i200501-201402
STD
main13011-75130i200501-201312
STD
main13013-0L020i200508-201401
O/S 0.50
main13013-30060i200501-200910
O/S 0.50
main13013-30080i200910-201205
O/S 0.50
main13013-30090i200610-201401
O/S 0.50
main13013-30150i200906-201312
O/S 0.50
main13013-30160i201212-201312
O/S 0.50
main13013-54130i200501
O/S 0.50
main13013-75100i201308-201312
O/S 0.50
main13013-75110i200501-201402
O/S 0.50
main13013-75130i200501-201312
O/S 0.50
main13014-30090i201310-201401
O/S 0.75
main13014-30150i200906-201310
O/S 0.75
main13014-30160i201212-201312
O/S 0.75
main13015-30090i200610-201401
O/S 1.00
main13015-30150i200906-201312
O/S 1.00
main13015-30160i201212-201312
O/S 1.00
13041BEARING, CONNECTING ROD
main13041-0C050-04×4i200803-201401
MARK4,REFER REPAIR MANUAL
main13041-0C050-05×4i200803-201401
MARK5,REFER REPAIR MANUAL
main13041-0C050-06×4i200803-201401
MARK6,REFER REPAIR MANUAL
main13041-0L020-02×4i201310-201401
MARK2,REFER REPAIR MANUAL
main13041-0L020-03×4i201310-201401
MARK3,REFER REPAIR MANUAL
main13041-0L020-04×4i201310-201401
MARK4,REFER REPAIR MANUAL
main13041-0L020-05×4i200508-201401
MARK5,REFER REPAIR MANUAL
main13041-0L020-06×4i200508-201401
MARK6,REFER REPAIR MANUAL
main13041-30020-02×4supersedes 13041-0L020-06i200910-201402
CKD PACKAGE(SOUTH AFRICA),MARK2,REFER REPAIR MANUAL; MARK2,REFER REPAIR MANUAL
main13041-30020-03×4i200910-201402
CKD PACKAGE(SOUTH AFRICA),MARK3,REFER REPAIR MANUAL; MARK3,REFER REPAIR MANUAL
main13041-30020-04×4i200501-200706
CKD PACKAGE(MALAYSIA),MARK4,REFER REPAIR MANUAL; CKD PACKAGE(THAILAND),MARK4,REFER REPAIR MANUAL; MALAYSIA SPEC,MARK4,REFER REPAIR MANUAL; MARK4,REFER REPAIR MANUAL
main13041-30020-05×4i200501-200706
CKD PACKAGE(MALAYSIA),MARK5,REFER REPAIR MANUAL; CKD PACKAGE(THAILAND),MARK5,REFER REPAIR MANUAL; MALAYSIA SPEC,MARK5,REFER REPAIR MANUAL; MARK5,REFER REPAIR MANUAL
main13041-30020-06×4i200512-200706
MARK6,REFER REPAIR MANUAL; VIETNAM SPEC,MARK6,REFER REPAIR MANUAL
main13041-30030-02×4i200706-200910
CKD PACKAGE(MALAYSIA),MARK2,REFER REPAIR MANUAL; CKD PACKAGE(THAILAND),MARK2,REFER REPAIR MANUAL; MALAYSIA SPEC,MARK2,REFER REPAIR MANUAL; MARK2,REFER REPAIR MANUAL; VIETNAM SPEC,MARK2,REFER REPAIR MANUAL
main13041-30030-03×4i200706-200910
CKD PACKAGE(MALAYSIA),MARK3,REFER REPAIR MANUAL; CKD PACKAGE(THAILAND),MARK3,REFER REPAIR MANUAL; MALAYSIA SPEC,MARK3,REFER REPAIR MANUAL; MARK3,REFER REPAIR MANUAL; VIETNAM SPEC,MARK3,REFER REPAIR MANUAL
main13041-30030-04×4i200706-201312
MARK4,REFER REPAIR MANUAL
main13041-30030-05×4i200706-201312
MARK5,REFER REPAIR MANUAL
main13041-30030-06×4i200706-200910
CKD PACKAGE(MALAYSIA),MARK6,REFER REPAIR MANUAL; CKD PACKAGE(THAILAND),MARK6,REFER REPAIR MANUAL; MALAYSIA SPEC,MARK6,REFER REPAIR MANUAL; MARK6,REFER REPAIR MANUAL; VIETNAM SPEC,MARK6,REFER REPAIR MANUAL
main13041-54041-01×4i200501-200801
MARK 1,REFER REPAIR MANUAL
main13041-54041-02×4i200501-200801
MARK 2,REFER REPAIR MANUAL
main13041-54041-03×4i200501-200801
MARK 3,REFER REPAIR MANUAL
main13041-54042-01×4i200801
MARK1,REFER REPAIR MANUAL
main13041-54042-02×4i200801-200810
MARK2,REFER REPAIR MANUAL
main13041-54042-03×4i200801
MARK3,REFER REPAIR MANUAL
main13041-75030-04×4supersedes 13041-75040-06i200507-200603
MARK 4,REFER REPAIR MANUAL; VIETNAM SPEC,MARK 4,REFER REPAIR MANUAL
main13041-75030-05×4i200507-200603
MARK 5,REFER REPAIR MANUAL; VIETNAM SPEC,MARK 5,REFER REPAIR MANUAL
main13041-75030-06×4i200507-200603
MARK 6,REFER REPAIR MANUAL; VIETNAM SPEC,MARK 6,REFER REPAIR MANUAL
main13041-75040-04×4i200501-200507
MARK4,REFER REPAIR MANUAL; VIETNAM SPEC,MARK4,REFER REPAIR MANUAL
main13041-75040-05×4i200501-200507
MARK5,REFER REPAIR MANUAL; VIETNAM SPEC,MARK5,REFER REPAIR MANUAL
main13041-75040-06×4i200501-200507
MARK6,REFER REPAIR MANUAL; VIETNAM SPEC,MARK6,REFER REPAIR MANUAL
main13041-75050-04×4i200603-201402
MARK4,REFER REPAIR MANUAL
main13041-75050-05×4i200603-201402
MARK5,REFER REPAIR MANUAL
main13041-75050-06×4i200603-201402
MARK6,REFER REPAIR MANUAL
13101PISTON SUB-ASSY, W/PIN
main13101-0C020×4i201201-201401
STD,(L)
main13101-0L020-01×4i200508-200812
STD,MARK1,REFER REPAIR MANUAL
main13101-0L020-02×4i200508-200812
STD,MARK2,REFER REPAIR MANUAL
main13101-0L020-03×4i200508-200812
STD,MARK3,REFER REPAIR MANUAL
main13101-0L051-01×4i200812-201401
STD,MARK 1,REFER REPAIR MANUAL
main13101-0L051-02×4i200812-201401
STD,MARK 2,REFER REPAIR MANUAL
main13101-0L051-03×4i200812-201401
STD,MARK 3,REFER REPAIR MANUAL
main13101-0L100-01×4i201310-201401
STD,MARK1,REFER REPAIR MANUAL
main13101-0L100-02×4i201310-201401
STD,MARK2,REFER REPAIR MANUAL
main13101-0L100-03×4i201310-201401
STD,MARK3,REFER REPAIR MANUAL
main13101-30031-01×4supersedes 13103-30031i200501-200812
STD,CKD PACKAGE(MALAYSIA),MARK1,REFER REPAIR MANUAL; STD,CKD PACKAGE(THAILAND),MARK1,REFER REPAIR MANUAL; STD,MALAYSIA SPEC,MARK1,REFER REPAIR MANUAL; STD,MARK1,REFER REPAIR MANUAL
main13101-30031-02×4i200501-200812
STD,CKD PACKAGE(MALAYSIA),MARK2,REFER REPAIR MANUAL; STD,CKD PACKAGE(THAILAND),MARK2,REFER REPAIR MANUAL; STD,MALAYSIA SPEC,MARK2,REFER REPAIR MANUAL; STD,MARK2,REFER REPAIR MANUAL
main13101-30031-03×4i200501-200812
STD,CKD PACKAGE(MALAYSIA),MARK3,REFER REPAIR MANUAL; STD,CKD PACKAGE(THAILAND),MARK3,REFER REPAIR MANUAL; STD,MALAYSIA SPEC,MARK3,REFER REPAIR MANUAL; STD,MARK3,REFER REPAIR MANUAL
main13101-30081-01×4i200812-201205
STD,MARK1,REFER REPAIR MANUAL
main13101-30081-02×4i200812-201205
STD,MARK2,REFER REPAIR MANUAL
main13101-30081-03×4i200812-201205
STD,MARK3,REFER REPAIR MANUAL
main13101-30110-01×4i200610-201008
STD,MARK1,REFER REPAIR MANUAL
main13101-30110-02×4i200610-201008
STD,MARK2,REFER REPAIR MANUAL
main13101-30110-03×4i200610-201008
STD,MARK3,REFER REPAIR MANUAL
main13101-30130-01×4i201008-201312
STD,MARK1,REFER REPAIR MANUAL
main13101-30130-02×4i201008-201310
STD,MARK2,REFER REPAIR MANUAL
main13101-30130-03×4i201008-201110
STD,MARK3,REFER REPAIR MANUAL
main13101-30170-01×4i201212-201312
STD,MARK 1,REFER REPAIR MANUAL
main13101-30170-02×4i201212-201312
STD,MARK 2,REFER REPAIR MANUAL
main13101-30170-03×4i201110-201312
STD,MARK 3,REFER REPAIR MANUAL
main13101-54120-01×4i200501-200810
STD,MARK 1,REFER REPAIR MANUAL
main13101-54120-02×4i200501
STD,MARK 2,REFER REPAIR MANUAL
main13101-54120-03×4i200501
STD,MARK 3,REFER REPAIR MANUAL
main13101-75120×4i201308-201312
STD
main13101-75130×4i200501-201402
STD
main13103-0L051×4i200812-201401
O/S 0.50
main13103-30030×4i200508-200812
O/S 0.50
main13103-30031×4i200501-200812
O/S 0.50
main13103-30081×4i200812-201402
O/S 0.50
main13103-30110×4i200610-201008
O/S 0.50
main13103-30130×4i201008-201212
O/S 0.50
main13103-30170×4i201110-201312
O/S 0.50
main13103-54120×4i200501
O/S 0.50
main13103-75120×4i201308-201312
O/S 0.50
main13103-75130×4i201201-201401
O/S 0.50,(L)
main13104-30110×4i200610-201008
O/S 0.75
main13104-30130×4i201008-201212
O/S 0.75
main13104-30170×4i201212-201312
O/S 0.75
main13105-30110×4i200610-201008
O/S 1.00
main13105-30130×4i201008-201110
O/S 1.00
main13105-30170×4i201110-201312
O/S 1.00
13101ARING, HOLE SNAP(FOR PISTON PIN)
main90520-22025×8i200501-201402
main90520-37014×8i200501-201205
main90521-31001×8i200501-200810
13201ROD SUB-ASSY, CONNECTING
main13201-09670×4supersedes 13201-79575i200508-200607
VIETNAM SPEC
main13201-09671×4i200712-201401
main13201-0L010×4i200608-200906
CKD PACKAGE(THAILAND)
main13201-0L011×4i201008-201401
(L)
main13201-0L030×4supersedes 13201-30030i200508-200608
main13201-0L041×4i201310-201401
main13201-30020×4i200610-200908
main13201-30021×4i200908-201312
main13201-30030×4i200501-200908
CKD PACKAGE(MALAYSIA); CKD PACKAGE(THAILAND); MALAYSIA SPEC
main13201-30031×4i200908-200910
CKD PACKAGE(MALAYSIA); CKD PACKAGE(THAILAND); MALAYSIA SPEC; VIETNAM SPEC; WITHOUT(CKD PACKAGE)
main13201-30041×4i200910-201205
main13201-59106×4i200501-200801
main13201-59216×4i200801-201312
main13201-79476×4i201308-201312
*271
main13201-79575×4i200501-200603
main13201-79576×4i200603-201401
main13201-79585×4i200607-200712
(J)
main13201-79615×4i200709-201402
13201ABUSH(FOR CONNECTING ROD SMALL END)
main90999-73115×4i200501-200810
main90999-73143×4i200610-200908
main90999-73144×4i200501-201402
main90999-73145×4i200501-200906
main90999-73156×4i200908-201310
main90999-73157×4i200906-201205
13202BEARING SET, CONNECTING ROD
main13204-30020i200910-201402
U/S 0.25; U/S 0.25,CKD PACKAGE(SOUTH AFRICA)
main13204-30030i200706-201310
U/S 0.25
main13204-54041i200501-200712
U/S 0.25
main13204-54042i200801
U/S 0.25
main13204-75030i200512-200603
U/S 0.25
main13204-75040i200501-200601
U/S 0.25
main13204-75050i200712-201402
U/S 0.25
main13205-30020i200910-201402
U/S 0.50
main13205-30030i200706-201310
U/S 0.50
main13205-54041i200501-200712
U/S 0.50
main13205-54042i200801
U/S 0.50
13265BOLT, CONNECTING ROD
main13265-28010×8i200501-201402
main13265-54021×8i200501
main13265-67021×8i200501-201205
13405FLYWHEEL SUB-ASSY
main13405-05070i200501
(L)
main13405-0C030i200508-201401
main13405-0L020i200508-200806
main13405-0L021i200806-201303
WITHOUT(CKD PACKAGE)
main13405-0L110i201303
MARK=30031
main13405-30030i200501-200809
CKD PACKAGE(MALAYSIA); CKD PACKAGE(THAILAND); MALAYSIA SPEC
main13405-30031i200809-201205
main13405-30060i201310
main13405-54080i200501-200810
(J)
main13405-67030i200501
main13405-67060i200610-201310
main13405-75060i200501-201402
13405APIN, STRAIGHT(FOR FLYWHEEL)
main90250-05121i200501
L=15,OD=5
main90250-08054×3supersedes 90250-T0010i200501-201402
L=23,OD=8
main90250-10192×3supersedes 90250-T0008i200501-201205
L=22,OD=10
main90250-T0008×3i200508
L=22,OD=10
main90250-T0010×3i200508-201401
L=23,OD=8
13405BBOLT, FLYWHEEL SETTING
main90105-12109×8i200501
main90105-13010×8supersedes 90105-T0113i200501-201205
main90105-T0113×8i200508
main90910-02116×10supersedes 90910-T2004i200501-201402
main90910-T2004×10i200508-201401
13411CRANKSHAFT
main13401-0C020i200608-200904
(L)
main13401-0C021i200904-201401
(L)
main13401-0L030i200508-201101
(L)
main13401-0L090i201309
main13401-0L100i201101
(L); CKD PACKAGE(SOUTH AFRICA),(L)
main13401-30010i200610-201310
main13401-30020i200508-200908
(J)
main13401-30060i201101
(J)
main13401-54100i200501
main13401-75010i201308-201312
*271
main13401-75020i200501-201401
main13401-75040i200709-201402
13453GEAR, FLYWHEEL RING
main13453-05010i200501
(L)
main13453-0C020i200508-201401
main13453-0L010i200508
main13453-20010i200501-201402
main13453-54010i200501
(J)
main13453-67030i200501-201205
13471PULLEY, CRANKSHAFT
main13408-0C010supersedes 13408-75040i200508-200704
VIETNAM SPEC
main13408-0C030i200704-201401
main13408-0L020i201310-201401
main13408-30010i200501-200901
CKD PACKAGE(THAILAND); MALAYSIA SPEC; MALAYSIA SPEC&CKD PACKAGE(MALAYSIA); THAILAND SPEC&CKD PACKAGE(THAILAND)
main13408-30011i200901-201110
main13408-30021i201110-201312
main13408-54090i200501
main13408-75040i200501-200704
VIETNAM SPEC
main13408-75050i200704-201402
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
main90280-05005×2supersedes 90280-T0003i200501-201402
main90280-T0002×2i201310
main90280-T0003×2i200508-201401
(L)
main95161-30516×2i200501-201101
CKD PACKAGE(THAILAND)
main95161-30622i200501-200810
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
main90105-16041supersedes 90109-T0038i200501-201402
main90109-T0038i200508-201401
main90119-18003supersedes 90119-T0218i200501-201205
main90119-T0218i200508-201401
main90901-19028i200501-200810
13508FPIN, STRAIGHT(FOR IDLE GEAR)
main90250-05027×2supersedes 90250-T0011i200501-201205
main90250-T0011×2i200508-201401
(L)
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
main13521-0C010i200508-201401
main13521-0L010supersedes 13521-67020i201310-201401
main13521-0L020i201203-201206
*299,TYPE B:REF ILL.; WITHOUT(CKD PACKAGE),*299,TYPE B:REF ILL.
main13521-30020supersedes 13521-0L010i200709-200910
CKD PACKAGE(MALAYSIA); CKD PACKAGE(THAILAND); MALAYSIA SPEC; VIETNAM SPEC; WITHOUT(CKD PACKAGE)
main13521-67020i200910-201205
main13521-75020i200501-201402
13525GEAR, IDLE, NO.1
main13508-0L010supersedes 13508-30011i200508-201401
*299,TYPE A:REF ILL.
main13508-0L020i201310-201401
(L)
main13508-0L030i201203-201206
*299,TYPE B:REF ILL.; WITHOUT(CKD PACKAGE),*299,TYPE B:REF ILL.
main13508-30011i200501-201205
main13508-67011i200610-201312
13538GEAR, IDLE SUB, NO.2
main13538-0L010supersedes 13538-67900i201310
PNC 13455A=TYPE B
main13538-0L020i201203-201206
*299,TYPE B:REF ILL.; WITHOUT(CKD PACKAGE),*299,TYPE B:REF ILL.
main13538-67900i200501-201205
13538AWASHER, WAVE
main90206-69001supersedes 90206-T0001i200501-201402
main90206-T0001i200508-201401
(L)
13538CRING, SHAFT SNAP
main90520-58002supersedes 90520-T0032i200501-201205
main90520-T0032×2i201309-201401
13572PLATE, IDLE GEAR THRUST
main13572-0L010i201310-201401
main13572-67041i200501-201205
13578SPRING, IDLE GEAR
main13578-0L010supersedes 13578-67010i200508-201401
(L)
main13578-67010i200501-201205
13581SHAFT, IDLE GEAR, NO.1
main13581-0L010i200508-201401
main13581-67041i200501-201205
13613EGEAR, INJECTION
main13603-0L010i200508-201201
main13603-0L020i201203-201206
*299,TYPE B:REF ILL.; WITHOUT(CKD PACKAGE),*299,TYPE B:REF ILL.
main13603-30020i200501
13613FBEARING, RADIAL BALL
main90363-67001supersedes 90363-T0013i200501-201310
main90363-T0013i201310-201401
19315PLATE, CRANK ANGLE SENSOR, NO.1
main19315-0L010i201310-201401
main19315-30010i200501-201110
main19315-30020i201110-201312
9010510398
main90105-10398
9017614003
main90176-14003
9030123005
main90301-23005
9151160632
main91511-60632

36 parts on this diagram · 7 diagrams in section

CRANKSHAFT & PISTON — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
