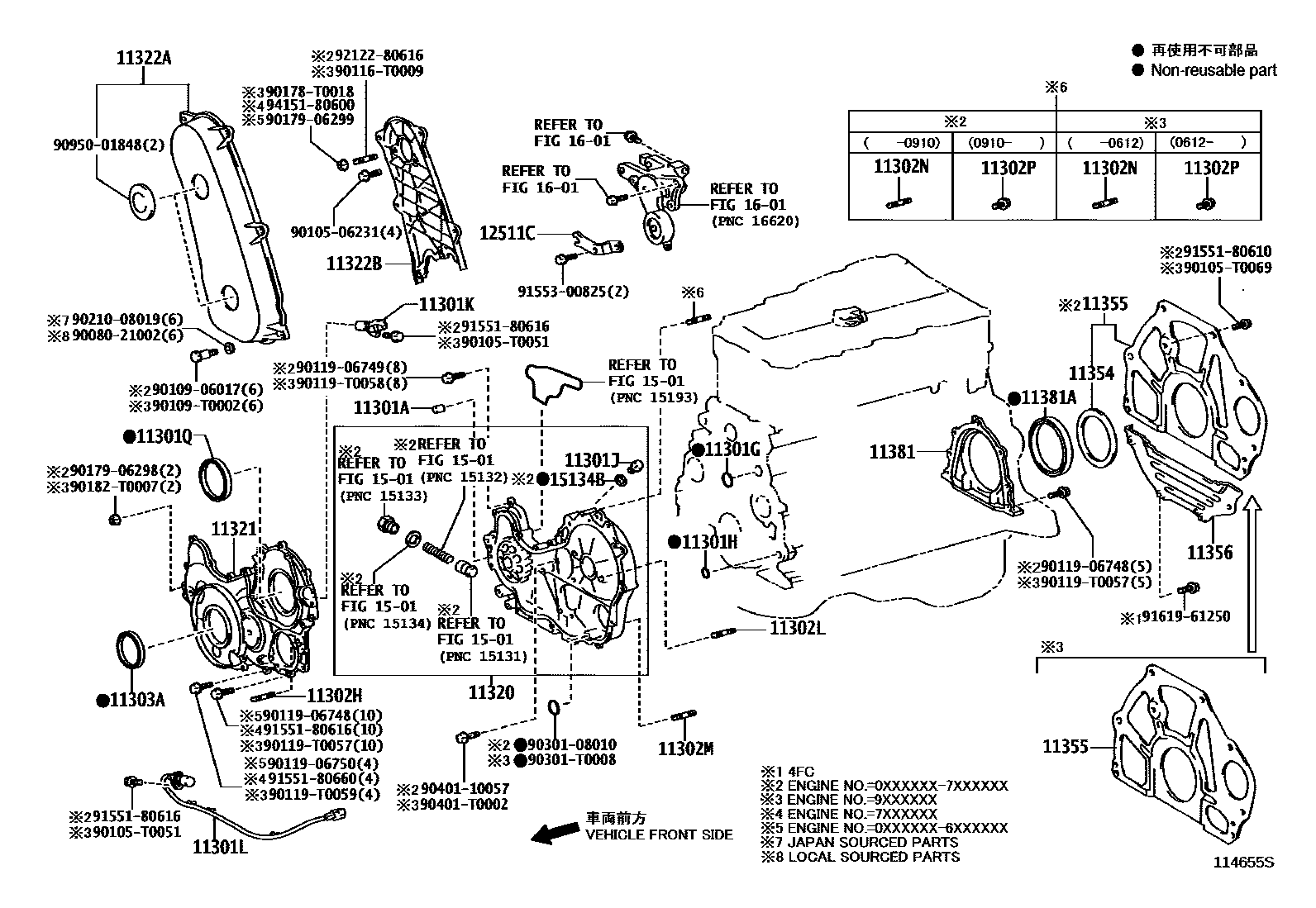

TIMING GEAR COVER & REAR END PLATE
11301CASE SUB-ASSY, TIMING GEAR
11301APIN, STRAIGHT(FOR TIMING GEAR CASE)
L=18,OD=8
main90250-T0007i2KDFTV..KDH202..HRF..GEN;2KDFTV..KDH200,212..MA,VN;1KDFTV,2KDFTV..KDH202,203..MA,TH200508-201401
L=18,OD=8
11301GRING, O(FOR TIMING GEAR CASE, UPPER)
main90301-25014supersedes 90301-T0021i2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;2TRFE..TRH223..GL..SA;1TRFE,2TRFE..TRH200,201,221;2TRFE..TRH223..ARL,CIS,GCC,GEN,TH;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN)200501-201401
main90301-T0010i2KDFTV..KDH202..HRF..GEN;2KDFTV..KDH200,212..MA,VN;1KDFTV,2KDFTV..KDH202,203..MA,TH200508-201401
11301HRING, O(FOR TIMING GEAR CASE, LOWER)
11301JPLUG, W/HEAD STRAIGHT SCREW(FOR TIMING GEAR CASE)
11301KSENSOR, CRANK POSITION
main90919-05025i2KDFTV..KDH200,212..MA,VN;1KDFTV,2KDFTV..KDH202,203..MA,TH;2KDFTV..KDH202,222..HRF..(12S,14S)..STD..(GEN,SA)200508-201402
main90919-05052i2KDFTV..KDH200..RHD..4D..5F..GEN; 2KDFTV..KDH202..RHD..SRF..12S..GEN;2KDFTV..KDH200..RHD..4D..5F..(GEN,TH); 2KDFTV..KDH212..GL;2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..LHD..12S..5F;2KDFTV..KDH220..SP..(GEN,SA);2KDFTV..KDH200,202,222..(03S,14S,15S,16S)..(GCC,GEN,SA,TH)200501-200910
CKD PACKAGE(MALAYSIA); CKD PACKAGE(THAILAND); MALAYSIA SPEC
11301LSENSOR, CRANK POSITION NO.2
MARK=90919-05078
MARK=90919-05085
11301QSEAL, TYPE T OIL(FOR INJECTION PUMP)
11302COVER SUB-ASSY, TIMING CHAIN OR BELT
SIAM AISIN
main11310-75070i2TRFE..TRH201,22#;2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN); 2TRFE..TRH213..10S..GEN200501-200711
VIETNAM SPEC
VIETNAM SPEC
main11310-75073i2TRFE..TRH223..GL..SA;2TRFE..TRH223..ARL,CIS,GCC,GEN,TH;2TRFE..TRH201,203,213,221..ARL,GCC,GEN,SA,TH200902-201401
11302HBOLT, STUD(FOR TIMING GEAR COVER)
main90116-08374×2i2KDFTV..KDH200..RHD..4D..5F..GEN; 2KDFTV..KDH202..RHD..SRF..12S..GEN;2KDFTV..KDH200..RHD..4D..5F..(GEN,TH); 2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH200,201,203,212,22#..ARL,GCC,GEN,SA,TH; 2KDFTV..KDH212..LHD..STD..GEN200605-200901
*107; CKD PACKAGE(MALAYSIA),*107; CKD PACKAGE(THAILAND),*107; MALAYSIA SPEC,*107; VIETNAM SPEC,*107
main90116-08376×2i2KDFTV..KDH200..RHD..4D..5F..GEN; 2KDFTV..KDH212..RHD;2KDFTV..KDH212..GCC;2KDFTV..KDH200,22#..ARL,GCC,GEN;2KDFTV..KDH202,212..(SMRF,SRF)..(11S,12S,15S)..(GCC,GEN)200501-200605
*107; MALAYSIA SPEC,*107
main90116-08377×2supersedes 90116-08376i2KDFTV..KDH200..RHD..4D..5F..GEN; 2KDFTV..KDH202..GCC,GEN;2KDFTV..KDH200,212,220,222..GCC,GEN,SA,TH; 2KDFTV..KDH202..TH; 2KDFTV..KDH212..LHD..STD..GEN200901-200910
*107; CKD PACKAGE(MALAYSIA),*107; CKD PACKAGE(THAILAND),*107; MALAYSIA SPEC,*107; VIETNAM SPEC,*107; WITHOUT(CKD PACKAGE),*107
11302LBOLT, STUD(FOR INJECTION PUMP)
main90116-08374×2i2KDFTV..KDH202..4FC;2KDFTV..KDH200..ARL,MA;2KDFTV..KDH212..STD..(SA,VN);2KDFTV..KDH200,222..(06S,14S)..(ARL,GCC,GEN);2KDFTV..KDH202,220..RHD..(03S,12S)..(ARL,GEN,MA,TH)200501-200908
main90116-08377×2i1KDFTV,2KDFTV..KDH201,202,222..SG..(GCC,GEN,SA);1KDFTV,2KDFTV..KDH200,201,203,212,220,221,223..(03S,10S,11S,12S,14S,16S)..(ARL,GCC,GEN,RUS,SA,TH)200901-201402
11302MBOLT, STUD(FOR POWER STEERING VANE PUMP)
11302NBOLT, STUD(FOR VACUUM TRANSMITTING PIPE)
11302PBOLT(FOR VACUUM TRANSMITTING PIPE)
main91551-80614i1KDFTV..KDH203..TH;2KDFTV..KDH200,202,212,220;2KDFTV..KDH222..GCC,GEN,SA; 2KDFTV..KDH220,222..STD..SA200910-201402
CKD PACKAGE(SOUTH AFRICA)
11303ASEAL, OIL(FOR CRANKSHAFT FRONT)
main90080-31096i2KDFTV..KDH202..MA,TH;2KDFTV..KDH202..HRF..GEN;2KDFTV..KDH200,212..MA,VN200508-201211
main90311-48020i2TRFE..TRH201,22#;2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN); 2TRFE..TRH213..10S..GEN200501-200704
REFER TO ILLUST.; VIETNAM SPEC,REFER TO ILLUST.
main90311-48029i2TRFE..TRH203..SRF;1TRFE,2TRFE..TRH200,201,213,22#..ARL,CIS,GCC,GEN,SA,TH200704-201402
REFER TO ILLUST.
main90311-50051i1KDFTV,2KDFTV..KDH202,203,222,223..ARL,GCC,GEN,RUS,SA;1KDFTV,2KDFTV..KDH200,201,212,220,221..ARL,GCC,GEN,SA,TH; 2KDFTV..KDH220,222..STD..SA201202-201402
CKD PACKAGE(SOUTH AFRICA)
REFER TO ILLUST.; VIETNAM SPEC,REFER TO ILLUST.
REFER TO ILLUST.
11320CASE ASSY, TIMING GEAR
main11320-0L030i2KDFTV..KDH202..MA,TH;2KDFTV..KDH202..HRF..GEN;2KDFTV..KDH200,212..MA,VN200508-201201
(L)
main11320-30021i2KDFTV..KDH200..RHD..4D..5F..GEN; 2KDFTV..KDH202..RHD..SRF..12S..GEN;2KDFTV..KDH200..RHD..4D..5F..(GEN,TH); 2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH200,220,222..ARL,GCC,GEN,SA,TH;2KDFTV..KDH202,212..(SMRF,SRF)..(10S,11S,12S,15S)..(GCC,GEN,SA)200501-200910
CKD PACKAGE(MALAYSIA); CKD PACKAGE(THAILAND); MALAYSIA SPEC
(J)
(J)
11321CASE, TIMING GEAR
(L)
11322ACOVER, TIMING BELT, NO.1
main11332-30011i1KDFTV..KDH201..RHD..03S;1KDFTV..KDH201,203..RHD..SG;2KDFTV..KDH222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH200,202,212,220,221,223200501-201402
11322BCOVER, TIMING BELT, NO.2
main11322-0L010i2KDFTV..KDH202..HRF..GEN;2KDFTV..KDH200,212..MA,VN;1KDFTV,2KDFTV..KDH202,203..MA,TH200508-201401
11354SEAL, FLYWHEEL HOUSING DUST
(L)
main11354-30010i2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH203,222,223..ARL,GCC,GEN,RUS,SA;1KDFTV,2KDFTV..KDH200,201,212,220,221..ARL,GCC,GEN,SA,TH200502-201402
11355PLATE, REAR END
(L)
main11355-0L010i2KDFTV..KDH202..HRF..GEN;2KDFTV..KDH200,212..MA,VN;1KDFTV,2KDFTV..KDH202,203..MA,TH200508-201401
(J)
main11355-67010i2KDFTV..KDH20#,22#; 2KDFTV..KDH20#..RHD..4D..(03S,12S)..5F..GEN; 2KDFTV..KDH200..RHD..4D..5F..GEN200501-200502
CKD PACKAGE(MALAYSIA); CKD PACKAGE(THAILAND); MALAYSIA SPEC
main11355-75021i2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN)200501-201402
11356PLATE, REAR END, NO.2
main11356-30020i1KDFTV,2KDFTV..KDH20#,212,22#..5F; 2KDFTV..KDH200,202..RHD..SRF..4D..(03S,12S)..5F..GEN; 2KDFTV..KDH200..RHD..4D..5F..GEN200501
CKD PACKAGE(MALAYSIA); CKD PACKAGE(THAILAND)
11381RETAINER, ENGINE REAR OIL SEAL
main11381-0K010i2KDFTV..KDH200..RHD..4D..5F..GEN; 2KDFTV..KDH212..GL;2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..LHD..12S..5F;2KDFTV..KDH220..SP..(GEN,SA);2KDFTV..KDH200,202,222..(03S,14S,15S,16S)..(GCC,GEN,SA,TH)200501-200910
(L),*107; MALAYSIA SPEC,(L),*107
E/G NO.=7XXXXXX,(J)
main11381-75010i2TRFE..TRH201,22#;2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN); 2TRFE..TRH213..10S..GEN200501-200812
VIETNAM SPEC
11381ASEAL, ENGINE REAR OIL
main90080-31100i2KDFTV..KDH202..MA,TH;2KDFTV..KDH202..HRF..GEN;2KDFTV..KDH200,212..MA,VN200508-201208
ENGINE NO.=9XXXXXX
main90311-88005supersedes 90311-T0026i2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN)200501-201402
main90311-95008i2KDFTV..KDH200..RHD..4D..5F..GEN; 2KDFTV..KDH202..RHD..SRF..12S..GEN;2KDFTV..KDH200..RHD..4D..5F..(GEN,TH); 2KDFTV..KDH212..GL;2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..LHD..12S..5F;2KDFTV..KDH220..SP..(GEN,SA);2KDFTV..KDH200,202,222..(03S,14S,15S,16S)..(GCC,GEN,SA,TH)200501-200910
*107; CKD PACKAGE(MALAYSIA),*107; CKD PACKAGE(THAILAND),*107; MALAYSIA SPEC,*107
*107
ENGINE NO.=9XXXXXX
12511CBRACKET, ALTERNATOR
1501ENGINE OIL PUMP
15134BGASKET, OIL PUMP RELIEF VALVE
WITHOUT(CKD PACKAGE)
1601WATER PUMP
9008021002
main90080-21002
9010506231
main90105-06231
90105T0051
main90105-T0051
90105T0069
main90105-T0069
9010906017
main90109-06017
90109T0002
main90109-T0002
90116T0009
main90116-T0009
9011906748
main90119-06748
9011906749
main90119-06749
9011906750
main90119-06750
90119T0057
main90119-T0057
90119T0058
main90119-T0058
90119T0059
main90119-T0059
90178T0018
main90178-T0018
9017906298
main90179-06298
9017906299
main90179-06299
90182T0007
main90182-T0007
9021008019
main90210-08019
9030108010
main90301-08010
90301T0008
main90301-T0008
9040110057
main90401-10057
90401T0002
main90401-T0002
9095001848
main90950-01848
9155180610
main91551-80610
9155180616
main91551-80616
9155180660
main91551-80660
9155300825
main91553-00825
9161961250
main91619-61250
9212280616
main92122-80616
9415180600
main94151-80600
58 parts on this diagram · 8 diagrams in section
