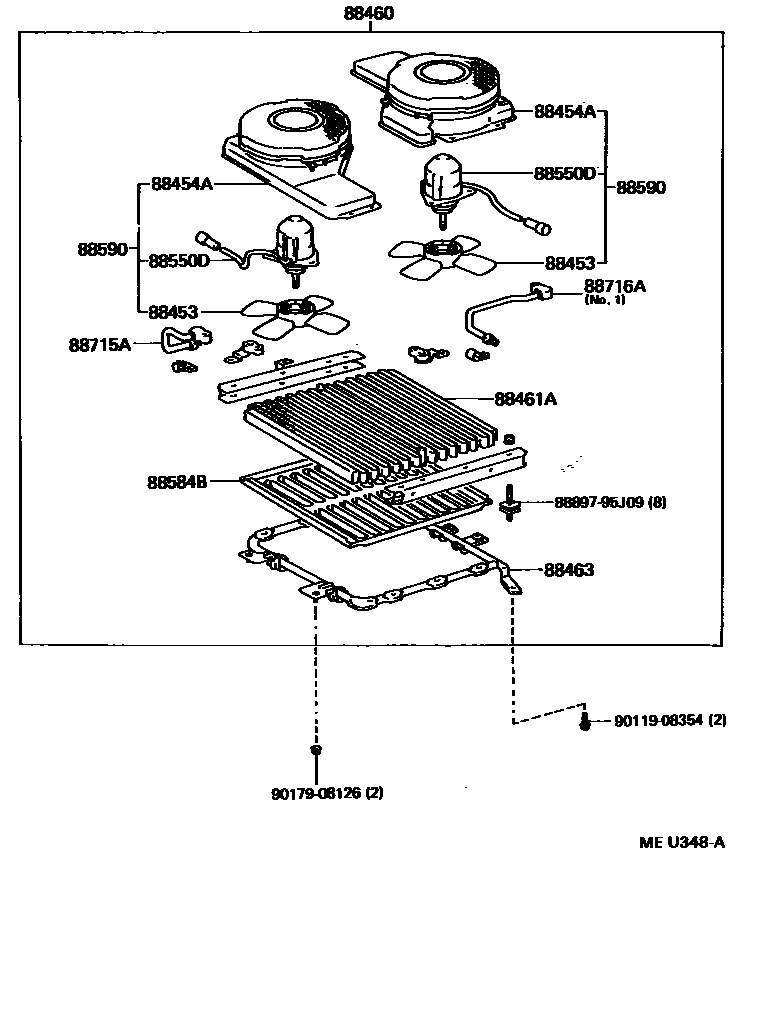

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1CONDENSER(MAKER OPT) 0002 1CONDENSER(MAKER OPT) 0003 1CONDENSER---SINGLE(DEALER OPT0004 1CONDENSER---DUAL(DEALER OPT) 0005 1CONDENSER---SINGLE 0006 1CONDENSER---SINGLE 0007 1CONDENSER---DUAL 0008 1CONDENSER 0009 1CONDENSER---DUAL 0010 1CONDENSER 0011 1CONDENSER---DUAL 0012 1CONDENSER 0013 1FRONT PIPING---SINGLE(DEALER 0014 1FRONT PIPING---DUAL(MAKER OPT0015 1FRONT PIPING---SINGLE 0016 1FRONT PIPING---SINGLE 0017 1FRONT PIPING---SINGLE 0018 1FRONT PIPING---DUAL 0019 1FRONT PIPING---DUAL 0020 1FRONT PIPING---DUAL 0021 1FRONT PIPING(MAKER OPT) 0022 1FRONT PIPING---SINGLE(MAKER O0023 1FRONT PIPING---DUAL(DEALER OP0024 1FRONT PIPING---DUAL(DEALER OP0025 1FRONT PIPING---DUAL 0026 1FRONT PIPING---SINGLE 0027 1FRONT PIPING---SINGLE 0028 1FRONT PIPING---SINGLE 0029 1FRONT PIPING---DUAL 0030 1FRONT PIPING---DUAL 0031 1FRONT PIPING---DUAL 0032 1FRONT PIPING---DUAL 0033 1FRONT PIPING---SINGLE(DEALER 0036 1FRONT PIPING---SINGLE(DEALER 0037 1FRONT PIPING---DUAL(DEALER OP0039 1FRONT PIPING---SINGLE(DEALER 0040 1FRONT PIPING---SINGLE(DEALER 0041 1FRONT PIPING---DUAL(DEALER OP0042 1REAR PIPING(MAKER OPT) 0043 1REAR PIPING(DEALER OPT) 0044 1REAR PIPING(MAKER OPT) 0045 1REAR PIPING(DEALER OPT) 0046 1REAR PIPING(MAKER OPT) 0047 1REAR PIPING 0048 1REAR PIPING(DEALER OPT) 0051 1REAR PIPING 0052 1REAR PIPING 0053 1 0054 1O-RING

88453FAN, COOLING (FOR CONDENSER)

main88453-26010iLH104,105,114,115,RZH104,114199008-199010

RH

main88453-26020iLH172..06S;LH162,RZH112..5D;LH172..03S..5F..STD;LH162,184,RZH112..4D..(03S,14S)..5F;LH10#,11#,125,154,164,166,174,176,RZH10#,113,114,115,125,155199907-200602

main88453-95A01×2iLH104,105,114,115,RZH104,114198912-199008

main88453-95J00iLH102,103,112,113,RZH102,112,113..GEN; LH104,105,114,115,RZH104,114198908-198912

88454ASHROUD, FAN

main88454-26010iLH102,103,112,113,RZH102,103,112,113..GEN199008-199308

main88454-26020×2iLH104,114,RZH104,114..LHD199008-199308

main88454-26030×2iLH104,105,114,115,RZH104,114..RHD199008-199308

main88454-26050iLH113,125..(03S,06S,14S)..STD;LH10#,112,114,115,RZH10#,11#,125199308-199808

main88454-26100iLH103..4D..GEN;RZH102,103..03S..GEN199907-200308

main88454-95J05iLH102,103,112,113,RZH102,112,113..GEN198908-199008

main88454-95J06×2iLH104,105,114,115,RZH104,114..RHD198908-199008

main88454-95J08×2iLH104,114,RZH104,114..LHD198908-199008

88460CONDENSER ASSY, COOLER

main88460-26070iLH125,RZH125..ARL199308-199508

main88460-26080iLH102,103,112,113,RZH102,103,112,113..RHD..GEN199308-199508

main88460-26090iLH102,112,113,RZH112,113..LHD..STD199308-199508

main88460-26140iLH114,115,RZH104,114..RHD199308-199508

main88460-26150iLH104,105,112,114,115,RZH104,105,113,114,115..LHD..(09S,12S,15S)199308-199508

main88460-26160iLH103,113,RZH103,113..ARL199308-199508

main88460-26270iLH114,115,RZH102,104,114,115..RHD..SG199508-199608

main88460-26280iLH102,104,114,115,RZH103,104,105,114,115..LHD..(09S,12S,15S)199508-199808

DUAL AIR CONDITIONER

main88460-26290iLH113..RHD..STD..GEN;LH102,103,112,RZH102,103,112,113..RHD..(GL,STD)..GEN199508-199808

main88460-26300iLH102,112,113,RZH102,103,112,113..LHD199508-199808

main88460-26310iLH125,RZH125..ARL199508-199808

main88460-26320iLH103,113,RZH103,113..ARL199508-199808

main88460-26350iRZH103,114..RHD..4D..SG199608-199808

main88460-26510iLH172..06S..STD199907-200108

DUAL AIR CONDITIONER

main88460-26520iLH104,105,114,115,166,174,176,RZH10#,114,115..LHD..(09S,10S,12S,15S)199808-199907

DUAL AIR CONDITIONER

main88460-26530iRZH112..4D..06S199907-200108

SINGLE AIR CONDITIONER

main88460-26540iRZH113..GCC..EFI;RZH113..LHD..06S..GEN200108-200508

main88460-95J01iLH125,RZH103,125..SG..ARL198908-199308

main88460-95J02iLH104,114,RZH104,114..LHD198908-199308

main88460-95J15iLH102,103,112,113..06S;RZH102,103,112,113..RHD..STD198908-199308

DEALER OPTION

main88460-95J16iLH102,112,RZH102,112..LHD198908-199308

main88460-95J19iLH104,105,114,115,RZH104,114..RHD198908-199308

main88460-95J21iLH102,103,112,113,RZH102,103,112,113..RHD..GEN198908-199308

MAKER OPTION

main88460-95J22iLH103,113..ARL198908-199308

88461ACORE, COOLER CONDENSER

main88461-26020iLH125..ARL;LH10#,11#,RZH10#,11#,125199308-199508

main88461-26050iLH113,125..(03S,06S,14S)..STD;LH10#,112,114,115,RZH10#,11#,125199508-199808

main88461-26140iLH172..06S;LH162,RZH112..5D;LH172..03S..5F..STD;LH162,184,RZH112..4D..(03S,14S)..5F;LH10#,11#,125,154,164,166,174,176,RZH10#,113,114,115,125,155199907-200602

main88461-95J09iRZH103,113..GEN;LH102,103,112,113,RZH102,112198908-199308

main88461-95J10iLH104,105,114,115,RZH104,114..RHD198908-199308

main88461-95J11iLH104,114,RZH104,114..LHD198908-199308

88463BRACKET, COOLER CONDENSER, NO.1

main88463-26050iLH102,104,105,11#,RZH10#,11#..LHD199308-199808

main88463-26060iLH113,125..RHD..(03S,06S,14S)..STD;LH102,103,112,114,115,RZH102,103,104,11#,125..RHD199308-199808

main88463-95J22iLH104,105,114,115,125,RZH103,104,114,125..RHD..4D..SG198908-199308

main88463-95J23iLH104,114,RZH104,114..LHD198908-199308

main88463-95J25iLH102,103,112,113,RZH102,103,112,113..RHD..STD198908-199308

main88463-95J30iLH102,112,RZH102,112..LHD198908-199308

88550DMOTOR ASSY, BLOWER

main88550-26010iLH102,103,112,113,RZH102,103,112,113..GEN199008-199308

main88550-26040×2iLH104,105,114,115,RZH104,114199008-199308

main88550-26050iLH172..06S..STD199907-200108

DUAL AIR CONDITIONER

main88550-26110iRZH112..LHD;RZH112..RHD..SP;LH172..4D..06S..DSL;LH172..03S..5F..STD;RZH113..5D..03S..GEN;RZH113..4D..STD..(ARL,GEN);LH162,RZH113..5F..(CBR,DSL);LH102,103,112,113,RZH102,103199907-200602

SINGLE AIR CONDITIONER

main88550-95J06×2iLH104,105,114,115,RZH104,114198908-199008

main88550-95J07iLH102,103,112,113,RZH102,112,113..GEN198908-199008

88584BGUIDE, COOLER AIR

main88584-26010iLH104,114,RZH104,114..LHD198908-199308

main88584-26020iLH113,125..(03S,06S,14S)..STD;LH10#,112,114,115,RZH10#,11#,125199308-199808

main88584-26050iLH162..GEN;LH172..06S;LH172..RHD..03S..5F..STD;LH162,184,RZH112..RHD..4D..(03S,14S)..5F;LH103,11#,125,174,RZH103,104,105,113,114,125..RHD199907-200602

main88584-26060iRZH102..03S199912-200008

main88584-26080iRZH105,113,115..CBR199912-200501

MIDDLE EAST SPEC

main88584-95J00iRZH103,113..GEN;LH102,103,112,113,RZH102,112198908-199308

main88584-95J01×2iLH104,105,114,115,RZH104,114..RHD198908-199008

88590BLOWER ASSY, W/SHROUD

main88590-26010iLH102,103,112,113,RZH102,112,113..GEN199008-199010

MAKER OPTION

main88590-26020iLH104,114,RZH104,114..LHD199008-199010

LH

main88590-26030×2iLH104,114,RZH104,114..LHD199010-199308

main88590-26040iLH104,105,114,115,RZH104,114..RHD199008-199010

LH

main88590-26050iLH104,105,114,115,RZH104,114..RHD199008-199010

RH

main88590-26080iRZH103,114,125..RHD..4D..SG; RZH114..LHD;LH113,125..SG..STD;LH102,104,114,115,RZH103,104,105,115..09S,12S,15S199703-199808

DUAL AIR CONDITIONER

main88590-26100iLH113..STD;LH102,103,112,RZH102,103,112,113..GL,SGL,STD199508-199808

main88590-26140iLH172..06S..GL;LH184..5F..ARL;LH172,RZH113..GCC;LH172,RZH113..4D..SG..(DX,STD)..(DEFI,EFI);LH104,105,113,154,164,166,176,RZH103,155..LHD..SRF;LH114,115,125,174,RZH102,104,105,112,114,115,125..SG..(03S,10S,12S,14S,15S)199907-200602

DUAL AIR CONDITIONER

main88590-26150iRZH103..03S..GEN200308

SINGLE AIR CONDITIONER

main88590-95J00iLH102,103,112,113,RZH102,103,112,113..STD199010-199308

main88590-95J01×2iLH104,105,114,115,125,RZH103,104,114,125..RHD..SG198908-199008

main88590-95J02×2iLH104,114,RZH104,114..LHD198908-199008

88715APIPE, COOLER REFRIGERANT DISCHARGE, A

main88715-26080iLH104,105,114,115,RZH104,114..RHD199008-199308

main88715-26090iLH104,114,RZH104,114..LHD199008-199308

main88715-26140iLH102,104,105,11#,RZH104,105,11#..LHD199308-199508

main88715-26150iLH125..ARL;LH102,103,11#,RZH102,103,104,112,113,114,125..RHD199308-199508

main88715-26210iLH113,125..RHD..(03S,06S,14S)..STD;LH102,103,112,114,115,RZH102,103,104,11#,125..RHD199508-199808

main88715-26220iLH102,104,11#,RZH10#,11#..LHD199508-199808

main88715-26330iRZH103..03S..GEN200308

main88715-26340iRZH105,115..STD..CIS;LH174,RZH113..LHD..(03S,06S,10S);LH102,104,105,11#,166,176,RZH10#,112,114,115..LHD..(CBR,DSL)199808-200008

main88716-95N15iLH104,105,114,115,RZH104,114..RHD198908-199008

main88716-95N19iLH104,114,RZH104,114..LHD198908-199008

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-26060iLH104,105,114,115,125,RZH103,104,114,125..RHD..4D..SG198908-199308

NO.2

main88716-26070iLH104,114,RZH104,114..LHD198908-199308

NO.2

main88716-26250iLH102,104,105,11#,RZH104,105,11#..LHD199308-199508

NO.1

main88716-26260iLH125..ARL;LH102,103,11#,RZH102,103,104,112,113,114,125..RHD199308-199508

NO.1

main88716-26340iLH103,11#,RZH102,103,104,112,113,114..RHD..GEN199308-199404

NO.2

main88716-26380iLH103,113,125,RZH103,113,125..ARL199308-199608

NO.2

main88716-26450iLH102,104,105,11#,RZH104,105,11#..LHD199308-199508

NO.2

main88716-26570iLH102,103,11#,RZH102,103,104,11#..RHD..GEN199404-199608

NO.2

main88716-26740iRZH103,113..RHD..CBR;LH103,112,113,125,RZH102,112..RHD..STD199608-199808

DUAL AIR CONDITIONER,NO.1

main88716-26750iLH102,104,11#,RZH10#,11#..LHD199508-199808

NO.1

main88716-26840iLH102,104,105,11#,154,164,166,17#,RZH10#,11#,155..LHD199907-200508

NO.2

main88716-2F140iLH114,115,RZH102,104,114,115..RHD..SG199608-199703

NO.1

main88716-2F210iLH103,113,125,RZH103,113,125..ARL199608-199808

NO.1

main88716-2F230iRZH114..RHD199608-199808

NO.2

main88716-2F480iRZH103..03S..GEN200308

NO.1

main88716-2F490iRZH105,115..STD..CIS;LH174,RZH113..LHD..(03S,06S,10S);LH102,104,105,11#,166,176,RZH10#,112,114,115..LHD..(CBR,DSL)199808-200008

NO.1

main88716-2F500iRZH112..4D..06S199907-200108

NO.2

main88716-2F620iLH114,115,172,RZH103,104,114..RHD..4D..SG199808-199809

NO.2

main88716-95J01iLH102,112,RZH102,112..LHD198908-199308

NO.1

main88716-95J27iRZH103,113..GEN;LH102,103,112,113,RZH102,112..RHD198908-199308

NO.1

main88716-95J75iLH102,103,112,113,RZH102,103,112,113..RHD..STD198908-199308

NO.2

main88716-95J76iLH102,112,RZH102,112..LHD198908-199308

NO.2

main88716-95N10iLH104,105,114,115,125,RZH103,104,114,125..RHD..4D..SG198908-199308

NO.1

main88716-95N18iLH104,114,RZH104,114..LHD198908-199308

NO.1

8889795J09VALVE, COOLER MAGNET

main88897-95J09

9011908354

main90119-08354

9017908126

main90179-08126

13 parts on this diagram · 49 diagrams in section
