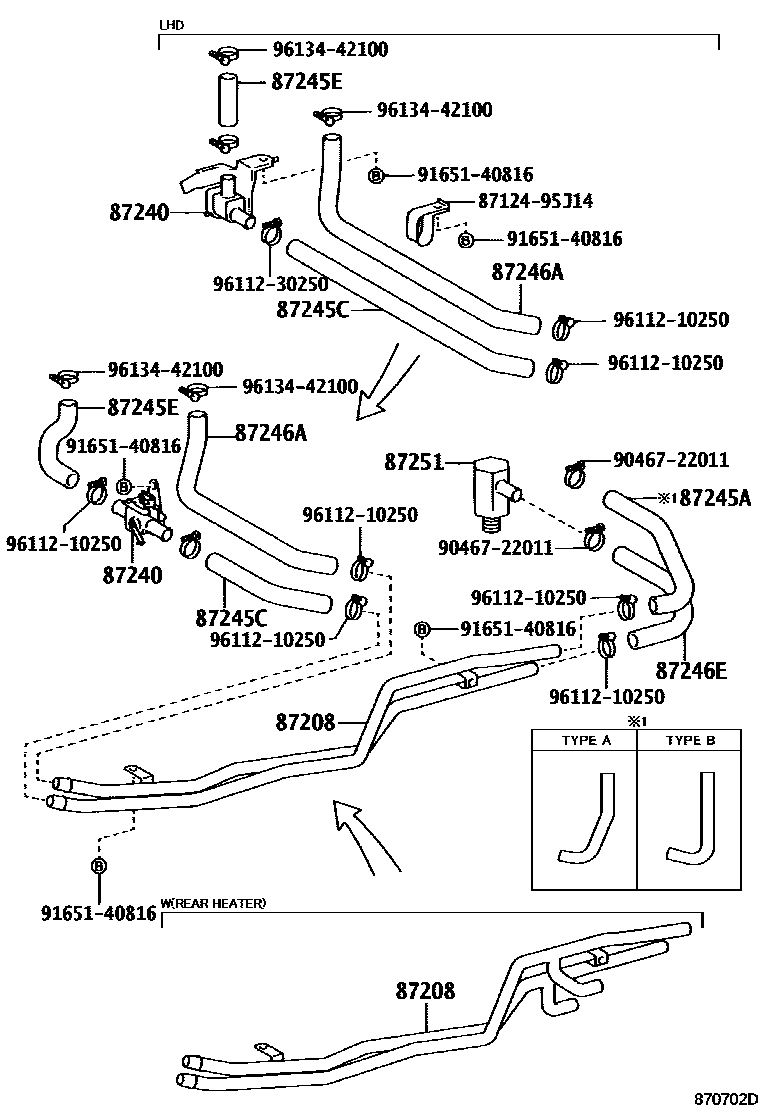

HEATING & AIR CONDITIONING - WATER PIPING

0001 1FRONT 0002 1FRONT 0004 1FRONT 0005 1REAR 0006 1REAR 0008 1REAR 0009 1REAR 0010 1REAR 0011 1REAR 0012 1REAR 0013 1REAR 0014 1REAR 0015 1REAR 0017 1REAR 0018 1REAR

87208PIPE SUB-ASSY, HEATER WATER

main87208-26760iLH115,184..GCC,GEN;LH102,103,104,112,113,114,125,172..STD199808-199907

main87208-26770iLH104,114,115,174..LHD..STD..(GCC,GEN); LH105,115,166,176..CIS199907-200001

W(FRONT & REAR HEATER)

main87208-26810iLH103..4D..GEN; LH172..RHD..STD;LH103,11#,125,162,174,184..RHD200001-200006

main87208-26850iLH114..RHD200001

W(FRONT & REAR HEATER)

main87208-2F300iLH103..4D..GEN; LH172..RHD..STD;LH103,11#,125,162,174,184..RHD199907-200001

main87208-2F310iLH114,115,174..RHD199907-200001

W(FRONT & REAR HEATER)

main87208-2F320iLH104; LH164,166,174,176..CIS200001-200408

W(FRONT & REAR HEATER)

main87208-2F330iLH102,104..03S,12S200001-200408

main87208-2F340iLH172..06S..GL200011-200108

main87208-95J49iLH102,104,105,112,114,115..09S,12S,15S198908-199808

W(REAR HEATER)

main87208-95J50iLH112..GL,STD;LH10#,113,114,115,125..ARL,GCC,GEN199411-199508

87240VALVE ASSY, HEATER WATER

main87240-26050iLH174..LHD..STD;LH102,104,105,11#,164,166,172,176,RZH10#,11#,155..LHD199907-200508

main87240-26060iLH125..ARL;LH102,103,11#,RZH102,103,104,112,113,114,125..RHD199308-199411

main87240-26090iRZH112..4D..06S199907-200108

main87240-95J07iLH102,104,112,114,RZH102,104,112,114..LHD198908-199308

main87240-95J08iLH10#,11#,125,RZH10#,11#,125..RHD198908-199308

87245AHOSE, HEATER WATER, INLET A

main87245-2F470iLH172..06S..GL..DSL200011-200602

TYPE B:REFER ILLUST.

main87245-95J46iLH184;LH10#,11#,125,16#,17#..STD199907-200001

TYPE A:REFER ILLUST.

main87245-95J48iRZH103..RHD..EFI;RZH105,115..STD..CIS;RZH102,104,112,114,125;RZH103,105,113,115..CBR;RZH113..4D..(03S,06S,09S)..EFI198908-200108

87245CHOSE, HEATER WATER ,INLET C

main87245-26200iLH102,103,11#,125,RZH102,103,104,112,113,114,125..RHD199411-199508

main87245-2F440iRZH112..4D..06S199907-200108

main87245-95J50iLH10#,11#,125,RZH10#,11#,125..RHD198908-199308

main87245-95J60iLH174..LHD..STD;LH102,104,105,11#,164,166,172,176,RZH10#,11#,155..LHD199907-200508

main99556-20200iRZH102,103,104,114,115..RHD..4D..SG199508-199907

*H,L=160

87245EHOSE, HEATER WATER, INLET E

main87245-26290iLH112,113,172..RHD..SRF..STD;LH102,103,114,115,125,184,RZH102,103,104,11#,125..RHD199508-199907

main87245-2F180iLH172..06S..GL..DSL200011

main87245-95J49iLH10#,11#,125,RZH10#,11#,125..RHD198908-199308

main99556-30100iRZH105,115..STD..CIS;RZH103,105,115..LHD..CBR;LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD198908-200008

*H,L=95

87246AHOSE, HEATER WATER, OUTLET A

main87245-2F490iRZH103..03S..GEN200011-200108

main87245-95J05iLH102,103,11#,125,RZH102,103,104,112,113,114,125..RHD199411-199508

main87245-95J45iLH174..LHD..STD;LH102,104,105,11#,164,166,172,176,RZH10#,11#,155..LHD199907-200508

87246EHOSE, HEATER WATER, OUTLET E

main87245-2F630iLH103..4D..GEN; LH184;LH10#,11#,125,16#,17#..STD200001-200006

main87245-95J47iLH172..LHD..5D..GEN;LH162,184..(03S,15S)..GEN;LH172,174..SRF..4D..STD..GEN..DSL;LH10#,11#,125,166,176..03S,06S,12S,14S,15S200006

main99556-30300iRZH103..03S..GEN; RZH112..4D..06S200104-200108

*H,L=270

87251JOINT OR UNION, WATER HOSE THROUGH

main87251-26040iLH103..4D..GEN; LH172..GL;LH102,112,174..LHD..(06S,10S);LH103,113,115,125..ARL,GCC,GEN199907-200008

main87251-89113iLH113..STD;LH10#,112,114,115,125..ARL,GCC,GEN199508-199808

8712495J14CLAMP, HEATER

main87124-95J14

9046722011

main90467-22011

9165140816

main91651-40816

9611210250

main96112-10250

9611230250

main96112-30250

9613442100

main96134-42100

14 parts on this diagram · 15 diagrams in section
